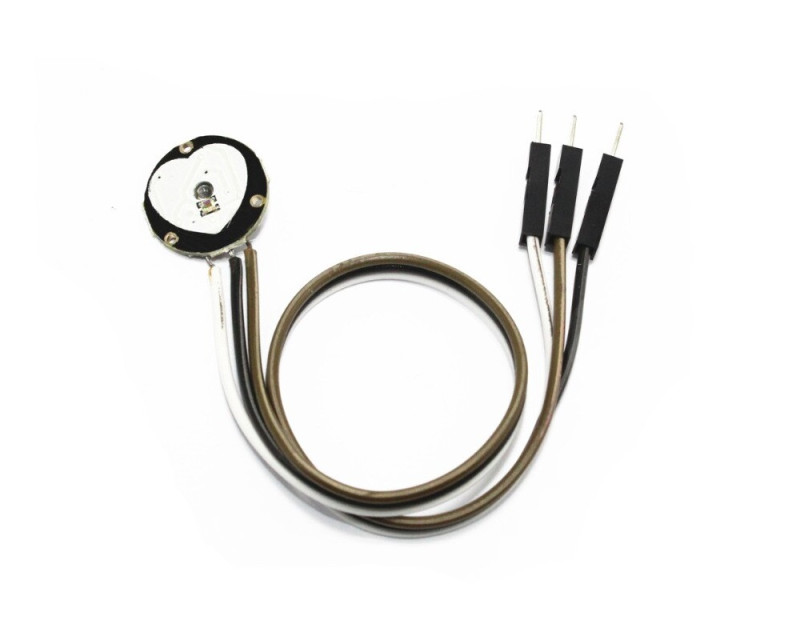

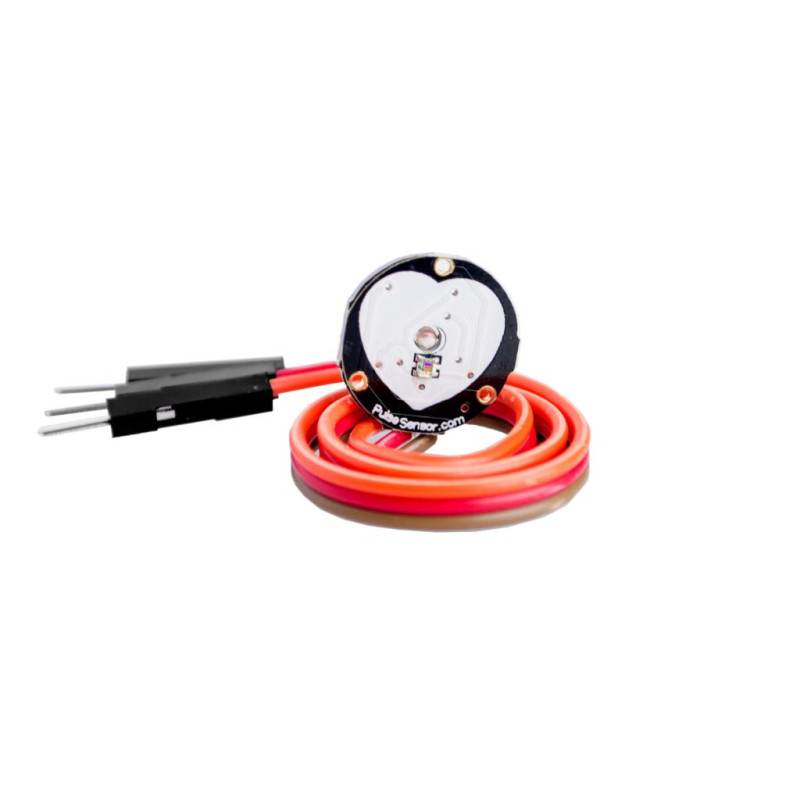

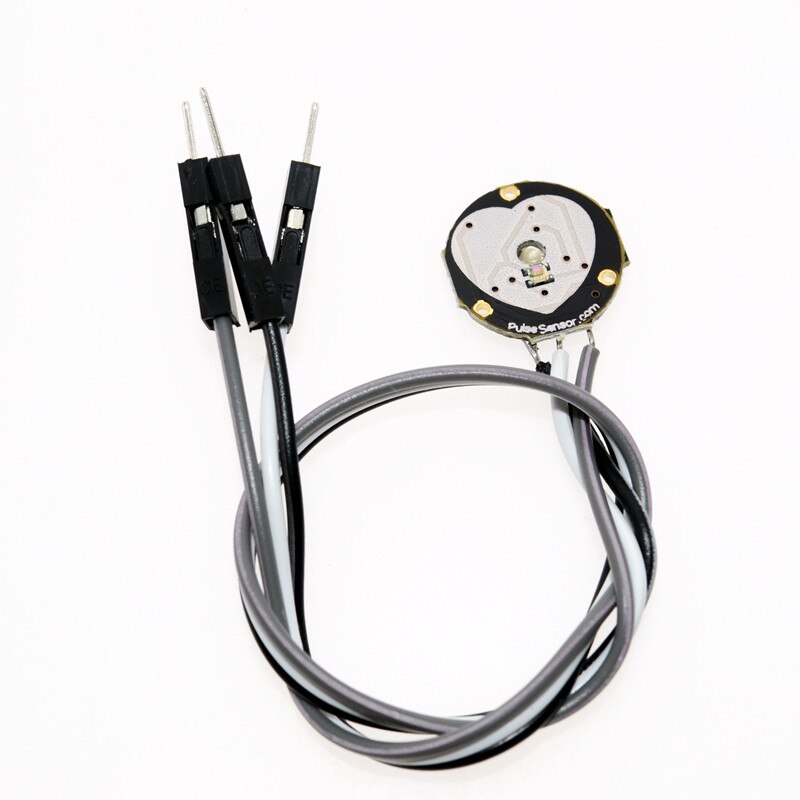

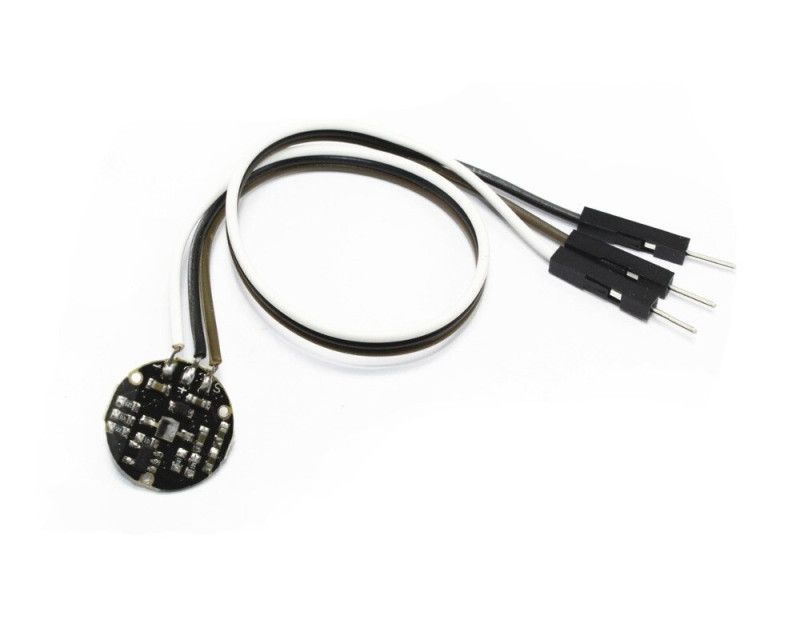

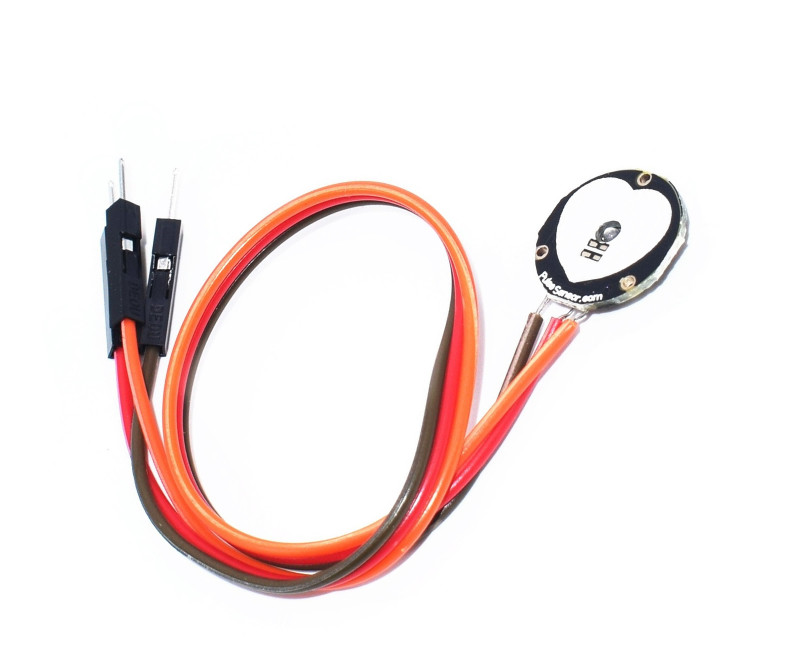

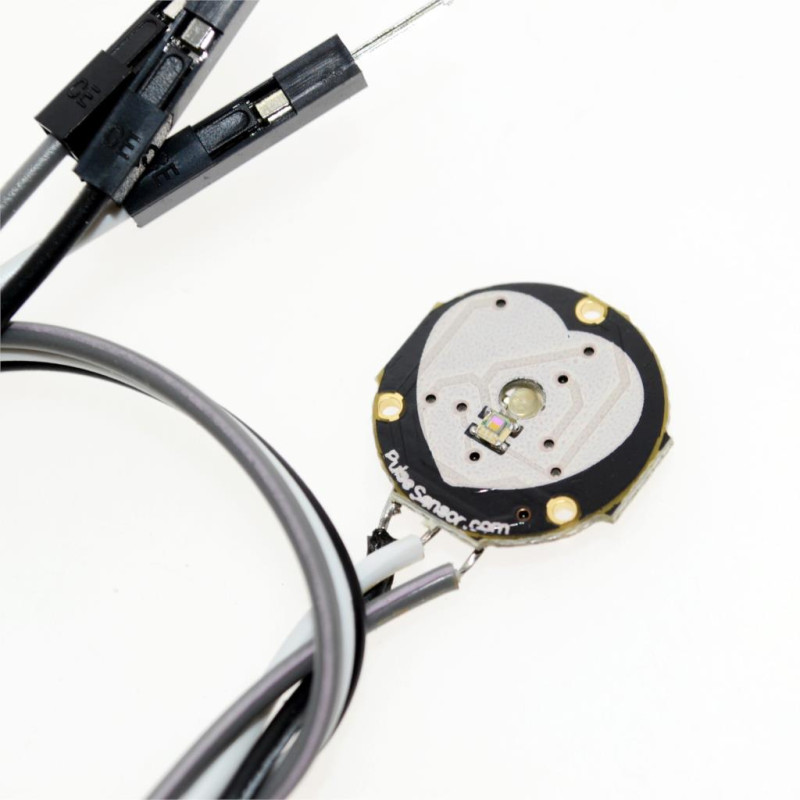

Pulse Heart Rate Measurement Sensor

Pulse Heart Rate Measurement Sensor

3V 5V Optical Finger Heartbeat BPM Meter Photoplethysmography PPG Heart Rhythm Arduino

The product does not make stable measurements. Its performance is not good during the measurement and transmission of the analog signal. The results need to be cleaned with software filters.

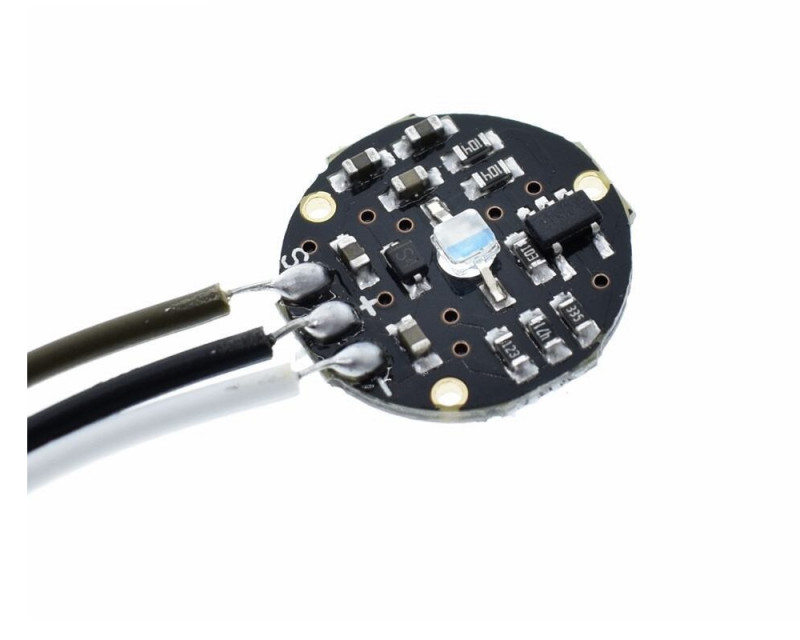

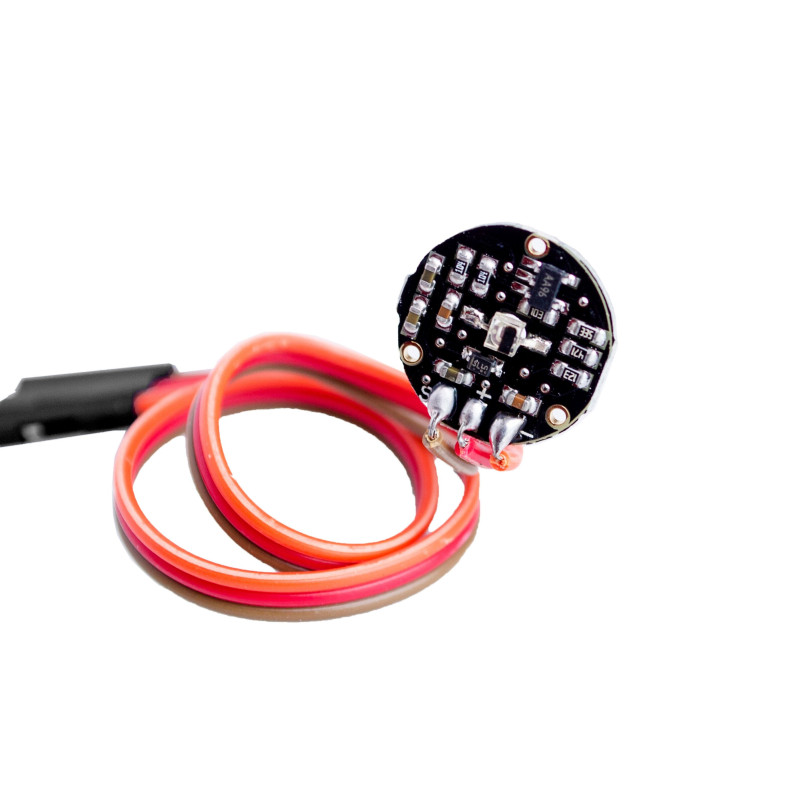

     The Pulse Sensor is a small sized module that performs instant heart rate measurement from the fingertip or earlobe by optical method. It works with a supply between Dc 3V-5V. It works according to the photoplethysmography (PPG) principle: the LED on it sends light under the skin, the photodiode measures the reflected light and produces a pulse signal by detecting the change in blood volume in the capillaries. The op-amp and RC filter circuit behind it amplifies the signal and clears it of noise. It is a plug-and-play module with analog output that can be used directly with Arduino and other microcontrollers. It can be used in health monitoring, wearable devices, sports/entertainment applications, education and hobby projects.

Attention:

• It is recommended to fix the sensor on the finger or ear for accurate measurement.
• Do not raise the supply voltage excessively (especially above 5V).
• On microcontrollers such as Arduino, analog readings give more stable results with filtering.

Features:

•    Pulse Heart Rate Measurement Sensor
•    Working principle: photoplethysmography (PPG), optical pulse measurement
•    Measurement range    30 to 240 BPM (typical)
•    Led wavelength 609nm
•    Supply voltage: Dc 3V-5V
•    Current consumption: 4mA (at 5V)
•    Output type: analog signal (S pin)
•    Number of pins: 3 pin (VCC, GND, S-Signal)
•    It has a male ended jumper cable about 20cm long

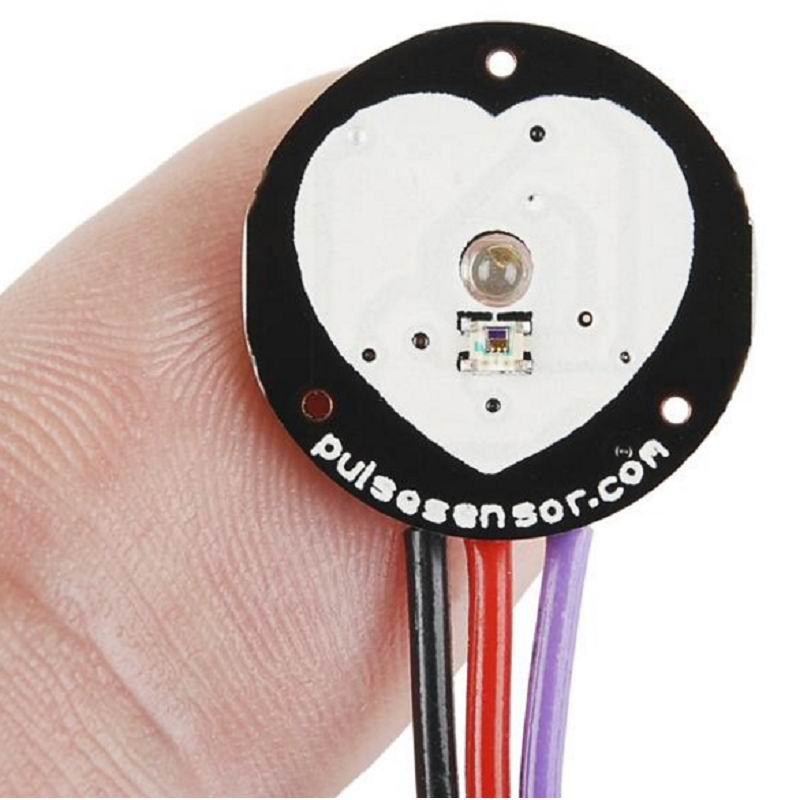

•     It can be used for pulse measurement from the ear or fingertip
•     Operating temperature: -40C to 65C
•     Sensor diameter: 16mm
•     Thickness: 3.17mm
•     Weight    ~10gr

Areas of use:

• Arduino and microcontroller based pulse meter projects
• Biomedical education and project development
• BPM (beats per minute) display device prototypes
• Photoplethysmography (PPG) research and experiment sets
• Education and electronic prototyping

Pin description:

• GND: Ground
• VCC: Dc 3.3V 5V
• Signal: Analog sensor output

Package contents:

• 1 Piece Pulse Sensor
• 1 Piece  20cm  Male female dupont cable
