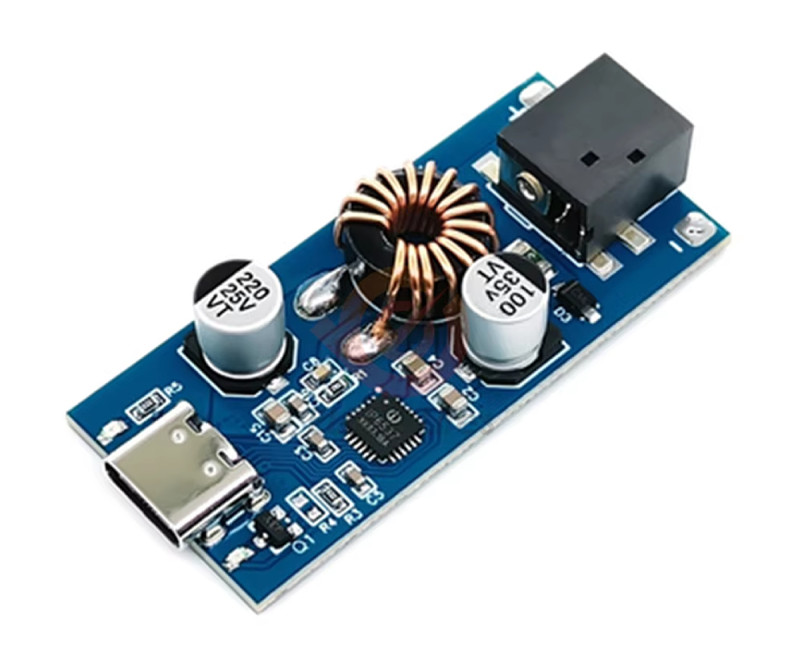

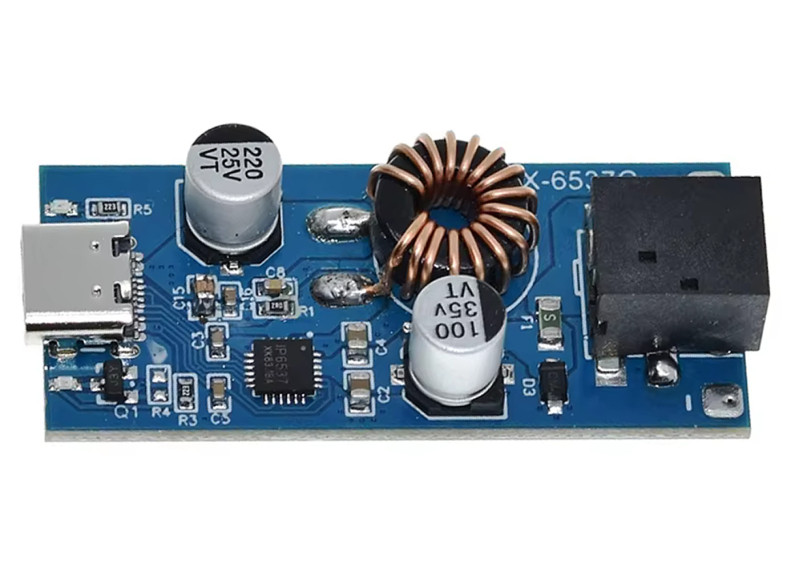

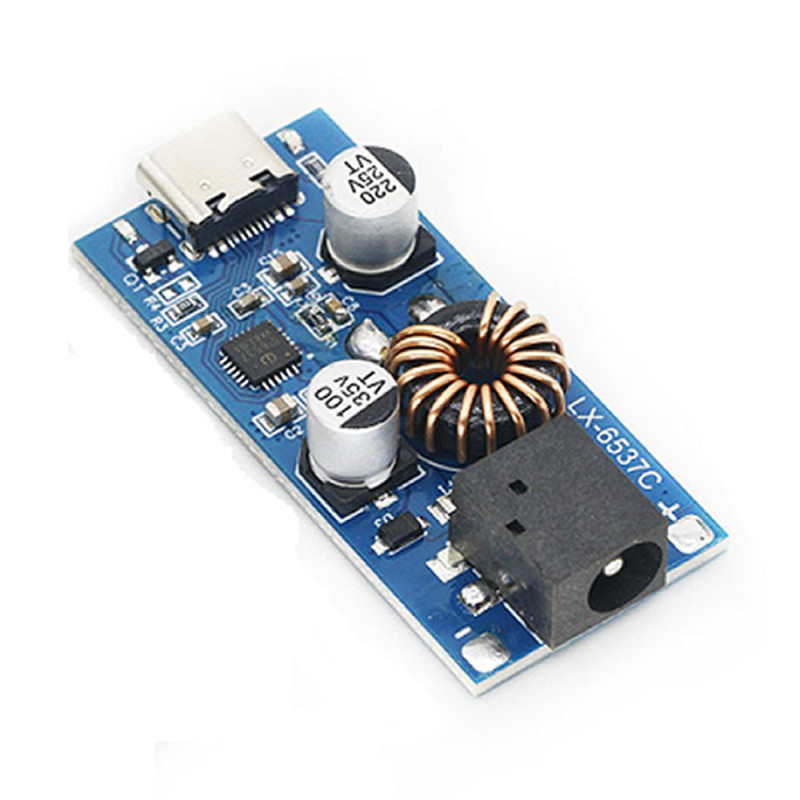

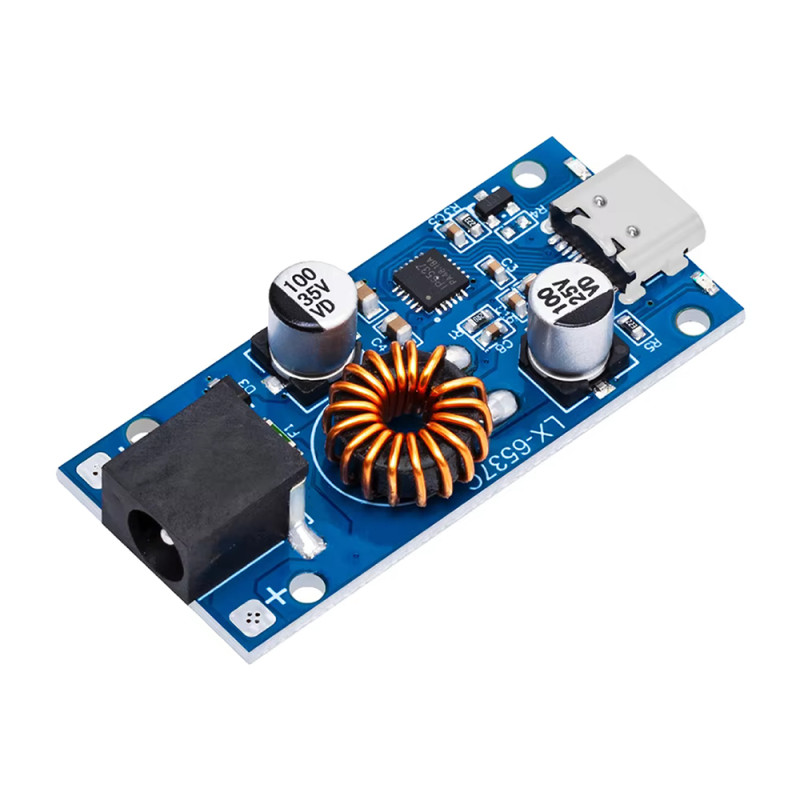

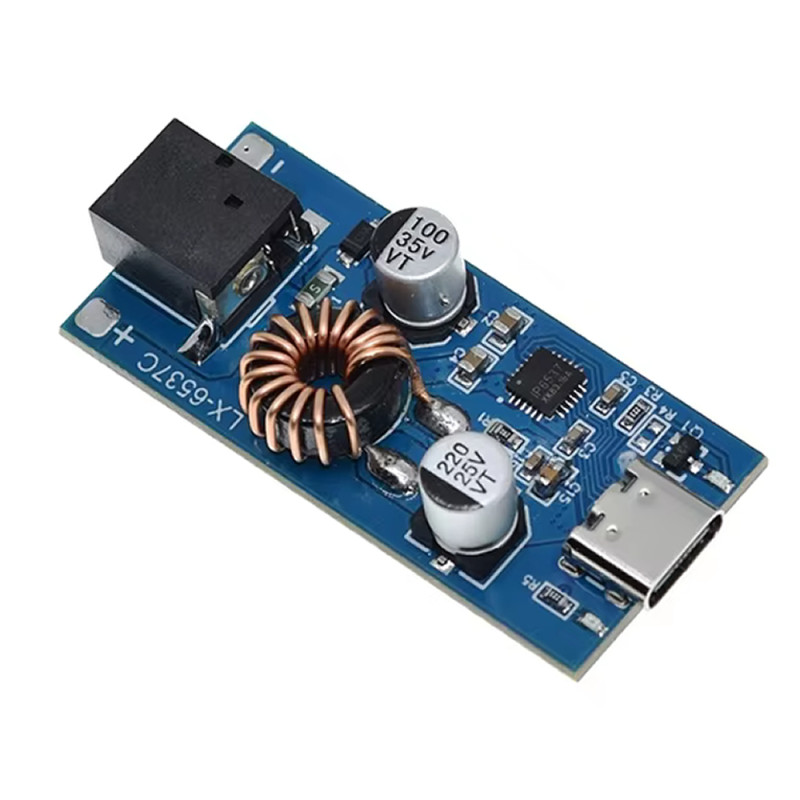

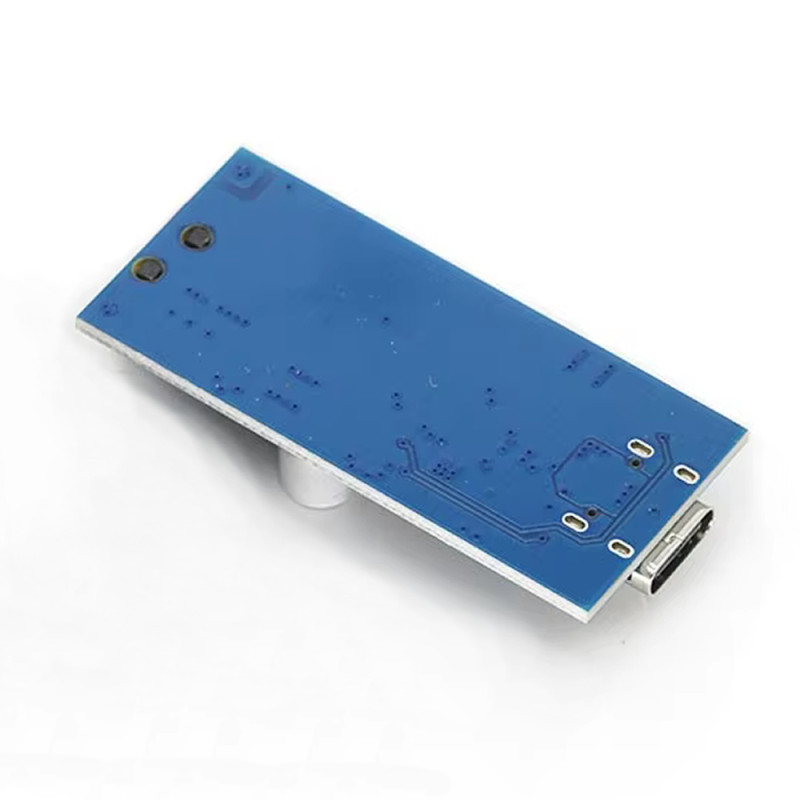

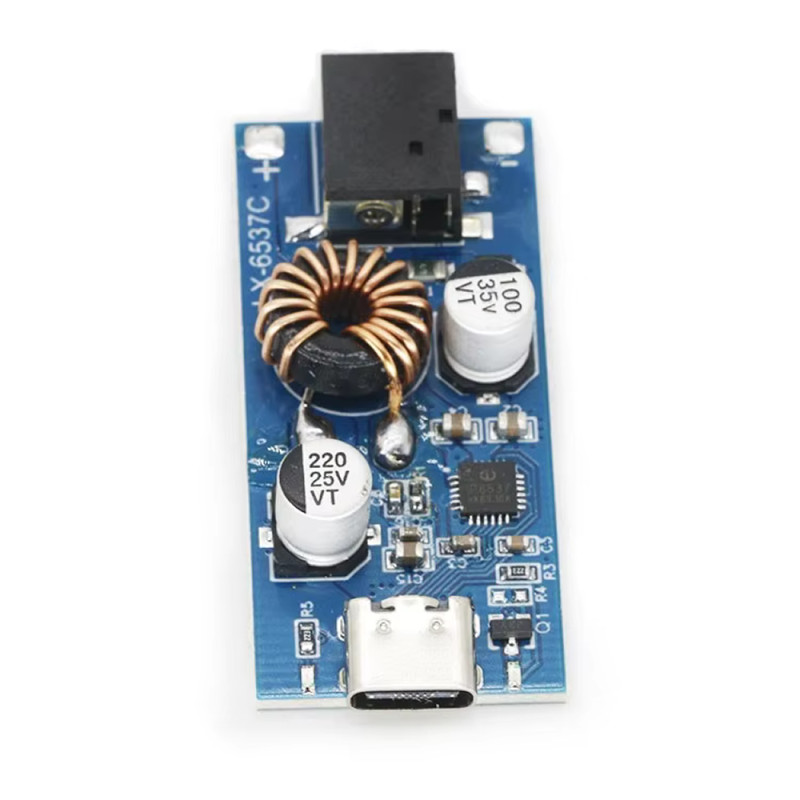

LX-6537 Module

LX6537 Adapter to Type C Usb 3A 30W Fast Charging Module

QC3 QC2 Mobile Phone DC 7V / 32V Voltage Step Down Apple Samsung Xiaomi SCP FCP PD

     It is a charging module with a 30w power usb type-c output using the supply it takes from the adapter input. It steps voltage down, it does not step voltage up. High quality materials are used. This product has a design that can work in cars.

     There are many different phone brands and various charging protocols associated with them. It supports many protocols such as Qc2/3, bc1.2, apple pd, samsung, mtkpe 1/2, scp, fcp etc. It can perform 30W high speed charging. Pd charging support can only be via type-c sockets. The charging support of this module with a type-c socket is higher compared to other modules. High speed charging supports of companies such as Xiaomi, huawei, oppo are not found in many modules.

Features:

• Input voltage: DC 7.1V to 32V
• Output current: 3A max.
• Power:  30W
• 2.1mm adapter power input socket
• -+   power connection input pads
• Type-C usb output socket
• Charging supports: BC1.2, Apple PD, Samsung AFC 9V, 12V protocol, Qualcomm QC2.0 and QC3.0, MTK PE 1.1 and MTK PE 2.0, SFCP, Huawei FCP
• High quality material
• 2 pieces indicator led.
• Operating temperature:   -20C  / 65C
• Color: Blue

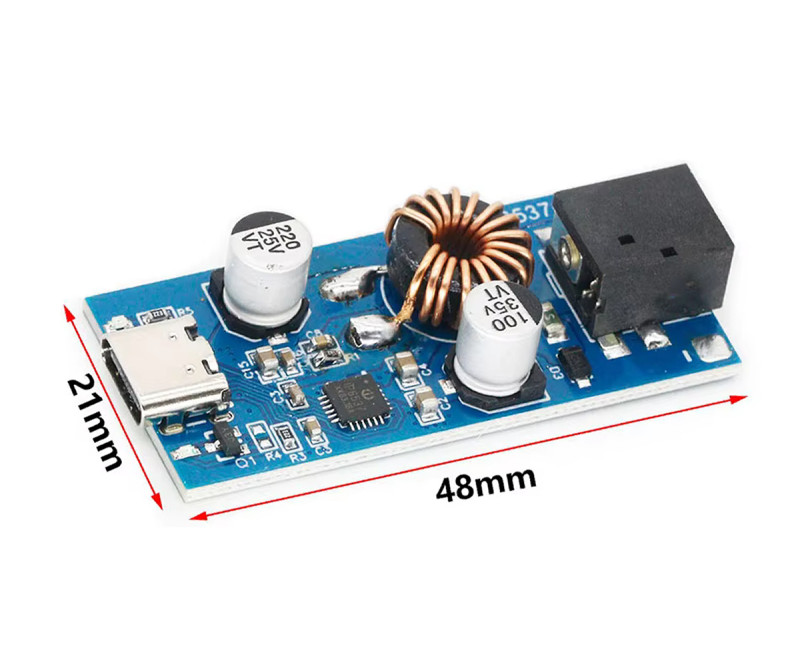

• Dimensions: 21.5mm x 47.5mm x 9.5mm
• Weight:  9gr

Package contents

•    1 Piece LX-6537 Module
