16mm Metal Push Button High Head BT1603

16mm Metal Panel Mount High Head Push Button NO

DC 6A 12V AC 3A 250V IP67 Waterproof Momentary Push Button Start Control Automation

     2 pin metal push button switch. IP67 waterproof protection, can be used in wet or dusty environments. It has a maximum switching capacity of 3A 250V. NO is normally open circuit. When the button is pressed, the switch becomes short circuit NC. When pressing ends, it becomes open circuit again.

Features:

• 16mm Metal Panel Button
• Head type: High
• Operating mode: Momentary press ( Momentary Self Return) It returns to its former state ( NO ) when released.
• Operating current voltage capacity: 6A 12V DC  /   3A 250V AC
• Contact form: 1 NO ( short circuit NC when pressed )
• Number of pins: 2
• Material: Metal / Plastic
• Protection type: IP67 / IK08
• Contact resistance:  less than 50mohm
• Insulation resistance:  1000Mohm
• Maximum press force: 3N / 5N
• Operating temperature: -20C  /  +55C
• Color: Metallic Gray
• Life: more than 10000

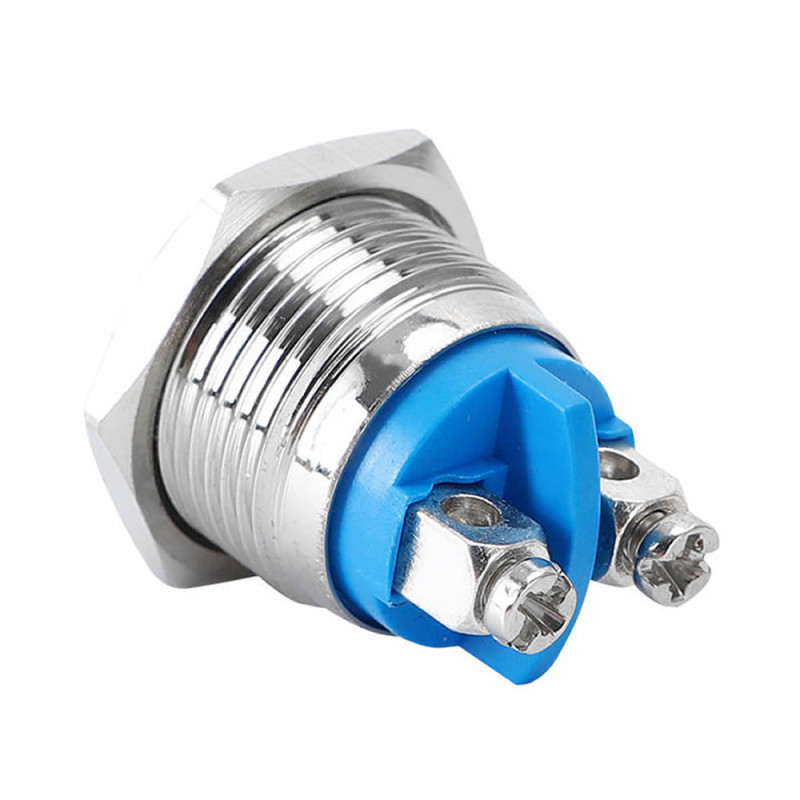

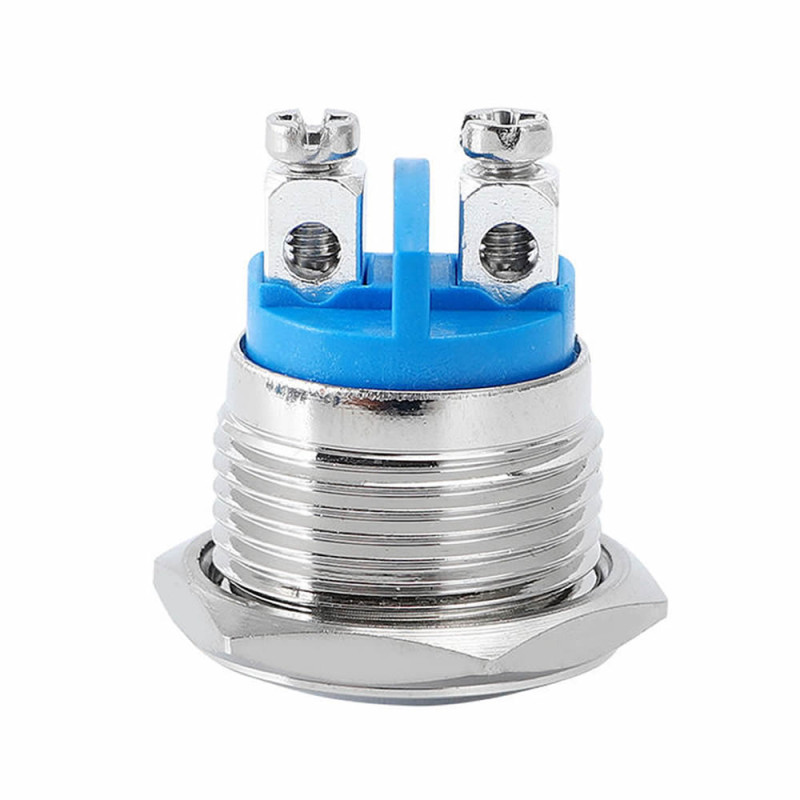

• Screw type terminal connection socket

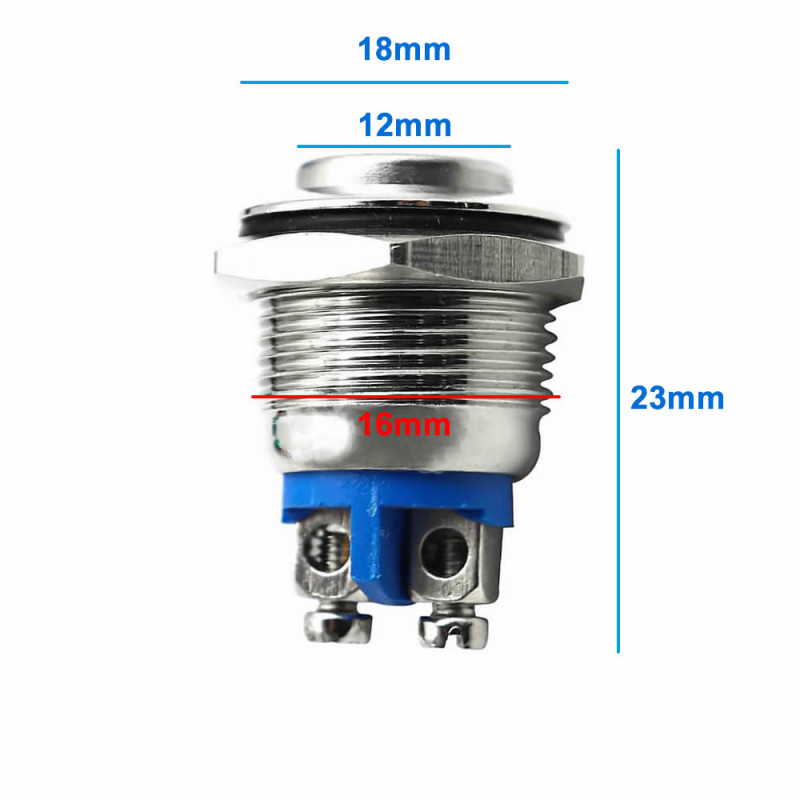

• Mounting hole: 16mm

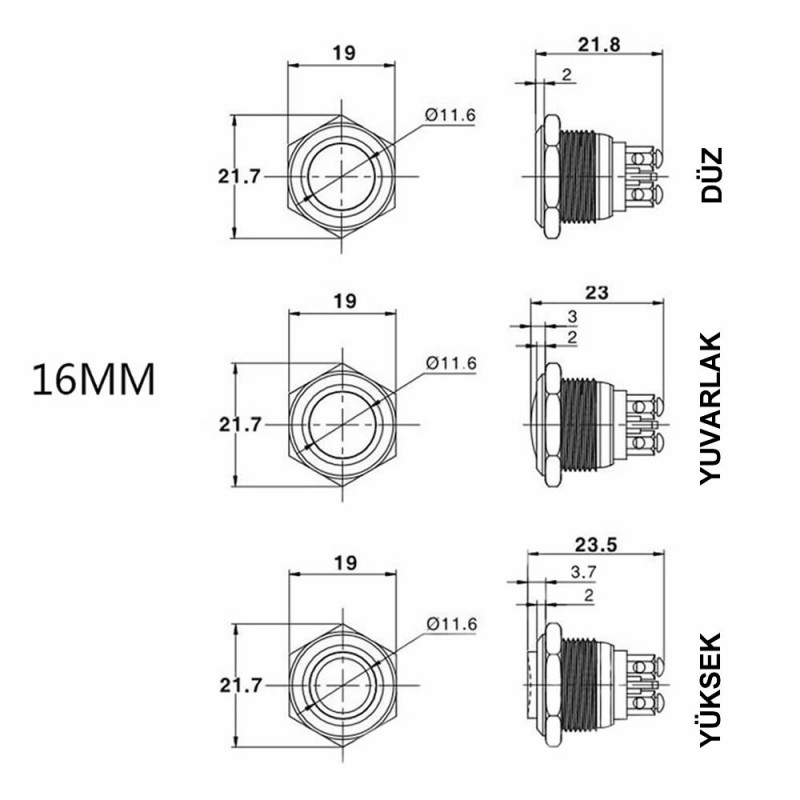

• Dimensions: 18mm x 23mm
• Weight: 11gr

Package Contents:

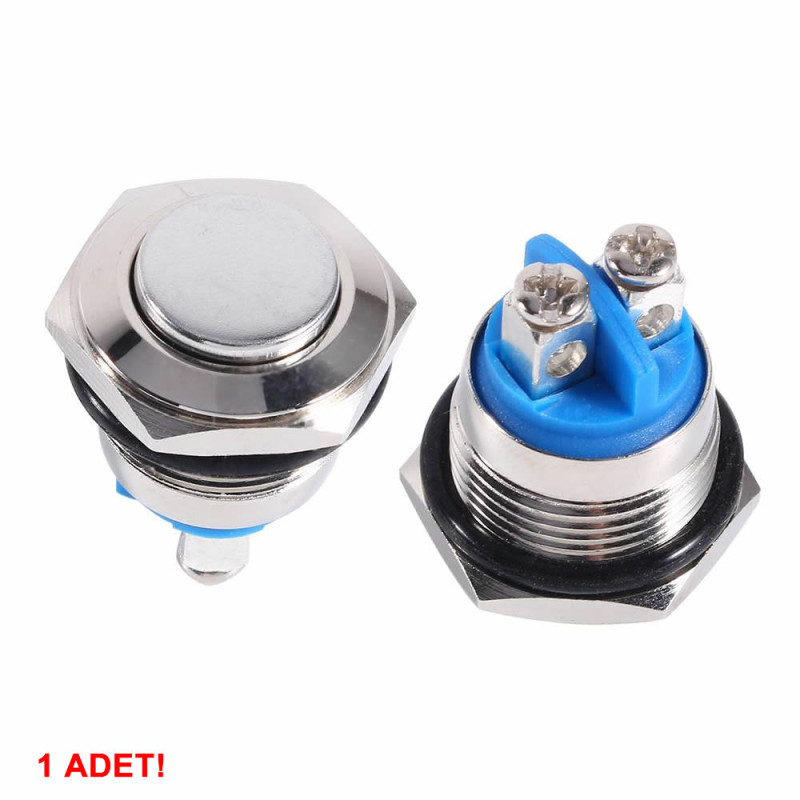

• 1 Piece 16mm High Head Metal Panel Button

.
