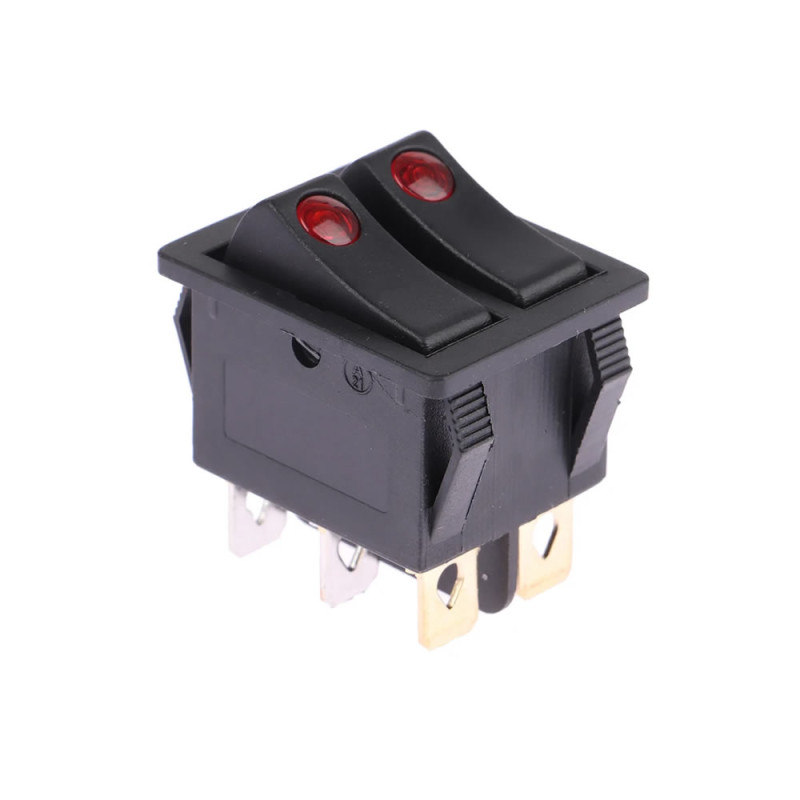

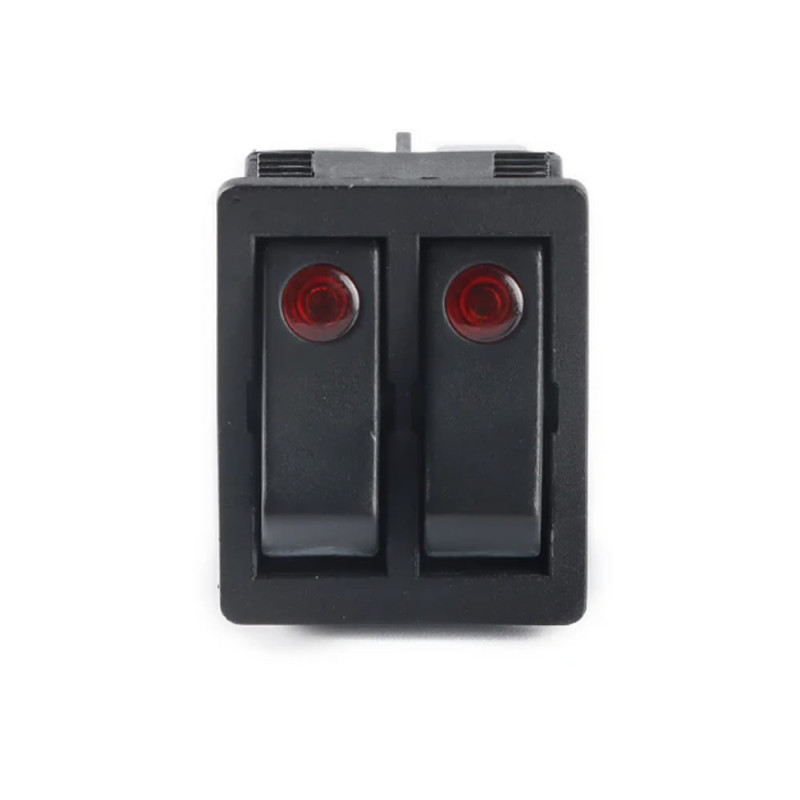

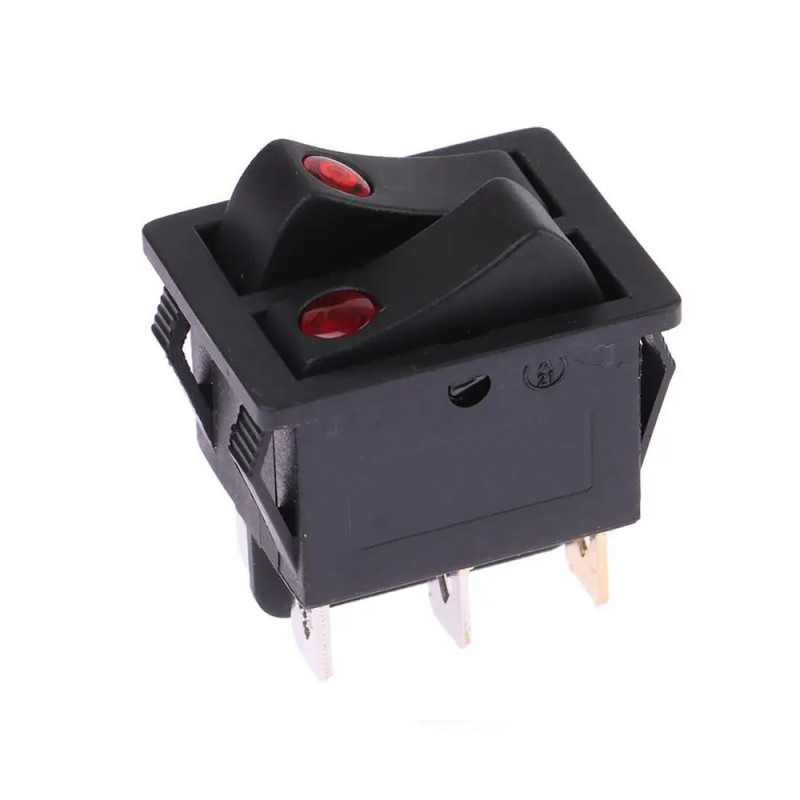

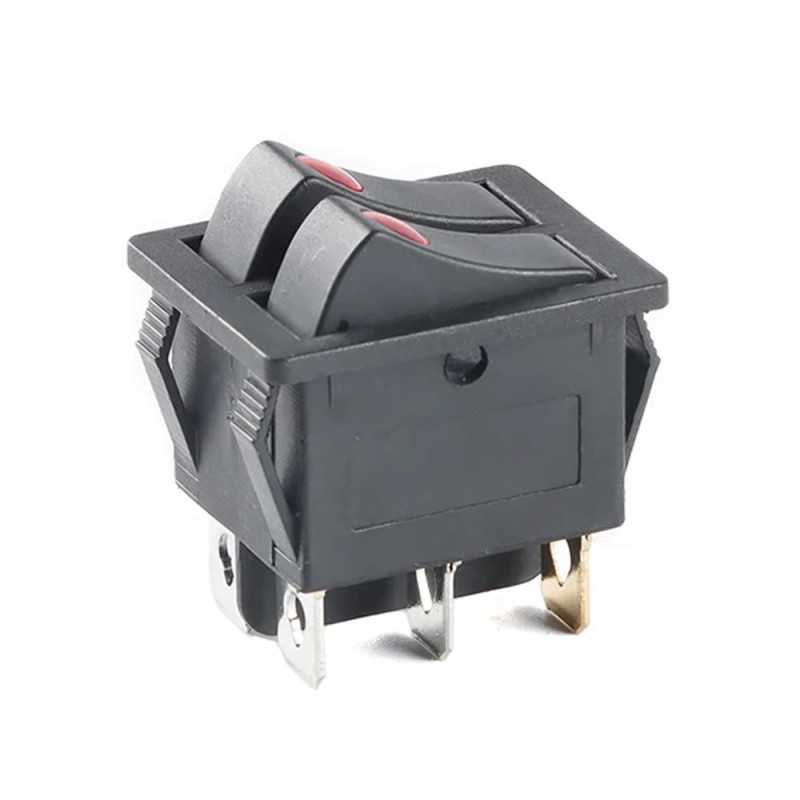

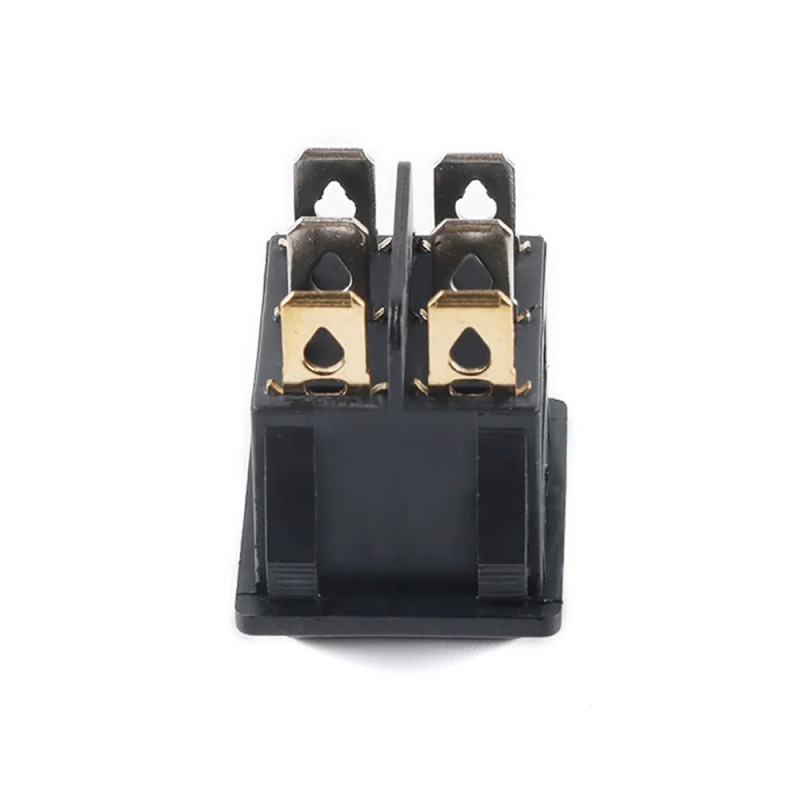

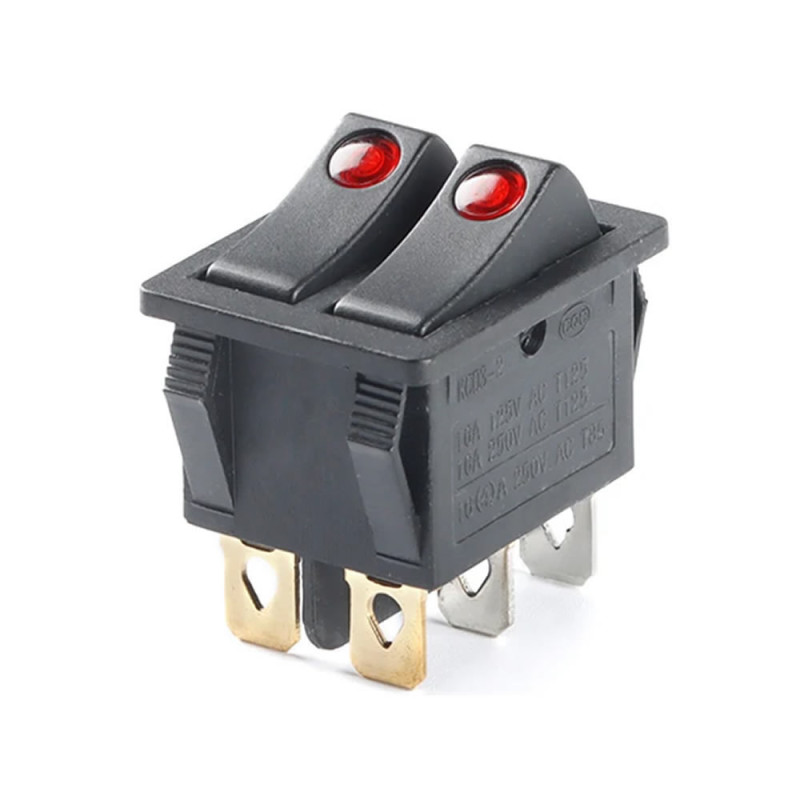

KCD3-2 6 Pin 16A 250V Dual Switch with LED

16A 250V On / Off 6 Pin LED Illuminated Dual Switch

Latch Type Button High Current Kcd3-2 Double Switch Panel Mount Box Power Control Machine Motor Car Switch

     It is a 6 pin dual switch with a high switching capacity of 16A 250V. There is a led light on the switch. It has a panel type mountable plastic box. It does not require screws or similar parts, it is easy to mount. It is widely used in many applications such as motors, machines, robots, cars, etc.

Features:

• KCD3-2 6 Pin 16A 250V Dual Switch with LED
• Maximum current: 16A ( 250V )   /   30A ( 125V )    /   10A DC 12V
• Maximum voltage: 250V
• Number of switches: 2
• Function: On / Off ( On / Off )
• Red color led indicator
• Action type: Latch / Latching ( Stays continuously in the selected state )
• Connection type: Solderable
• Material: Plastic /  Metal
• Contact resistance: 50mohm and below
• Operating temperature:  -25C  /   +75C
• Color: Black
• Life: More than 10000
• Panel type mountable box

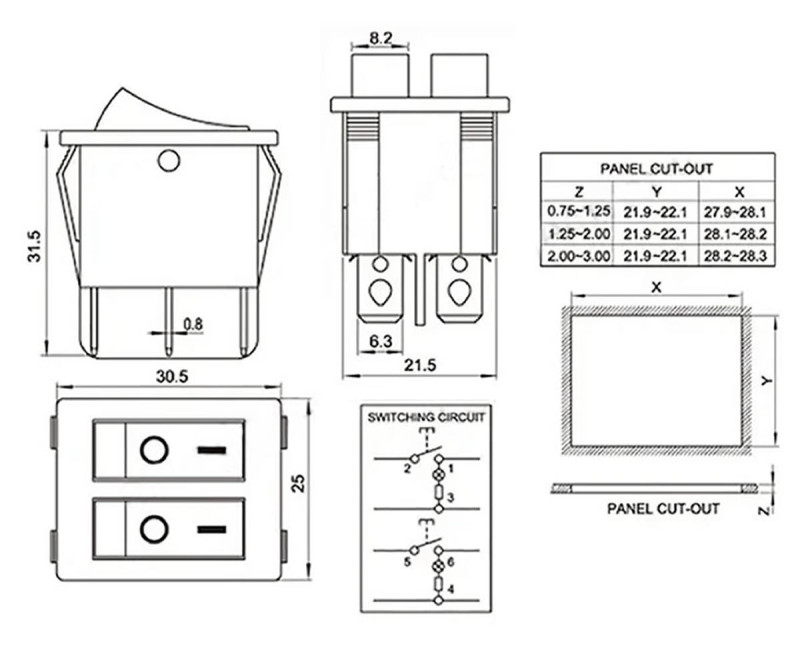

• Mounting size: 22mm x 28mm

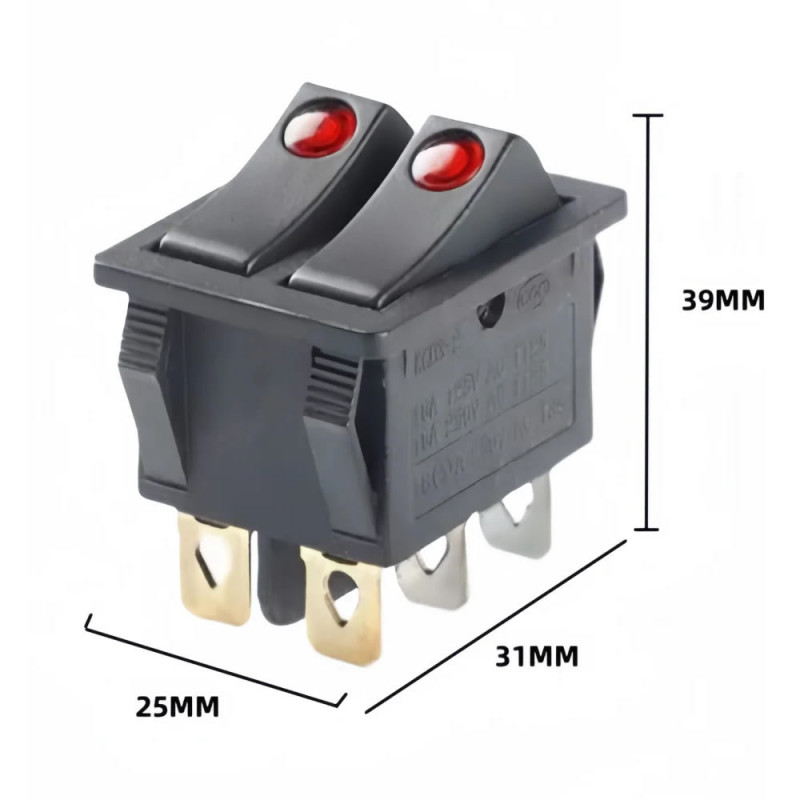

• Dimensions: 25mm x 30mm x 31mm
• Weight: 13gr

Package contents:

• 1 pcs KCD3-2 6 Pin 16A 250V Dual Switch with LED
