Mini Kcd1 2 Pin Button 90 Degree

Mini Kcd1 2 Pin Button 90 Degree Black Switch

Plastic On Off ON / OFF 3A 220V  6A 125V Latch Locking Rocker Right Angle

     2 pin plastic black mini switch that can be mounted at 90 degrees. It has 3A 220V switching capacity. There are I O markings on the button. "I" means the switch is short circuit and power goes to the related device. "O" means the switch is open circuit and power does not go to the related device. It stays in the position it is pressed.

Features:

• 2 Pin black switch Mini Kcd1 90 degree
• Operating voltage and current:   3A AC  220V   6A AC 125V  /  3A  DC 5V 12V
• Function: SPST ON-OFF
• Label: I= On   -   O= Off
• Number of pins:  2
• Movement type: Latch / latching ( stays continuously in I or O state )
• Material: Plastic /  Metal
• Resistance: 35mohm
• Operating temperature:  -25C  /  +65C
• Color: Black
• Life: more than 10000 on off operations

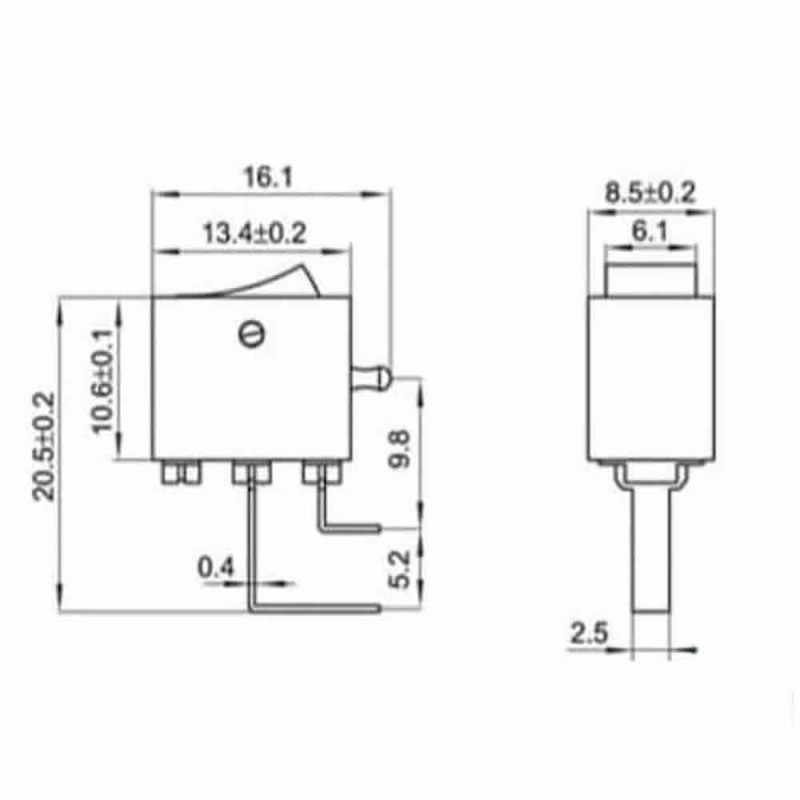

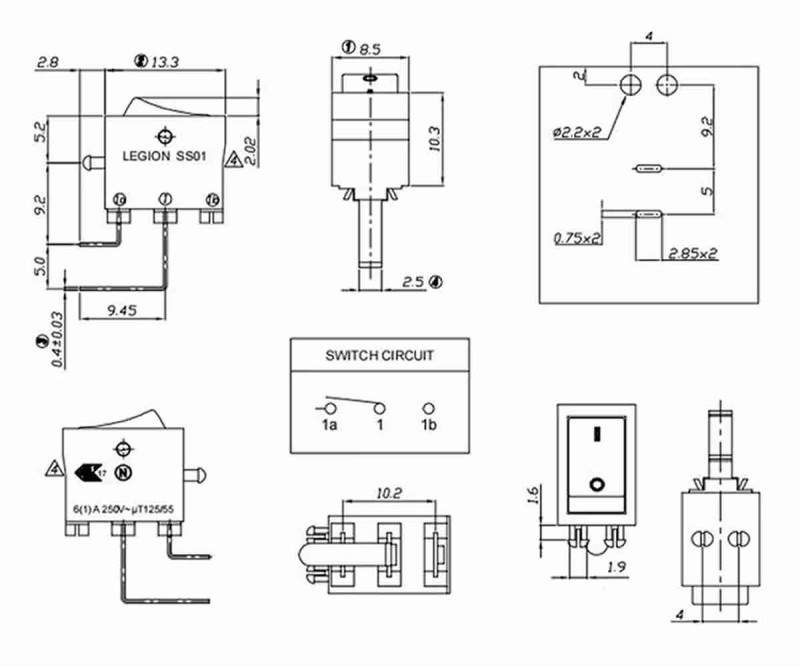

• Dimensions: 8.5mm x 13mm x 16mm
• Weight:  1.7gr

Package contents:

• 1 Piece Mini Kcd1 2 Pin Button 90 Degree
