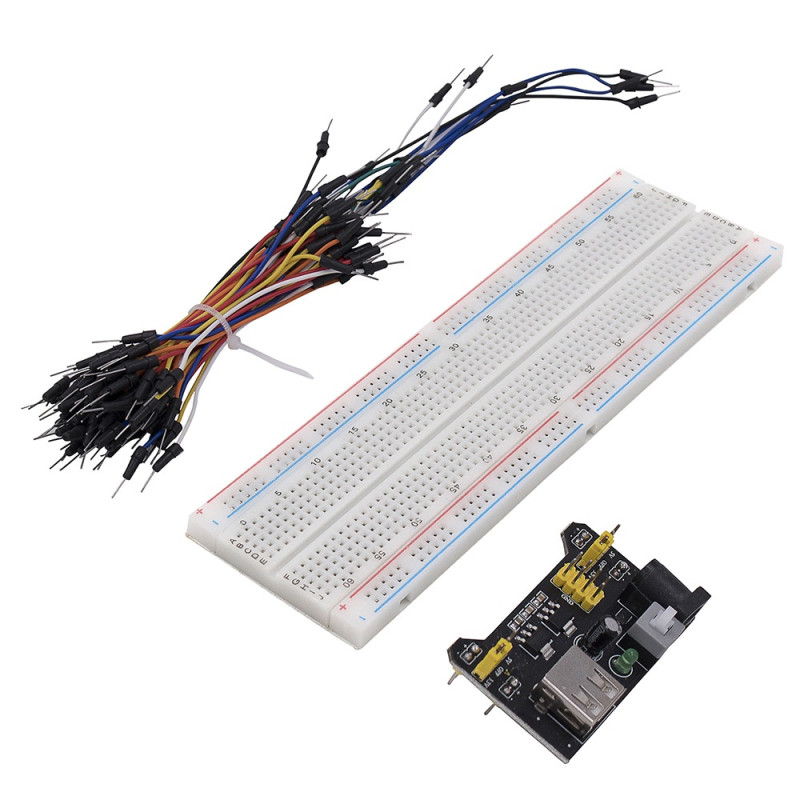

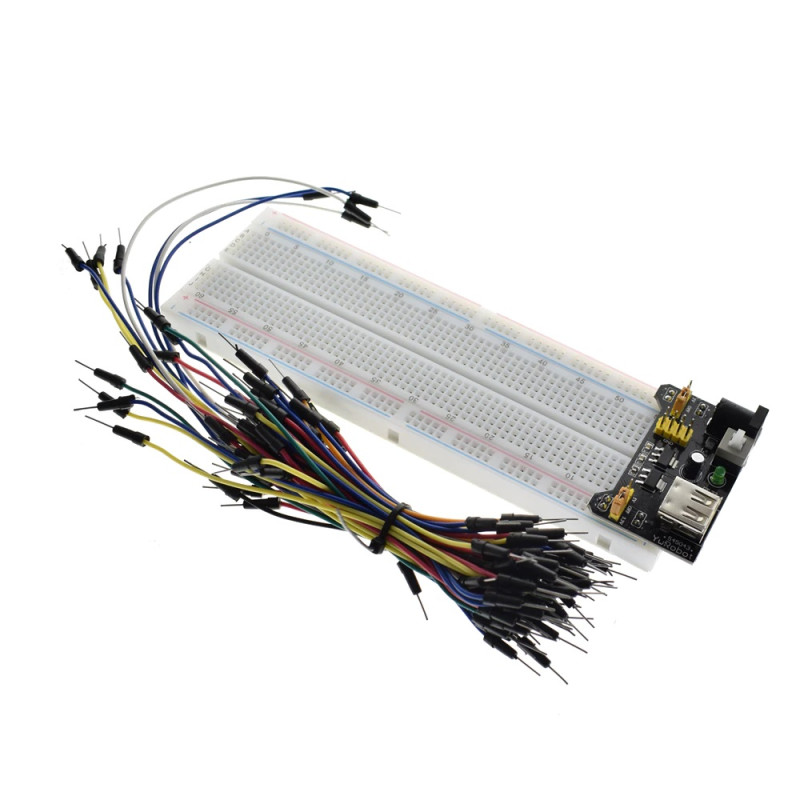

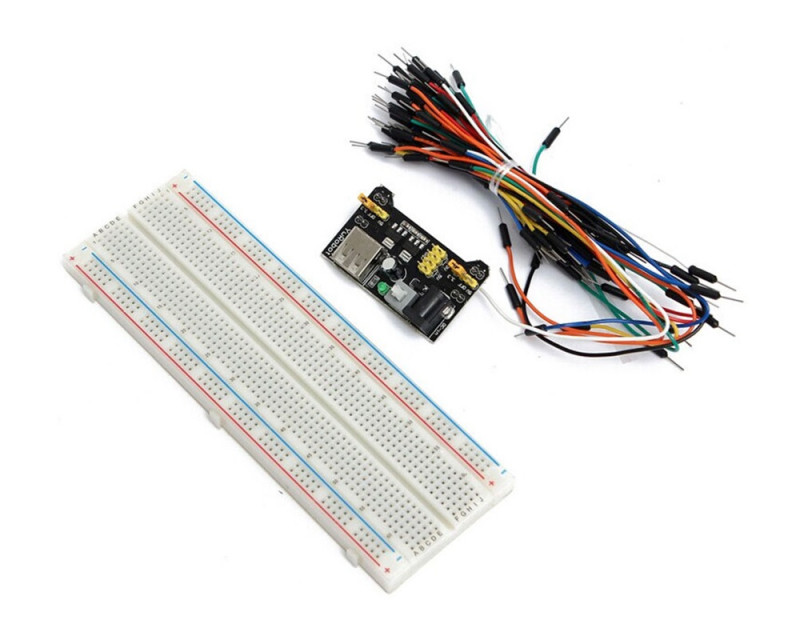

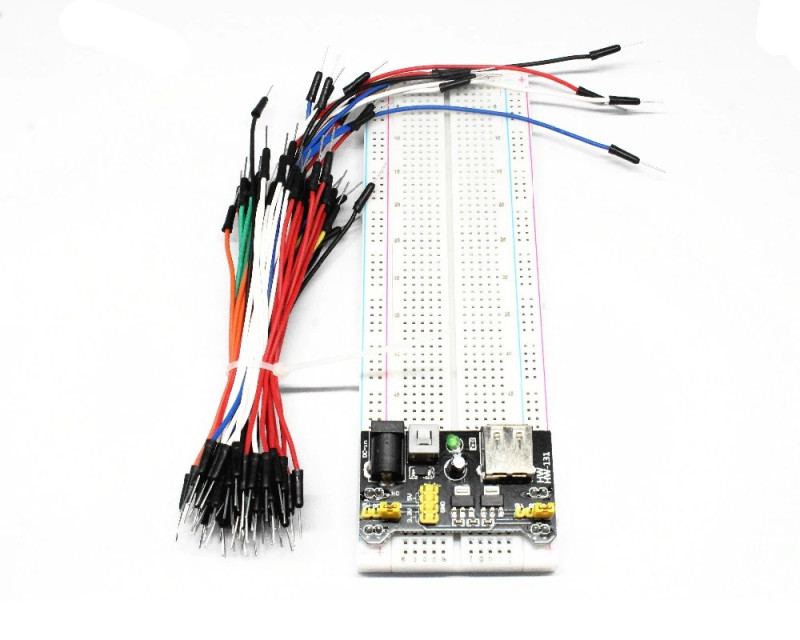

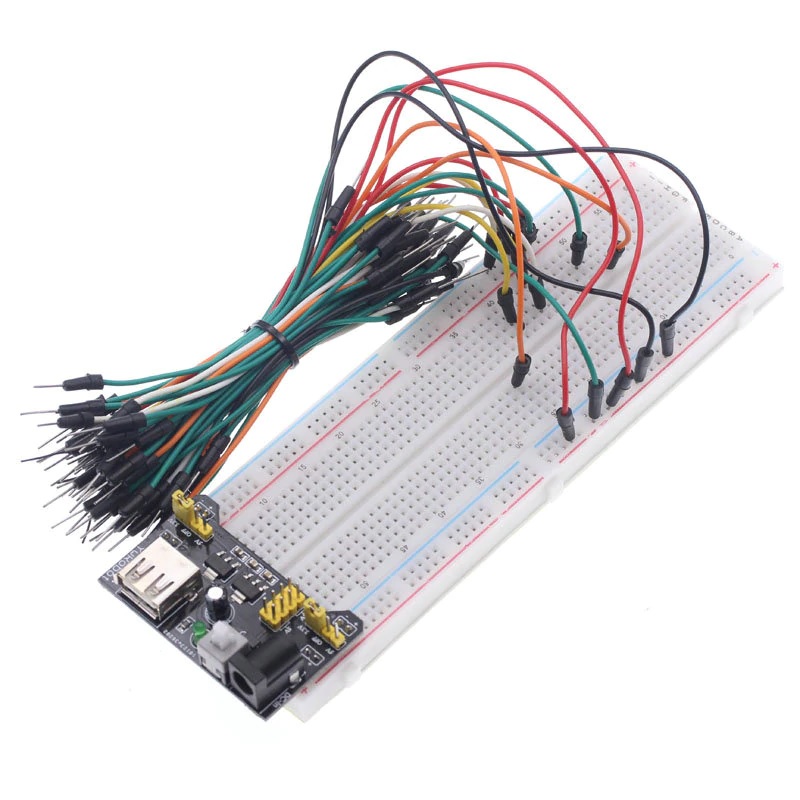

MB-102 Breadboard + 65 Piece Cable Set + Breadboard Power Supply

Breadboard   MB102

      Breadboards offer the possibility of inserting and testing electronic components easily and without soldering. It provides fast and reliable prototype work.

      The holes used for electrical connections are arranged at 0.1" (100 mil- 2.54mm) intervals. It is manufactured from ABS plastic material. A larger working area can be obtained by joining more than one board. There are 63 sets of holes short-circuited to each other in groups of 5. There are 2 of these rows of 63 groups of 5. Lengthwise, there are 4 rows consisting of 50 holes short-circuited to each other. These rows are ideal for creating supply lines.

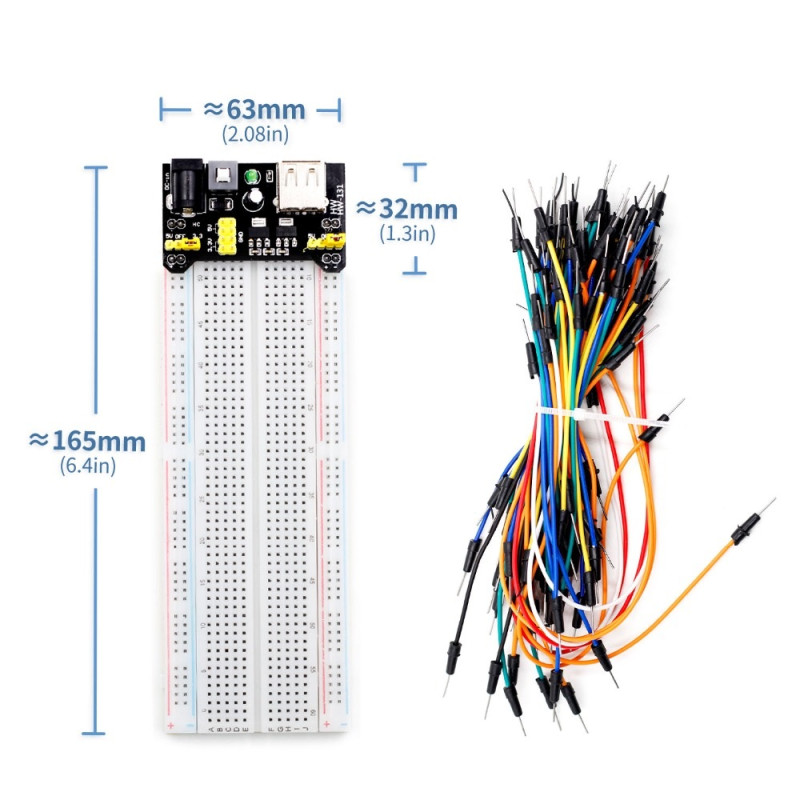

•     Dimensions: 165 x 53 x 8,5mm
•     2 rows  5x63 horizontal terminal hole cell ( total 630 )
•     4 rows short-circuited to each other 50 vertical hole cell ( total 200 )
•     Quality ABS Plastic material.
•     The cells are designed with a quality that allows components to be inserted and removed more than 5000 times.
•     Colored coordinate information for easy placement.
•     It offers an ideal working environment for high frequency and low noise circuits.
•     Phosphor bronze nickel wire rods inside the hole.
•     Wires with 0.3-0.8mm  thickness can be used.  (20-29awg)

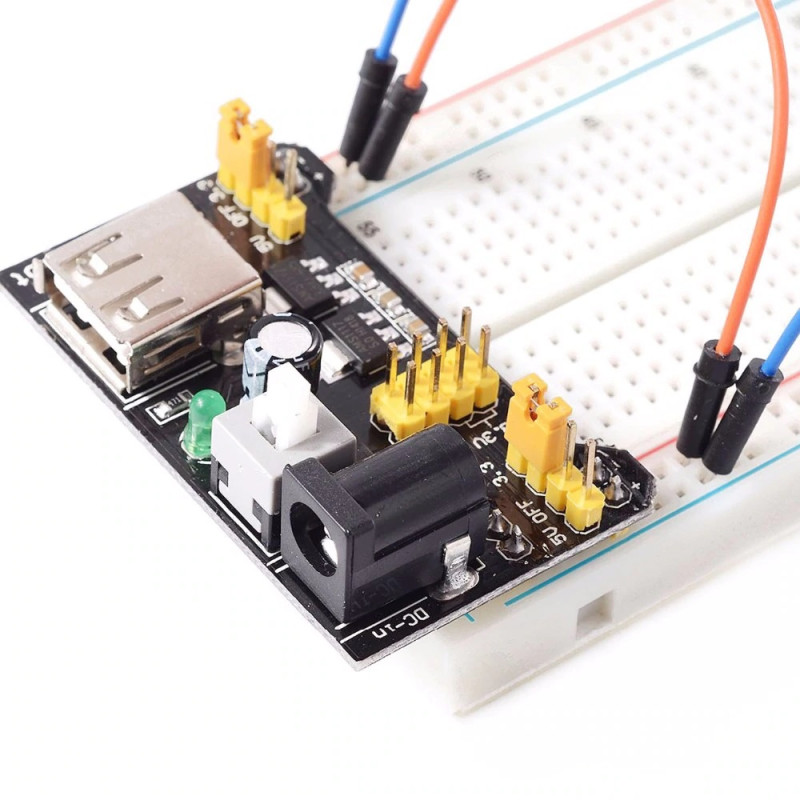

Breadboard 3.3V 5V Power Supply Module

• It is suitable for use with single Breadboards.
• 5V and 3.3V supply outputs
• Input voltage range 6.5-12V(DC) or USB supply
• Selectable output voltage 3.3V, 5V switchable
• Maximum output current is less than 700ma.
• Circuit on off button
• Output voltages can be set as 0V, 3.3V and 5V.
• 2 sided output headers.
• 2x4 Pin external supply output headers

65 Piece Male-Male Jumper Cable Set

     It is a set of 65 male male jumper cables manufactured in 4 different widely used lengths to be used with Breadboards. The products are available in the lengths and quantities below.

Package Contents:

•   1 Piece MB-102 Breadboard
•   1 Piece Breadboard 3.3V 5V Power Supply Module
•   49 Pieces 110mm cable
•    8 Pieces 150mm cable
•    4 Pieces 200mm cable
•    4 Pieces 240mm cable
