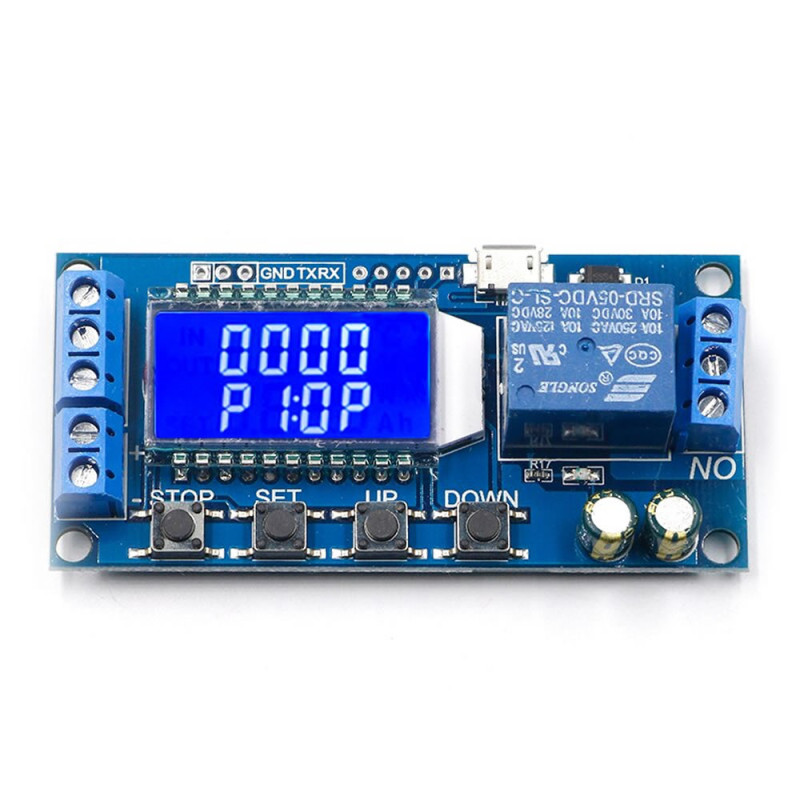

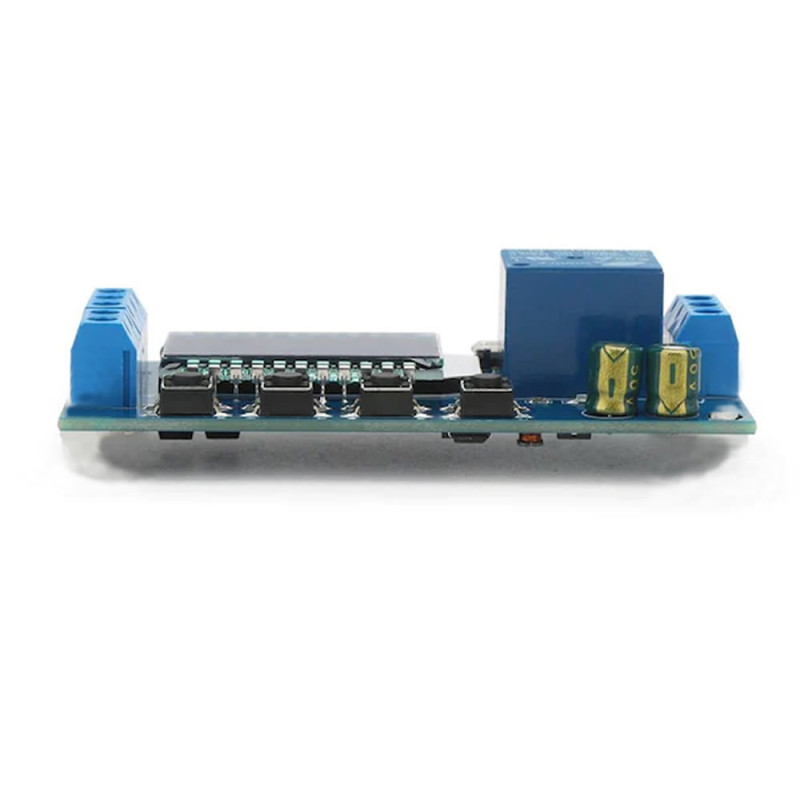

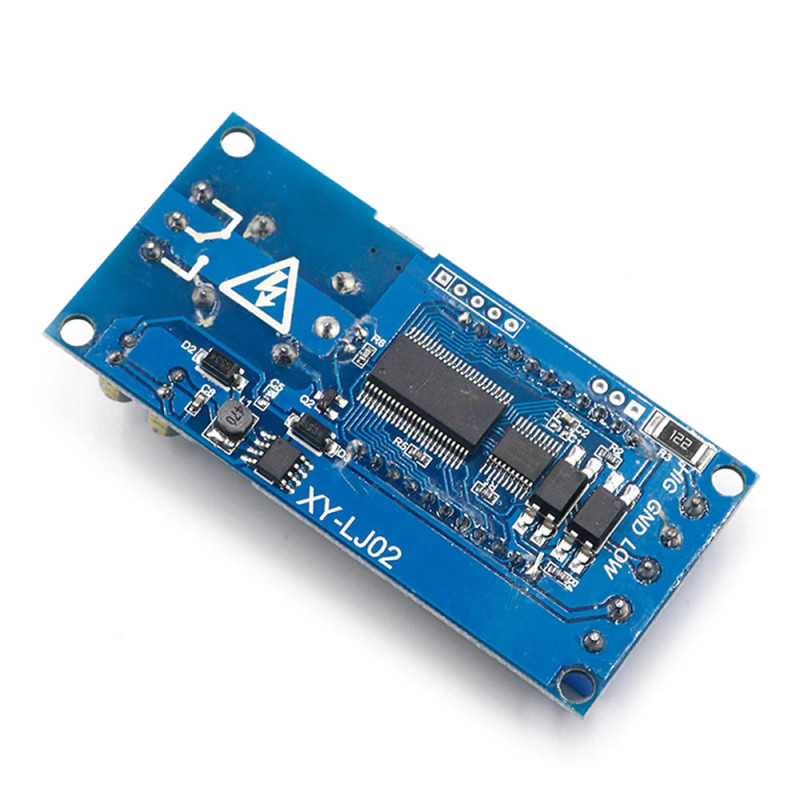

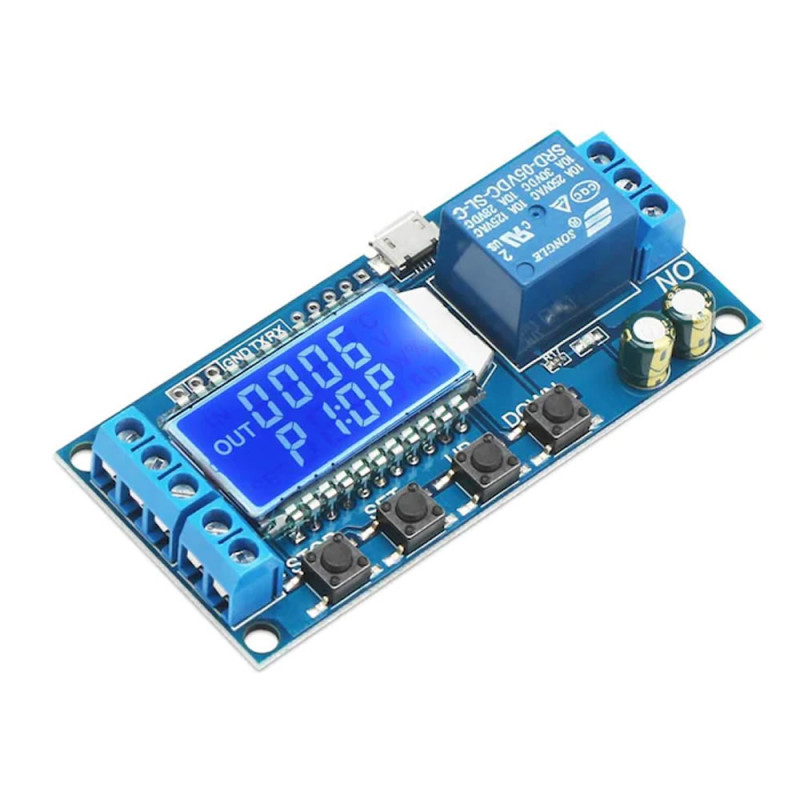

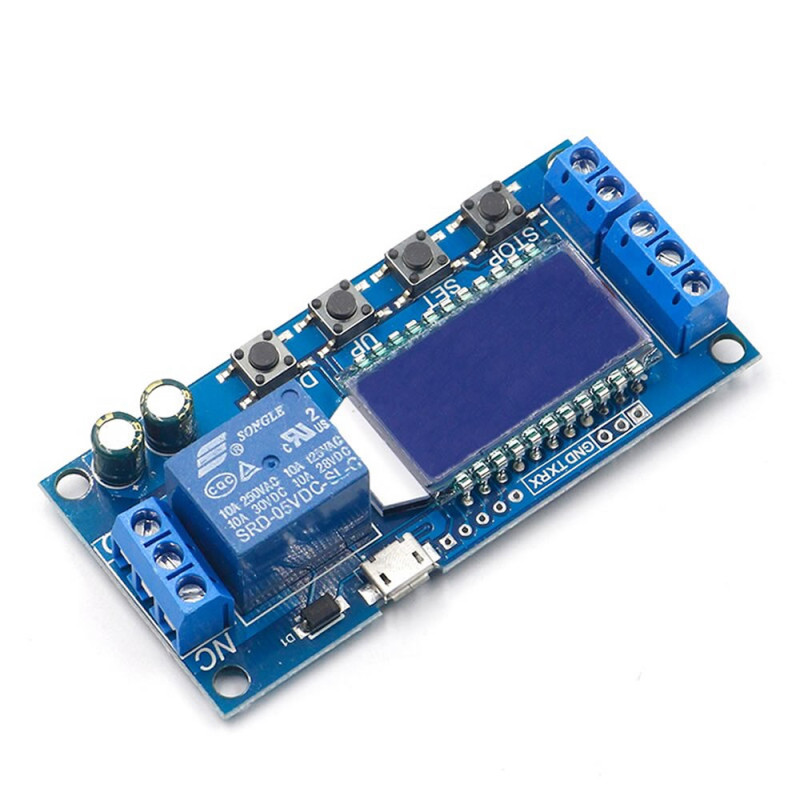

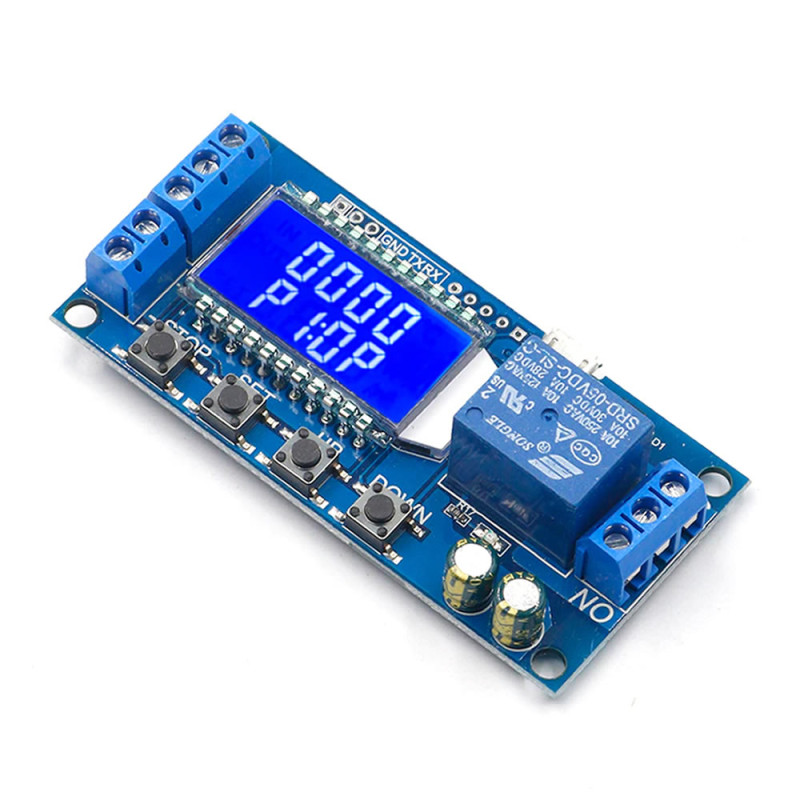

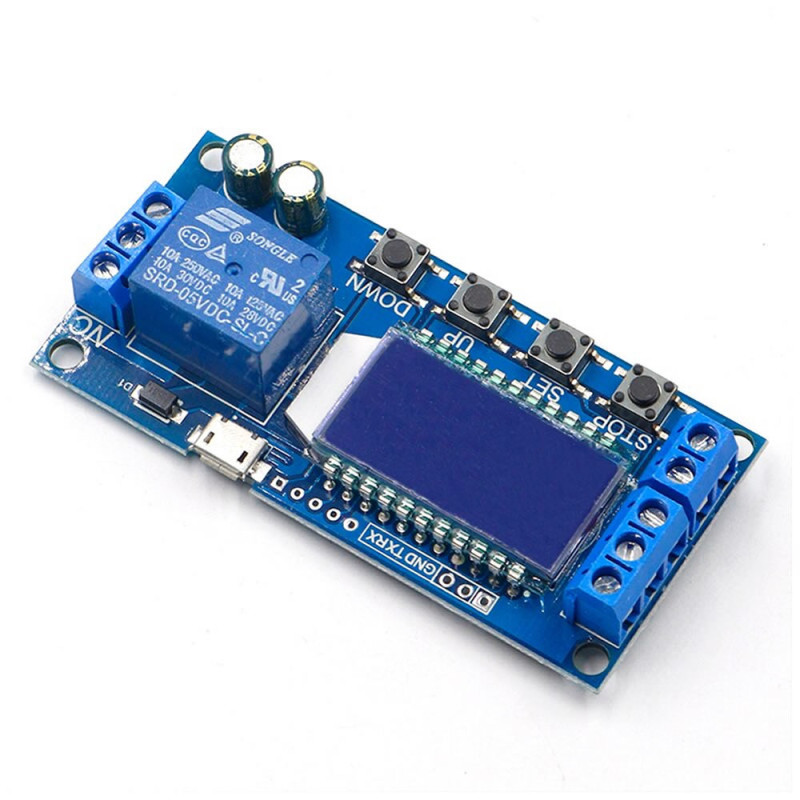

XY-LJ02 Time Adjustable Relay Module

XY-LJ02 Time Adjustable Relay Module

Micro Usb DC 5-30V Supply Timer Delayed Start 0.1sec 9999min Lcd Display 250V 10A

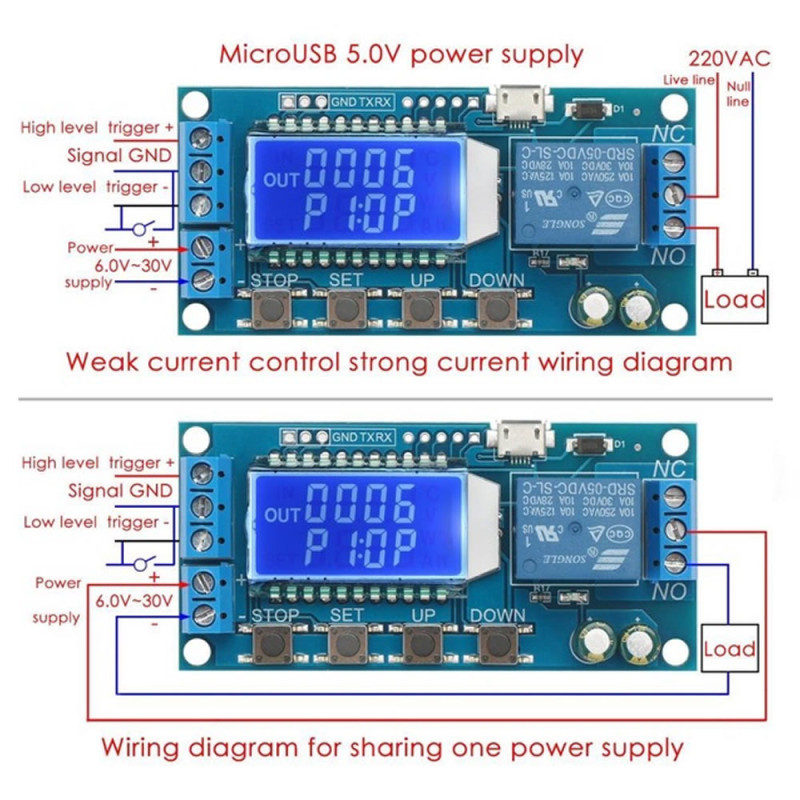

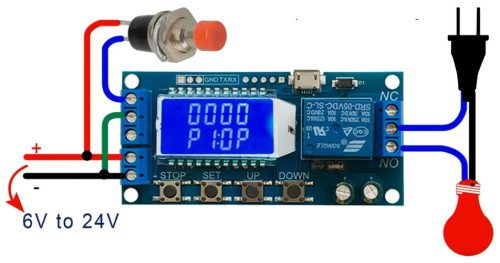

     The product works both with micro usb 5v and with external DC 5-30V supply. On it there is a 250V 10A relay. It has a switch that moves between COM and NO NC. You must connect the line you will switch to the NO and COM terminals. When the desired conditions occur, the COM And NO terminals become short circuit and enable the relevant line to complete the circuit. In this way you have controlled the relevant product.

     It is used by making 2 different time settings, 0-999sec and  in minutes. With its 4 different main programs and sub programs you can control the product according to different scenarios.

     With an external input signal, the trigger signal that may be needed in the programs can be received. It is opto isolated. On the product there is a led indicator showing that the output is active. The status of the module is observed on the Lcd display and programming setting operations are performed. Product control operations are performed with 4 buttons. The settings you make are saved to memory. In case of a power cut the settings are not deleted. When power comes it continues to operate again with the same settings.

Its Features:

• Input voltage: DC 5-30V
• It can be operated via the microusb socket.
• It can be operated with an external supply via terminal connection.
• There is test connection protection.
• Load voltage: DC 250V
• Load Current: 10A   ( Do not perform switching above 7A in continuous use. )
• Power: 1500W
• Trigger voltage: DC 6-30V
• Optical isolation for triggering
• Operating temperature: -10C /  80C
• 4 Pieces mounting hole
• Color: Blue
• Dimensions: 38mm x 80mmm x 20mm
• Weight: 35gr

Package Contents:

• 1 Piece XY-LJ02 Time Adjustable Relay Module

Usage: By holding down the set key on the module the setting interface is opened. From here the mode is selected and then when set is pressed again it moves on to the time section. On this screen the unit of the time can be changed by pressing the stop key. After the necessary parameters are entered it is saved by holding down the set key. The stop key stops the program operation.

OP: Output active stay time

CL: Closed stay time

LOP: Program repeat count


Programs:
P1:  After the trigger signal the relay becomes active for the duration of the Op time. At the end of the time the output is closed. The trigger coming again within the OP time does not restart the program. After the program ends, the program starts again on a new trigger.
P2:  After the trigger signal the relay becomes active for the duration of the Op time. At the end of the time the output is closed. The trigger coming again within the OP time restarts the program. After the program ends, the program starts again on a new trigger.
P3:  After the trigger signal the relay becomes active for the duration of the Op time. At the end of the time the output is closed. On the trigger coming again within the OP time the program ends and the output is closed. After the program ends, if a new trigger comes the program starts again.
P4:  After the trigger signal it waits for the duration of the Cl time. Then the relay becomes active for the duration of the Op time. At the end of the time the output is closed. While the program is running after triggering, the trigger coming again does not restart the program. After the program ends, the program starts again on a new trigger.
P5: After the trigger signal the relay becomes active for the duration of the Op time. Then the output is closed for the duration of the CL time. It repeats this operation as many times as the LOP count. While the program is running after triggering, the trigger coming again stops the program and the output closes. After the program ends, the program starts again on a new trigger.
P6:  It is the same as P5. Its only difference is that the operation does not stop even if triggering is performed.
P7:  Signal hold function. Depending on the signal the relay stays open. When the signal is cut the relay stays open for the duration of the OP time. After the Op time the relay closes. The signal coming during the Op time restarts the program.
