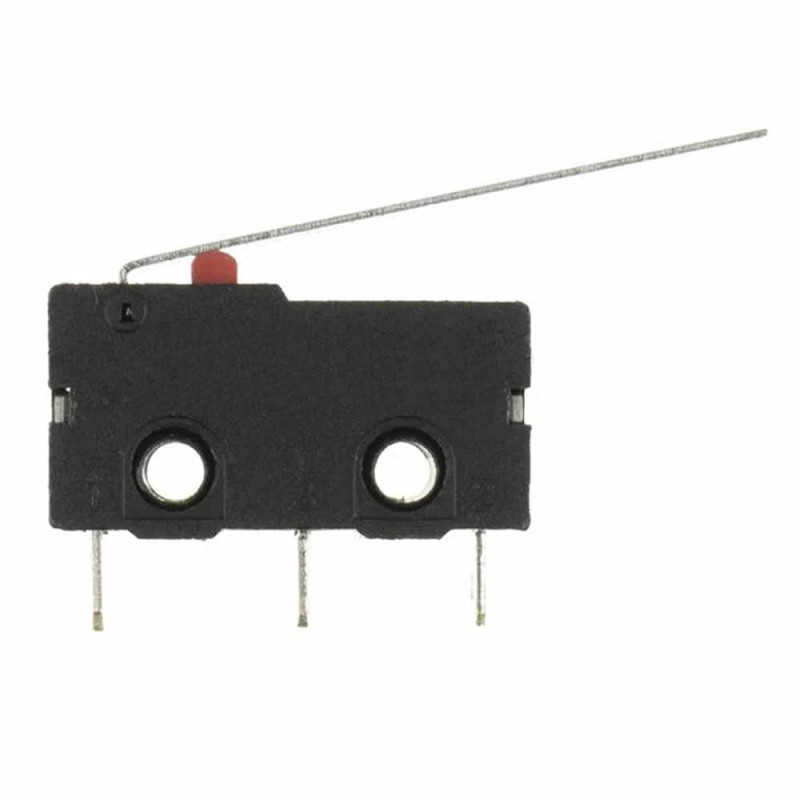

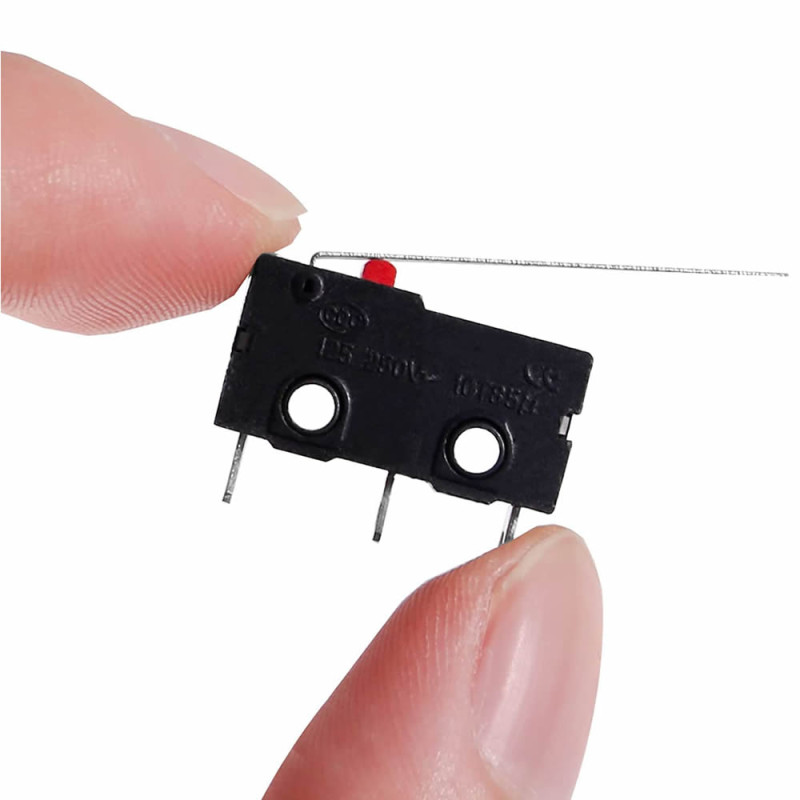

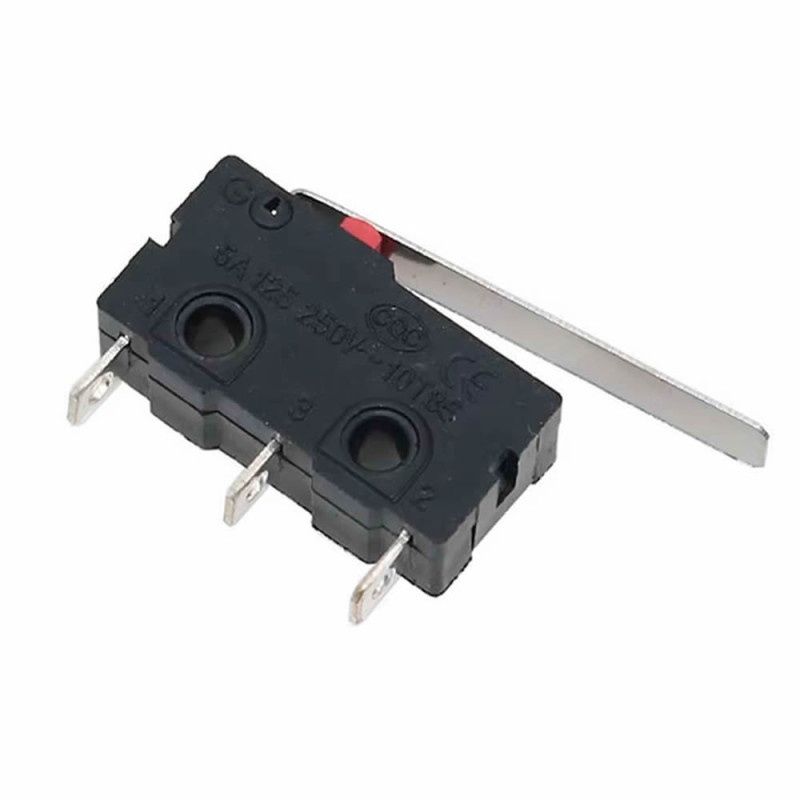

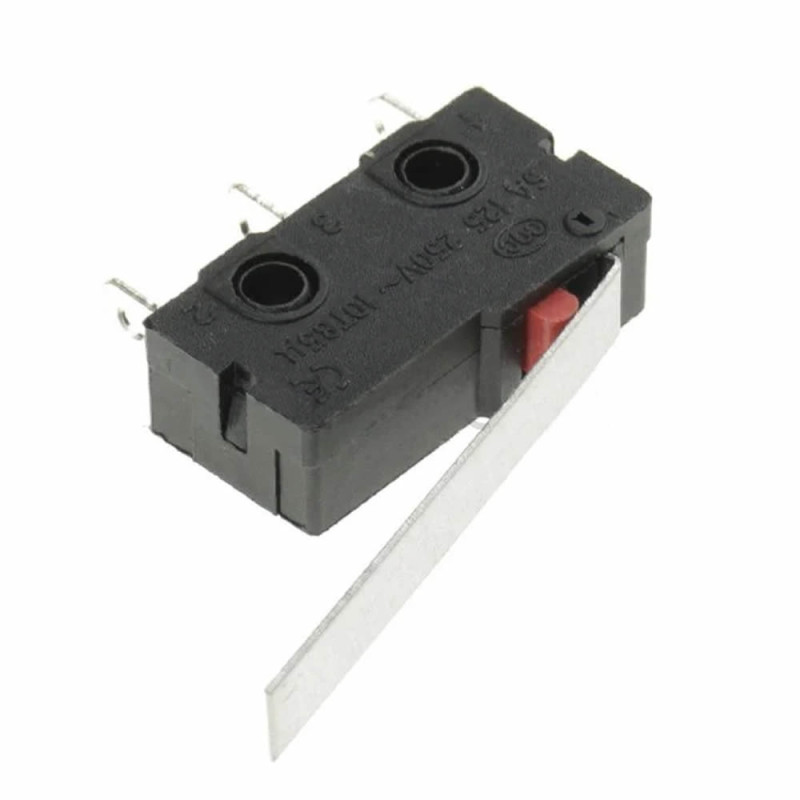

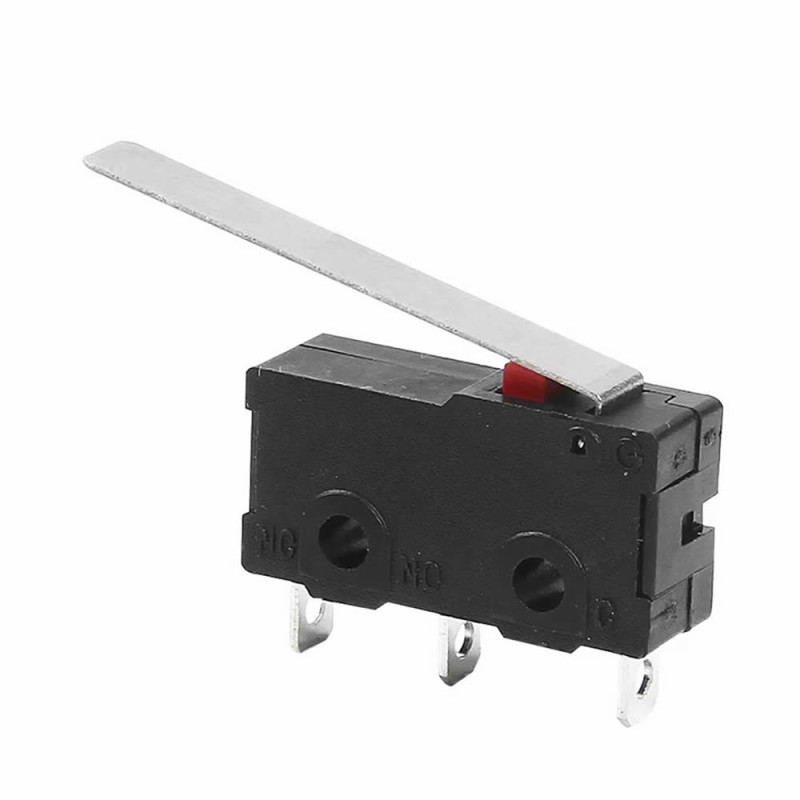

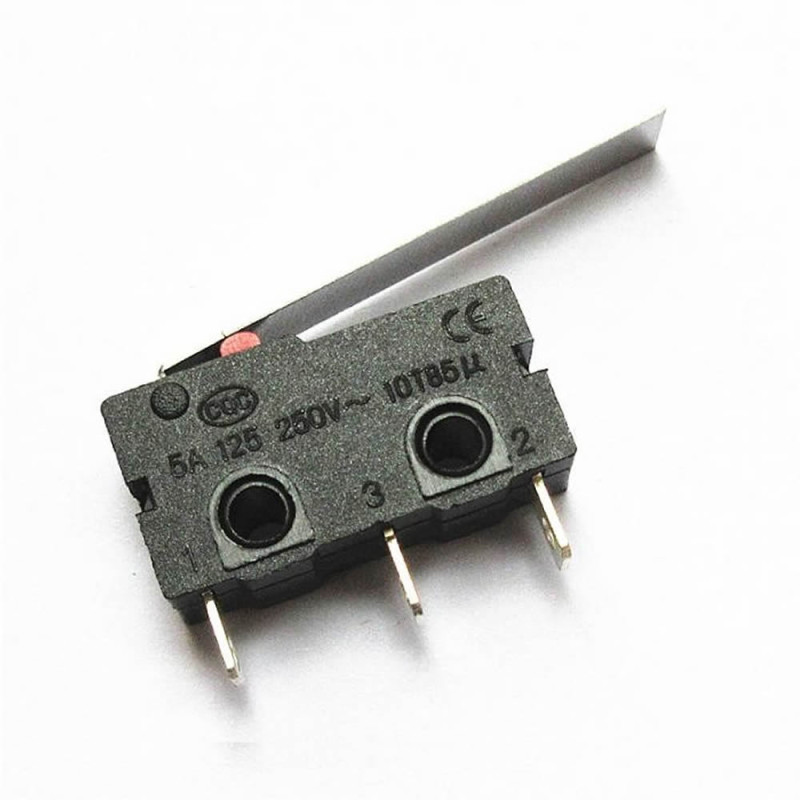

Micro Switch 5A KW11-3Z-C 28mm Lever

KW11-3Z-C Micro Switch

28mm Lever 5A 250V Levered NO NC COM SPDT Limit Momentary Button Switch Car Power Fan Light Machine Control

     5A 250V Micro switch. It has a lever mechanism. It is a high performance, durable and long lasting switch. It is an ideal solution for the control of various electrical devices and your mechanisms. It is a micro switch that operates in a small and fast manner. It is an electromechanical device that generates an electrical signal by the movement, touch or impact of a machine part or an object.

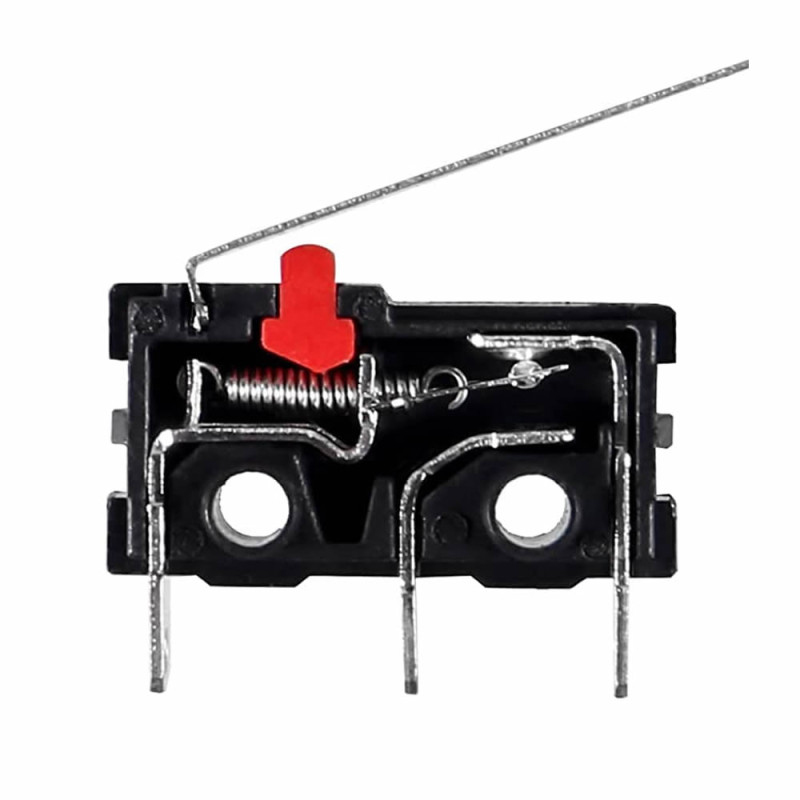

     The switch is triggered by the force produced by external mechanical force transmission elements (pins, buttons, levers, rollers etc.). After triggering, it can be used in applications for controlling the opening and closing of a door, the stopping of an elevator or the operation of a machine.

Features:

• Micro Switch 5A KW11-3Z-C
• Operating voltage: AC 250V  DC 30V
• Operating current: 5A
• Contact type: SPDT
• Operating type: Momentary
• The contact gap is small.
• Moves with a short stroke.
• Color: Black
• Small size.
• Pins:  NO NC COM
• Operating temperature: -25C  /  70C
• Mechanical life:  100.000 presses
• Mounting type: Solderable to pcb

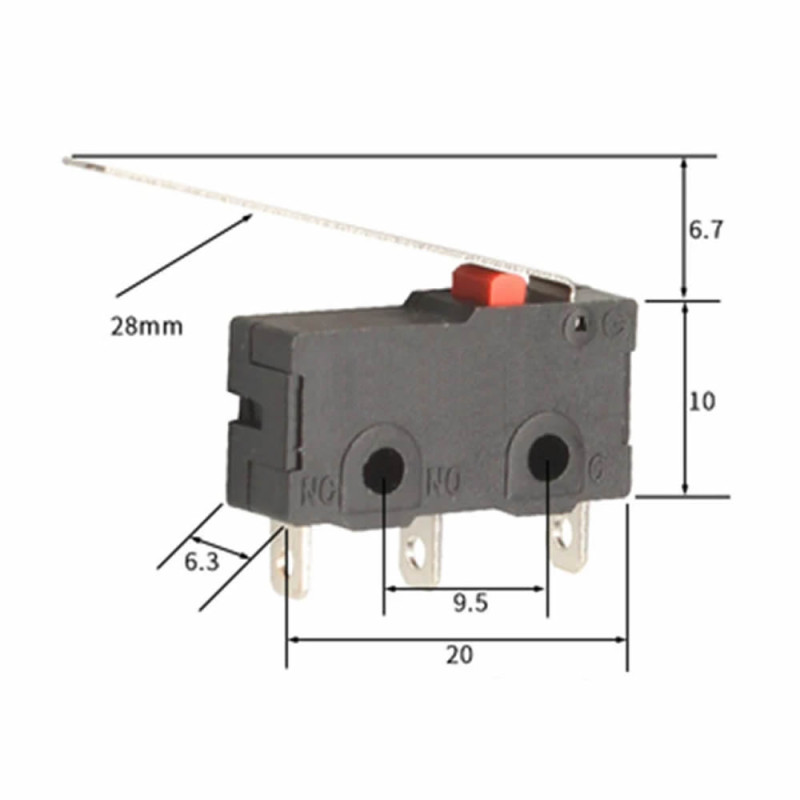

• Lever length:  28mm
• Size:   6mm x 10mm x 20mm
• Weight: 2.3gr

Package contents:

• 1 Piece Micro Switch 5A KW11-3Z-C 28mm Lever

.
