CN3065 Module

CN3065 1S 3.7V 0.5A Lithium Battery Charge Board with 6V Solar Panel

Micro Usb Input Solar Cell 18650 Lion Battery Accumulator Mobile Charge Control

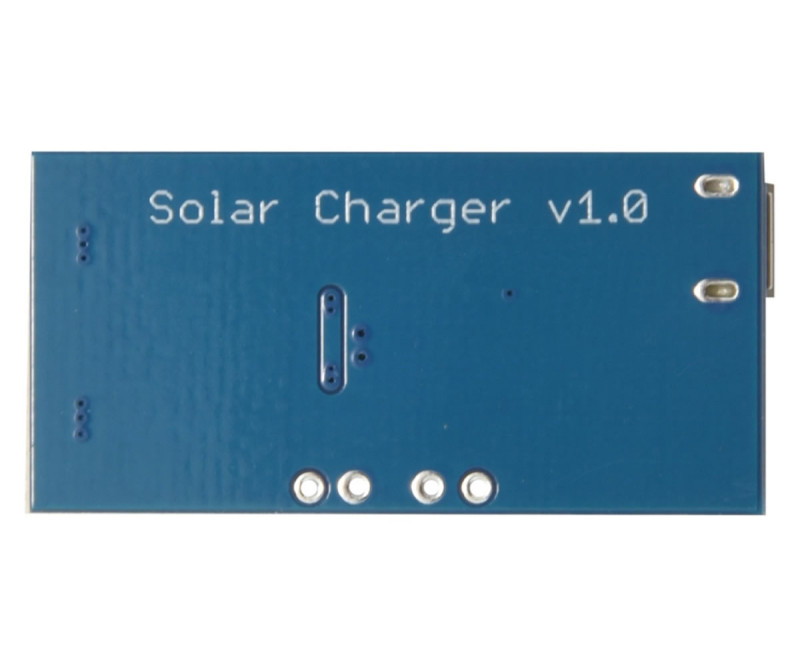

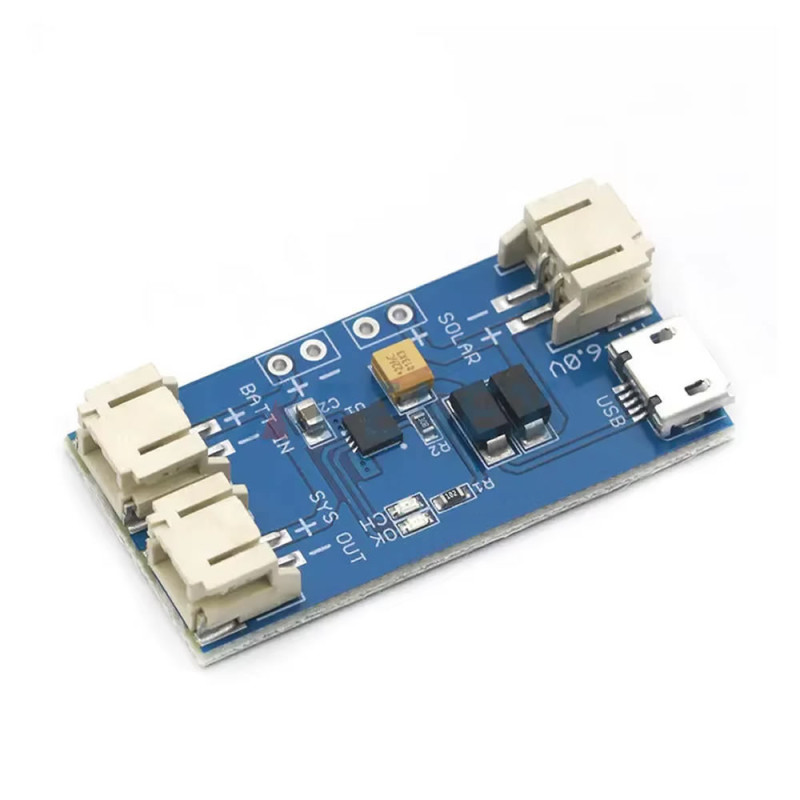

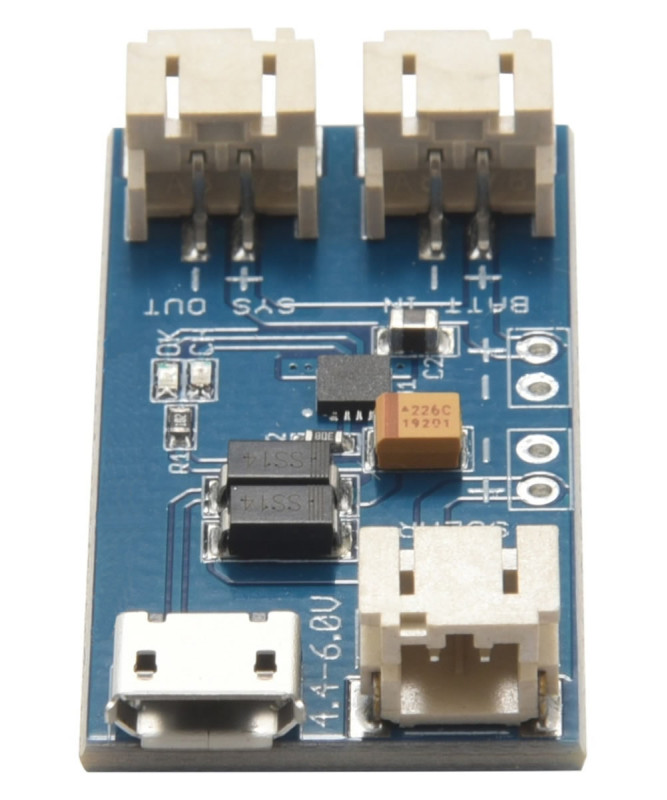

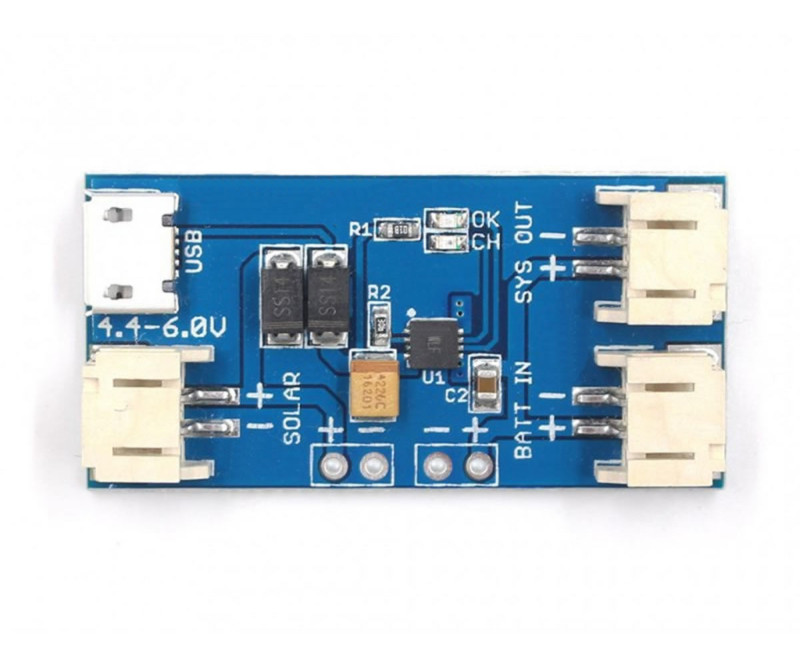

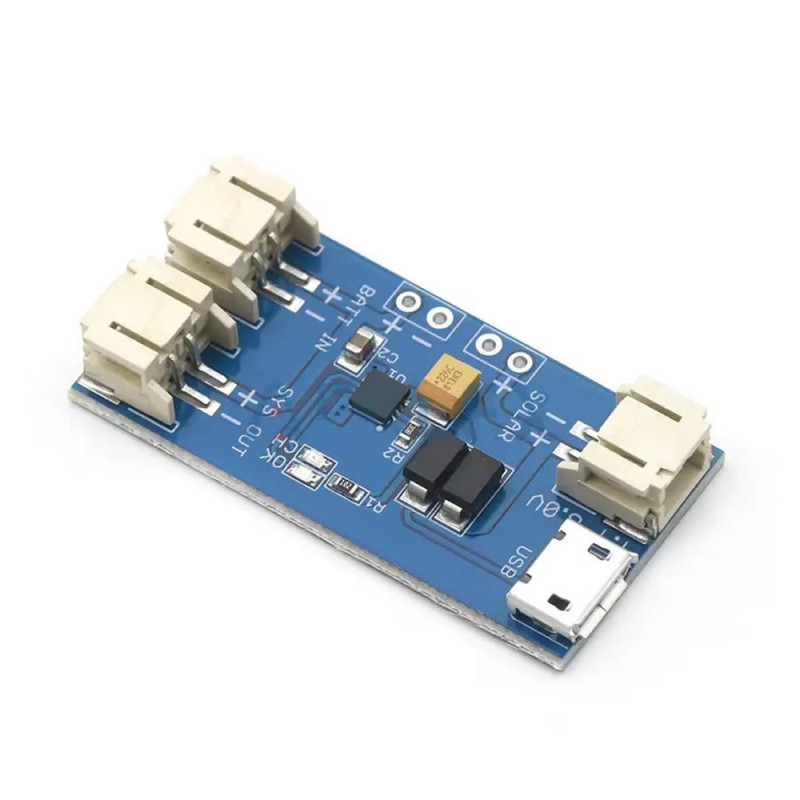

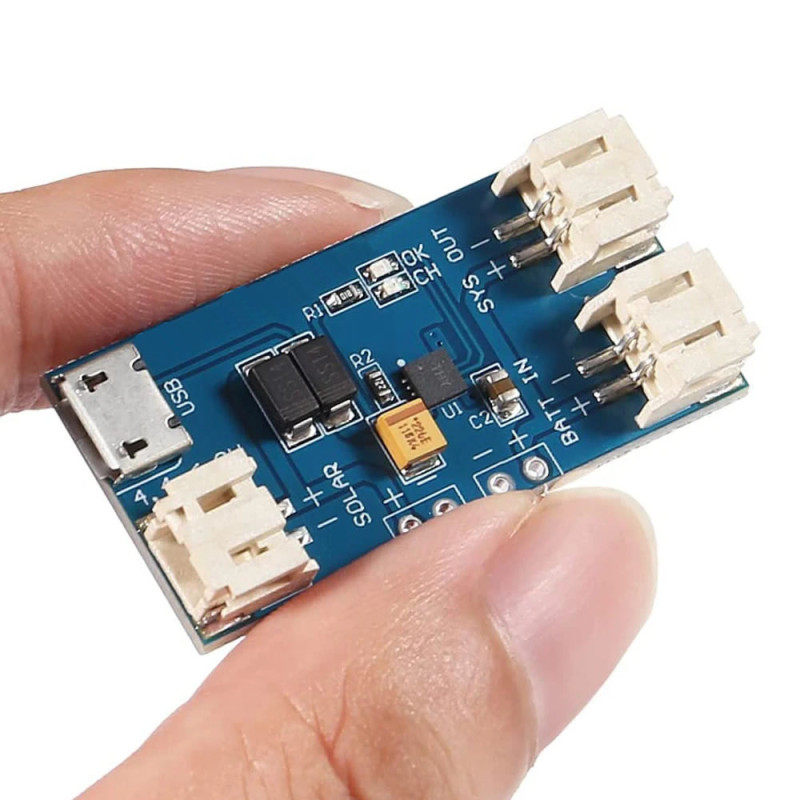

     It is a control board that charges 3.7V lithium batteries with solar panel energy. It is specially designed for charging lithium batteries. It has a 0.5A output charge current capacity. Power input is provided from the 6V solar panel socket or the micro usb socket. At the output there is a 4.2V 1S lithium battery charge voltage.

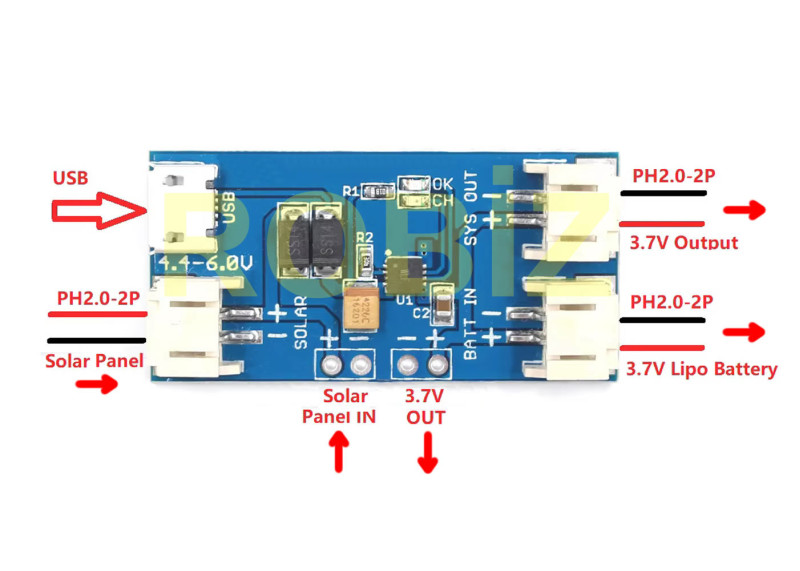

     It is very easy to use. You can start charging your battery immediately by making the solar panel connection. With the 2 sockets at the output, 2 separate battery charge connections can be made. In addition, there is also the possibility of making a 3rd solar panel and battery connection with the 2.54mm header sockets on the board. At the output it charges a 1S battery. You can connect 2 or 3 batteries in parallel. Parallel connection will increase the battery charge time.

Features:

• CN3065 Module
• Supply voltage ( Solar Panel ): DC 6V  ( 4,4V / 6V )
• Supply voltage: Micro usb Dc 5V
• Output voltage: DC 4,2V
• Output current: 0.5A ( 1A with resistor change  ICH = (VISET／R ISET)×900 )
• 3,7V  lithium lion battery charge support
• Charge voltage: 4.2V ± 1%
• 2 Pieces charge indicator led ( Ch: Charging /  Ok: Charge finished )
• Automatic recharge
• Trickle and constant current charge support
• Short circuit protection
• Operating temperature: -10C  /   60C
• Color: Blue
• 2 pin JST connectors ( PH2.0 )

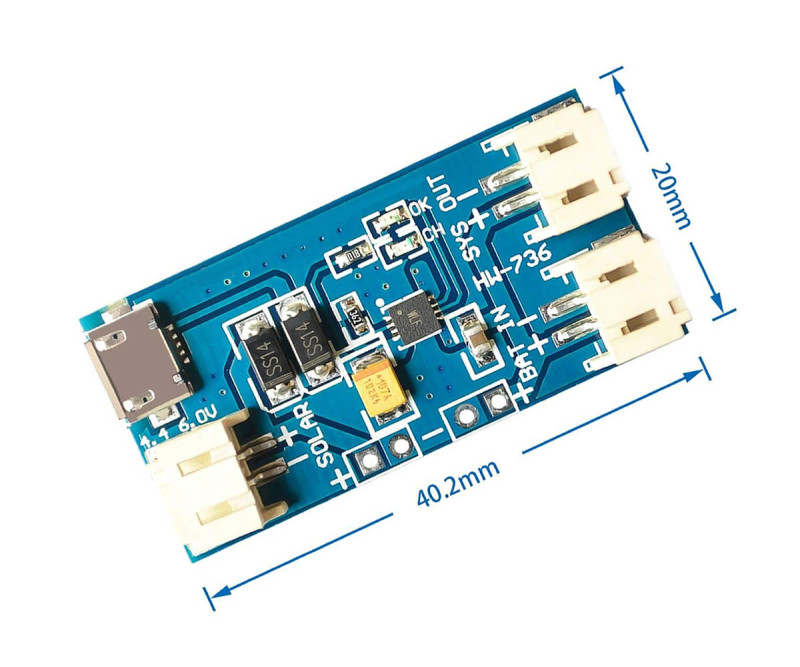

• Size: 20mm x 40mm x 7mm
• Weight: 5gr

Package contents:

•  1 Piece CN3065 Module
