Usb Rs232 Rs485 Module Enclosed

USB to RS232 + RS485 Module Enclosed

Industrial Type Serial Port Signal Converter Communication Automation Plc Medical Pos High Voltage Protection

     It converts the usb port to an rs232 + rs485 port. It is an industrial type converter module. There are communication indicator leds. It has a blue transparent plastic enclosure. Communication cable connections are made easily with the 3.5mm screw type terminal block.

Features:

• Usb Rs232 Rs485 Module Enclosed
• Usb: USB2.0  / USB1.1  ( USB type A Socket )
• No external power supply required. Usb 5V
• Communication support: RS232 + RS-485

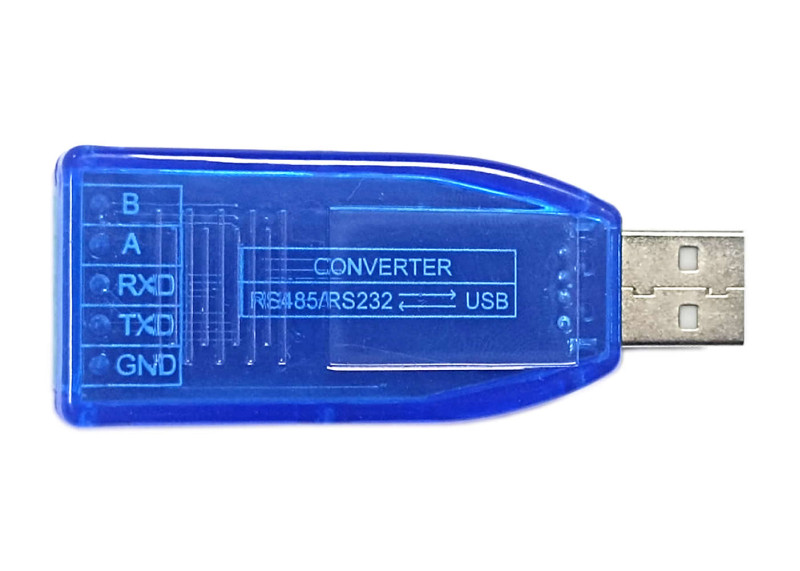

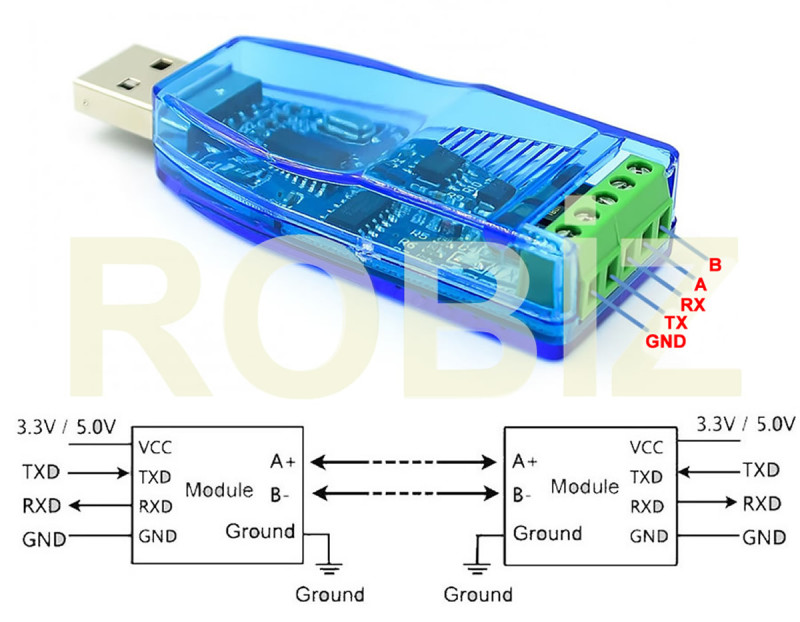

• RS232 signals: RXD, TXD, GND
• RS485 signals: A B
• Connection: 3.5mm screw type terminal block
• Connection speed: 600bps to 115.2Kbps
• Rs485 communication distance: 1200 meters Maximum
• Communication indicator leds
• Power indicator led.
• Operating system: WIN7/8/9/10/11, MAC OS 8.6 ( 32 bit / 64bit
• Material: Plastic / Metal
• Color: Blue
• Transparent  plastic enclosure
• Operating temperature:   -20C  /  +65C

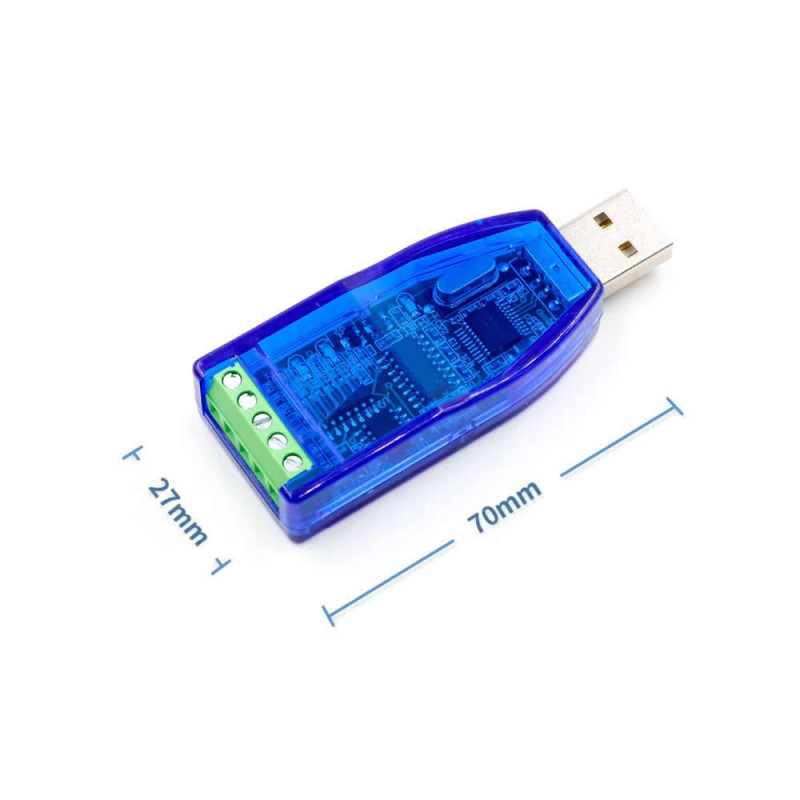

• Dimensions: 27mm x 70mm
• Weight: 16gr

Driver:  The CH341SER.EXE file must be downloaded via Google and installed.

wch-ic.com/products/CH340.html

Package contents:

• 1 pcs Usb Rs232 Rs485 Module Enclosed
