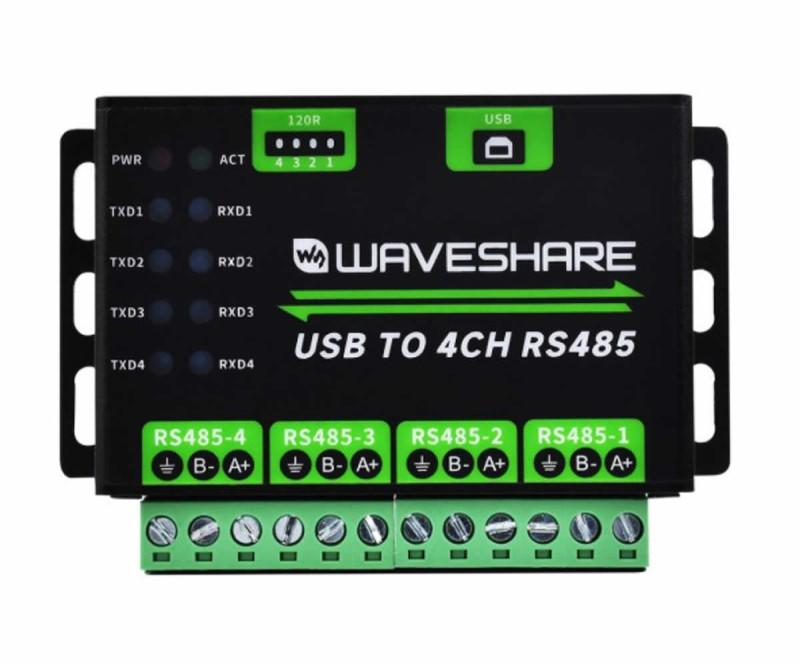

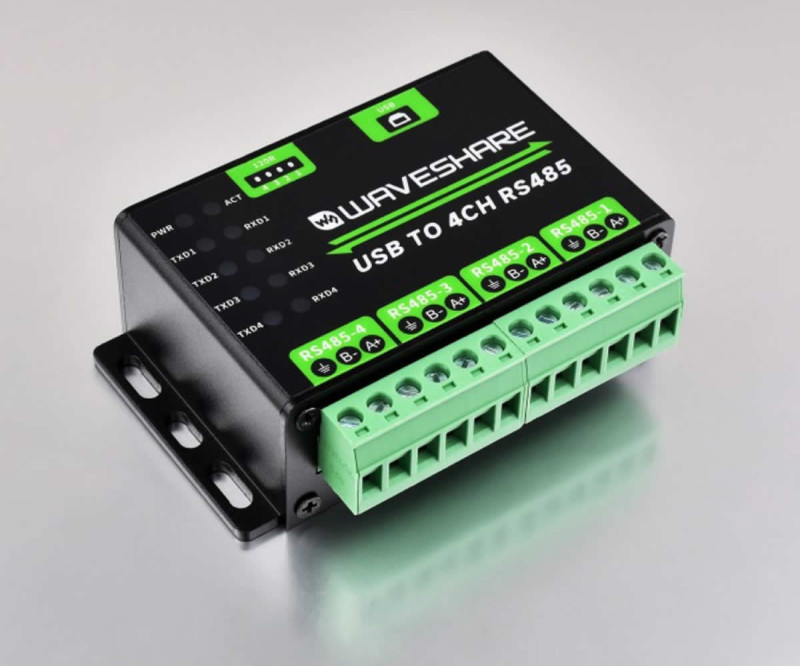

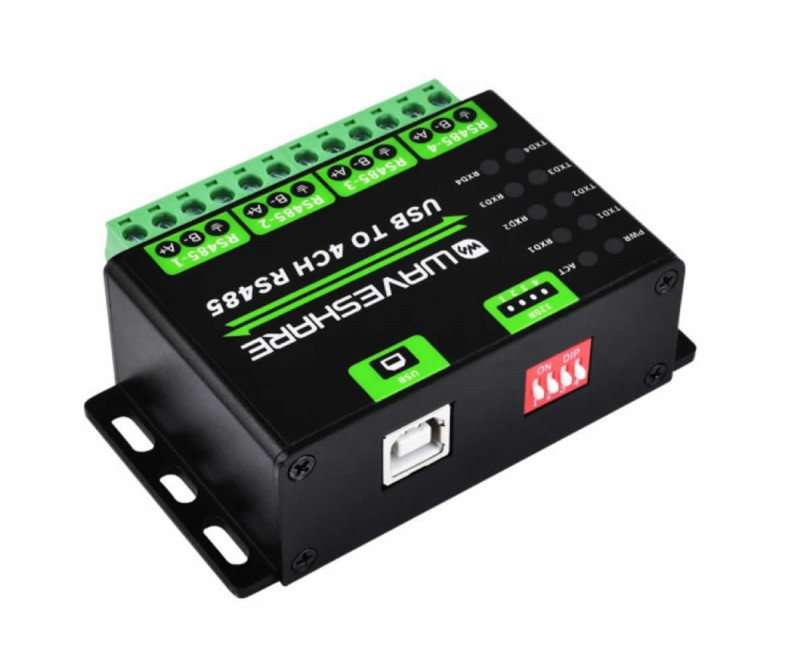

Waveshare USB to 4 Channel RS485 Converter Module
Metal Case Industrial Type Signal Converter Communication Automation Plc Smart Home Remote Control Traffic Agriculture Production Monitoring

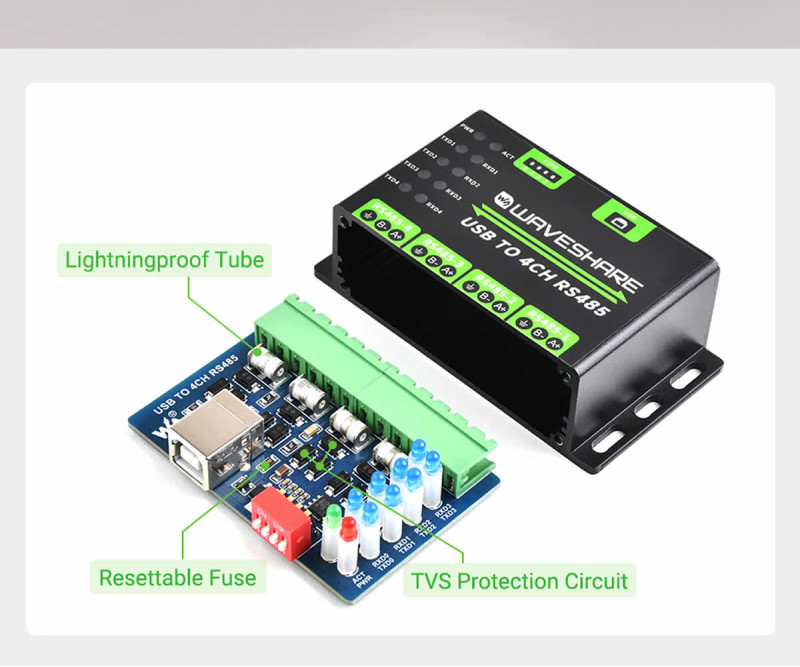

USB TO 4CH RS485 is an industrial grade USB to RS485 converter module (non-isolated). It uses original CH344L and SP485EEN chips. This provides high stability and compatibility. It includes lightning protection, self-resetting fuse, ESD and TVS protection circuits. It is designed in an aluminum alloy enclosure.
It is extremely simple to use; data communication conversion takes place automatically. It stands out with its high speed, stable operation, reliability and safety features. This converter is suitable for various industrial control equipment and applications with high communication requirements.
Features:
- USB to 4 Channel RS485 Converter Waveshare
- Usb pc connection port
- 4 channel rs485 communication port
- Supply: Usb 5V
- Current: 26mA
- Communication speed: 1200bps / 460800bps
- Operating system: Windows 11 / 10 / 8.1 / 8 / 7, Android, Mac OS, Linux

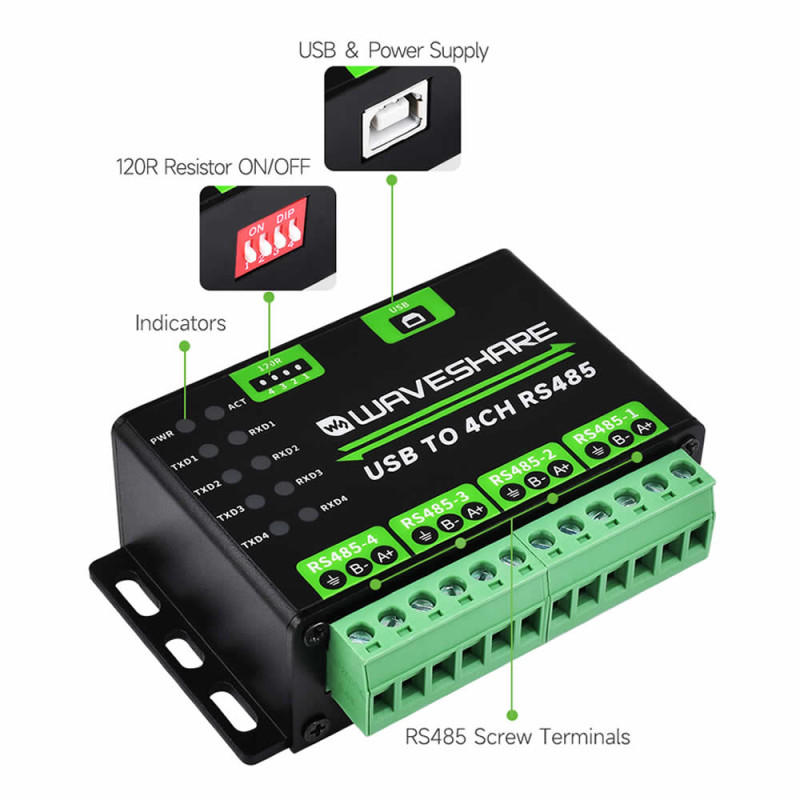

- 4 way dip switch socket for active/passive setting of 120 ohm resistors
- Power indicator led
- Act status indicator led
- RX/TX line indicator leds for each port. 8 pieces in total.
- Resettable fuse and protection diode.
- Overcurrent protection
- Overvoltage protection
- Resistance to impacts
- Surge and Esd protection
- Lightning and electrostatic protection
- Material: Plastic / Metal

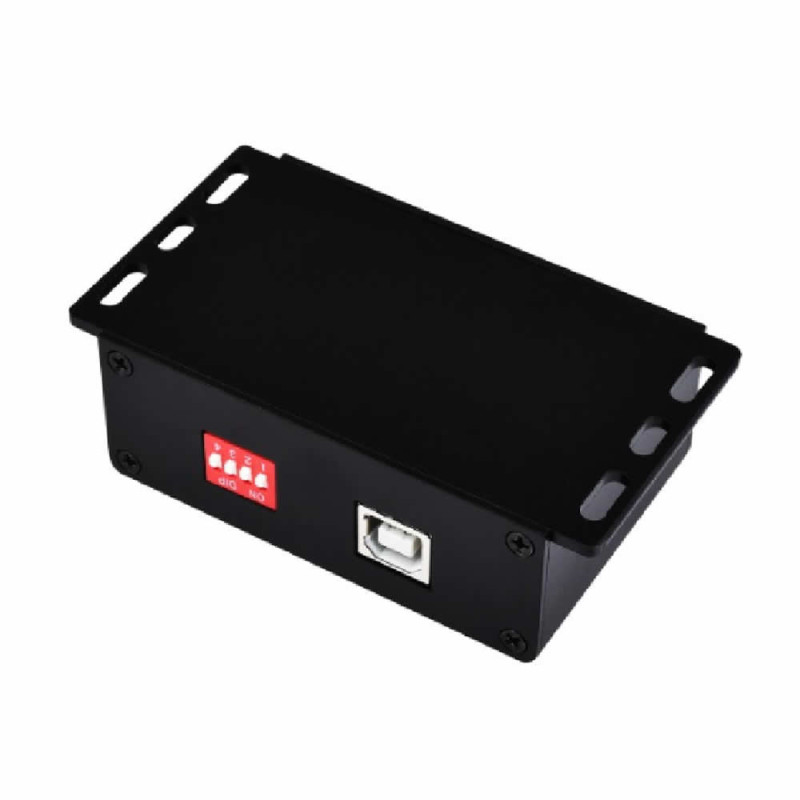

- Black metal case
- Color: Black
- Operating temperature: -40C / 85C
- 2 mounting tab surfaces

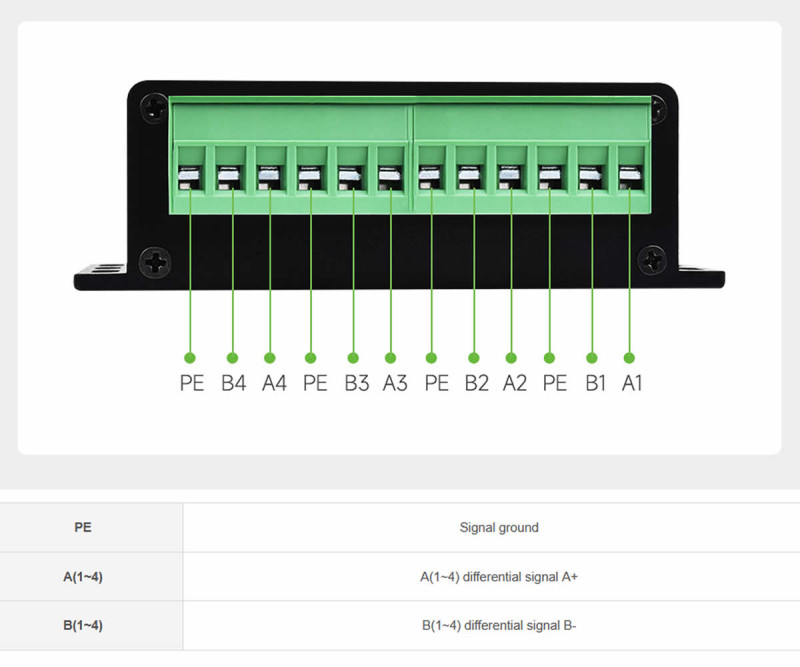

- 4 pieces of 3 way terminal rs485 connection terminal

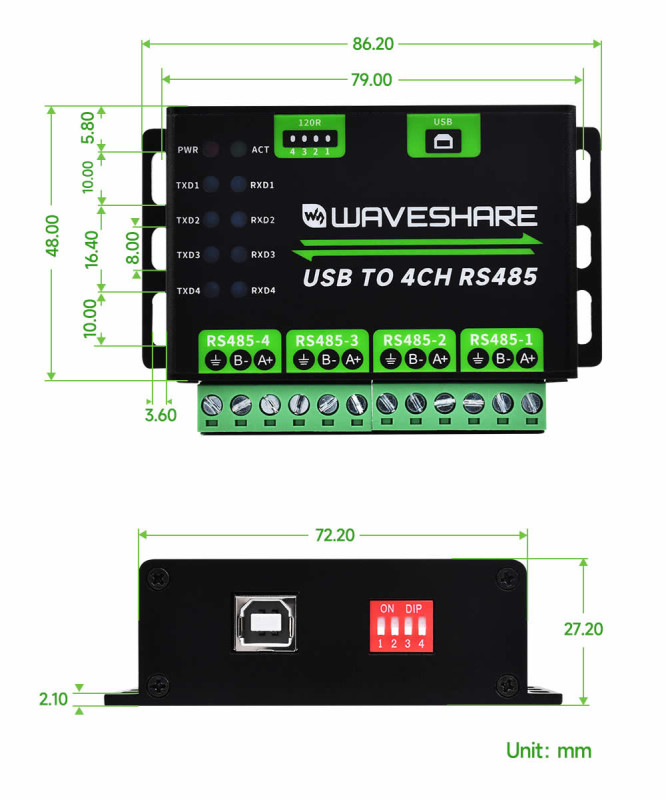

- Dimensions: 48mm x 86mm x 27mm
- Weight: 100gr (180gr)
Software support: waveshare.com/wiki/USB_TO_4CH_RS485
Package contents:
- 1 Piece USB to 4 Channel RS485 Converter Waveshare
- 1 Piece usb cable
.
