Description

LAUNCHXL-F28027F is a low cost evaluation and development tool for the InstaSPIN-FOC enabled Piccolo F2802x series in the TI MCU LaunchPad ecosystem which is compatible with various plug-on BoosterPacks. The LaunchPad provides a standardized and easy to use platform to use while developing your next application.

Features:

Hardware features

    USB connected isolated XDS100 JTAG debug probe for real-time debug and flash programming

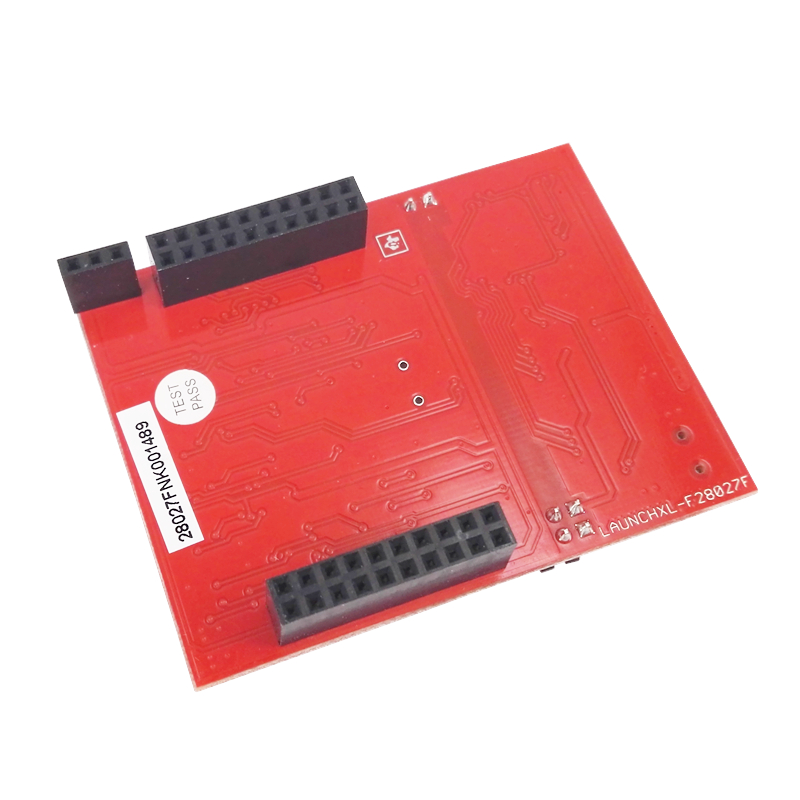

    2x 20-pin headers/connectors with access to all device pins
    Programmable buttons and LEDs
    TMS320F28027F: 60 MHz C28x CPU, 64 KB Flash, InstaSPIN-FOC enabled, 8 PWM Channels, 12-bit ADC, capture interface, UART, SPI and more

Software features

    Free download of Code Composer Studio IDE
    Free download of MotorWare for InstaSPIN-FOC example projects
    Free download of controlSUITE for device drivers and example projects
    MathWorks Embedded Target Support

Recommended BoosterPacks

    BOOSTXL-DRV8301
    BOOSTXL-DRV8305EVM
    TI BoosterPack Checker for an interactive list of compatible BoosterPacks

Get started

    Download and install MotorWare
        Run MotorWare.exe
        Browse resources and read Readme First for F28027F LaunchPad and any BoosterPack
        Follow Training à InstaSPIN Projects and Labs User’s Guide
    Install free GUI for instrumenting MotorWare projects
    Watch 6 part training series or search for other training
    Ask questions on the TI C2000 InstaSPIN e2e forum
    For non-InstaSPIN getting started with this kit, please see the instructions for the standard LaunchPad

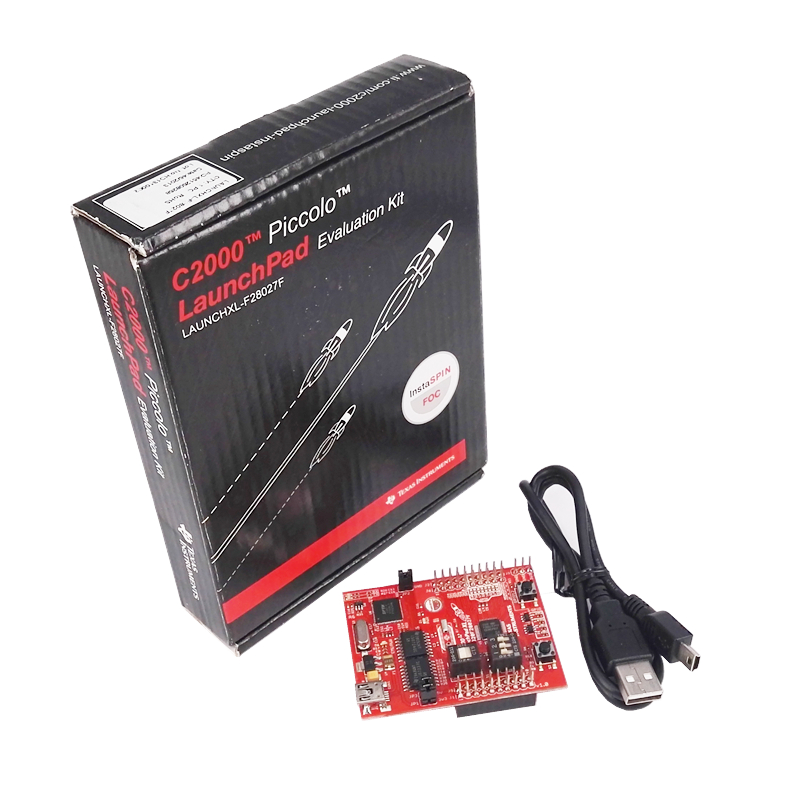

What's Included

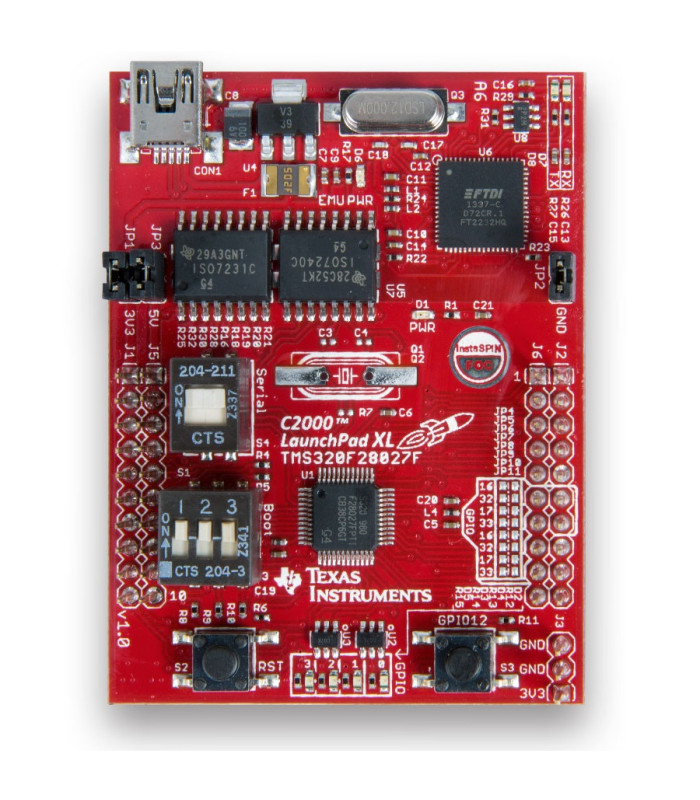

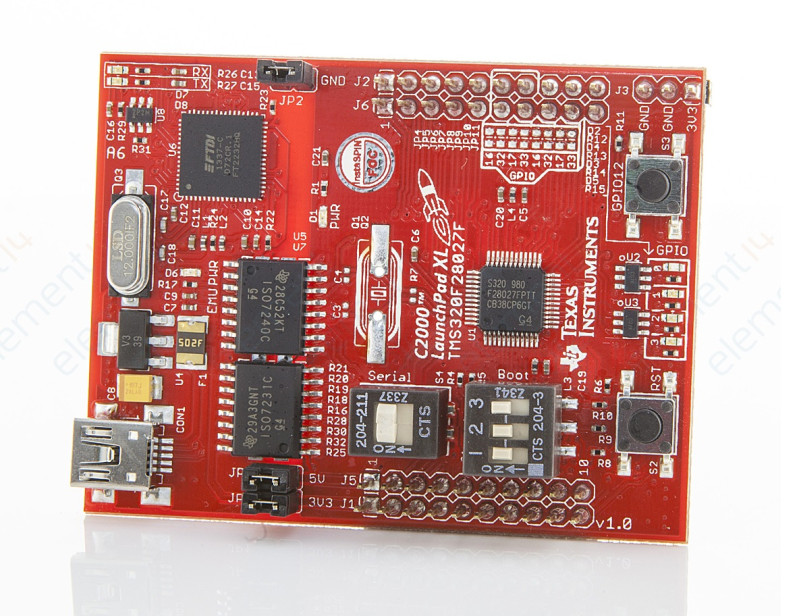

•     Piccolo F28027F LaunchPad

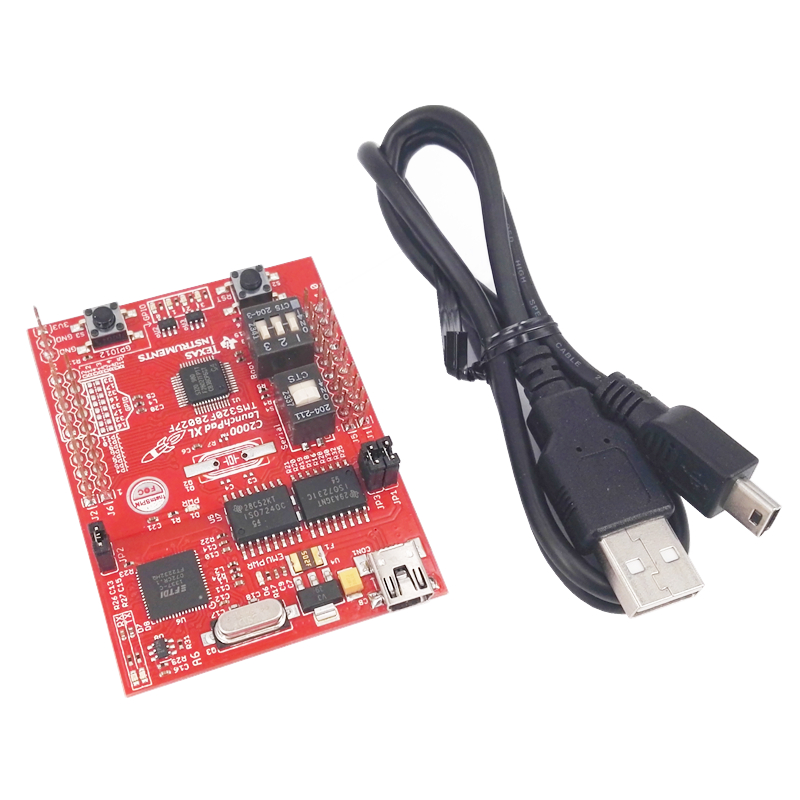

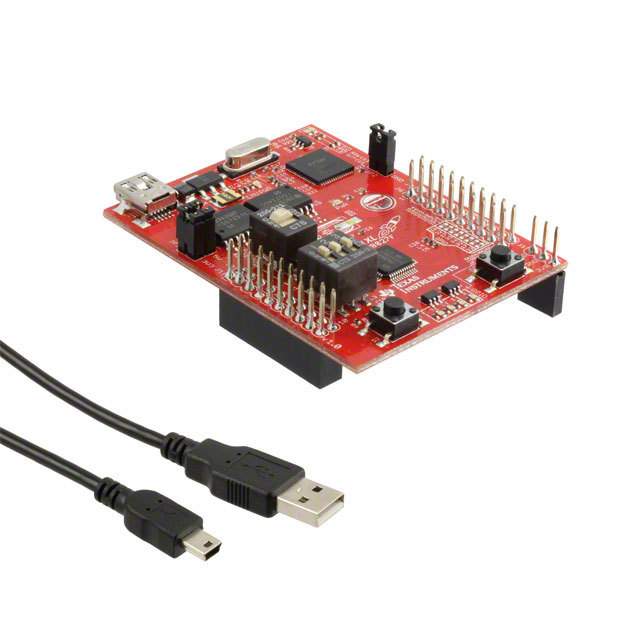

•     Mini USB Cable
•     Quick Start Guide
