Efinix Xyloni Fpga Development Board

Efinix Xyloni Fpga Development Board

T8F81C2 Device Programmable Logic Quantum Technology 128Mbit Flash Memory Micro Usb Embedded Memory Multiplier DSP Blocks PLL 33.33 MHz Oscillator

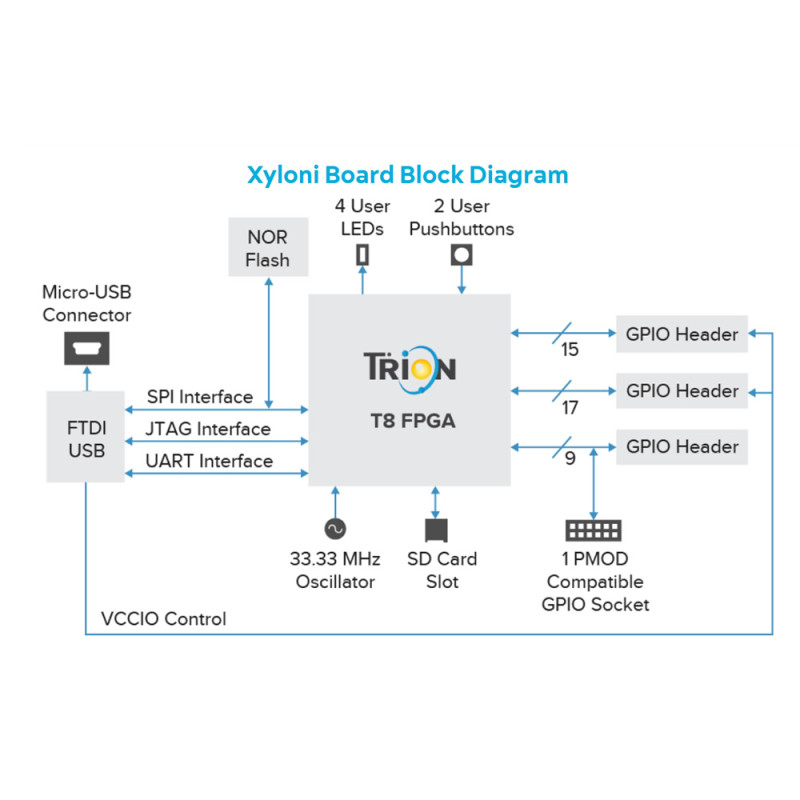

     The Xyloni Development Kit offers the Efinix T8 programmable device in an 81 ball BGA package. T8 FPGAs have programmable logic and routing built on Efinix Quantum technology. T8 devices also include embedded memory blocks, multiplier blocks (or DSP blocks), a PLL and an oscillator.

     Together with the development kit, you obtain a license including updates for 1 year for the Efinity software. The Efinity software offers a complete tool flow from RTL design to bitstream generation; including synthesis, place and route, debugging and timing analysis.

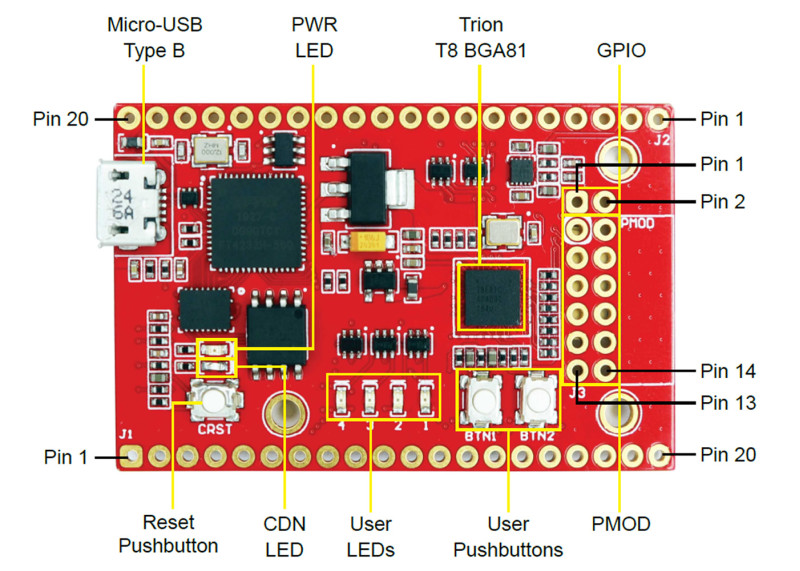

Features:

•     Efinix T8F81C2
•     128Mbit Spi Nor flash memory
•     Ftdi jtag, spi, uart communication
•     Supply: Micro usb socket
•     14 Pin PMOD io socket

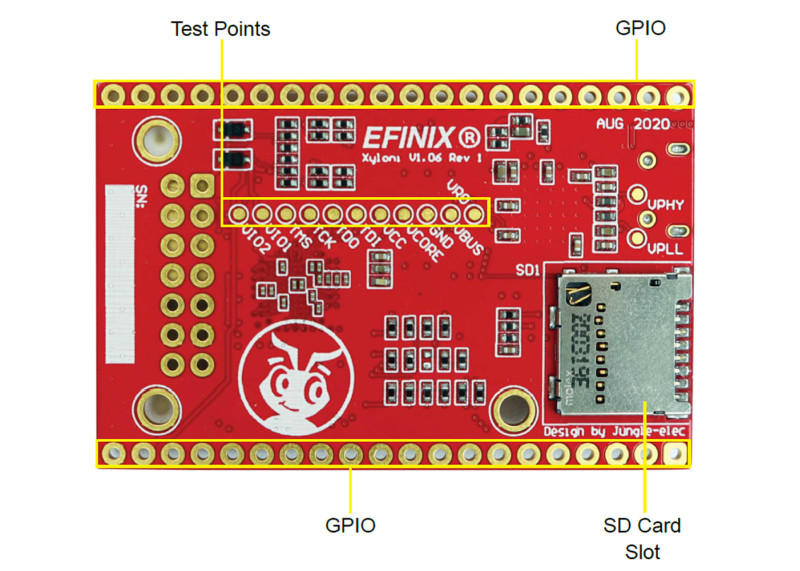

•     Micro sd socket
•     4 user leds
•     Supply led
•     Cdn led
•     2 user buttons
•     1 reset button
•     33.33 MHz oscillator
•     1.8V, 2.5V and 3.3V supply voltage selection
•     2 pcs 20 pin io connection socket.
•     3 pcs mounting hole
•     Dimensions:   mm
•     Weight:  gr

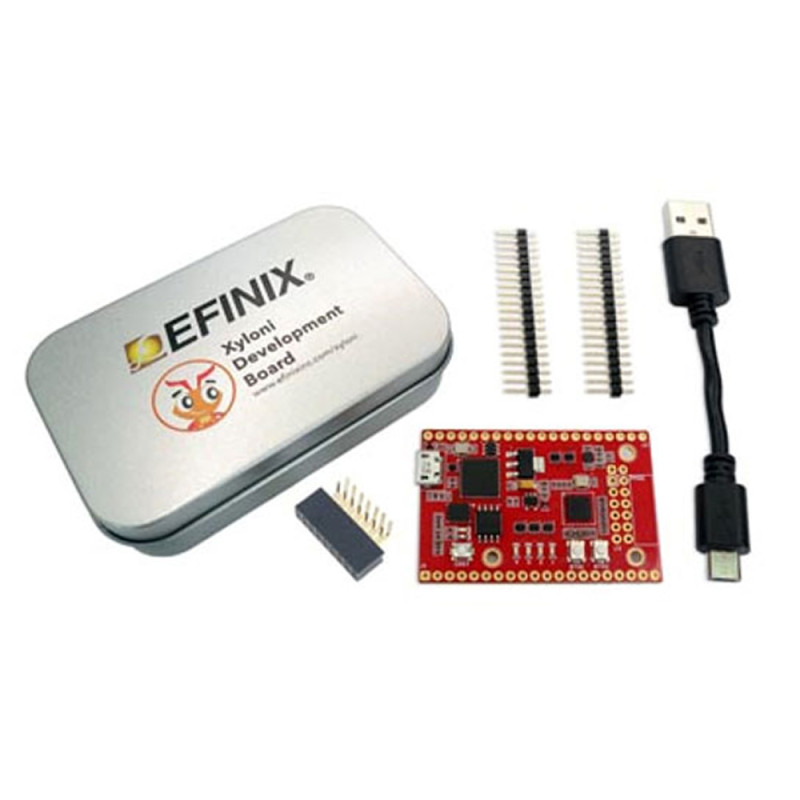

Package Contents:

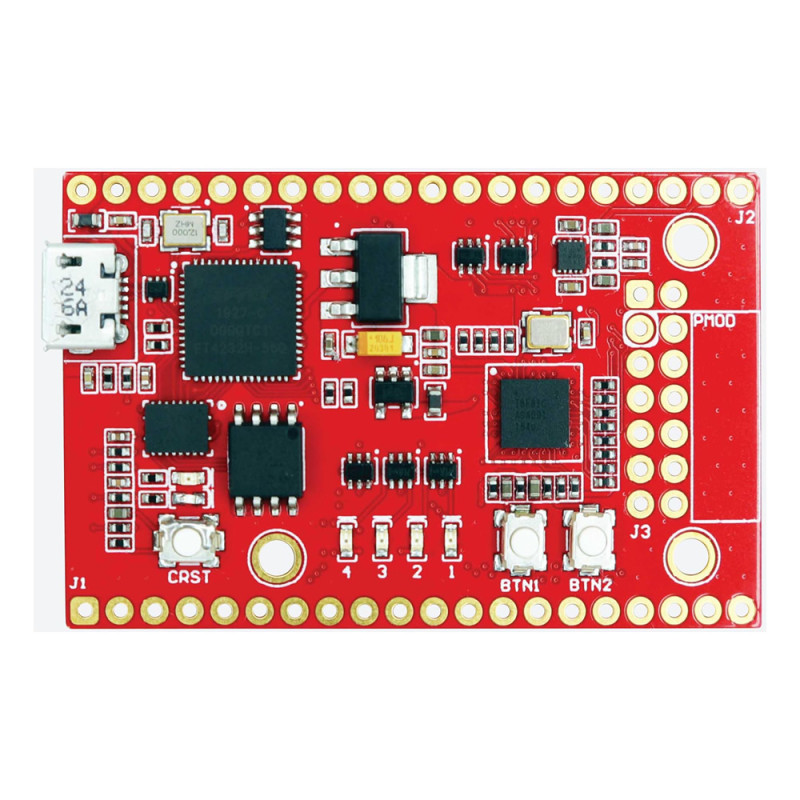

•     1 pcs Xyloni development board
•     1 pcs Micro usb cable
•     Pin header sockets

.
