- Stok Durumu: Stok Var
- Marka: OEM
- Model: DY-SV5W MP3 Modül
- SKU: RBZ.100.048

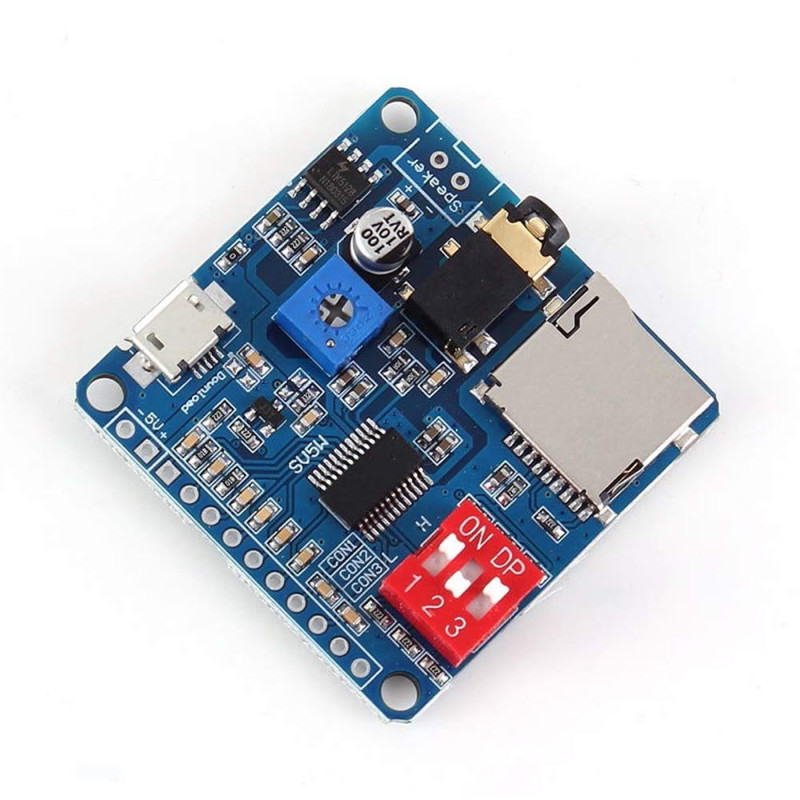

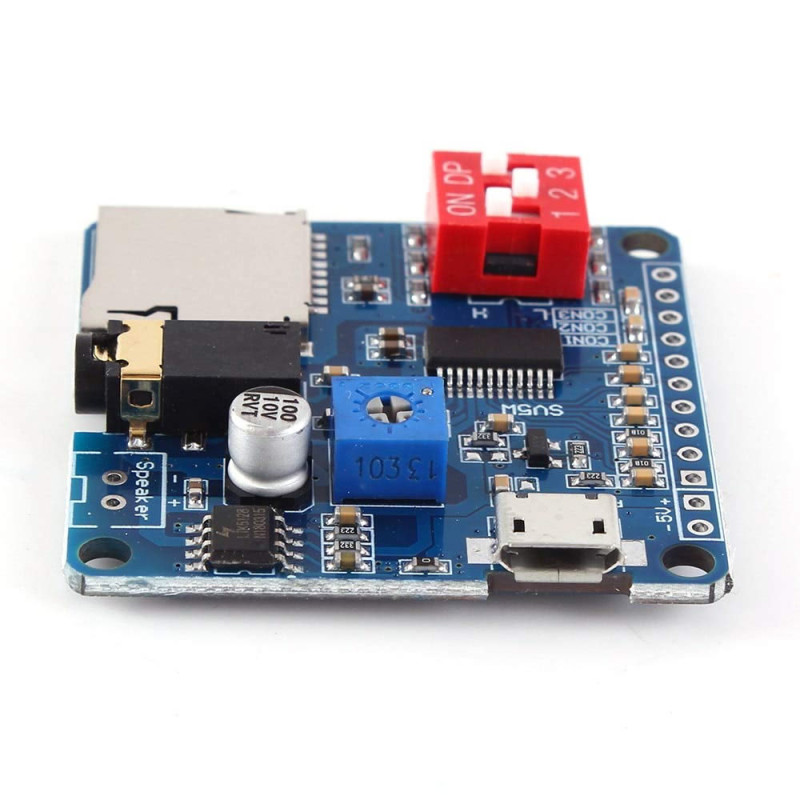

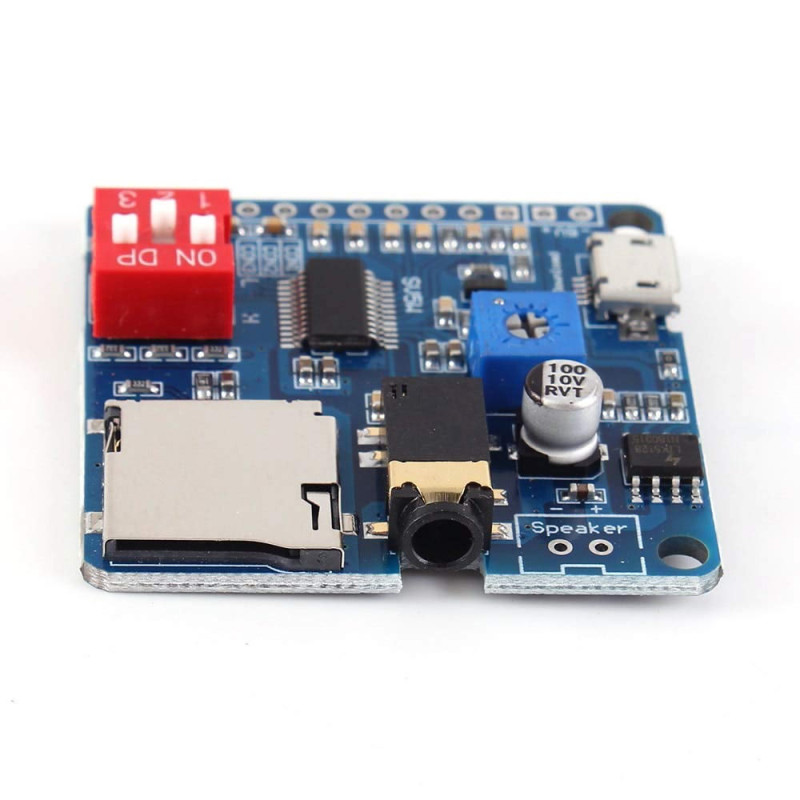

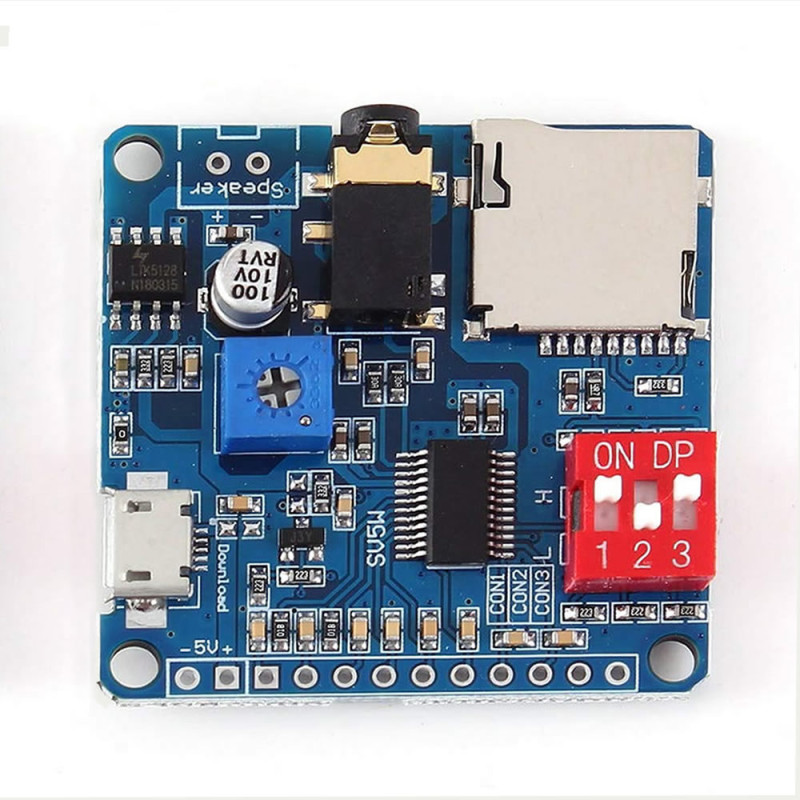

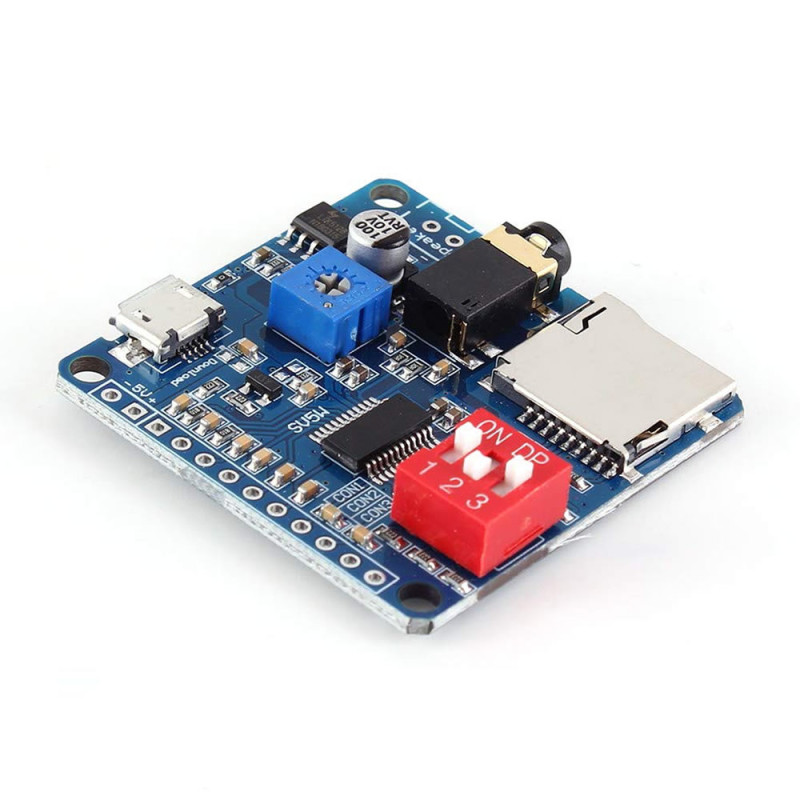

DY-SV5W MP3 Wav Audio Playback Module
Class D Amplifier 5W 4-8Ohm Speaker Microusb Uart 8 IO Trigger
DY-SV5W is an advanced audio module. It supports mp3 wav audio formats. There is 4mbyte flash memory on the board. There is a 5w class D audio amplifier chip. It can drive a 4-8 ohm speaker. It has a 3.5mm audio output socket. There is a volume control potentiometer on the board.
You can upload and delete audio files by connecting directly to the pc via the usb socket. It is automatically recognized as a usb drive on the pc. It can be controlled via the serial port. There is an sd card socket on the board. The sd cards to be inserted into this socket are used as memory.

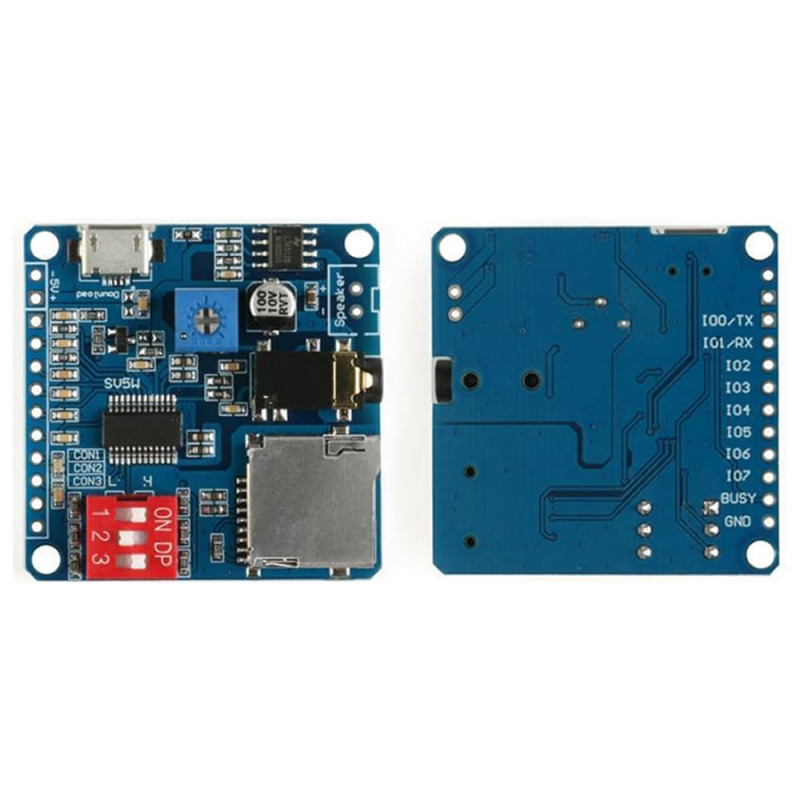

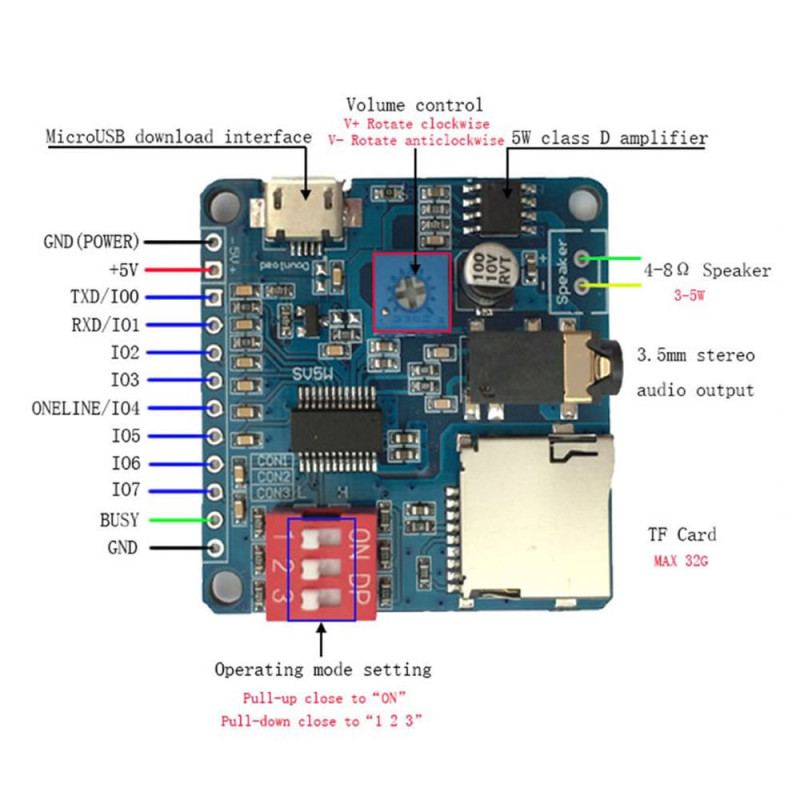

External circuit connection port with 12 pin header socket. There is a 2 pin supply and Uart port. It can receive a trigger with a button via 7 IO.
The operating mode can be set with a 3 pin dip switch.
Technical Specifications:
- Series: DY-SV5W
- Operating voltage: DC 5V / Micro Usb
- MP3 and WAV format support
- Micro usb connection support
- Sampling frequency (KHz): 8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48
- DAC output: 24bit
- Dynamic range: 90dB
- SNR: 85dB
- Micro sd card support
- FAT16/FAT32 file system support
- 65535 file support
- 5W class D audio amplifier
- It can drive a 4Ohm 3- 5W speaker.
- Volume control potentiometer. ( Clockwise increases the volume.)
- Control via UART. File selection, stopping, volume up down...
- Communication speed: 9600bps
- Control capability via 8 IO ( button etc ). 255 song selections can be made.

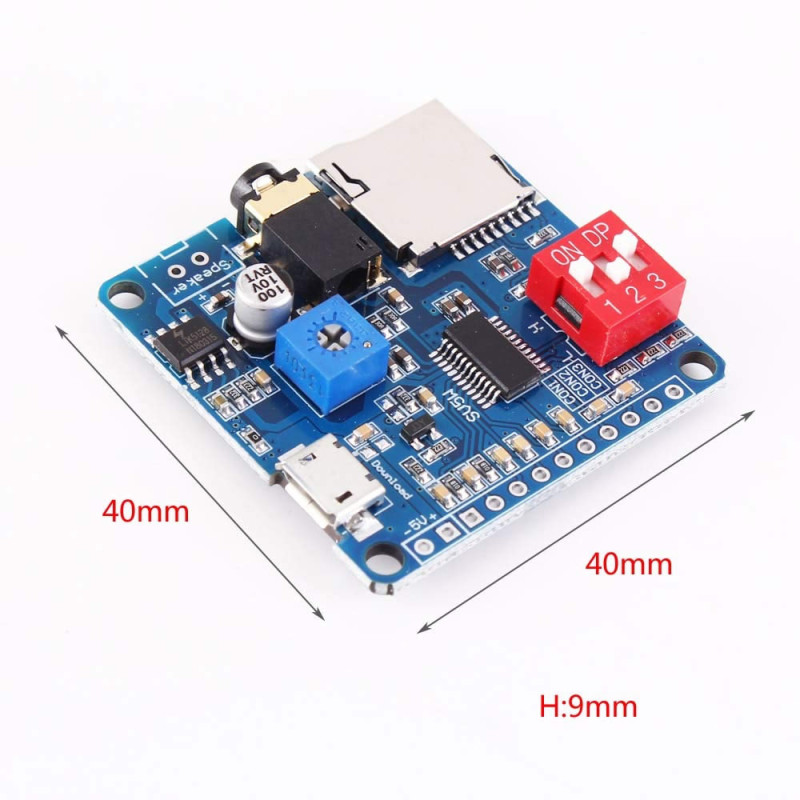

- Size: 4cm x 4cm x 0.9cm
Package Contents:
- 1 Piece DY-SV5W Audio Playback MP3 Module
