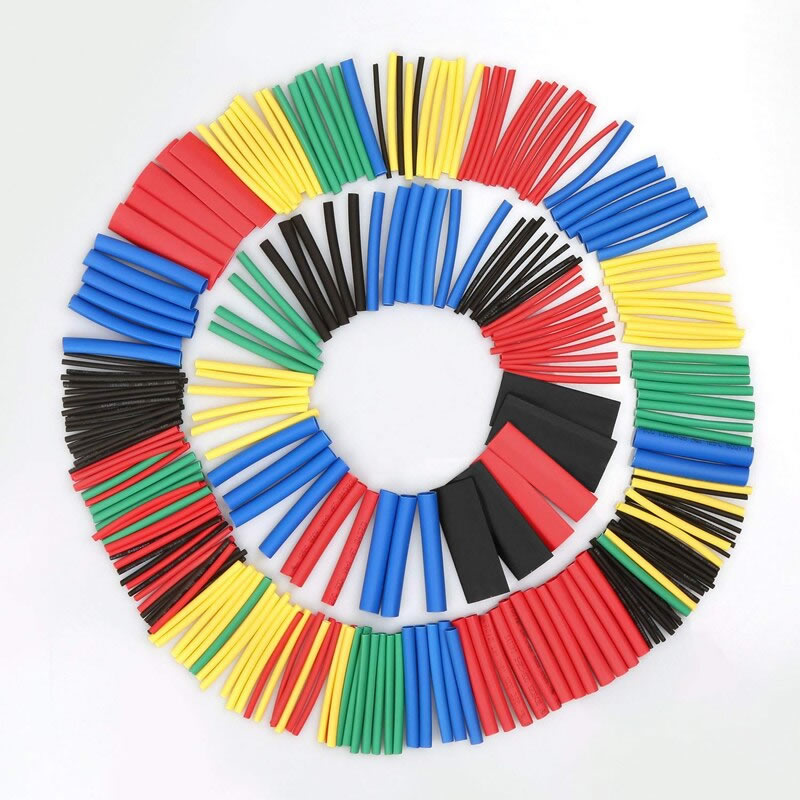

530 Piece Heat Shrink Tube Set

530 Piece Heat Shrink Tube Set

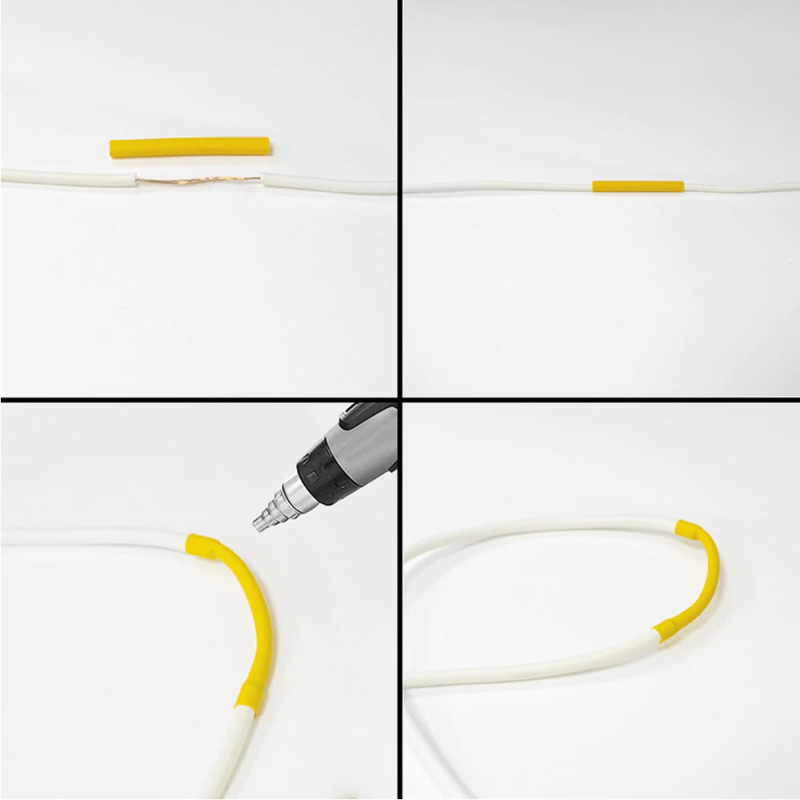

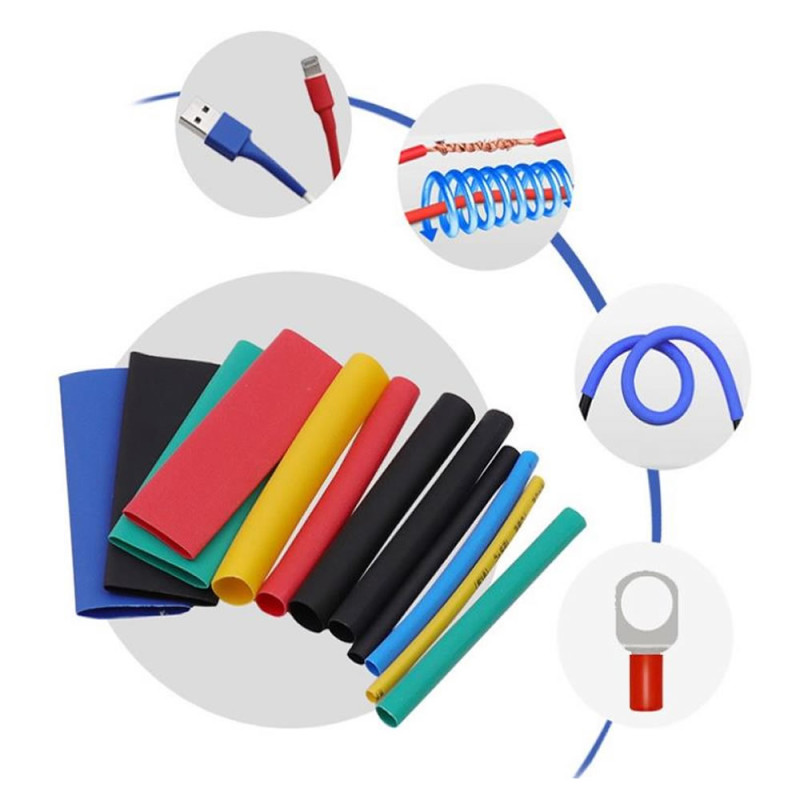

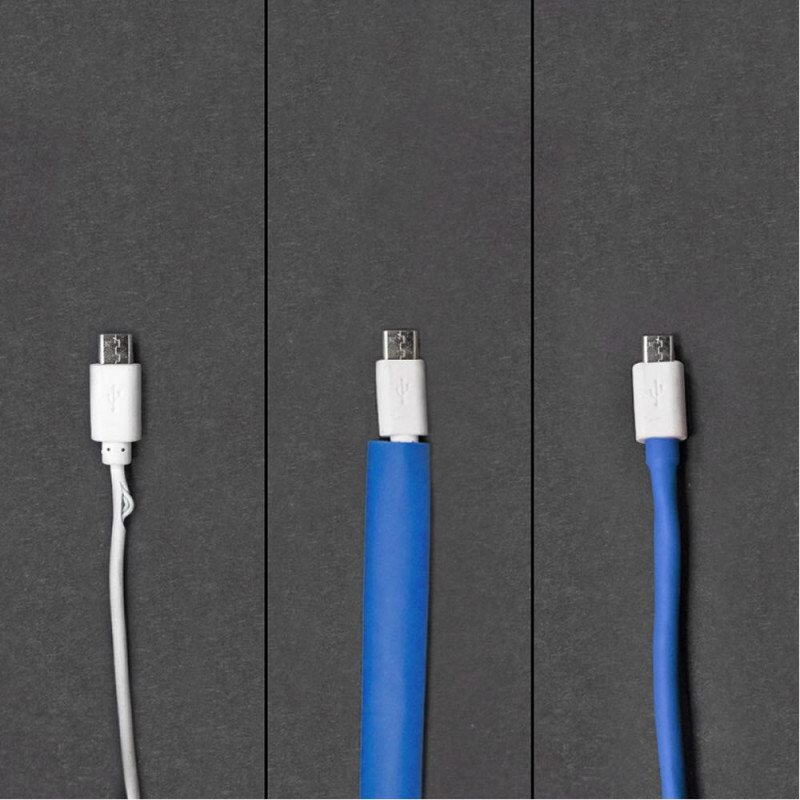

     Heat shrink tube is a special insulation material whose diameter shrinks by a certain ratio under the effect of heat. It has application areas such as electrical insulation, protection, labeling and classification. Shrinking by a 2 to 1 ratio under the effect of heat, it tightly wraps around the cables subject to the operation. Thanks to this wrapping process, it protects the material it covers from external factors. It is generally used in the process of covering cables for insulation purposes.

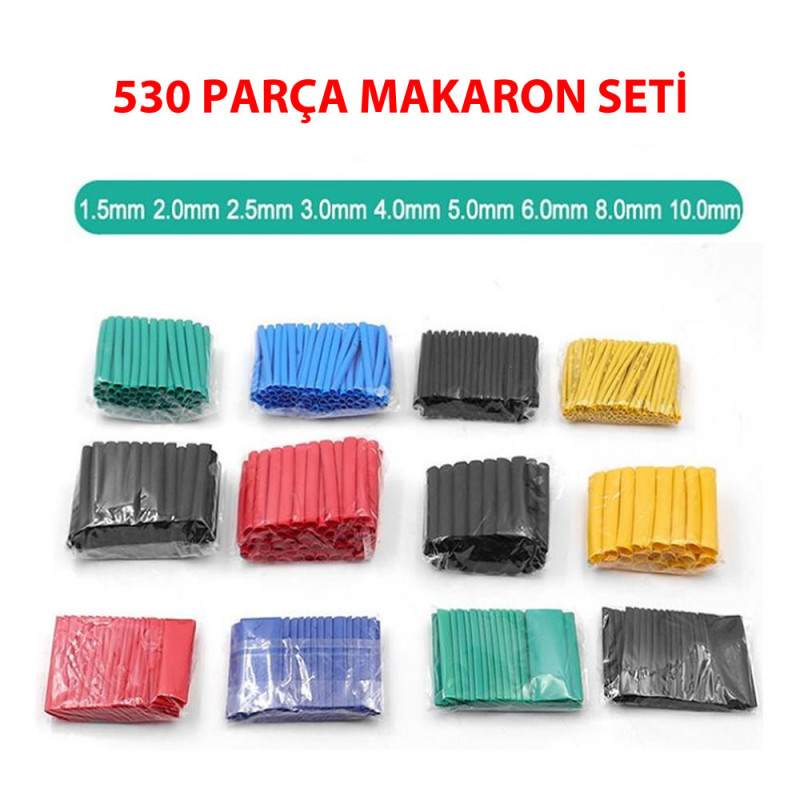

     8 Different diameters of heat shrink tube are included in this set. It is very easy to use and apply. Below is the quantity, diameter and length table.

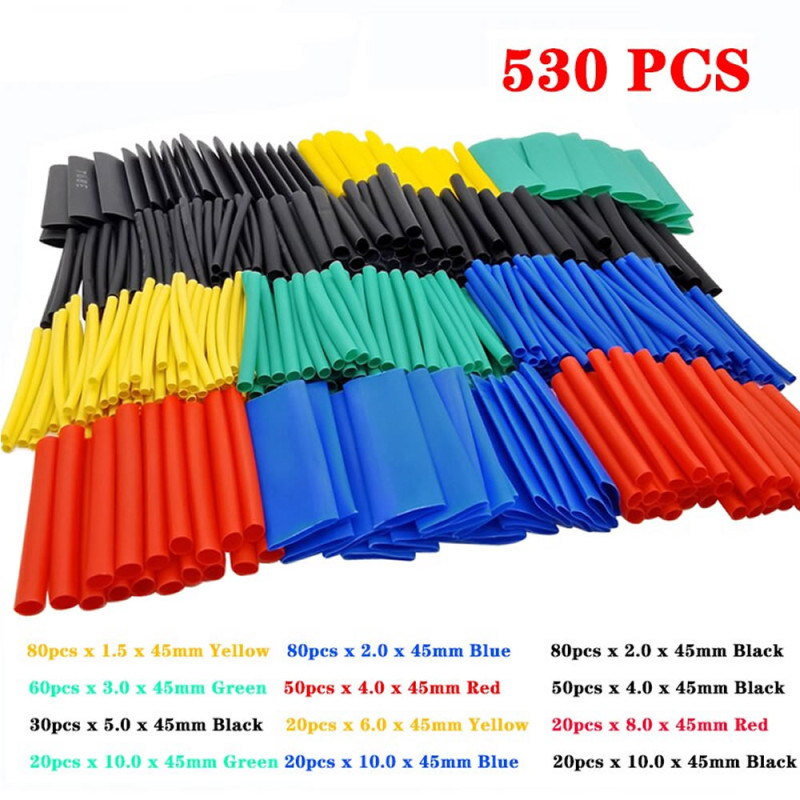

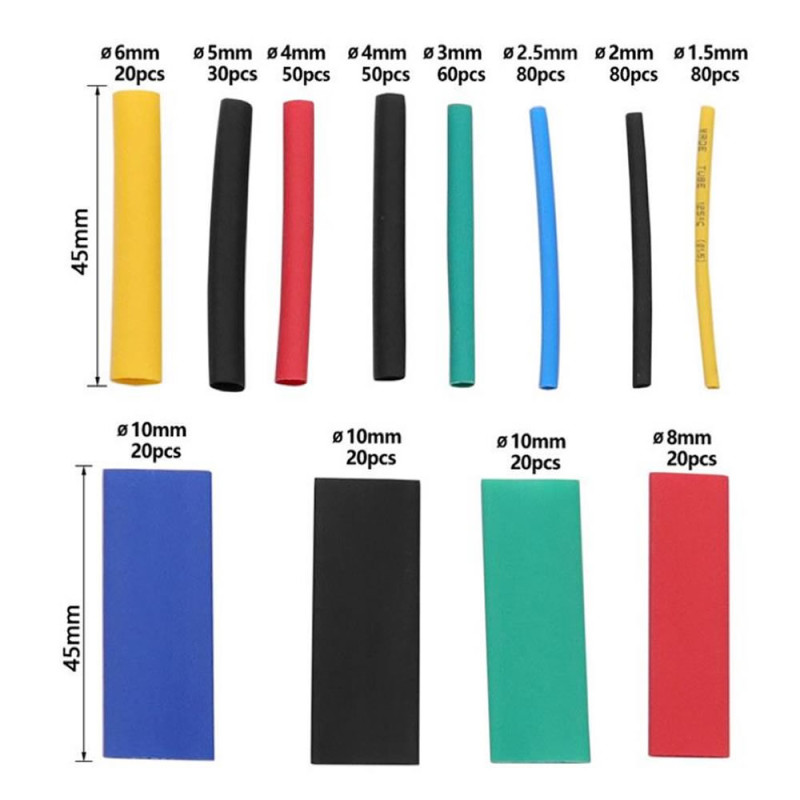

• Quantity   x   Diameter  x    Length
• 80 Pieces  x 1.0mm x 45mm
• 160 Pieces  x 2.0mm x 45mm
• 60 Pieces  x 3.0mm x 45mm
• 100 Pieces  x 4.0mm x 45mm
• 30 Pieces  x 5.0mm x 45mm
• 20 Pieces  x 6.0mm x 45mm
• 20 Pieces  x 8.0mm x 45mm
• 40 Pieces  x 10.0mm x 45mm

Features:

• Material: Polyolefin
• Number of pieces: 530Pieces
• Tube Diameters: 1.0mm, 2.0mm, 3.0mm, 4.0mm,5.0mm, 6.0mm, 8.0mm, 10.0mm
• Color: Yellow, Black, Red, Green, Blue
• Minimum shrink temperature: +70C
• Full shrink temperature: +110C Maximum
• Shrink Ratio: 2:1
• Shrinks down to half of the diameter.
• Shipped in bags in 12 separate packages.
• Operating temperature: -55C +125C
• For protection and insulation purposes
• It allows you to cover cables professionally, easily and quickly.
• Dielectric strength:15 kV/mm

Package Contents:

• 530 Piece Heat Shrink Tube Set
