SST-S11 Solder Ring Heat Shrink Tube Set

SST-S11 Solder Ring Heat Shrink Tube Set

Heat Shrinkable Solder Ring  Waterproof Adhesive Seal

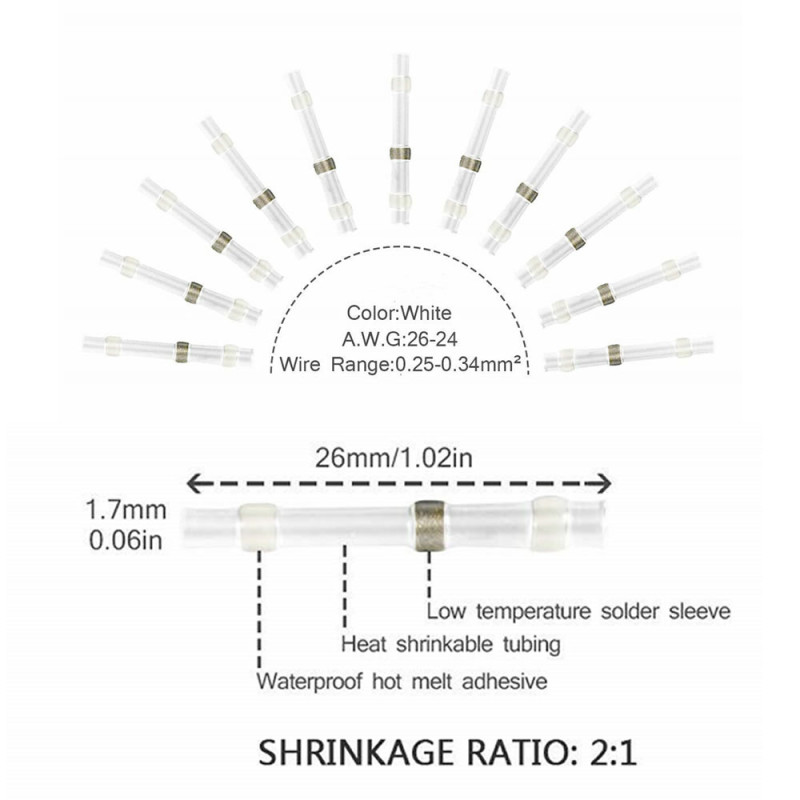

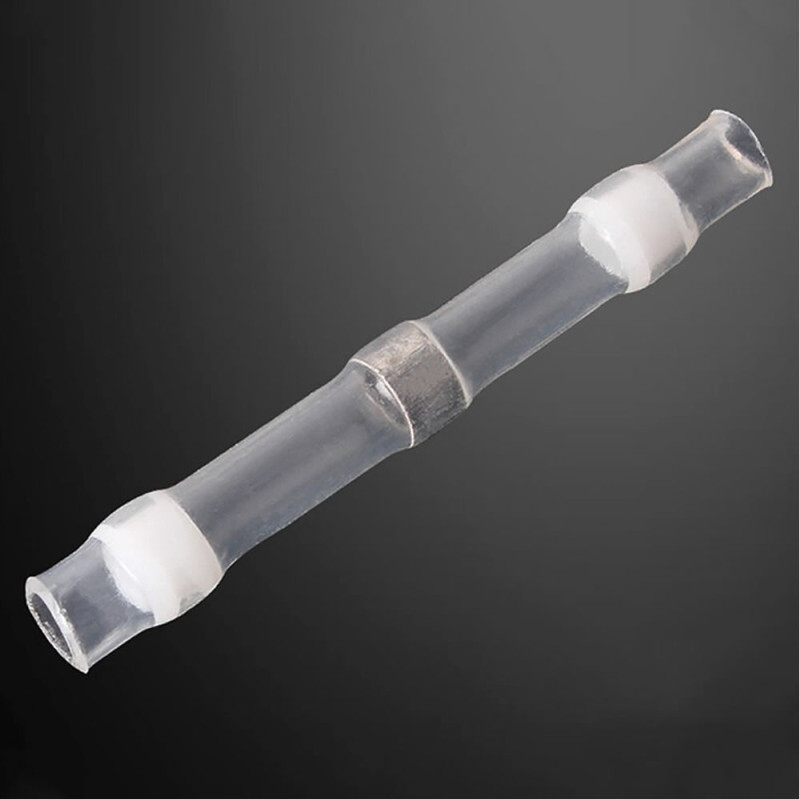

     It is shipped in a bag of 50 pieces. It is a heat shrinkable protective tube. Its difference from other tubes is that there is a solder ring in the middle section that can melt with heat. The product is slid onto the cable. After the 2 cables are crimped, the tube is slid to the joining point. The solder ring melts after hot air application and enables the cables to be soldered to each other. Thus a very strong connection is made. The solder ring has a structure that can melt at a low temperature of 160 degrees.

     Also, another feature of this tube is the rings on its 2 edges that adhere to plastic. Again, with the hot air applied to these sections, it melts and becomes adhesive. It fully adheres to the plastic on the cable. When it cools it creates a waterproof structure. This prevents the connection you made from being affected by water and moisture and allows you to use it trouble-free for a long time.

• Heat shrinkable solder ring tube
• It is used for cable joining and protection.
• Model No.: SST-S11

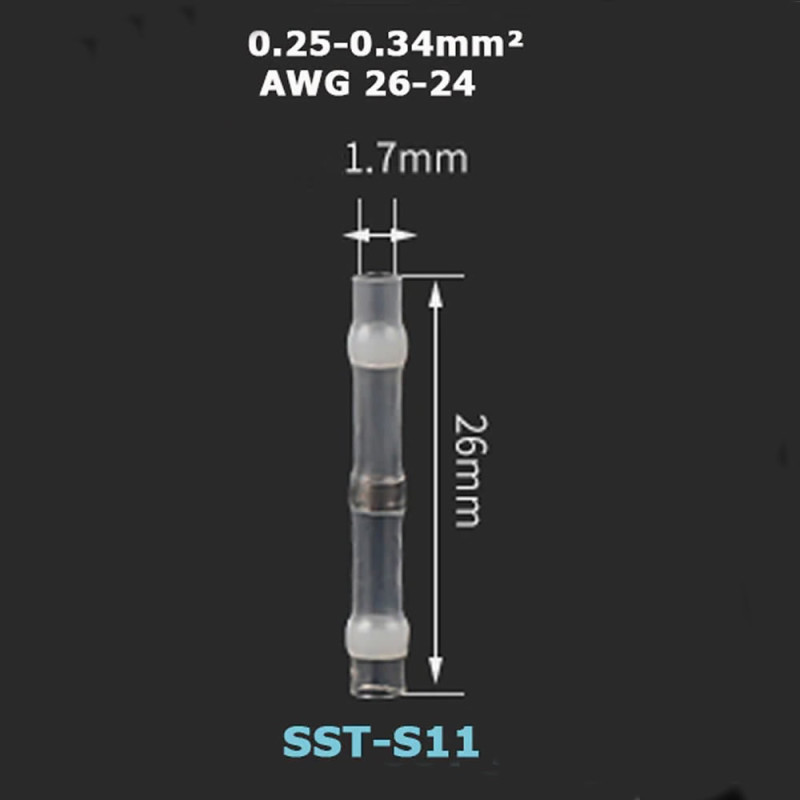

• Wire size: 0.25-0.34mm ² AWG26-24  ( Cable thickness maximum 1.7mm )
• Operating temperature: -55 ℃ to 125 ℃
• Shrink temperature: >160 ℃
• IP class: IP67

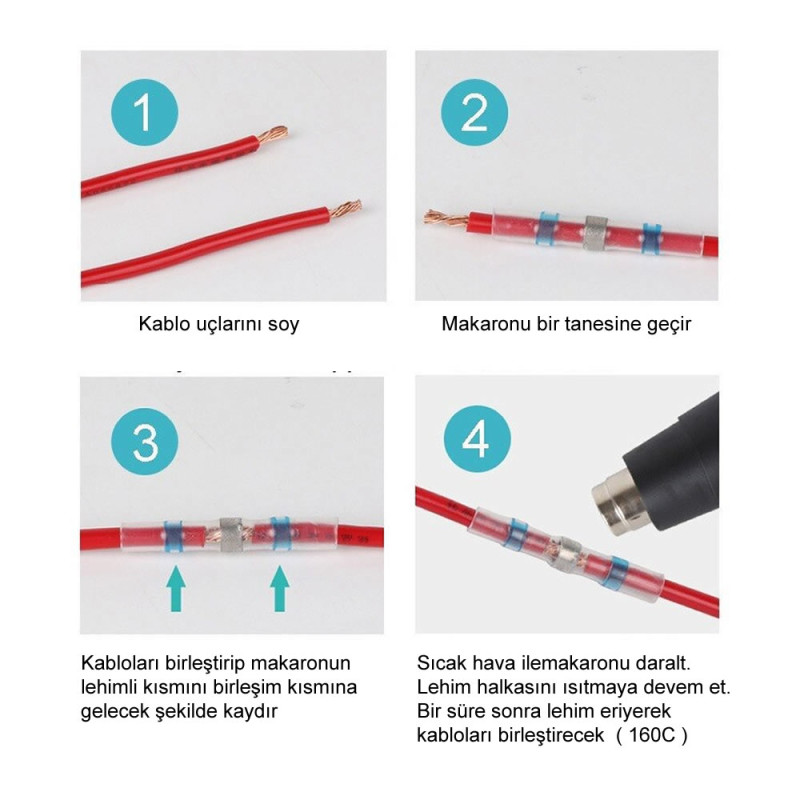

Usage

•  Strip the cable ends.
•  Insert the tube onto one cable.

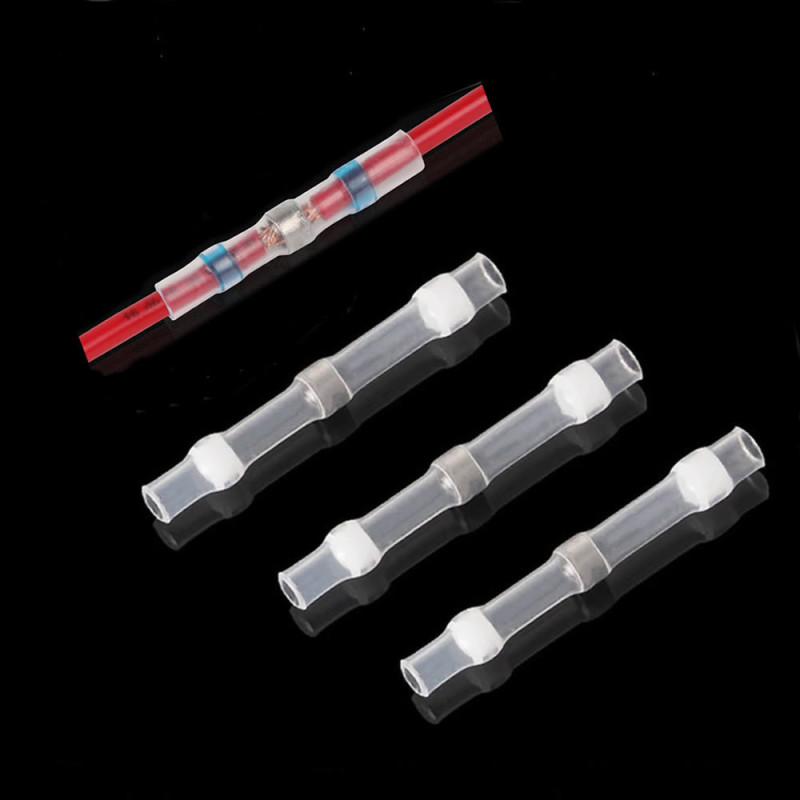

•  Twist the wires and slide the tube so that the solder ring is at the joint section.
•  Heat the tube with hot air.

Package Contents:

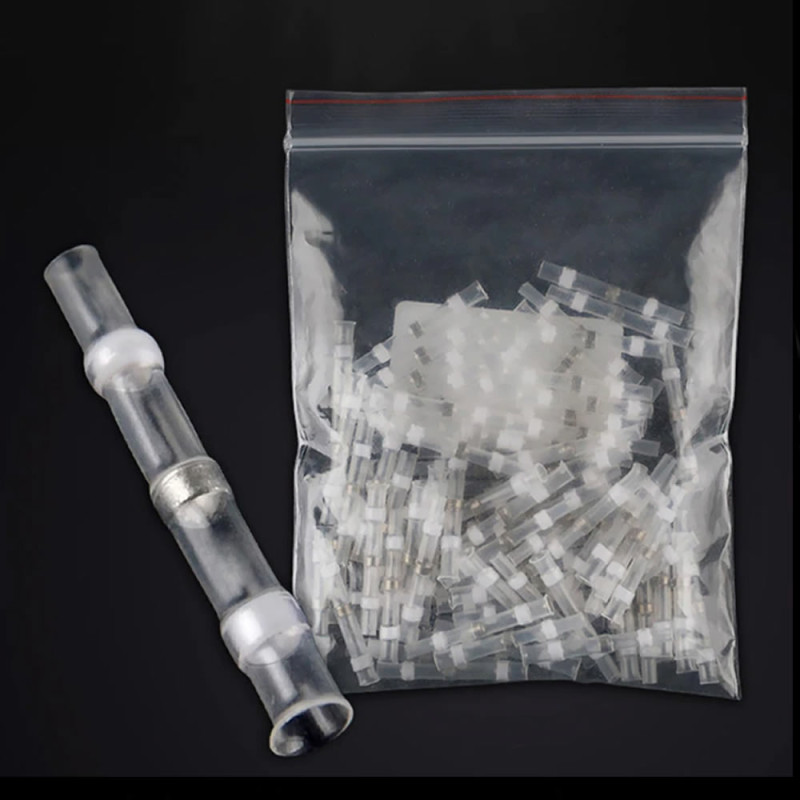

• 50 pcs SST-S11 Solder Heat Shrink Tube Set
