MI0805K601R-10 Ferrite Bead

MI0805K601R-10 Ferrite Bead 0805

600R Smd Laird-Signal 600Ohm@100MHz 1.5A 100mOhm Power Line Filter

     A ferrite bead is a passive filter element that suppresses high frequency noise and EMI on circuit lines by converting them into heat. On the line it is connected in series with, it presents low resistance to low frequencies (including DC) while its impedance increases at high frequencies and blocks noise. LC filters formed by the combination of a capacitor and a ferrite bead are widely used to provide EMC compliance, especially on power lines and sensitive signal interfaces.

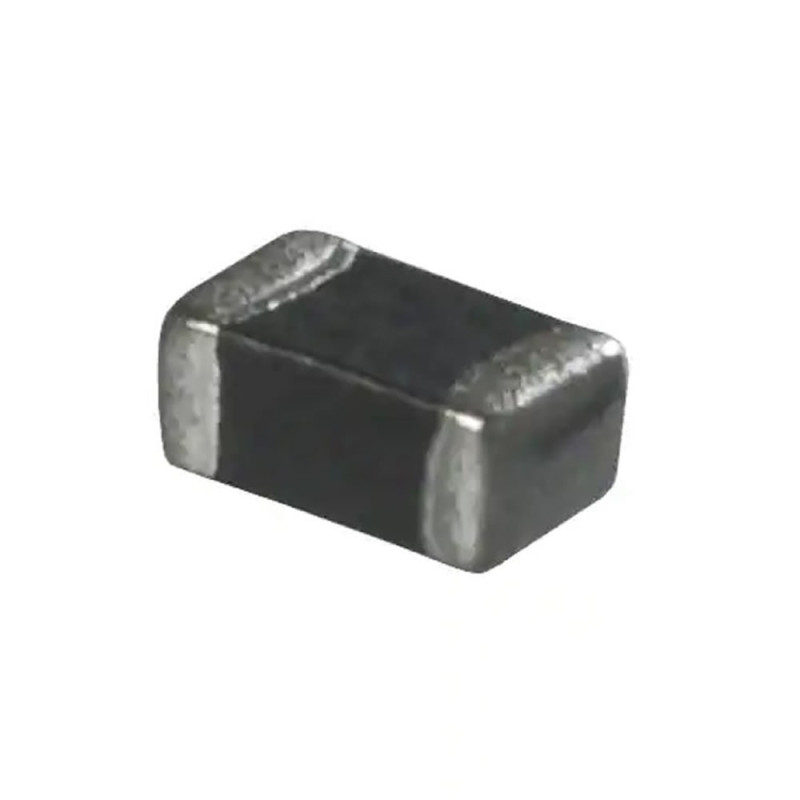

     The MI0805K601R-10 is an smd mounted ferrite chip bead in 0805 (2012 metric) body size. It is designed to suppress power line noise by providing 600ohm impedance at 100MHz frequency. Thanks to its differential mode filtering feature, it converts high frequency noise into heat and removes it from the circuit. With 1.5A maximum current capacity and 100mohm maximum DC resistance, it operates with low loss on power lines. Thanks to the wide temperature range between -40C and 125C, it can be used in industrial and automotive applications.

Features:

• Part number: MI0805K601R-10
• Brand: Laird Performance Materials
• Type: Differential mode ferrite chip bead, power line

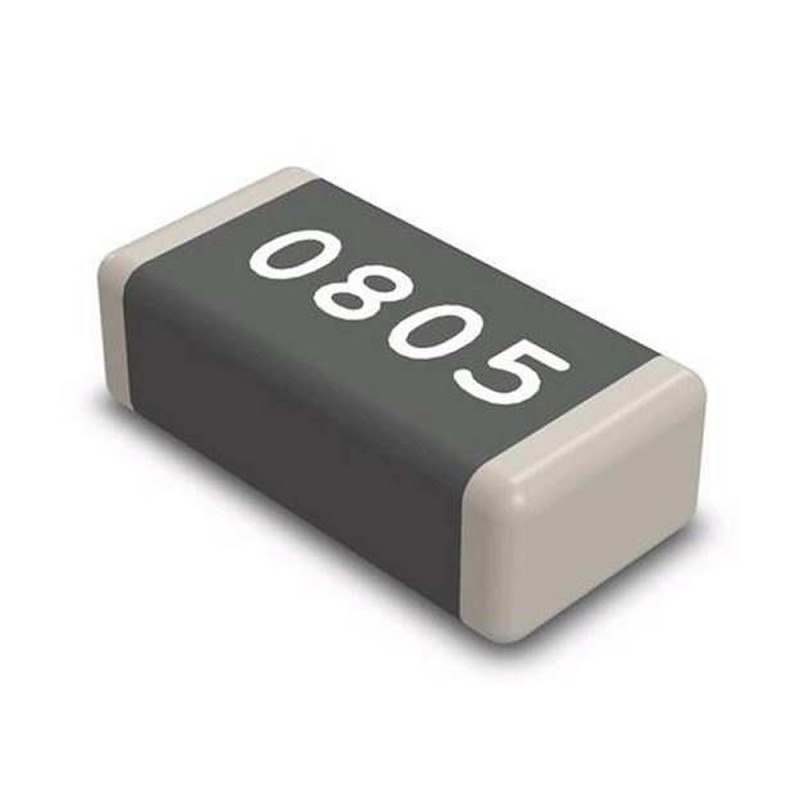

• Body: 0805 (2012 metric)
• Mounting: Surface mount (SMD/SMT)
• Impedance: 600ohm (at 100MHz)
• Test frequency: 100MHz
• Maximum DC current: 1.5A
• Maximum DC resistance: 100mohm
• Filter type: Power line, 1 line
• Operating temperature: -40C to 125C

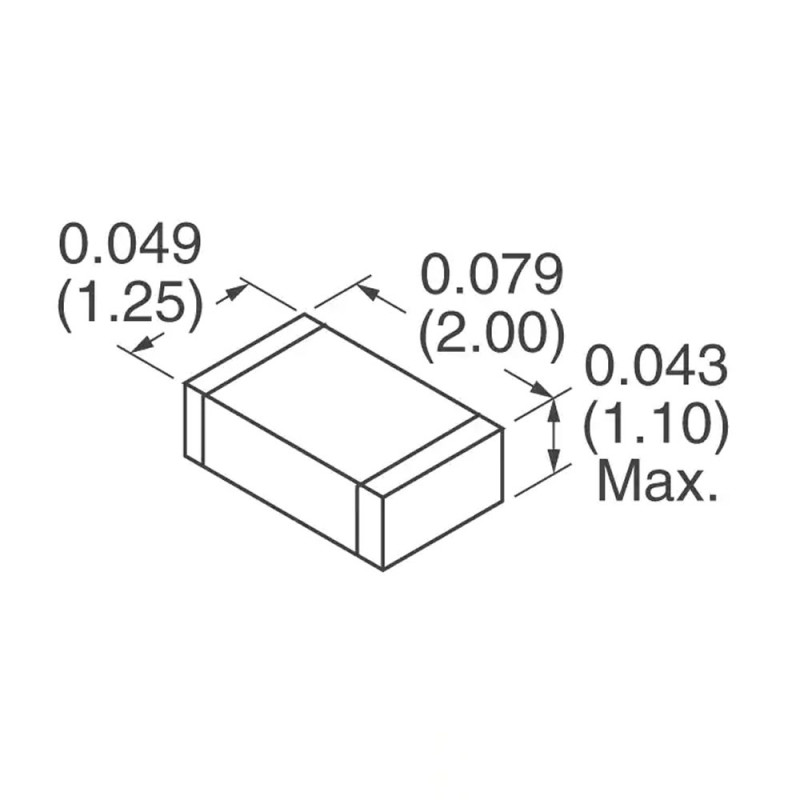

• Dimensions: 2.00mm x 1.25mm x 1.10mm
• Weight: 42mgr

Package contents:

•   1 Piece  MI0805K601R-10 Ferrite Bead
