Type-C Led Dimmer Module

Type C Usb Powered Touch Led Dimmer Module

3.7V Lion Lithium Battery Charge 3W Brightness Control Switch Desk Night Lamp Driver Wooden Lighting Toy

Soldering causes a physical change on the product. Perform your tests with jumper cables without soldering. After you are sure that it works, proceed to the mounting stage of the product.

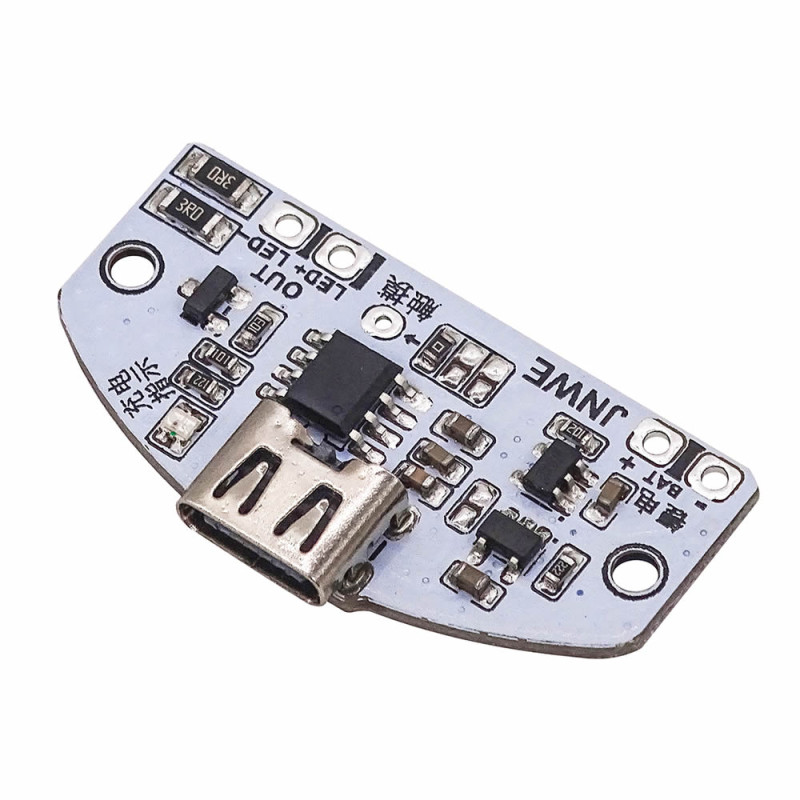

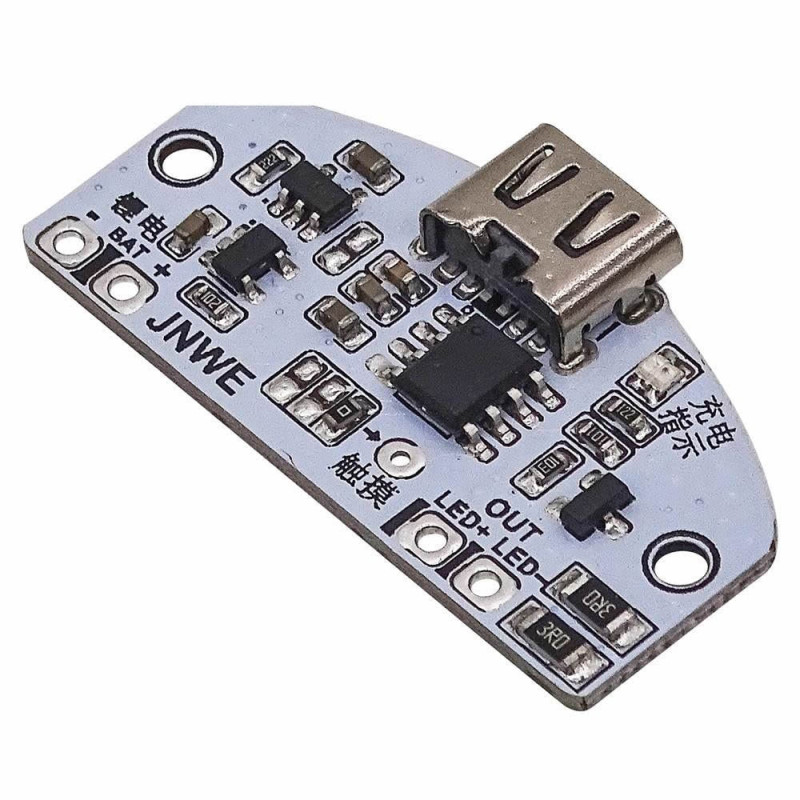

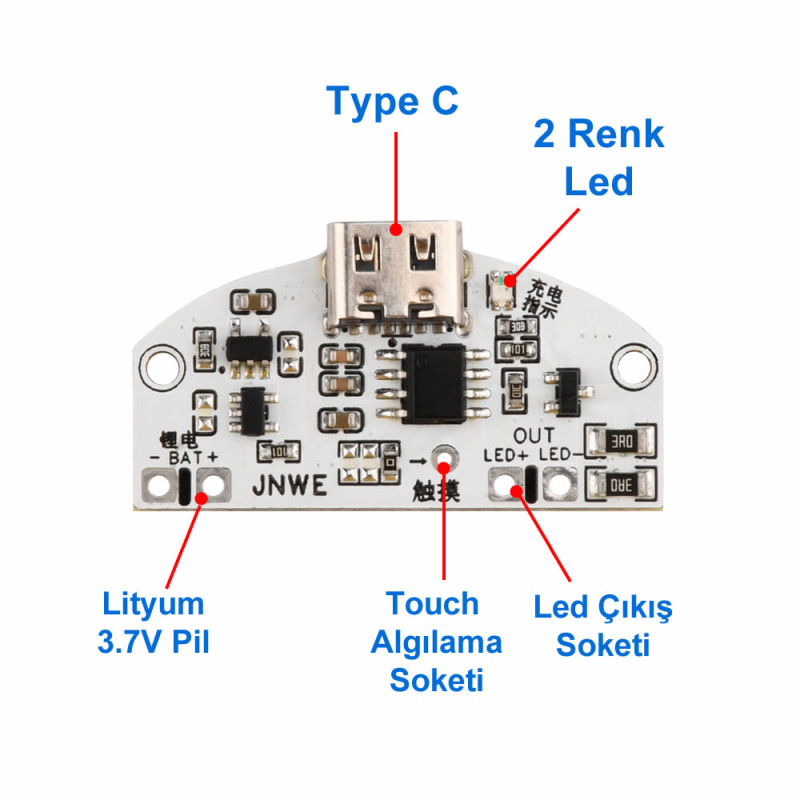

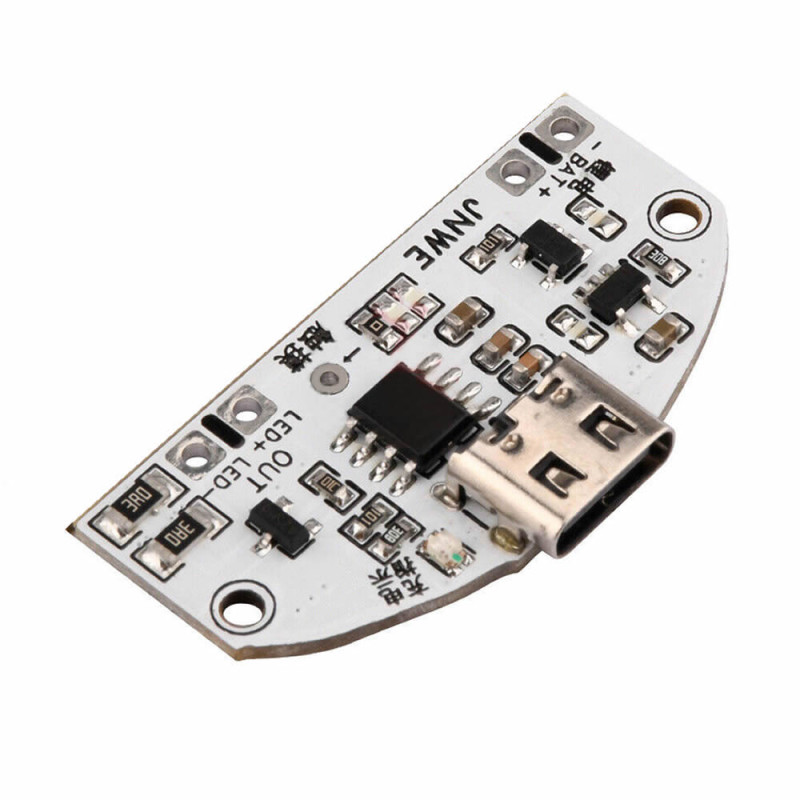

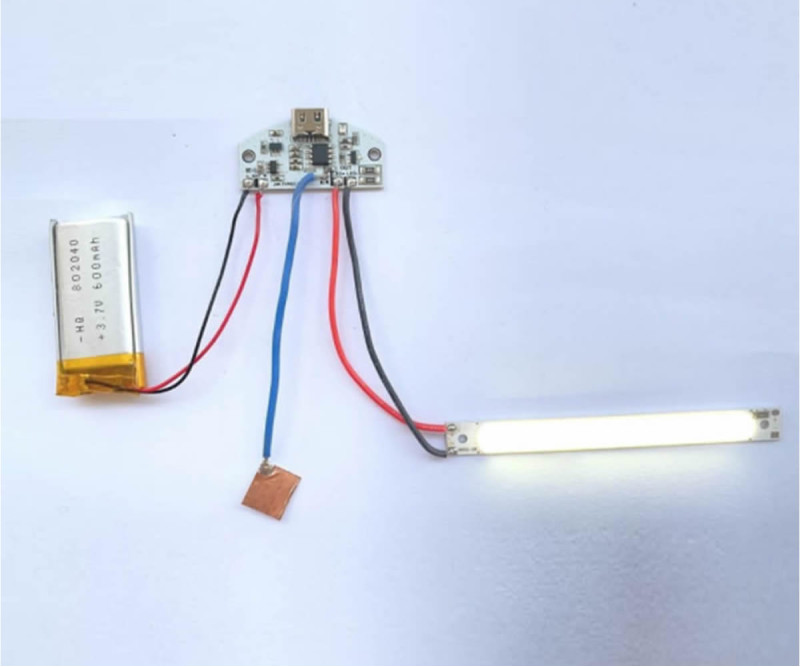

     It is a led dimmer board with a touch sensing function and a Type C usb power input. It can work with a 3.7V lithium battery. It charges the battery with 0.5A current. It can drive 3W led loads. It has a touch pad connection. With a cable, it can perform touch sensing over copper/metal at a more distant point.

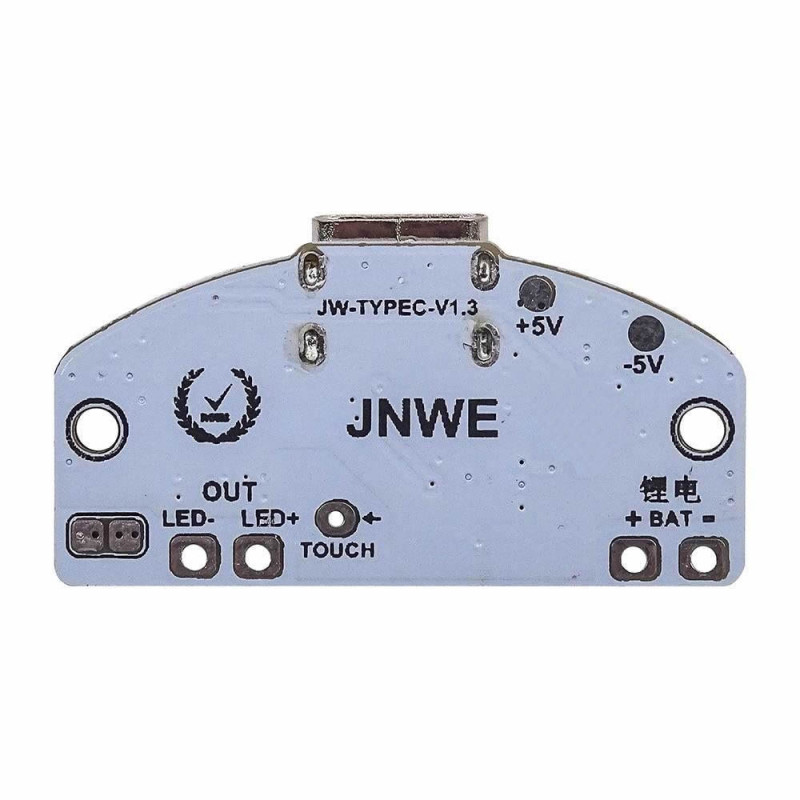

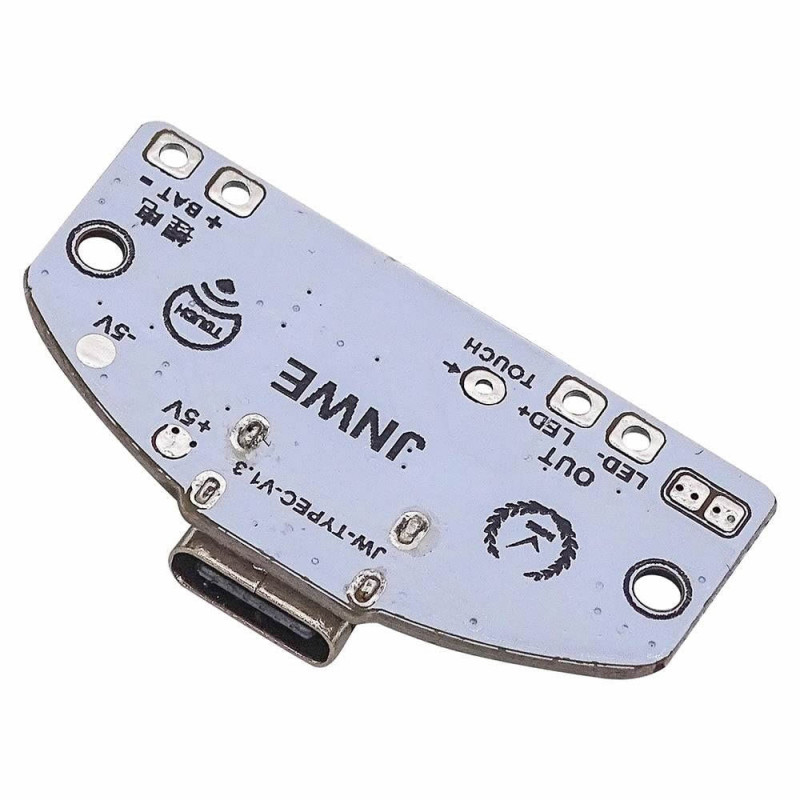

     When there is no battery, the led color is green. On battery connection, red means battery charging is continuing. Green led means the battery is charged. When powered from the battery, the output voltage is 3.7V. There is no voltage boost function on the board. If the output current is to be increased, the K pads on the back surface must be short circuited. In this case it can supply a maximum of 2A current. However, high current may damage the circuit. You should not exceed 8w power.


Features:

• Input voltage: Type C DC 5V ( 2 5V input pads on the back surface)
• Output current: 0.6A
• Sensing: Copper / metal surface extended with a cable to be soldered to the pad ( prefer it not to be longer than 15cm)
• 2 Color led indicator
• 3.7V Lithium battery connection (it is appropriate to choose below 3000mA. High capacity will increase the charge and discharge time. )
• 0.5A lithium battery charge function
• Battery overcharge protection
• Battery discharge protection
• Led connection pad
• Adjusts brightness
• Long life
• Operating temperature:   -10C  /  80C
• Color: White
• 2 Mounting holes

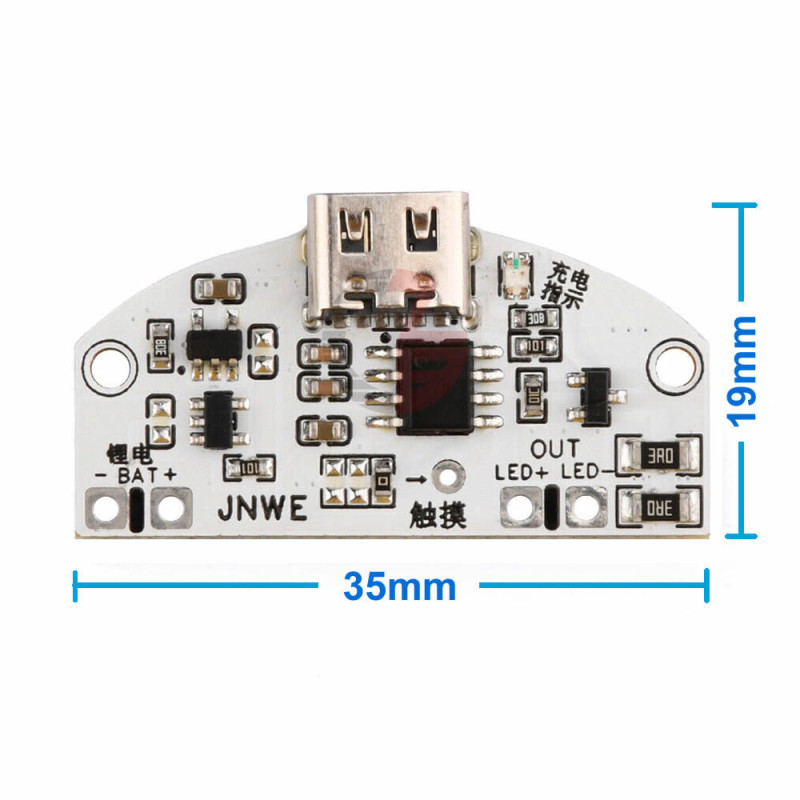

• Size:  19mm x 35mm
• Weight: 2gr.

Package Contents:

• 1 Piece Type-C Led Dimmer Module

.
