XL6019 Adjustable Power Supply Module

XL6019 Adjustable Power Supply Module 3A 30V

Automatic Adjustable Voltage Boost Buck Step Up Down Solar Car Wind Test Medical

     This module has both voltage boost and voltage buck functions on the same board. That is, independently of the input voltage, it can output voltage at the level you want. It can increase a low level input voltage upwards. Or it can decrease a high level input voltage downwards. The input voltage goes up to 30V at most. It has the capacity to drive a 3A load. Thanks to its very small dimensions, it is suitable for use in all kinds of circuits.

Features:

• Can step down voltage.
• Can step up voltage.

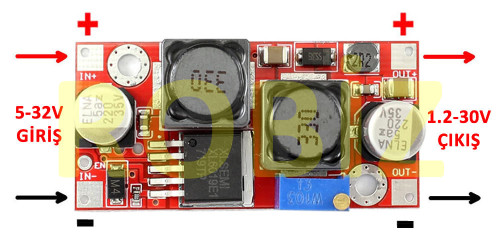

• Input voltage:  DC  5V / 32V
• Output voltage:  DC 1.25V / 30V
• Output power:  20W ( 25W with heatsink)
• Current: 3A
• Efficiency: 94%
• Frequency: 400KHz
• Output noise level: 50mV
• 2 Mounting holes
• 4 Empty input output connection pads
• Temperature:  -20C  /  +85C
• Color: Blue

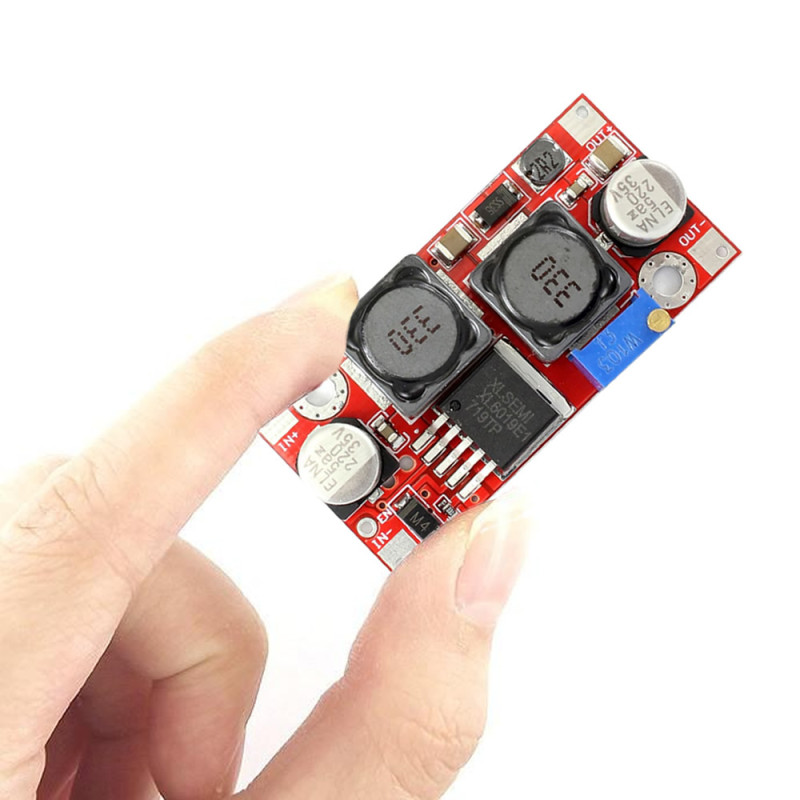

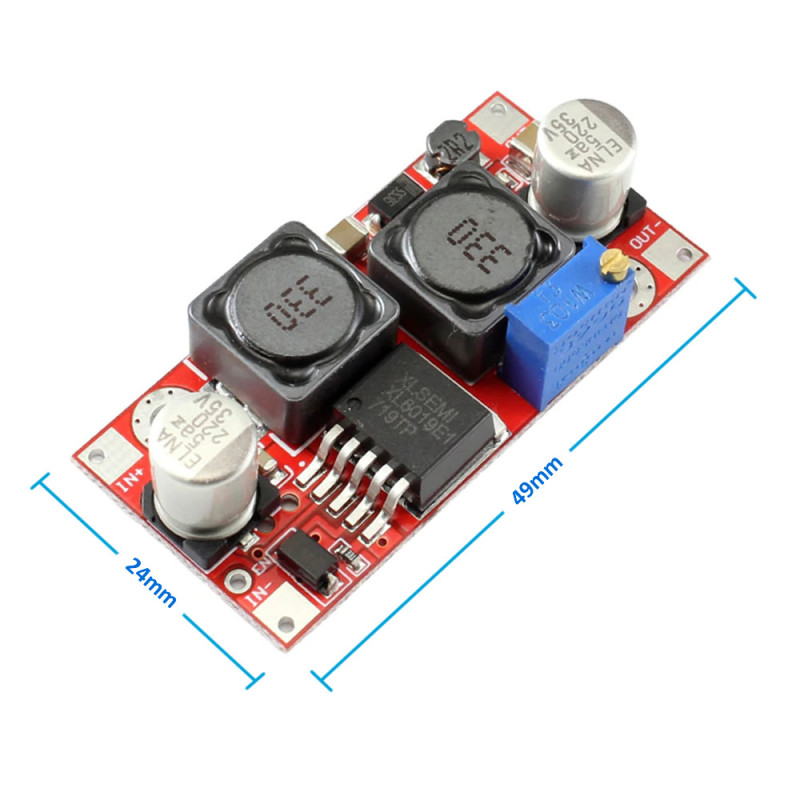

• Dimensions: 12mm x 24mm x 49mm
• Weight: 20 gr

Potentiometer Use:

• The potentiometers are multi-turn. They can turn 20-30 turns in each of the 2 directions. Usually they are turned very little and one may fall into the error of thinking the products do not work. It is necessary to turn a lot to see the effect.
• Turning clockwise; increases the value for the related parameter. For example the voltage increases.
• Turning counterclockwise; decreases the value for the related parameter. For example the voltage decreases.

Package contents:

• 1 Piece XL6019 Adjustable Power Supply Module
