2 Piece SOP8 SO8 to DIP8 Adapter Socket

150 Mil and 200 Mil Smd Soic8 Sop8 SO8 to Dip8 Spring Socket Adapter

Eeprom Flash Programmer IC Easy Programming Tool CH341A EZP2019 EZP2023 XP866+ TL866II SP200S

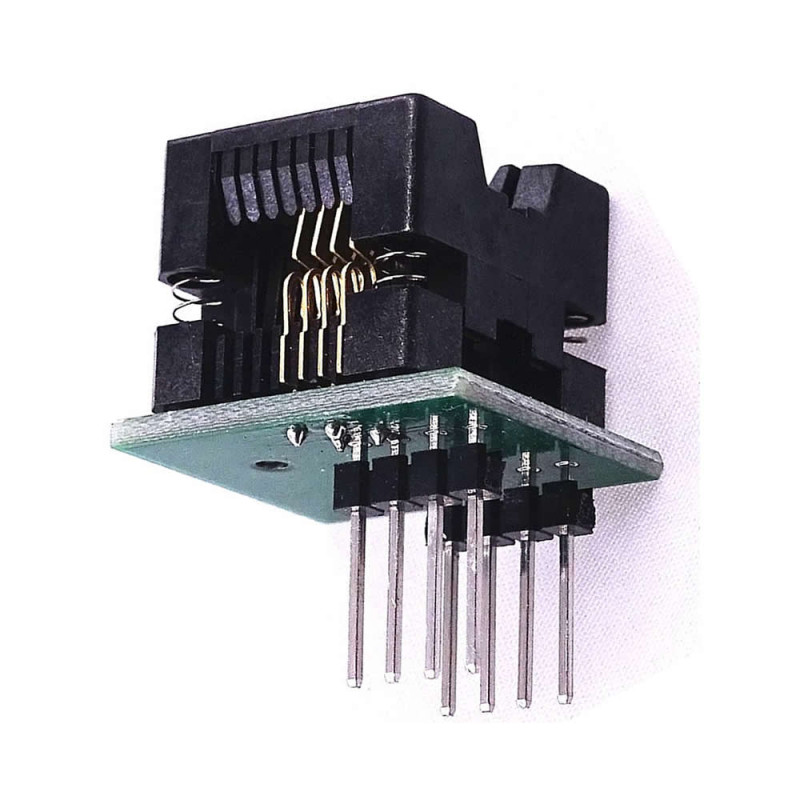

     It is used to convert 8 pin smd soic ICs into dip form. It is used for converting Soic8 Sop8 so8 type smd ICs. The plastic socket, which has a spring mechanism, has a slot where the IC will sit. The IC is seated into the socket by pressing the mechanism. Then, when the springs are released, the IC is settled into the socket.

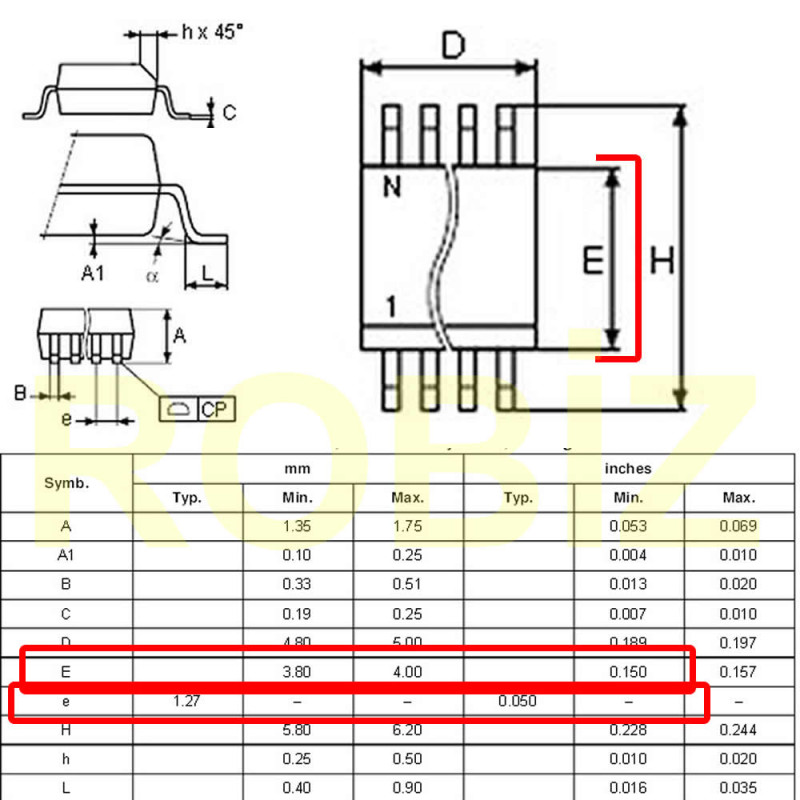

     Soic8 ICs come in two different types according to body width. According to the value shown with the letter “E” in the picture below, your IC may be 150 mil or 200 mil wide. Download the datasheet of your IC and check what the value shown with the capital letter E in the technical drawing section is. You will see texts such as 0.150 in inches or 150mil / 200mil in mils. You need to choose your spring socket according to this value.

     Also, the distance between 2 adjacent pins ( pin pitch ) is important. As standard, this value shown with the small letter “e” is 1.27mm ( 50mil ). If on your IC 2

Features:

• Suitable for SOIC8  /  SOP8  /  SO8 150 mil ICs.
• Suitable for SOIC8  /  SOP8  /  SO8 200 mil ICs.
• Suitable for ICs with 1.27mm (50 mil) pin pitch.
• It is of a quality that can be used for a long time.
• Easy to use mechanical spring system.
• Operating temperature: -10C  /  70C
• Color: Black / Blue
• 2x4 Pin dip 2.54mm male header output socket.

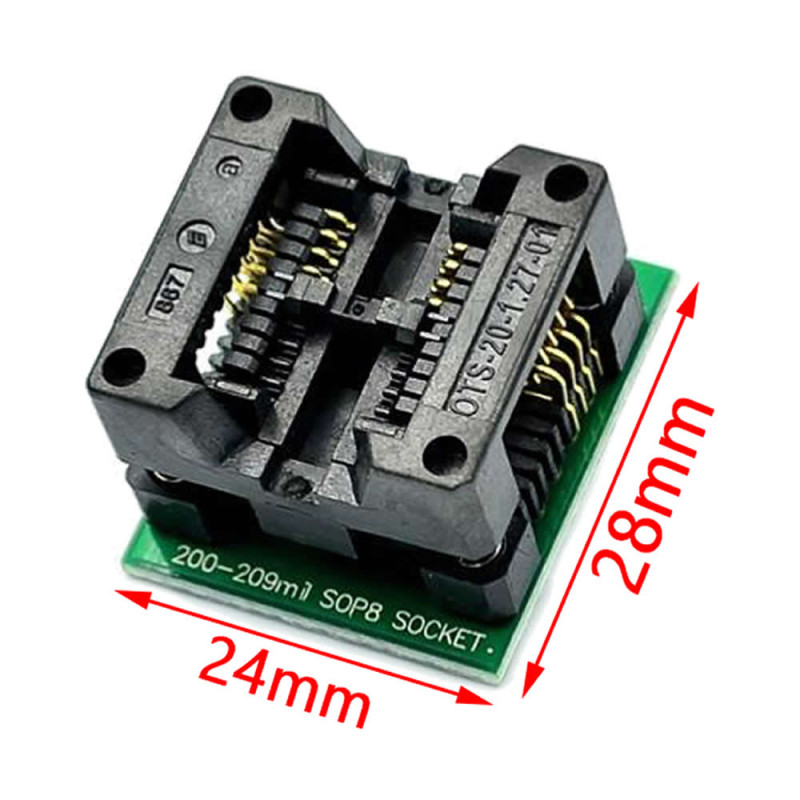

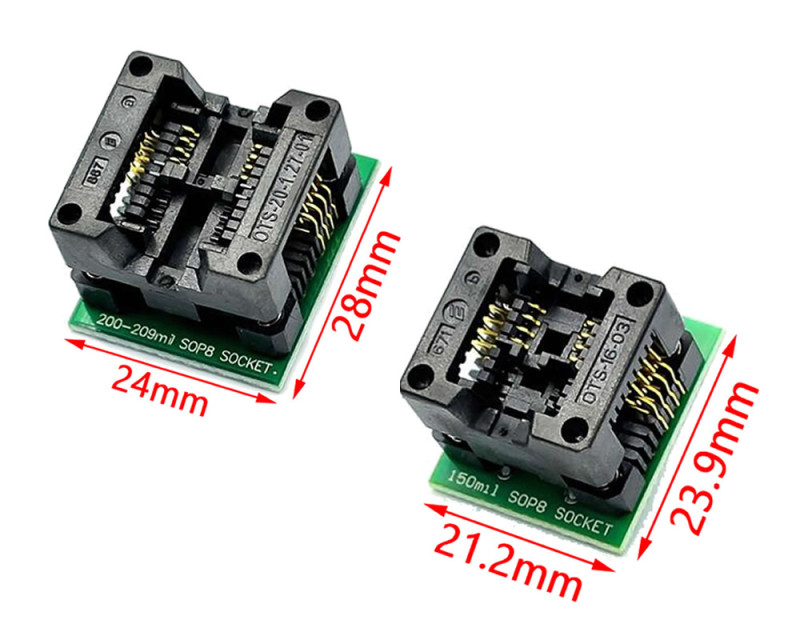

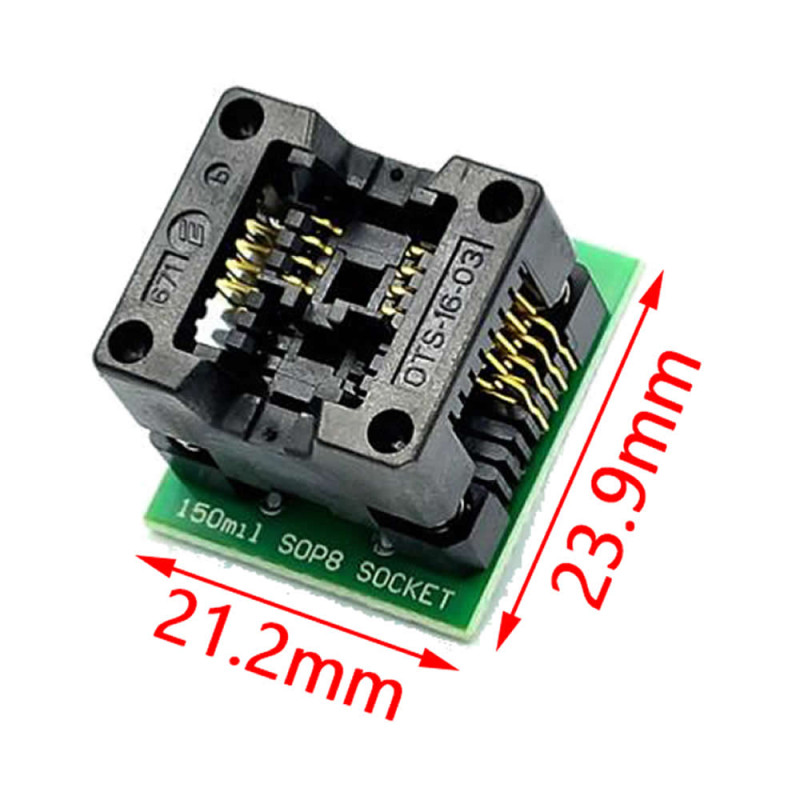

• Dimensions:  21mm x 24mm   / 24mm x 28mm
• Weight: 15gr

Package Contents :

•     1 Piece SOP8 SO8 to DIP8 Adapter Socket ( 150 mil )
•     1 Piece SOP8 SO8 to DIP8 Adapter Socket ( 200 mil )
