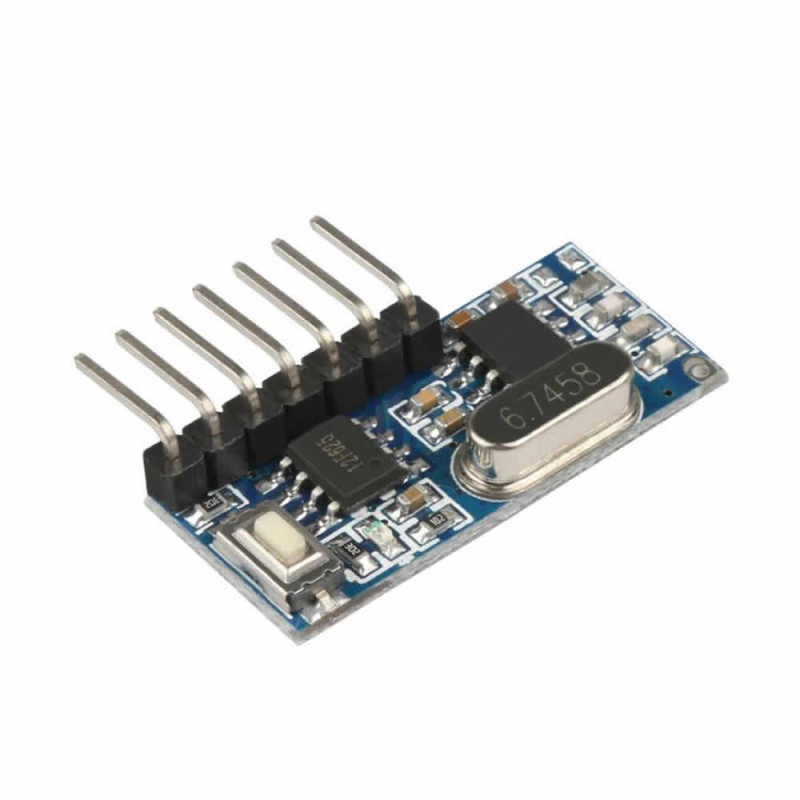

RX480-E 4 Channel 433Mhz RF Receiver

RX480-E 4 Channel 433Mhz RF Remote Control Receiver

Learning Wireless EV1527 Remote Control Door Switch Security Alarm Car

It can be used with transmitters with EV1527 output format.

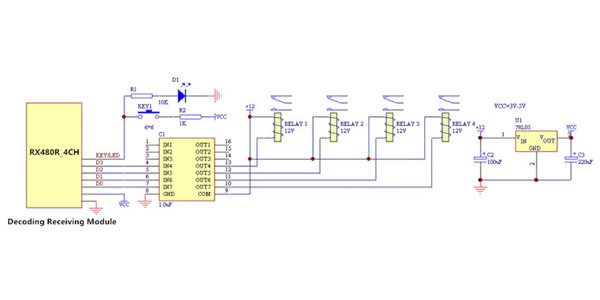

     Receiver circuit for 433 Mhz 4 channel remote controls. It can be used as a receiver circuit by learning wireless remote control signals in the EV1527 standard. It is widely used in wireless control applications.

Features:

• Operating voltage: DC 3.3V / 5V
• Operating current: 5mA and below
• Operating frequency 433MHz
• Receiver sensitivity: -108dB
• Communication distance:  15 meters
• Frequency band: ±0.2MHz
• Operating temperature: -25C / 75C
• Operating modes:Point move, self-locking, interlocking
• Output: 4 Channel TTL

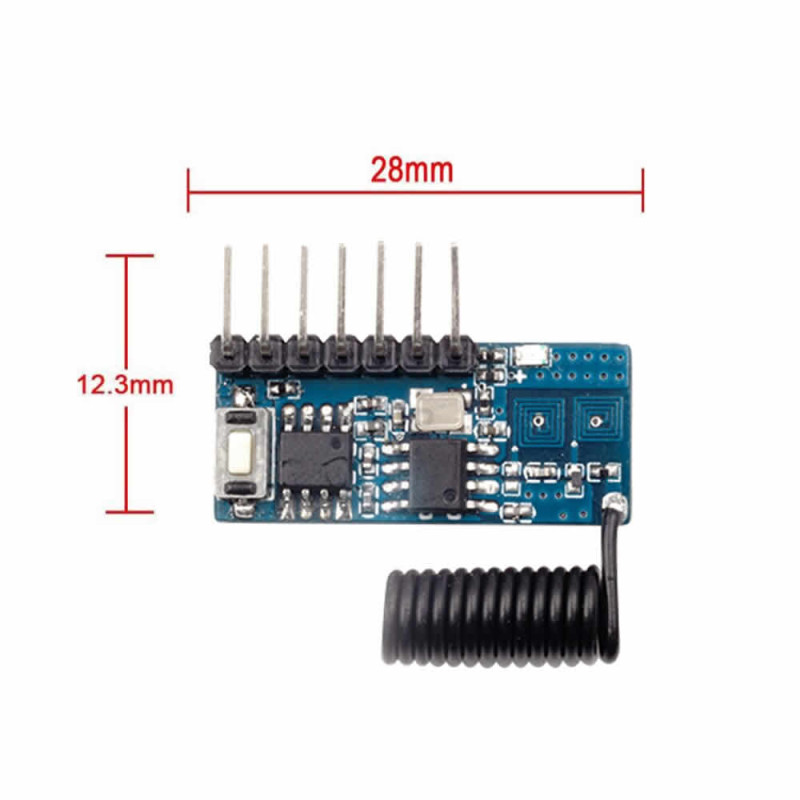

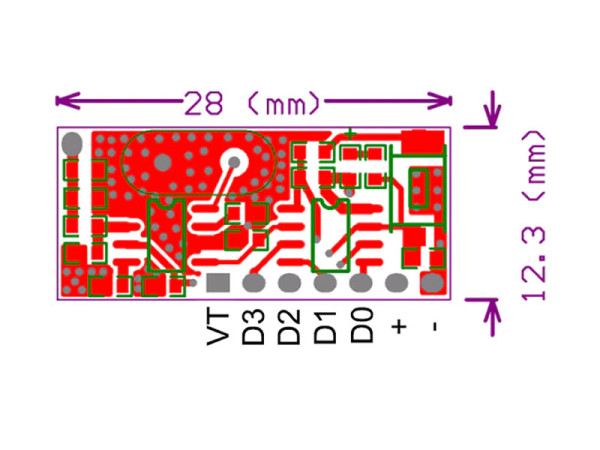

• Dimensions:  12.3mm x 28mm
• Weight: 1,5gr

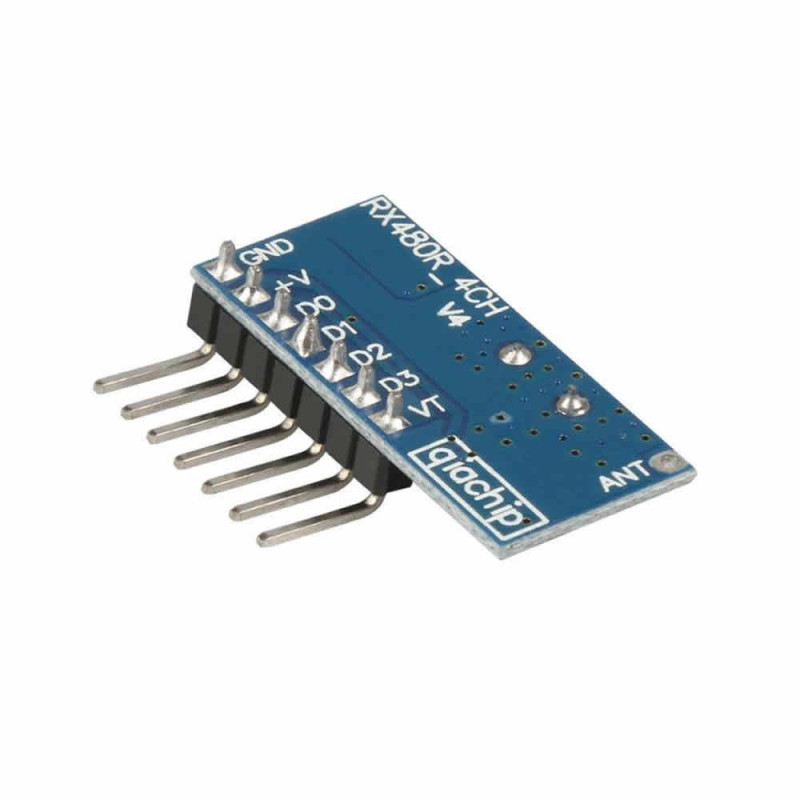

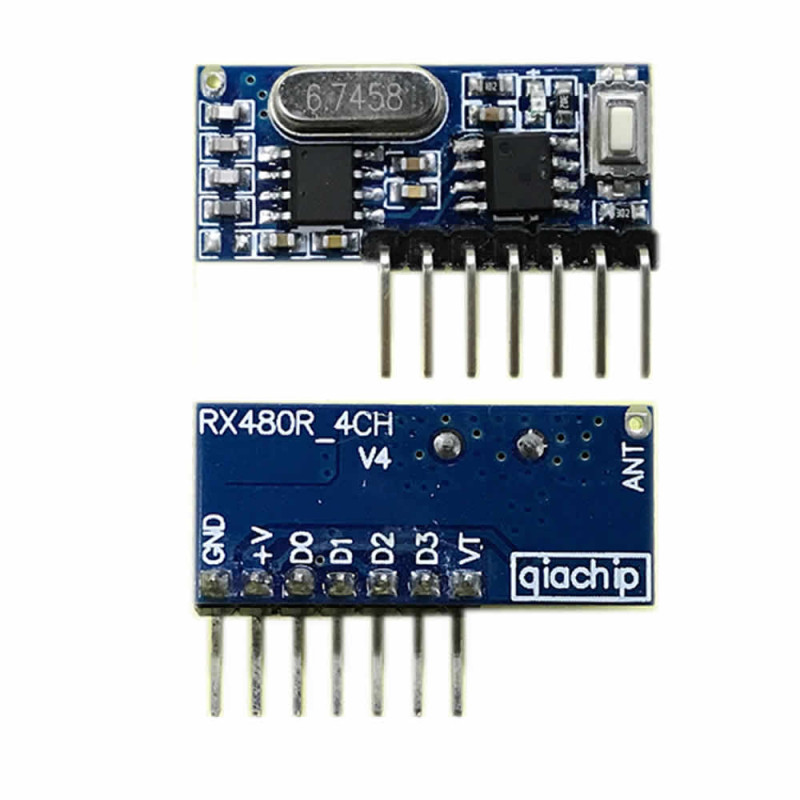

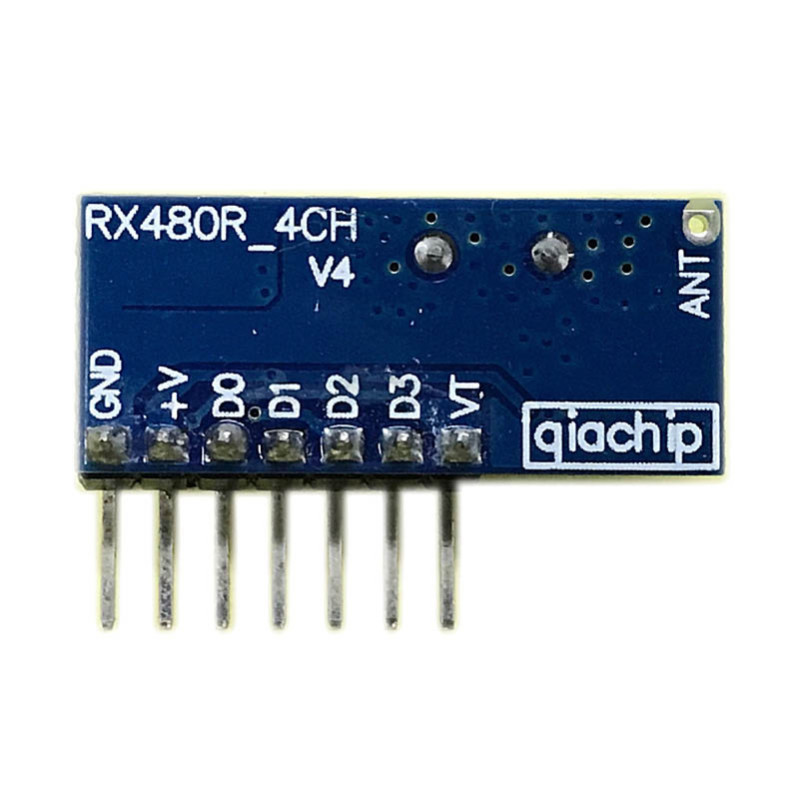

Pin description:

• GND : Ground
• +V : DC 3.3 to 5V
• D0: Data output
• D1: Data output
• D2: Data output
• D3: Data output
• VT: Output

Programming:

• Erasing the memory. Press the button 8 times. When the Led blinks 7 times, it means the records in the memory have been erased.
• Memory saving / learning: Press the button 1 time. When the Led starts to work, press the buttons of the remote control. If the Led blinks 3 times, the recording has been made successfully.
• Test: After the recording process, the relevant channel becomes active as the remote control button is pressed.

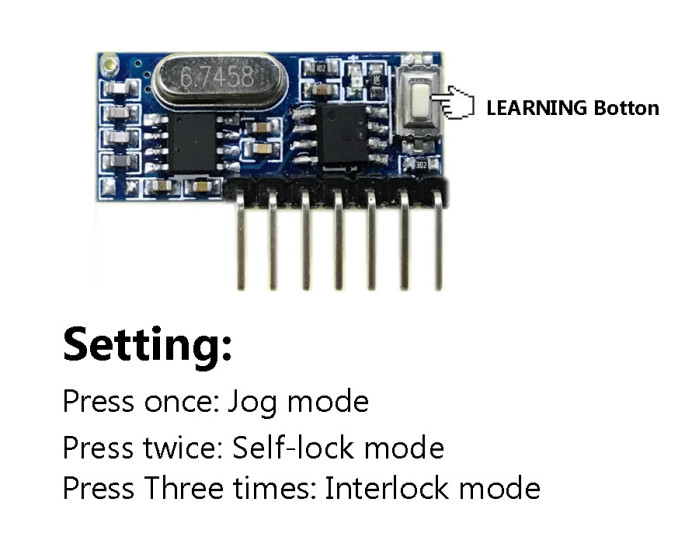

Button usage: It provides the selection of the operating modes.

• Pressing 1 time: Inching mode (Momentary Mode)
• Pressing 2 times: Self-Lock Mode (Toggle-Mode of the 4 Channels)
• Pressing 3 times: Interlocked mode (selected channel active and be cleared, if another channel becomes active)

Package Contents:

•   1 pcs RX480-E Receiver Module
•   1 pcs Antenna
