Zx-08cden 10 Frequency Rfid Reader Writer

Zx-08cden 10 Frequency Rfid Reader Writer Copier
Handheld Case 2.8” Display Audio Alert Nfc Encrypted Card Keyfob Tag Personnel Tracking Door Entry Control Counter Usb Programmer

     It is a circuit that can read, write and copy rfid cards, keyfobs, tags etc. products at 10 different frequencies. This device supports reading and copying at 125kHz, 250kHz, 375kHz, 500kHz, 625kHz, 750kHz, 875kHz, 1MHz, HID-125kHz, 13.56MHz (IC mode). It can decrypt the password of most IC encrypted cards (not all).

     It connects to the computer over Usb. The battery must not be installed when you connect it to the computer.  Do not press the “OK” key on the warning that appears on the screen. The disk will open when you wait for a while. The pc program can be downloaded via the guidance on the disk.

RFID product selection information:

     There are two types of rfid products commonly used, 13.56MHz and 125Khz. If there are numbers on your cards or keyfobs, your system is 125Khz. If there is no writing, it is 13.56MHz. You need to make your product selection accordingly. This product can read both types of rfid products.

Features:

•   Zx-08cden 10 Frequency Rfid Reader Writer
•   HD 2.8 inch / 7.1cm full color display, clear image,
•   Audio language support (english)
•   Communication: Usb port
•   T5577/EM4305 cards are 125kHz and come blank from the factory. They can be read after the writing operation is performed; please take this into account.
•   This product is not suitable for bank cards!
•   Electronic tag stickers and electronic tag cards (NTAG213) cannot be written.
•   If the device cannot connect, do not install the batteries when connecting it to the computer.
•   ISO1443A cards are supported.
•   It can decrypt the password of most IC encrypted cards (not all).
•   It does not support copying cards with CUID and FUID chips, and it does not support powered cards either.
•   Supported read/write frequencies: 125kHz, 250kHz, 375kHz, 500kHz, 625kHz, 750kHz, 875kHz, 1000kHz, 13.56MHz (ISO1443A)
•   It supports HID 125kHz Prox cards.
•   Supported card reading: EM4100/EM4200, MClassic, UID cards, HID 1386/1326, Ntag203
•   Supported card writing: T5577, EM4305, HID 1386/1326, UID cards
•   The card number can be entered directly with the numeric keypad
•   Operating voltage: Usb  (DC 5V)
•   It can be used by connecting to the computer over the Usb port.
•   Reading distance: 1-8 cm  (Varies according to the reader device and operating mode)
•   Operating system: Windows XP/Win 7/10/11
•   Operating temperature:  -10C  /  50C
•   Color: White

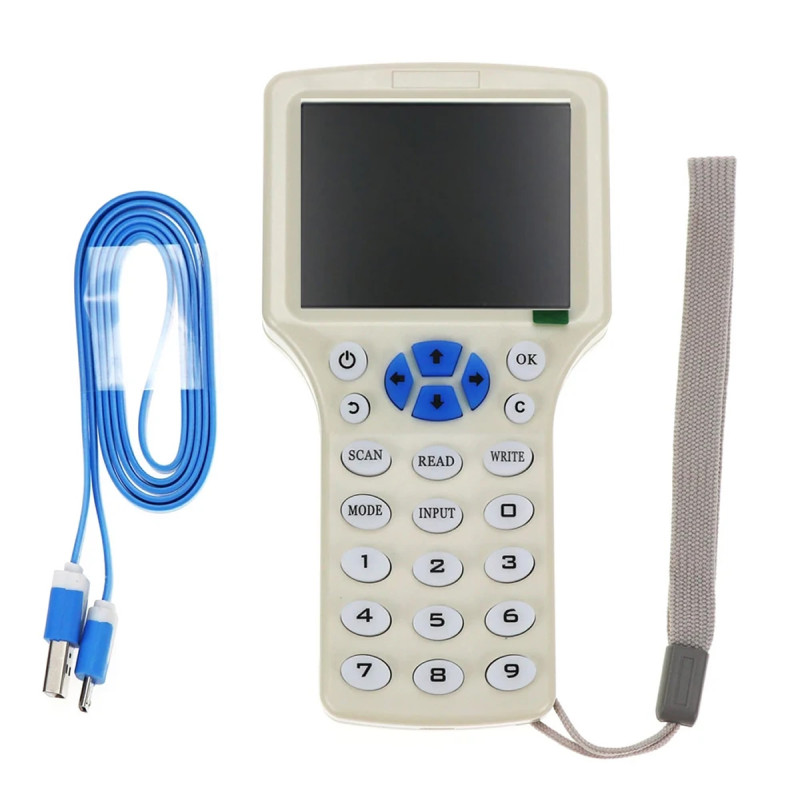

•   Usb cable length: 1 Meter
•   Handheld type case

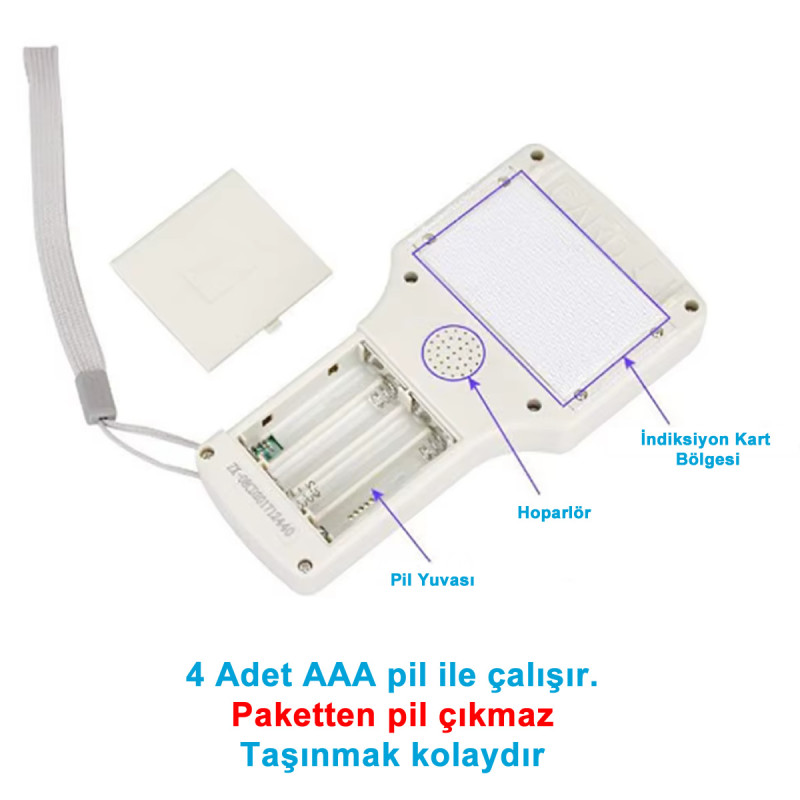

•   It works with 4 AAA batteries (not included in the package), portable.

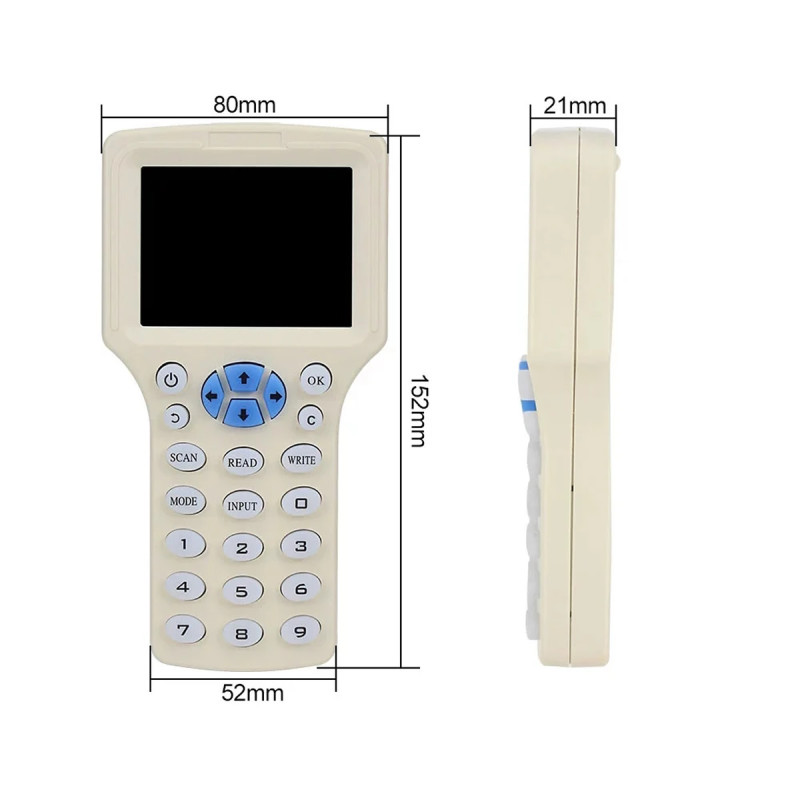

•   Dimensions:  (52mm x 80mm) x 152mm x 21mm
•   Weight:  130gr ( Box250gr)

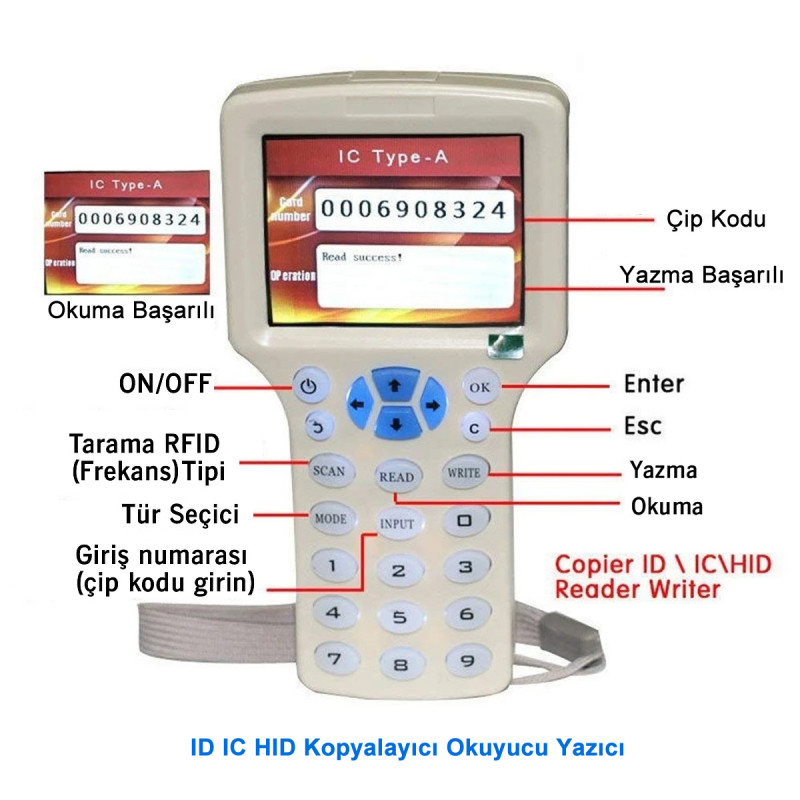

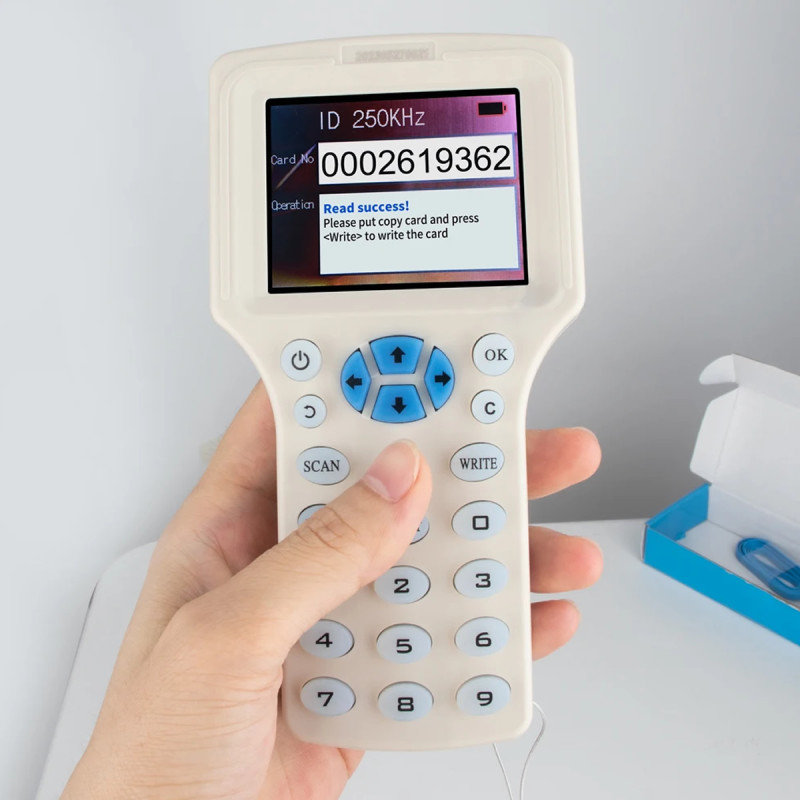

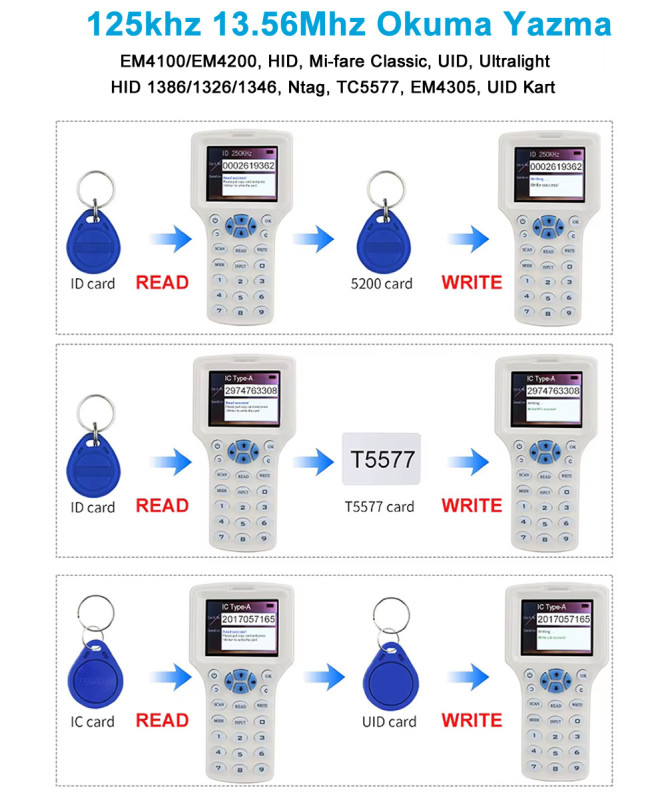

How To Read/Write a Normal RFID Card?

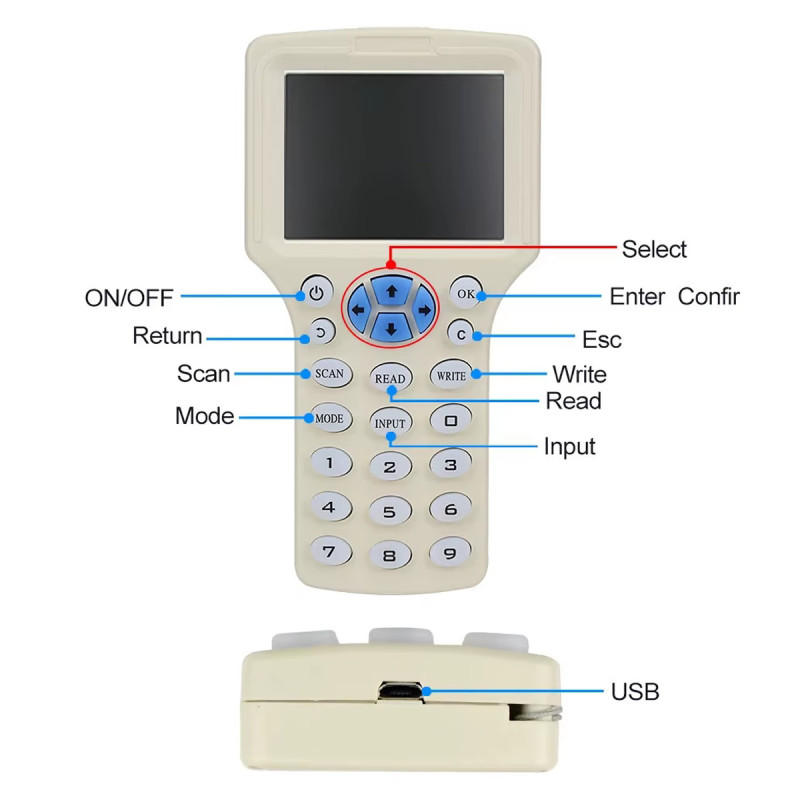

• Press the ON/OFF key.
• Place the card on the back part of the copier. The “Warning” page appears, press the OK key.
• Press the Scan key while holding the card on the back part.
• The device scans the card and shows the card number.

For writing:

• Place a T5577 (125kHz writable chip) or UID (13.56MHz writable chip) card on the back side and press the Write key.

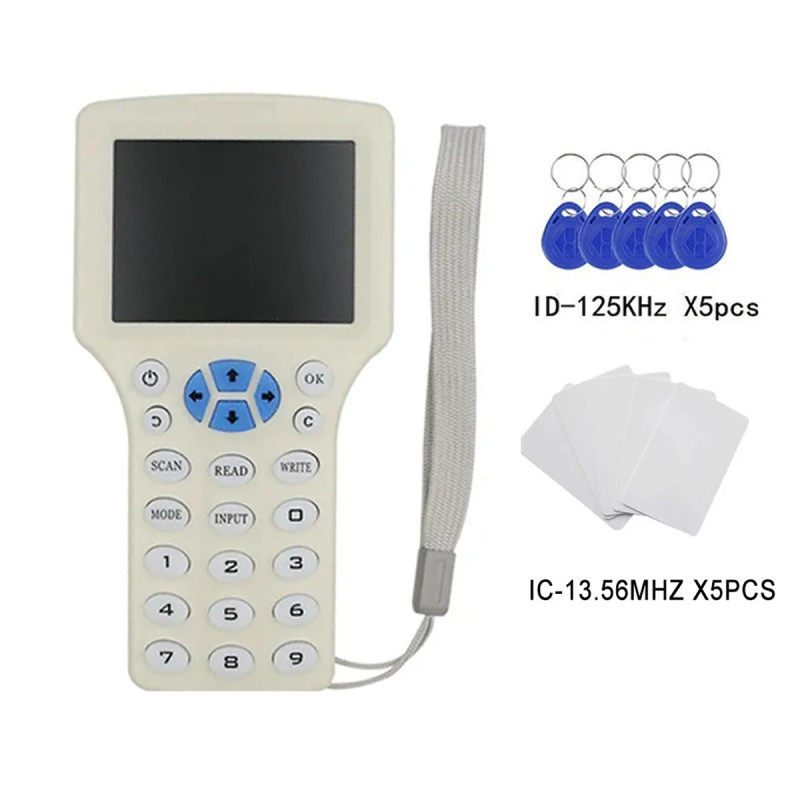

Package contents:

•    1 Piece  Zx-08cden 10 Frequency Rfid Reader Writer

.
