Futaba S3003 Servo Motor 180
297.00TL
247.50TL + KDV
10 or more 252.45TL
Buy 10 or more of this item and the unit price drops by 15%; pay by bank transfer for a total 20% discount.
- Stok Durumu: Stok Var
- Marka: OEM
- SKU: RBZ.100.767
Tags:
Futaba S3003 Servo Motor
Futaba S3003 Servo Motor 180 Derece

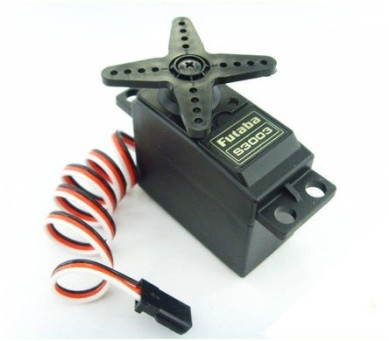

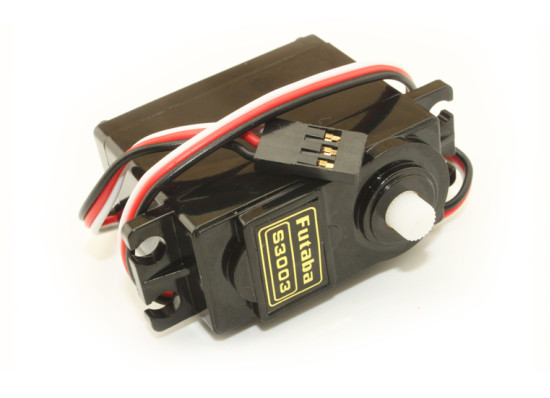

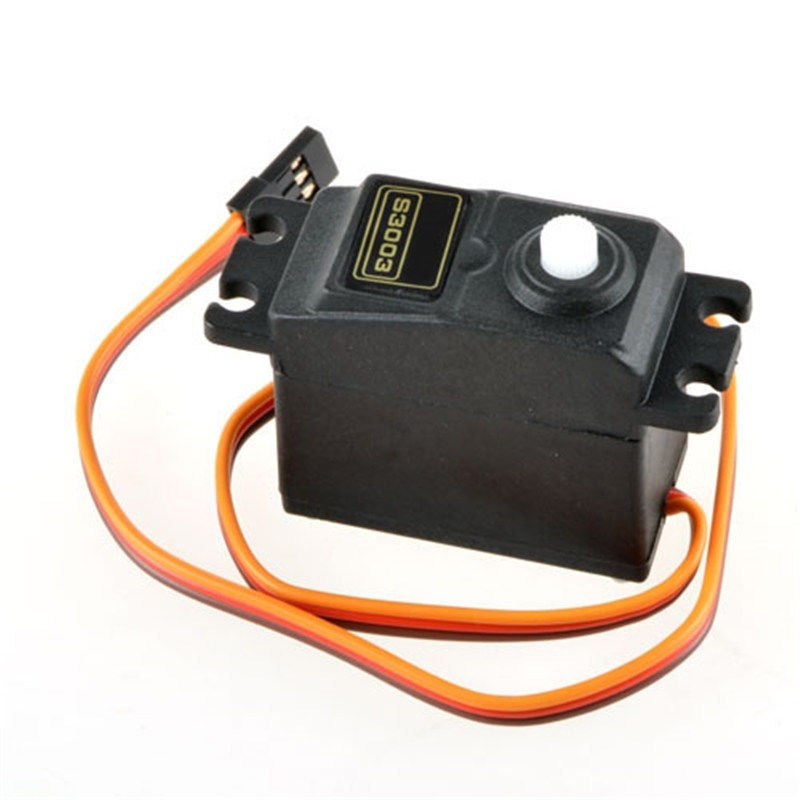

The Futaba S3003 is a great multi-purpose standard-size high reliability servo, and it can be easilly modified for continuous rotation. Features plastic gearing, so these are not suitable for high impact applications, but they're a great choice for beginners - perfect for moving a robotic arms through a certain range or steering a rover! Please don't stick this type in your 70mph 4x4 off-road RC buggy and moan if they don't work as intended!

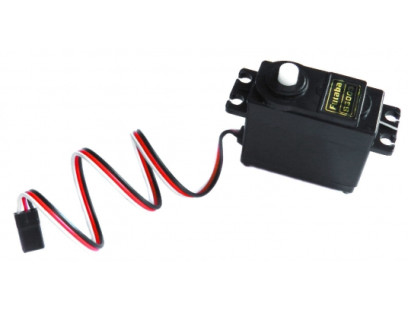

The unit comes complete with 30cm wire and 3 pin 'S' type female header connector that fits most receivers, including Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum and Hitec.
This servo can rotate approximately 180 degrees (90 in each direction), but can be modified for full rotation, and comes with a range of horns and hardware to suit most applications! You can use any servo code, hardware or library to control these servos, so it's great for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places.
The Futaba S3003 Multi-Purpose Servo Features:
- Genuine Futaba Product

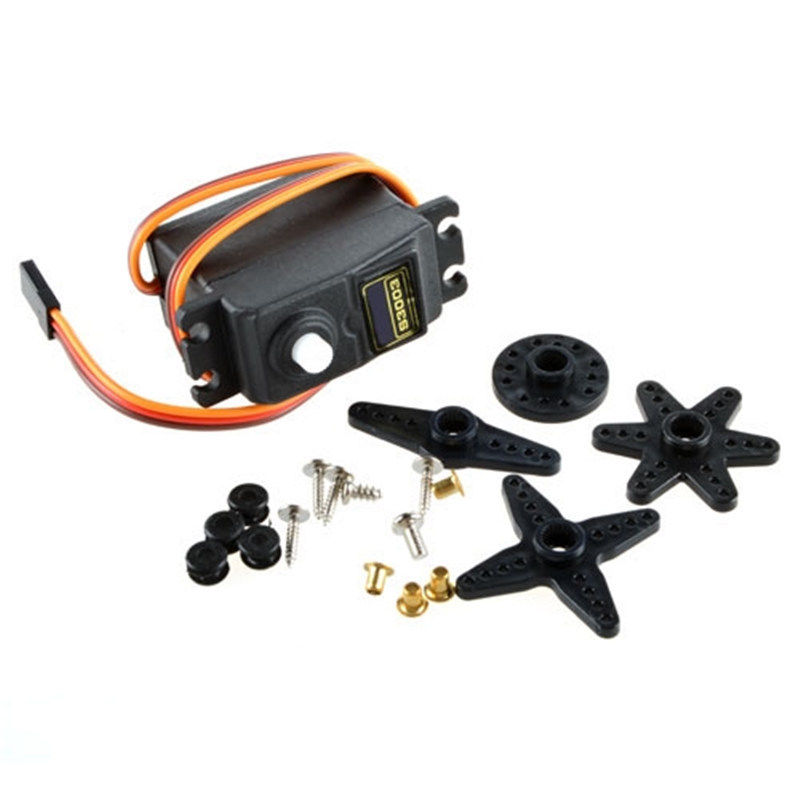

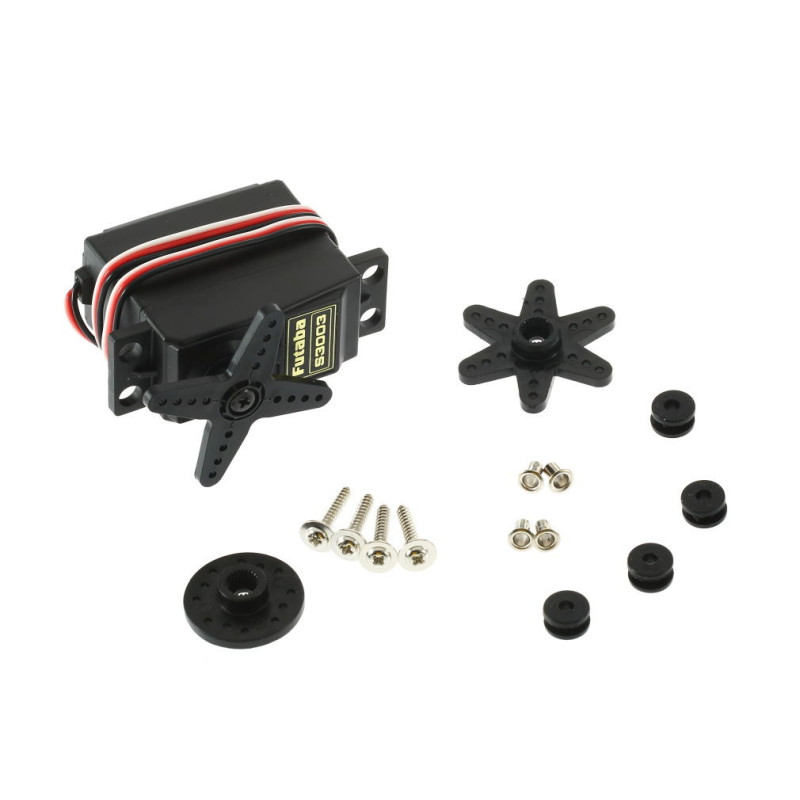

- Includes Selection of Horns and Screws for Different Application - See Picture for Details.
- 360 Modifiable
- Operating Voltage: 4.8 to 6.0V
- Operating Temperature Range: -20℃ to 60℃
-
Operating Speed: 60/0.23 degree/second (No Load @ 4.8V)
-
Operating Speed: 60/0.19 degree/second (No Load @ 6.0V)
-
Stall Torque 3.2kg/cm @ 4.8V
-
Stall Torque 4.1kg/cm @ 6.0V
-
Current Drain: 7.2mA/idl @ 4.8V
-
Current Drain: 8mA/idl @ 6.0V
-
Gear Type: All Nylon Gears
-
Control System: +Pulse Width Control 1520usec Neutral
-
Required Pulse: 3-5 Volt Peak to Peak Square Wave
-
Direction: Counter Clockwise/Pulse Traveling 1520-1900use
-
Motor Type: 3 Pole Ferrite
-
30cm Wire Assembled
-

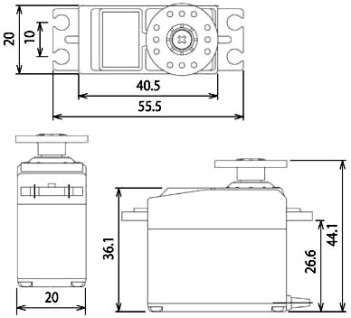

Dimensions: 1.6" x 0.8"x 1.4" (41 x 20 x 36mm)
-
Weight: 1.3oz. (37.2g)
Wiring Guide:
- Red: Battery Positive
- Black: Battery Negative
- White: Signal
Package Contents:
- 1 Adet Futaba S3003 Servo Motor

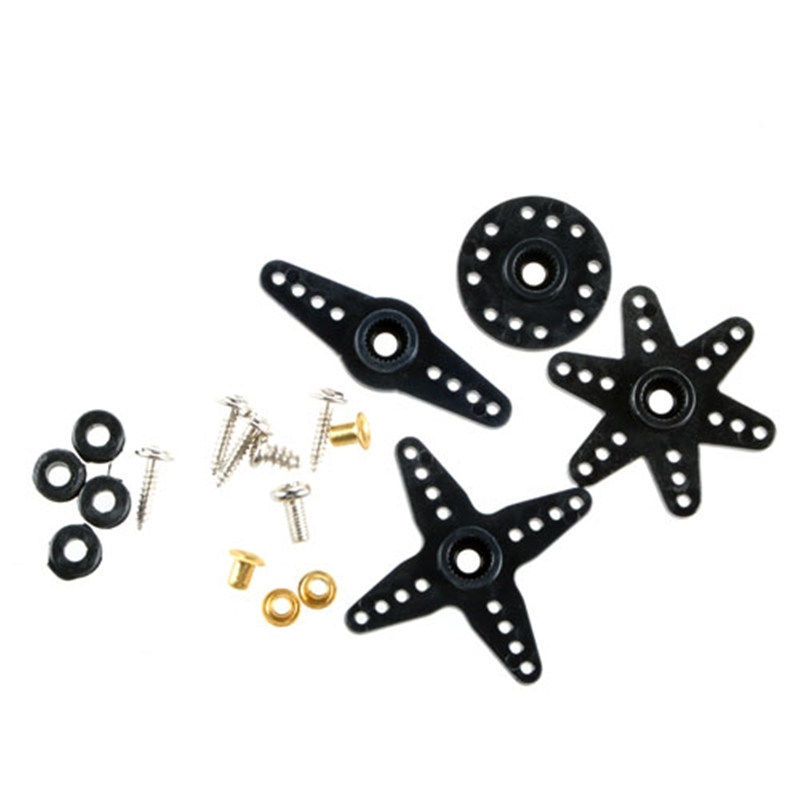

- 4 Adet Servo Horns
- Vida Seti
Marka: OEM
