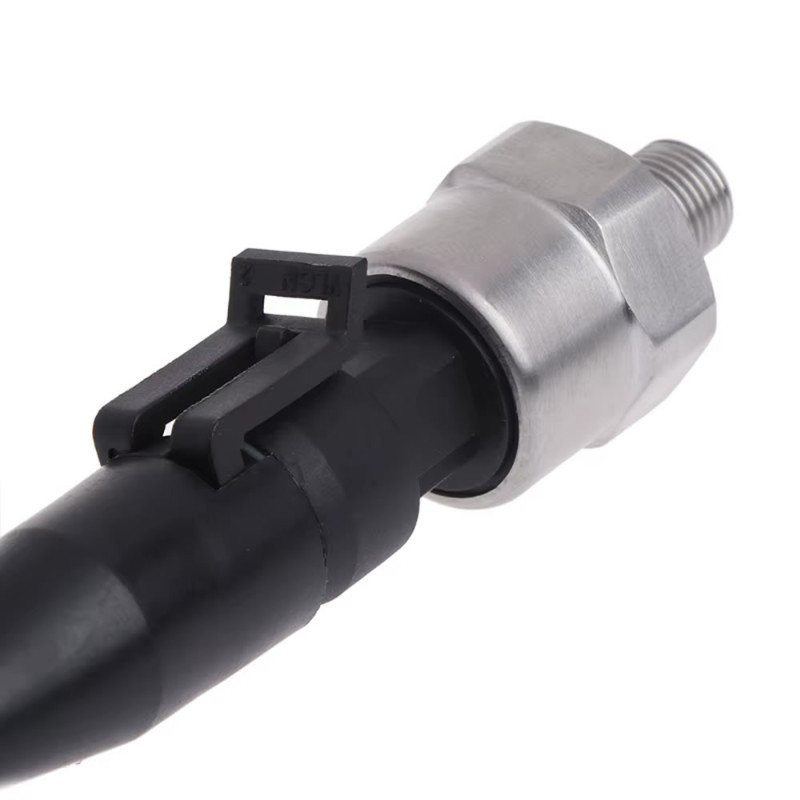

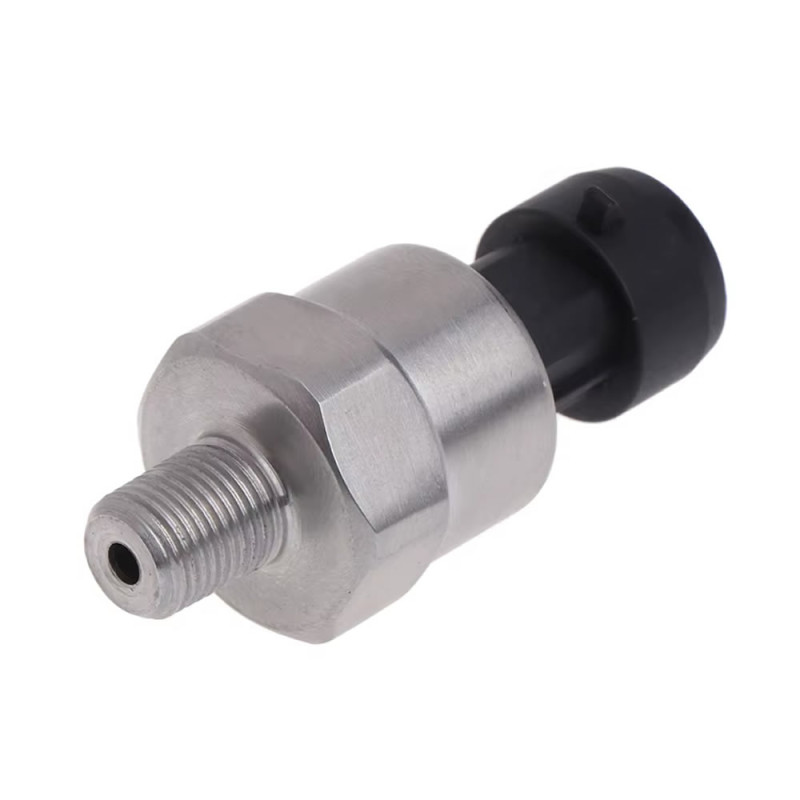

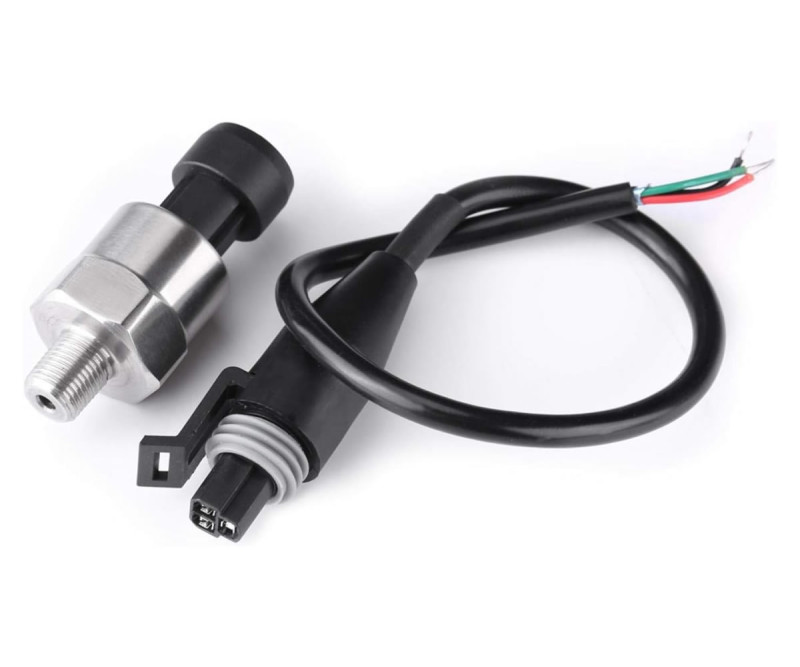

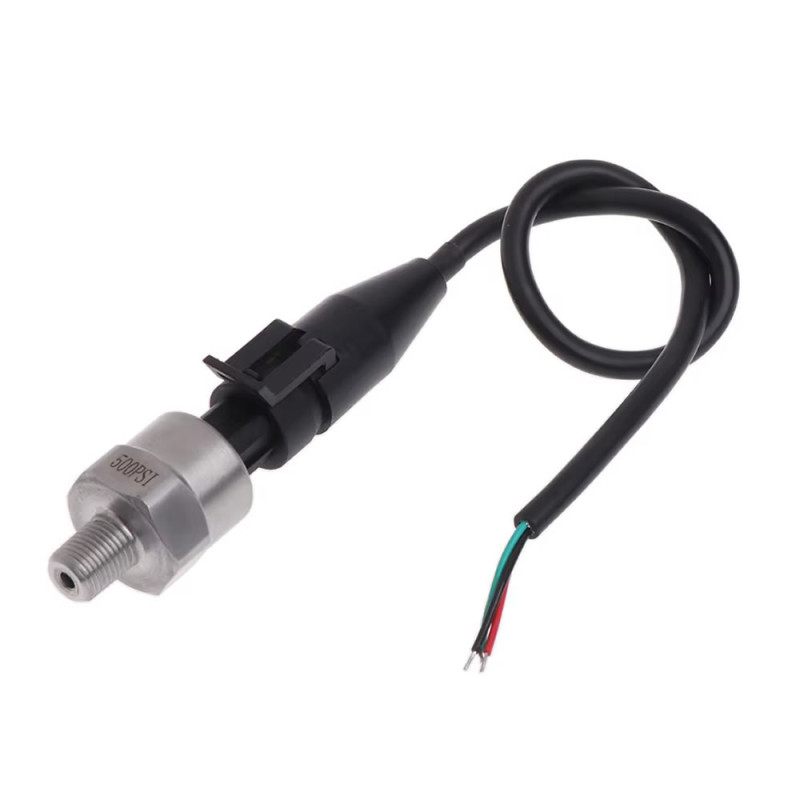

500psi Pressure Sensor
1/8" NPT Thread Stainless Steel Oil Gas Water Fuel Tank Storage Tire Air Atmosphere Barometer Pump Biomedical Meteorology Automotive
This pressure sensor measures in the 0-500 psi range and monitors oil, fuel, diesel, gas, water or air pressures with high precision. It is made of durable and wear resistant stainless steel and is long lasting. It has a small size and lightweight structure. Thanks to the 1/8" NPT thread connection, its installation is extremely easy.
It has a small output error and provides high precision over a wide temperature range. It has a wide range of use, from industrial applications to automotive systems, from water and fuel tanks to air compressors. This advanced pressure transducer offers superior performance and precision compared to traditional mechanical pressure transducers.
Features:
- 500psi Pressure Sensor
- Stainless steel material
- Operating voltage: DC 5V
- Output voltage: DC 0.5V / 4.5V
- Linear analog voltage output: 0psi 0.5V / 250psi 2.5V / 500psi 4.5V
- Pressure range: 0-500psi
- Precision: -+ %1FS
- Thread type 1/8" NPT (10mm)
- Insulation resistance: 100mohm and above 500VDC
- Response time: 1ms and below
- Shock resistance: 1000g
- For protection class: IP67
- Aging: 0.1%FS/year
- Operating temperature: -40C / 120C
- Color: Silver / Black

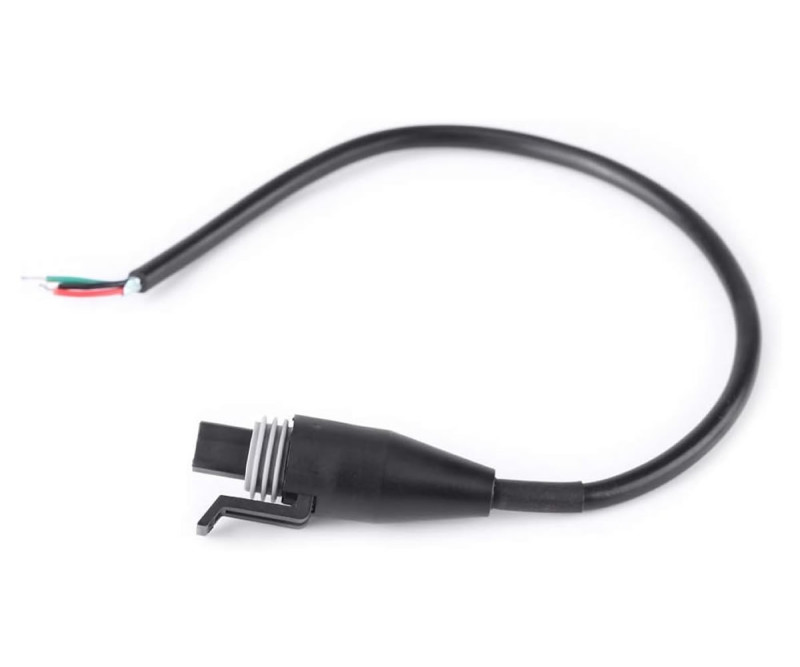

- Cable length: 25cm

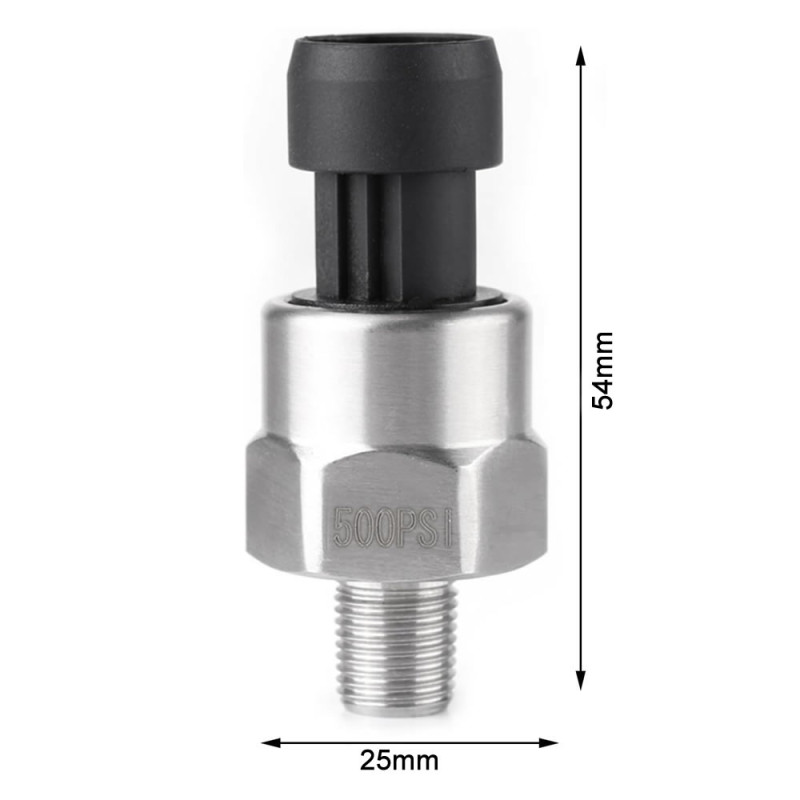

- Dimensions: 25mm x 54mm
- Weight: 63gr

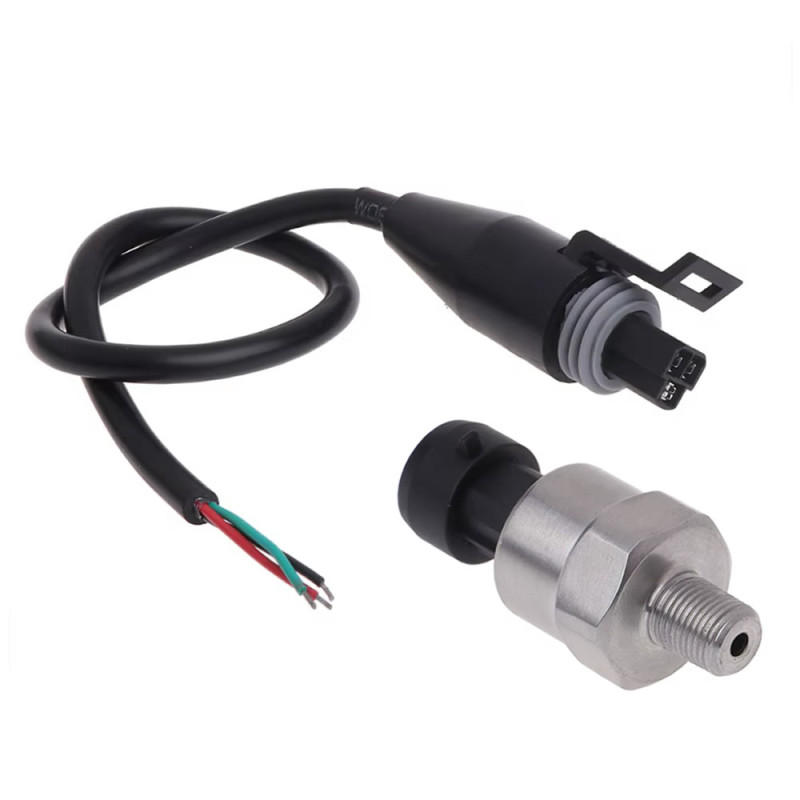

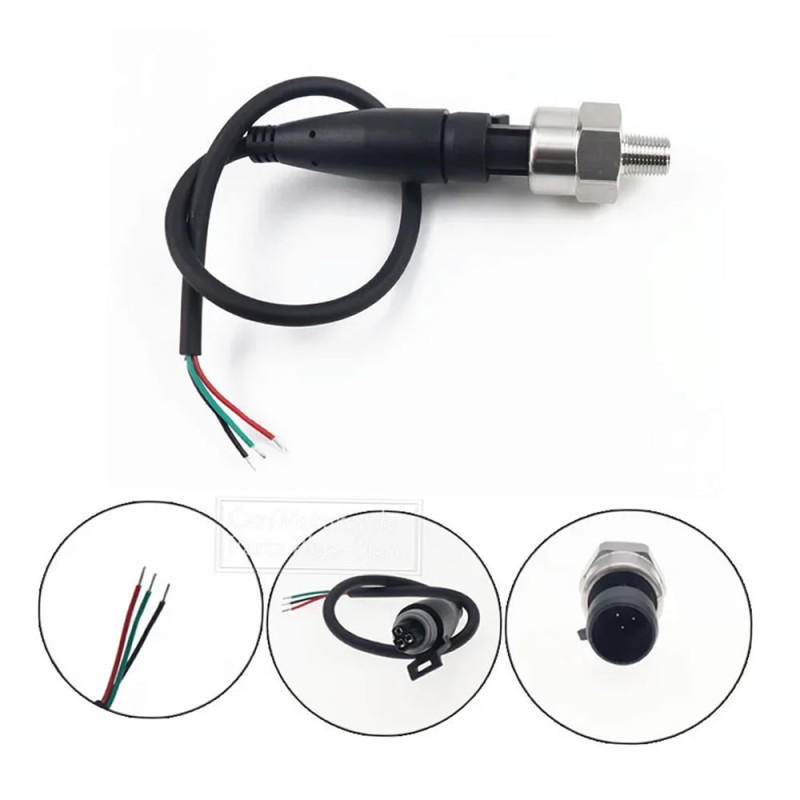

Cable description:
- Red: +5V
- Black: Ground
- Green (yellow): Signal output
Package contents:
- 1 pcs 500psi Pressure Sensor
.
