HX711 Display Module

HX711 Display Module

Electronic Scale 5/10 Kg Weight Sensor Precise Measurement Digital Screen Load Cell Pressure Kitchen

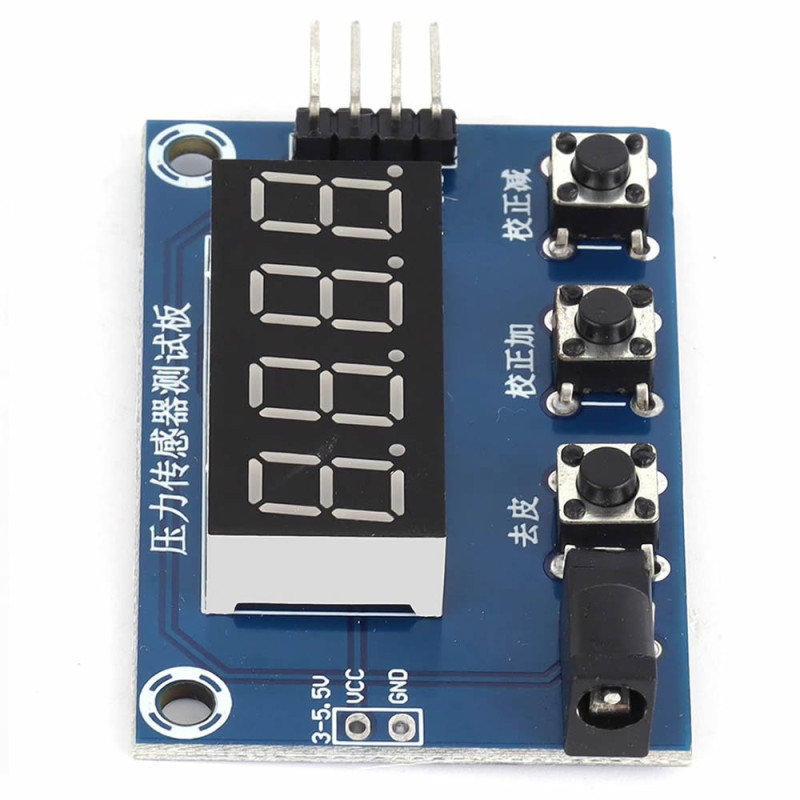

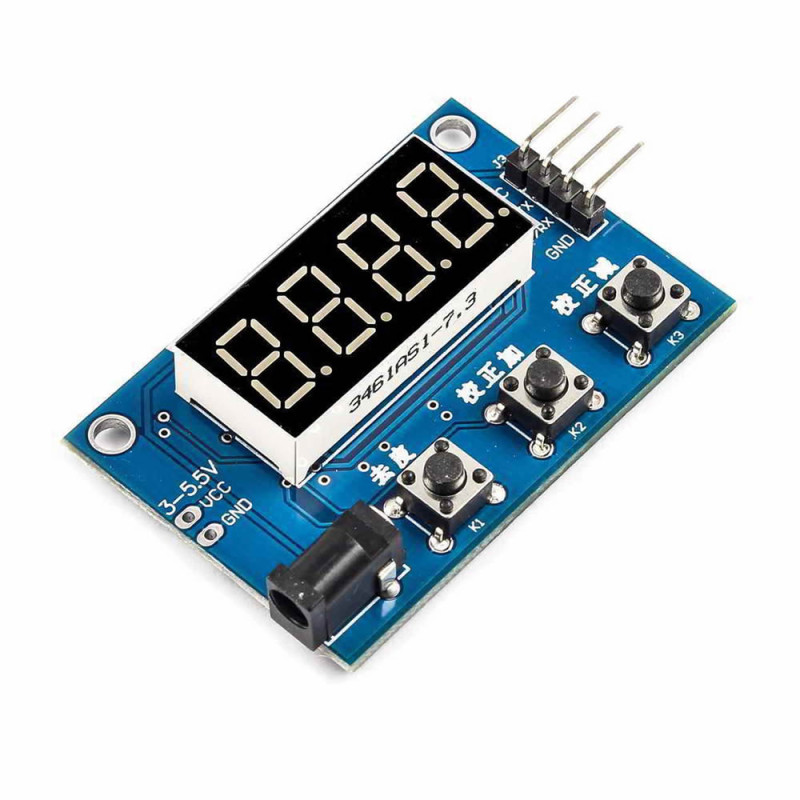

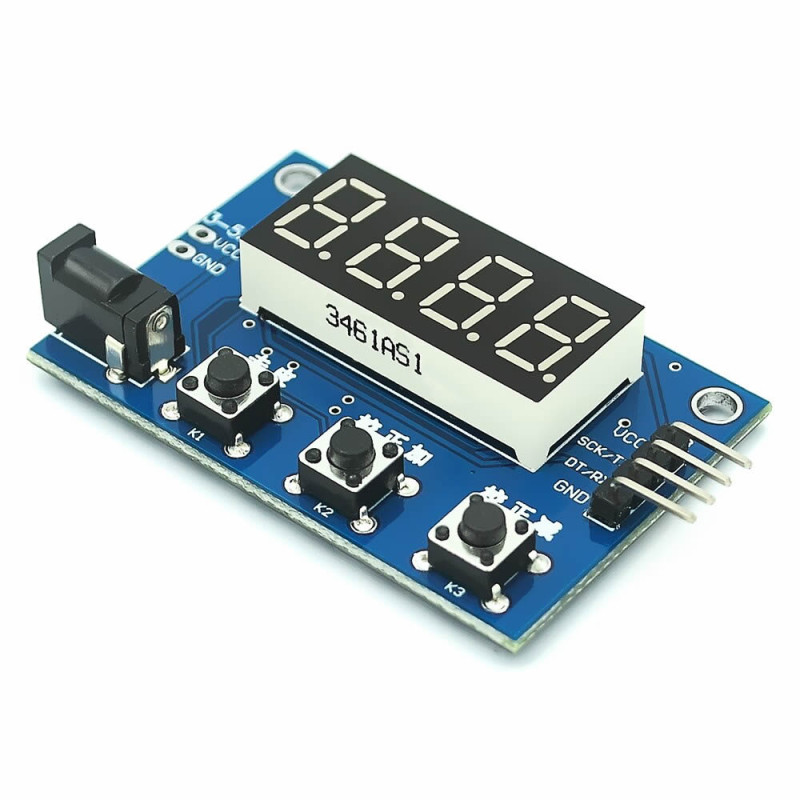

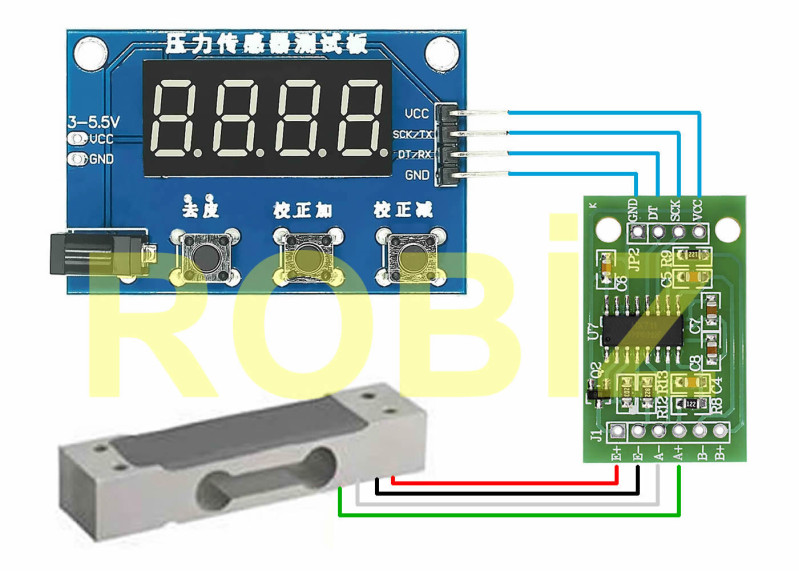

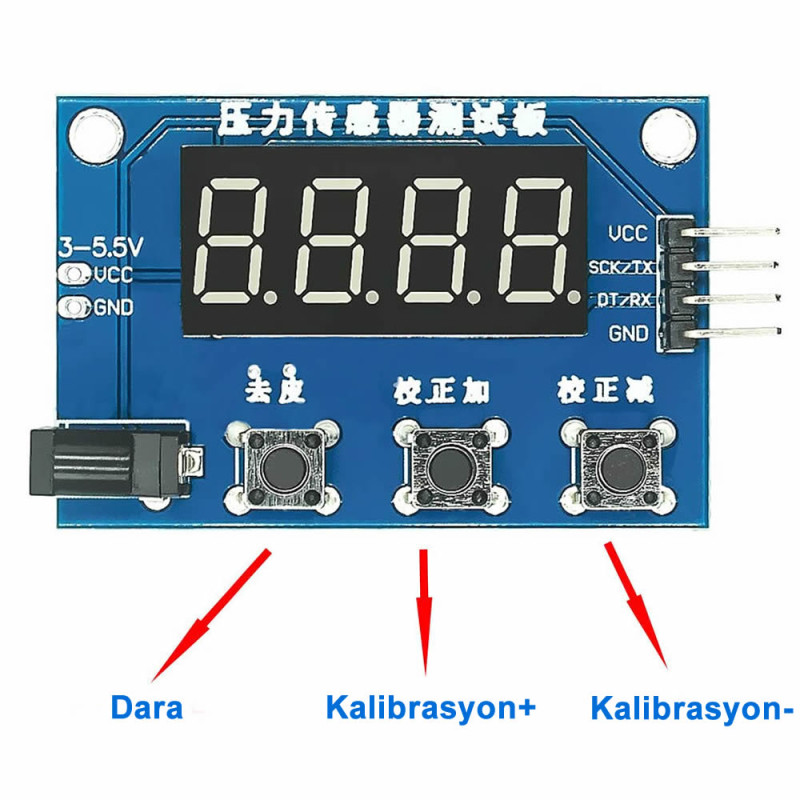

       It is a display module for the HX711 weight sensor adc board. It shows the weight coming from the sensor without any need for programming. It has a socket for connecting the Hx711 module. It can show the weight coming from the sensor on the 7 segment display up to a maximum of 9999gr. By pressing the tare button, the weight of the container used at the measuring point can be zeroed. If there is a measurement error, calibration can be done with the buttons. Calibration is required when the sensor is first connected. It saves the settings to memory.

Features:

•     HX711 display module
•     Operating voltage:  Dc  3V / 5.5V
•     4 Character 7 segment display  9999 Maximum
•     Sensor support:   5kg / 10kg
•     3 control buttons
•     Tare button
•     Calibration setting
•     Memory support
•     Hx711 connection socket
•     Dc power socket.
•     2 pin power connection header
•     Color: Blue
•     Operating temperature:  -20C  /  65C
•     2 Mounting holes

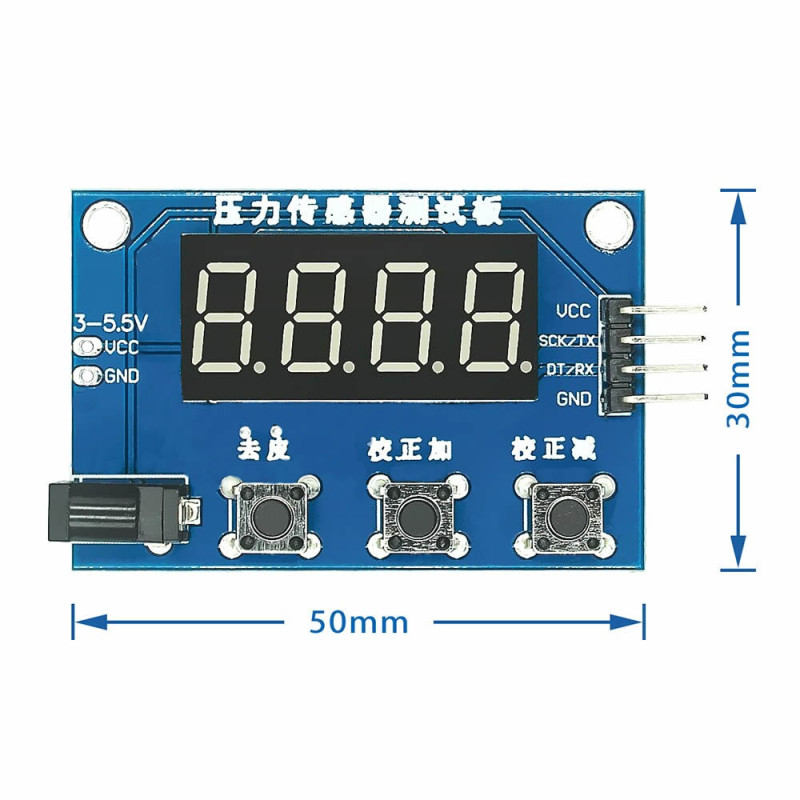

•     Dimensions: 30mm x 50mm
•     Weight: 12gr

Package contents:

•    1 pcs HX711 Display Module

.
