801S Vibration Sensor Module

801S Vibration Sensor Module

Vibration Shake Shock Impact Detector Earthquake Lock Tilt Smart Home Automation Burglary Detector

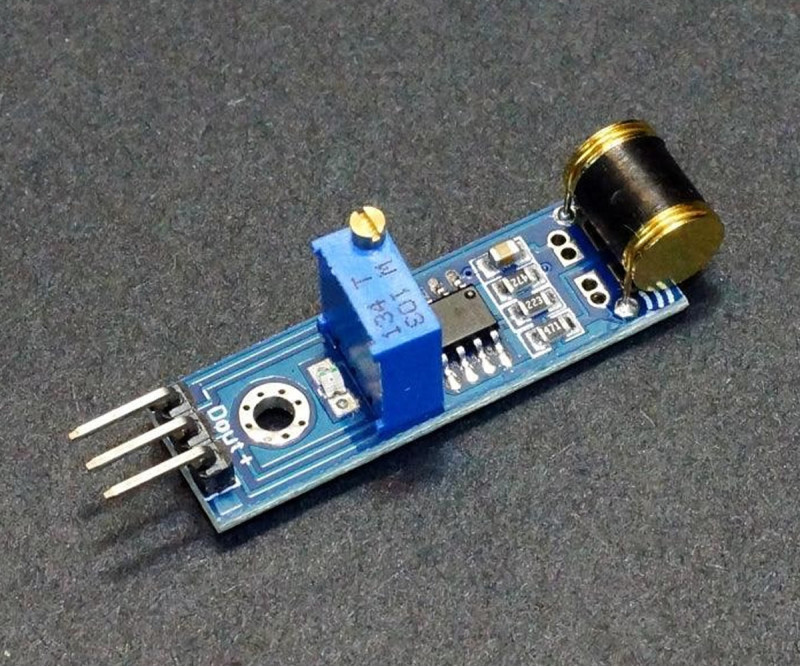

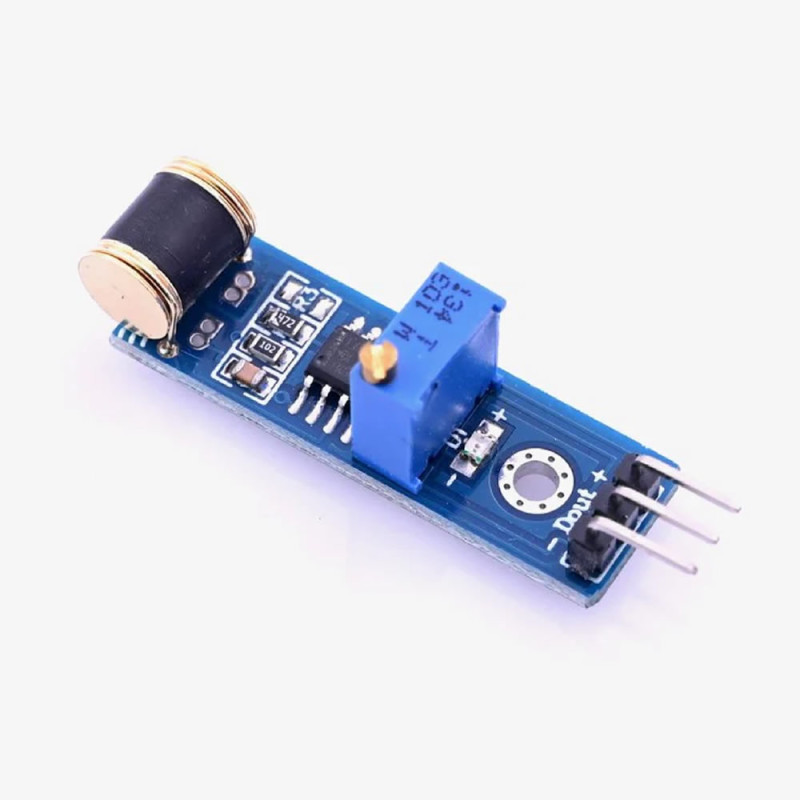

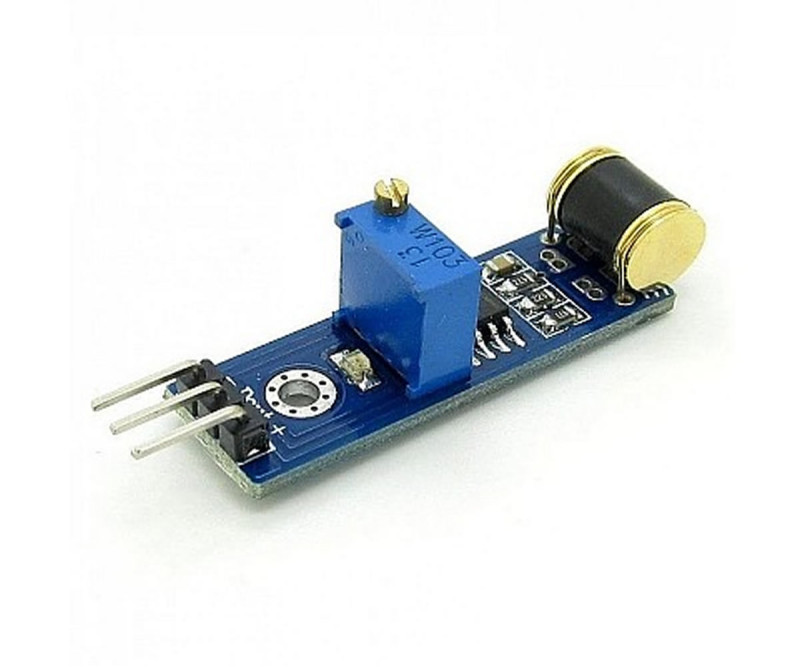

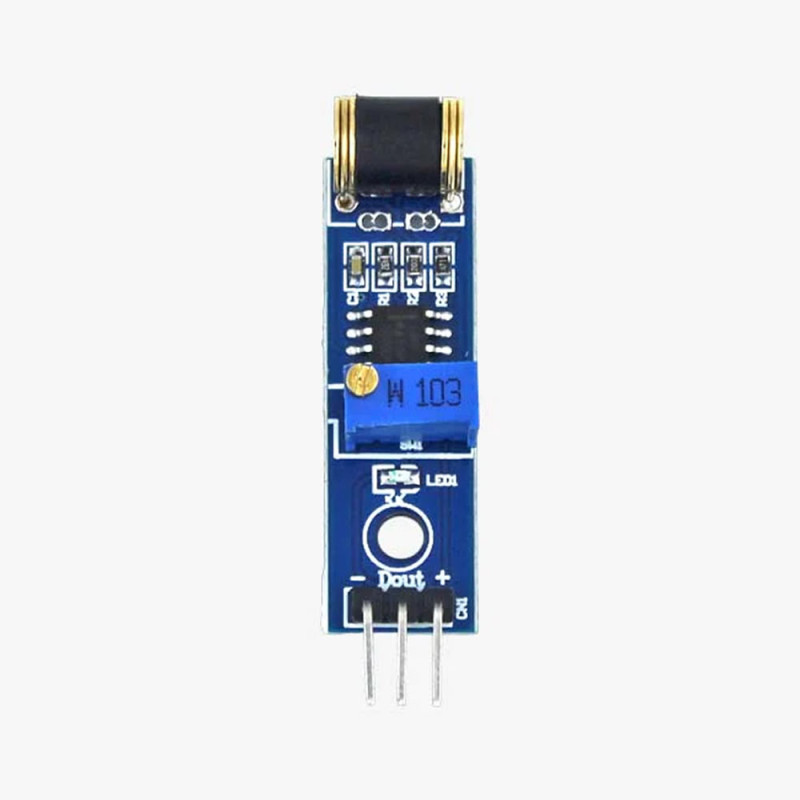

     This is a vibration detection module built with the 801S sensor. It can provide a digital output. It generates the digital output with a comparator circuit. You can adjust the sensitivity of the digital output with the pot on it. According to this setting, it gives a logic 1 ( Dc 5V ) output from the digital output as a result of vibration of sufficient intensity. It stays in this state for two seconds. With circuits such as Arduino, raspberry, esp32, this signal is monitored and the required operations are performed.

Description

•     801S vibration sensor

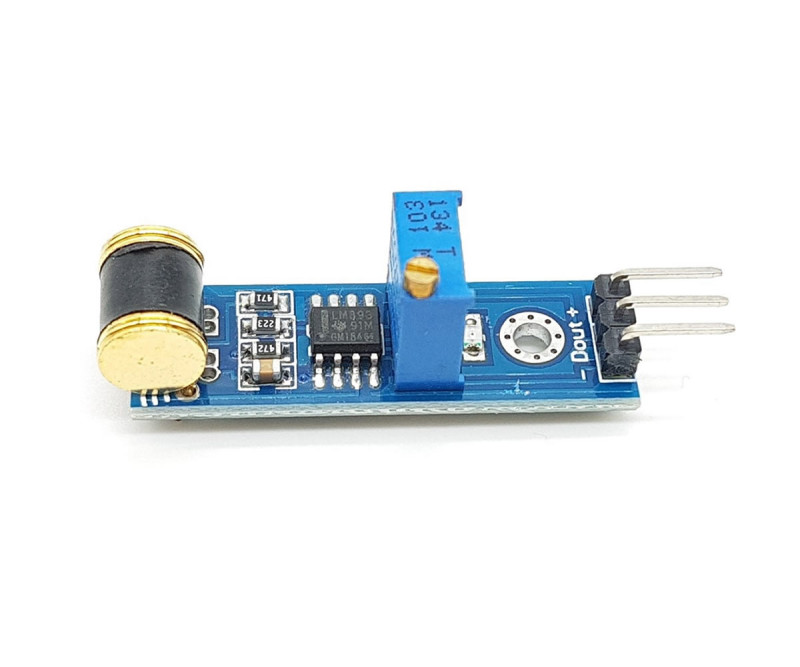

•     LM393 comparator opamp
•     Operating voltage: DC 3V /  5V
•     Digital sensor output
•     High sensitivity
•     Digital output sensitivity adjustment pot
•     Vibration status indicator led:
•     Mounting hole
•     Color:  Blue
•     Operating temperature:  -20C  /  65C

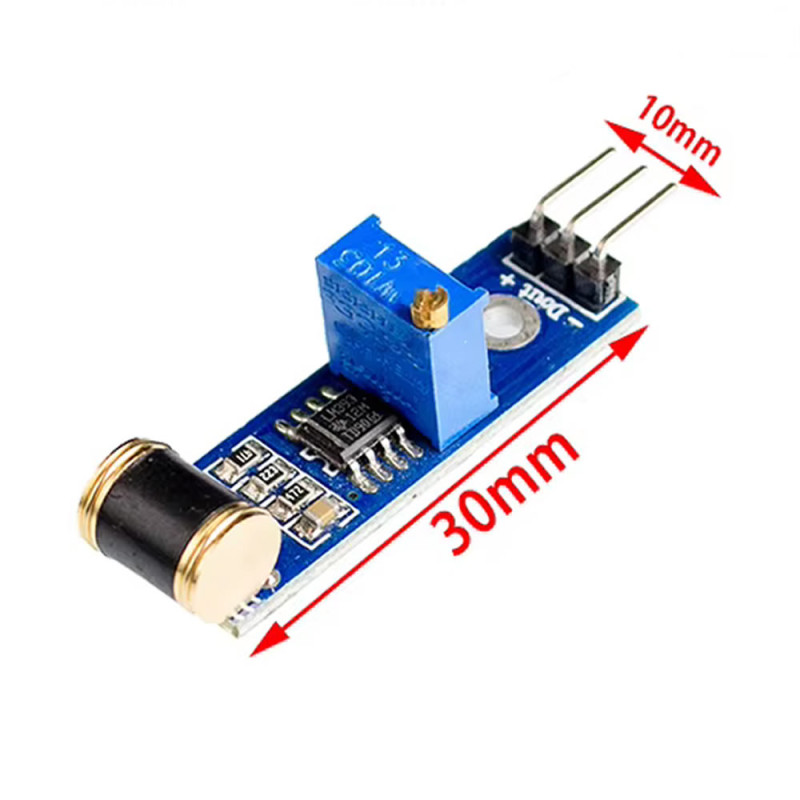

•     Dimensions: 10mm x 30mm
•     3 pin male header power and communication connection socket.
•     Weight: 4gr

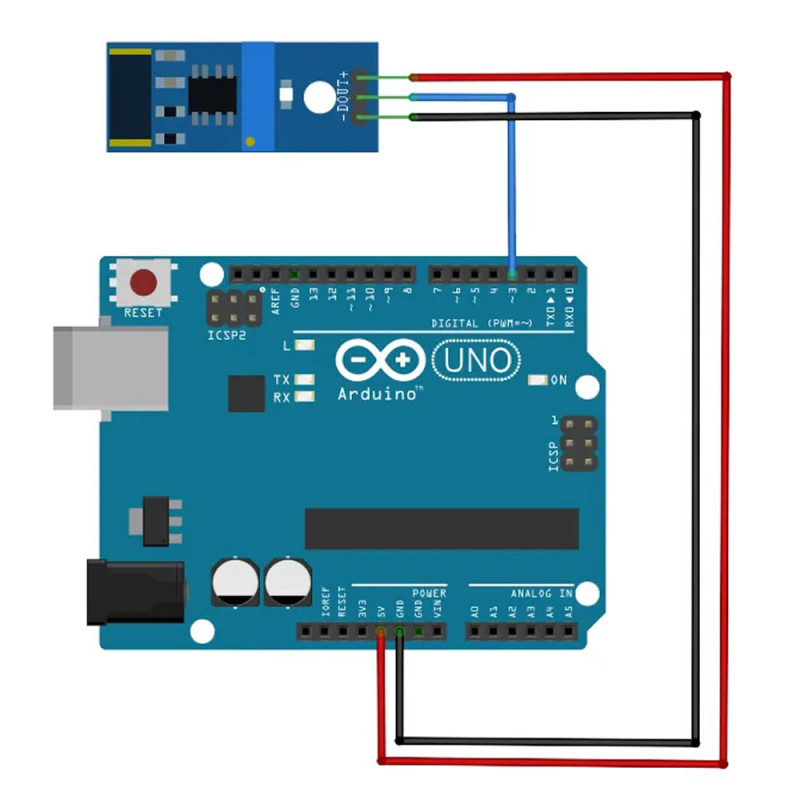

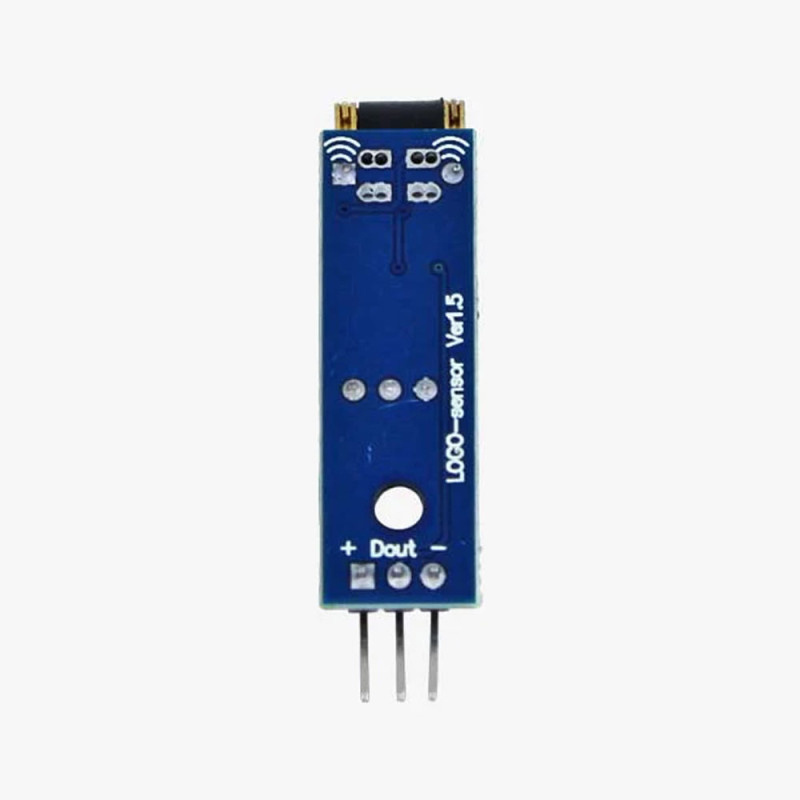

Pin description:

•     Vcc: Positive supply pin
•     DO: Digital sensor output pin
•     Gnd: Negative supply pin

Package contents :

•     1 Piece 801S Vibration Sensor Module
