C005 Time Delay Module

C005  Time Delay Module

Adjustable Time Between 2 Seconds and 1000 Hours Low Power DC 2V - 5V

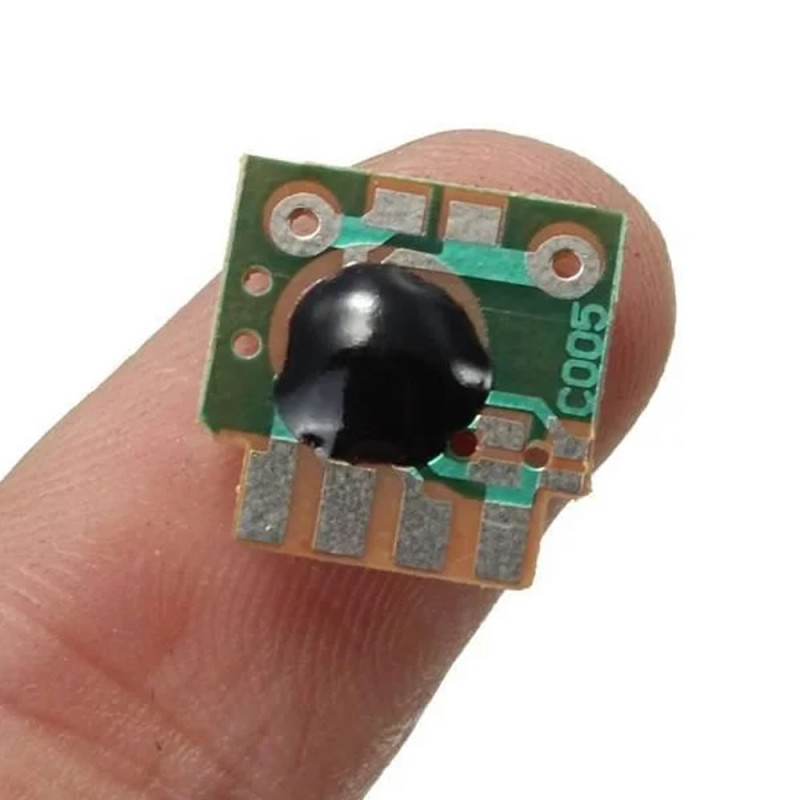

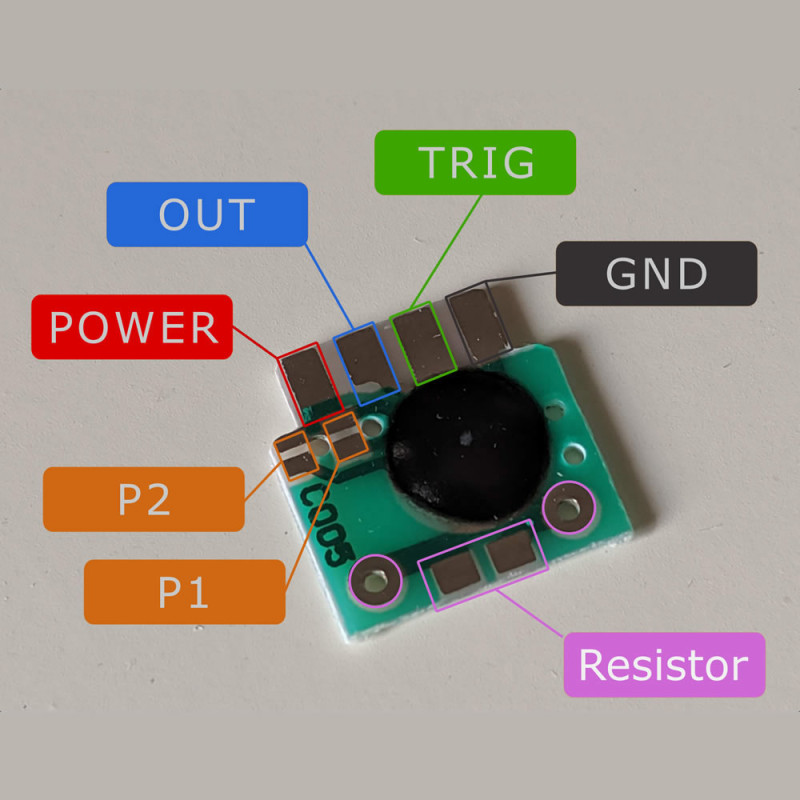

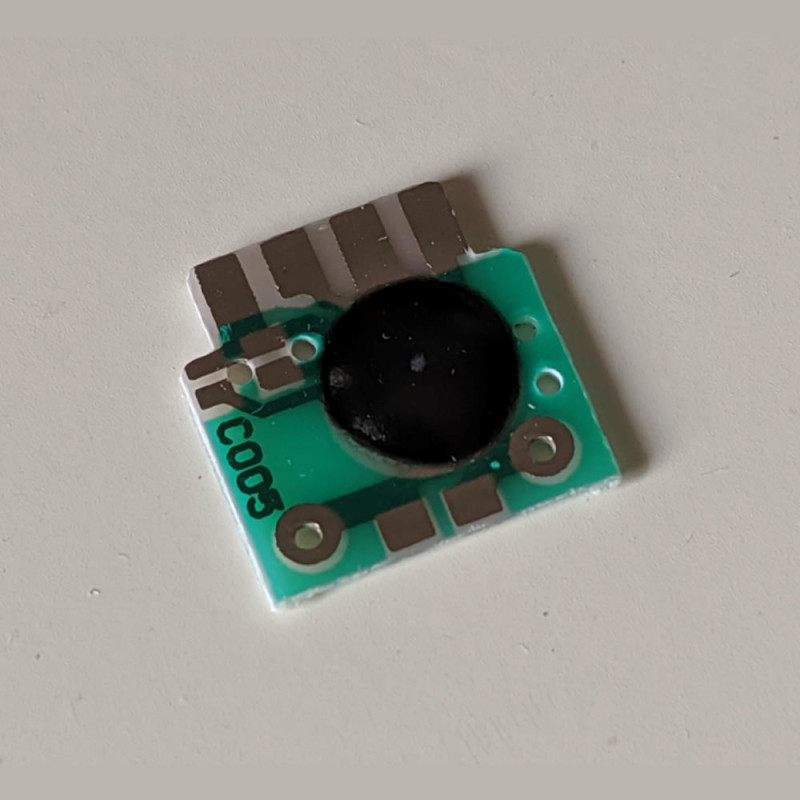

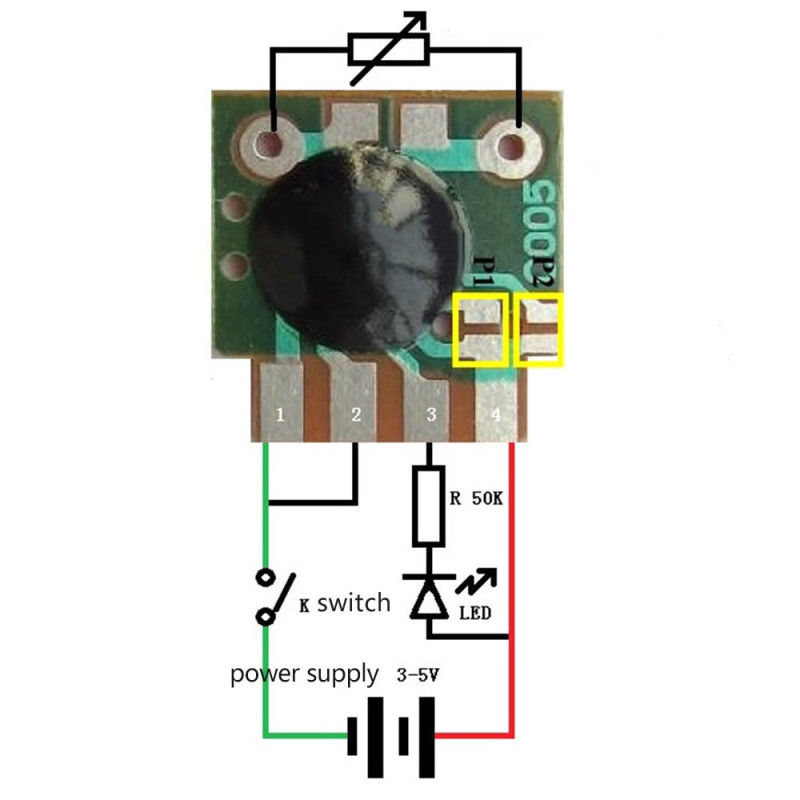

     It is a time counter module that activates its output for the period you determine. The Out ( Output ) pin is at VCC level at the beginning. When the Trigger pin is activated ( when it is pulled to ground level with a button like circuit ) the output pin drops to ground ( 0V ) level. The circuits connected to this start to work. For example like a led lighting up. By driving a transistor you can have higher power operations performed.

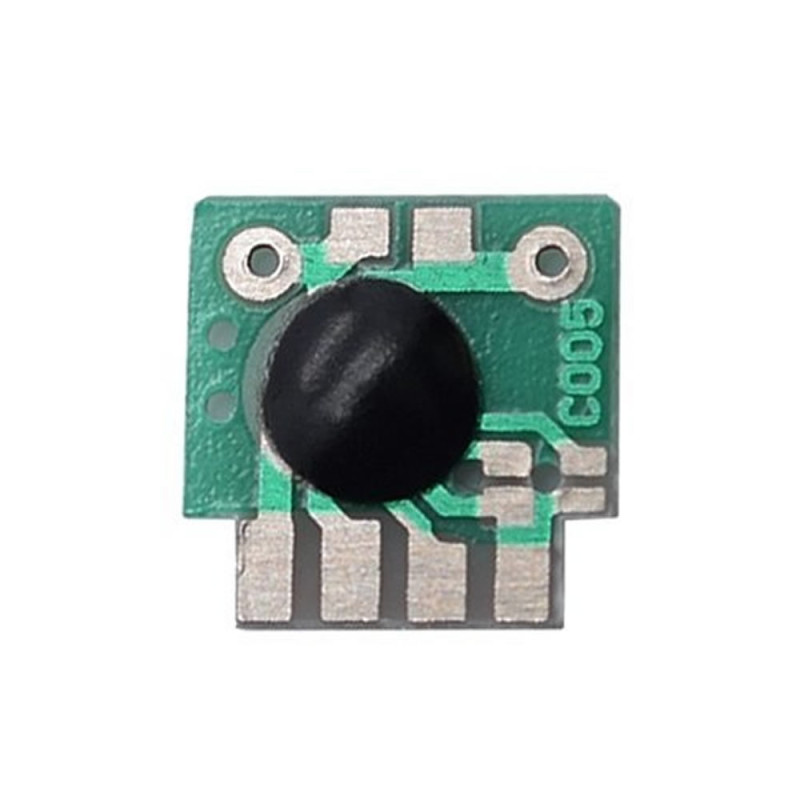

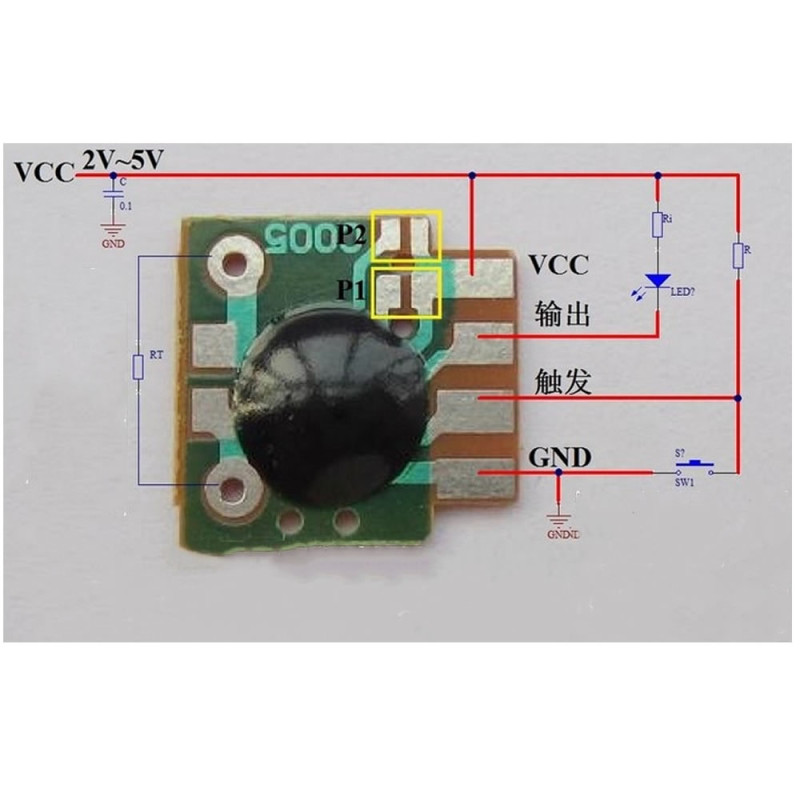

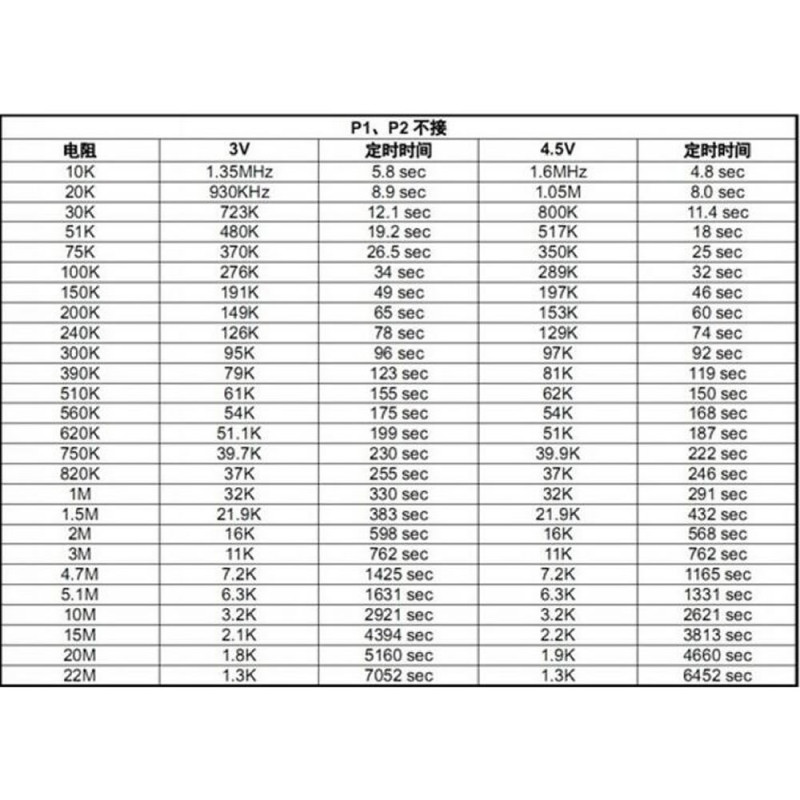

     The RT resistor allows you to make a delay time setting according to the table located at the very bottom. According to the supply voltage and the value of the Rt resistor, the output pin stays at ground level for the period shown in the table. At the end of the period it rises to vcc level again. It waits in this state until a new triggering occurs.

Features:

•     Operating voltage:  DC 2V - 5V
•     Time can be adjusted between 2 seconds and 1000 hours.
•     Time setting formula 8 x N (N = 0.1.2.3)    The resistance time chart can be seen in picture number 8.
•     It has very low power consumption.
•     The output pin can drive a led directly.
•     Transistor to the output in applications that will draw high current
•     The output is activated with the Trigger pin.

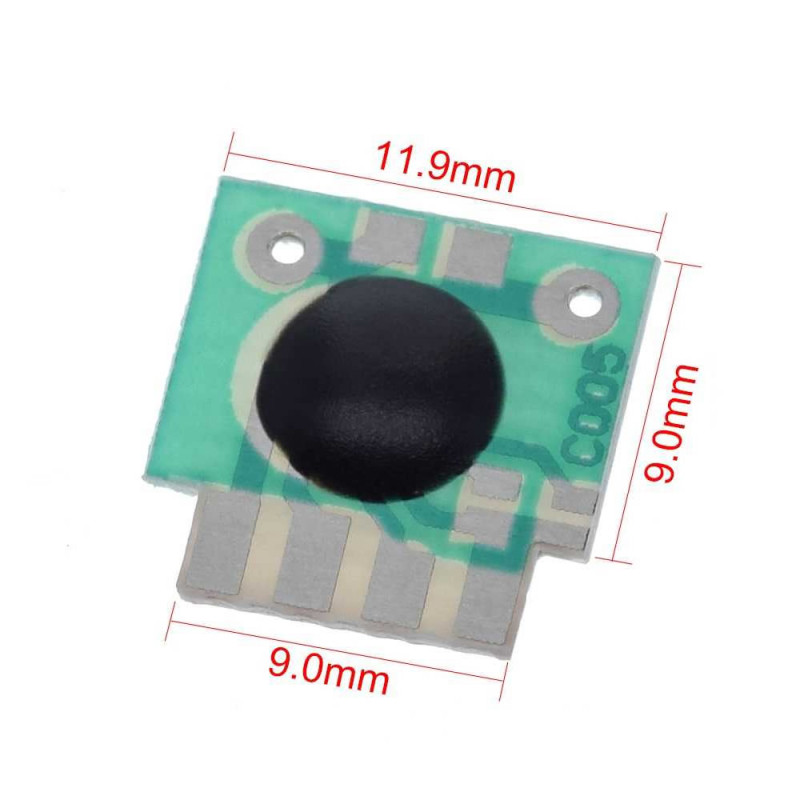

•     Dimensions:  12mm x 12mm

Package Contents:

• 1 piece 5V-30V Time Delay Relay Module
