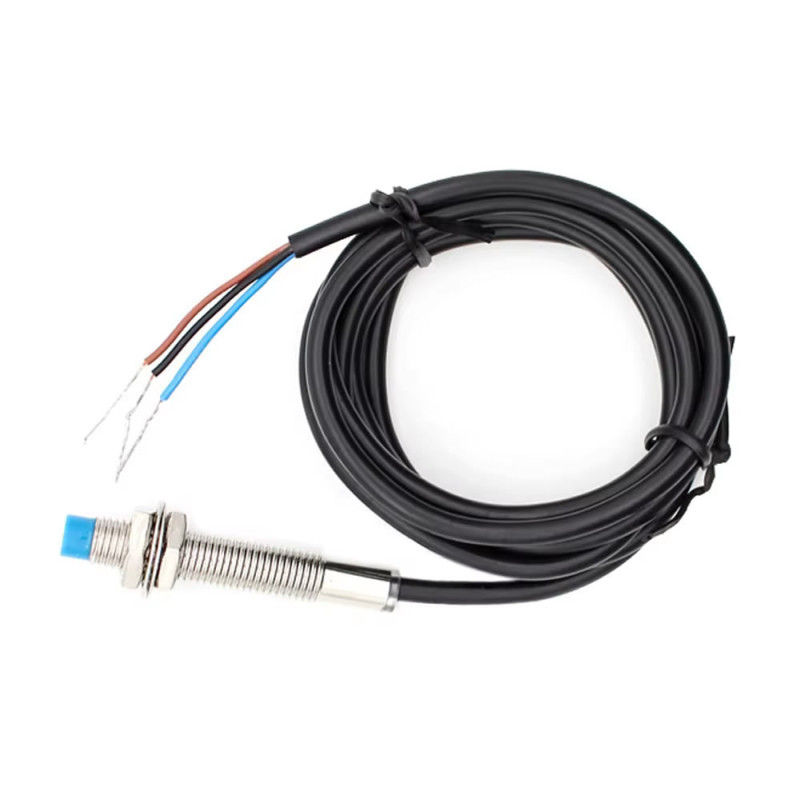

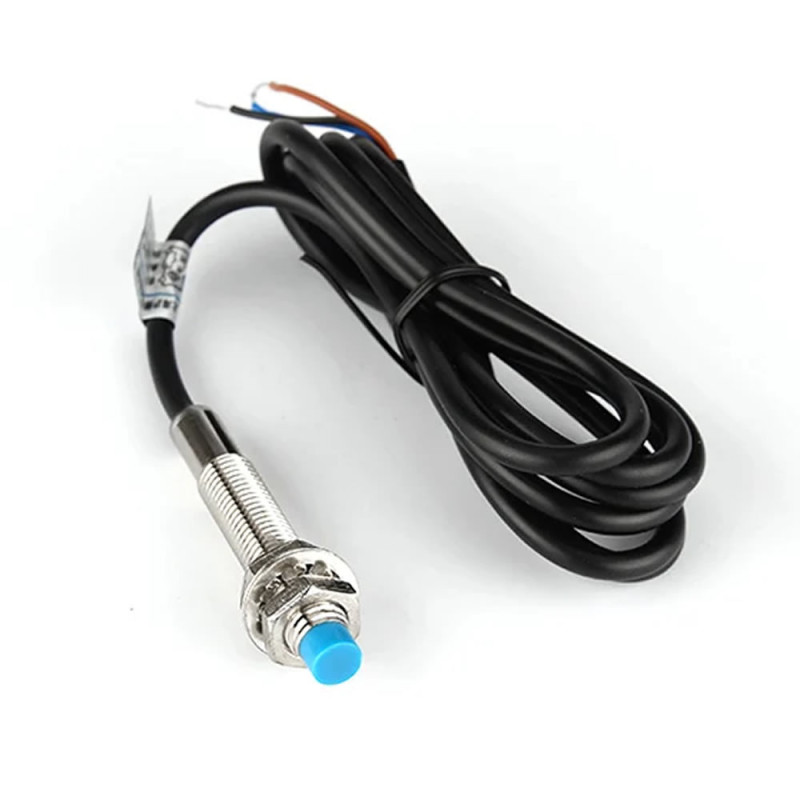

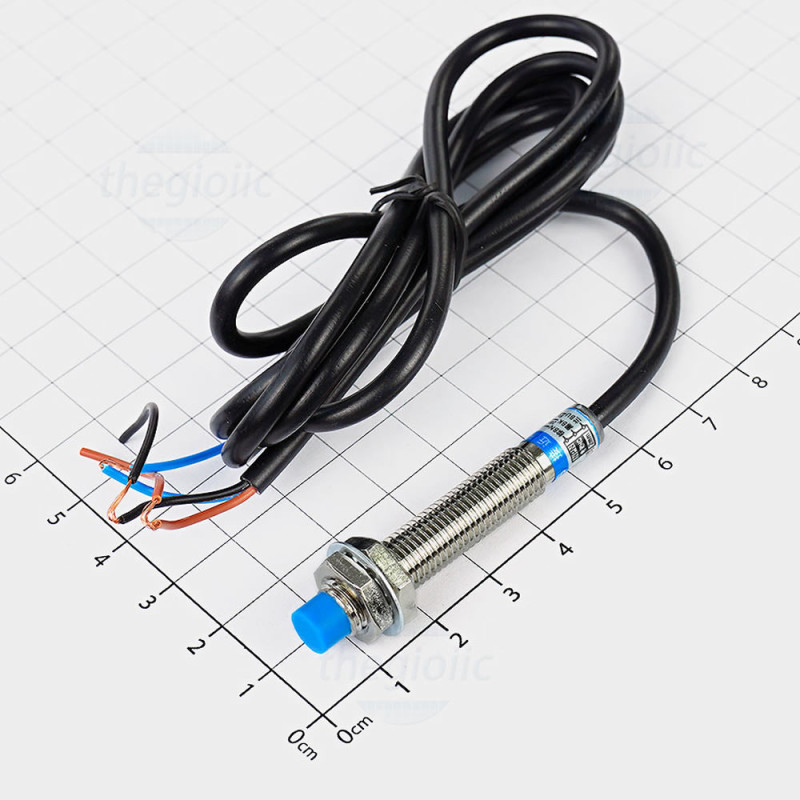

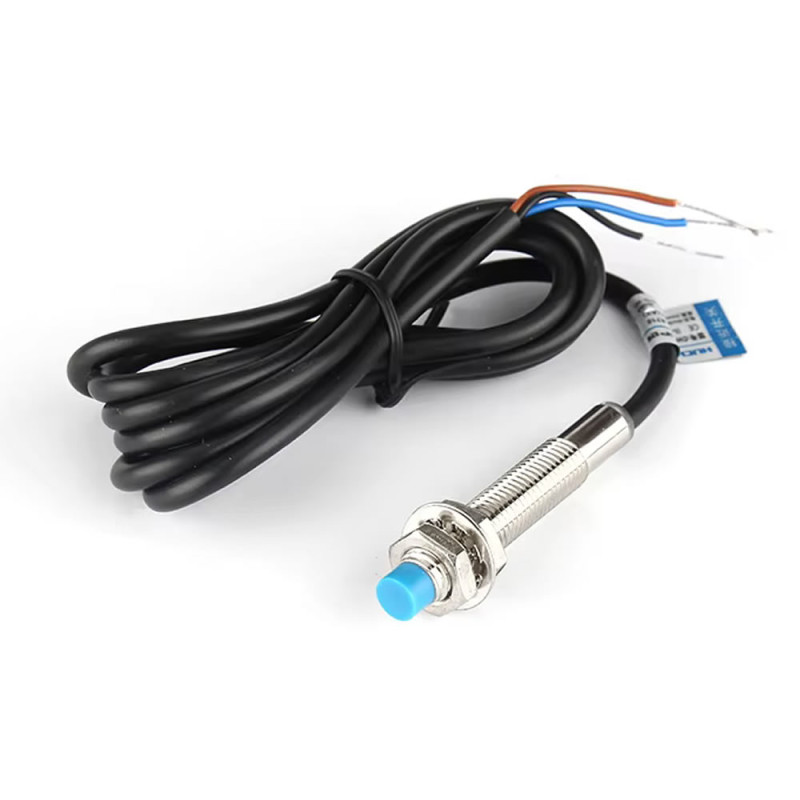

LJ8A3-2-Z/BX NPN NO 2mm Metal Detector

LJ8A3-2-Z/BX Inductive 2mm Metal Detector Sensor NPN NO

Contactless Proximity 3 Wire DC 6V-36V Automation Industrial Control

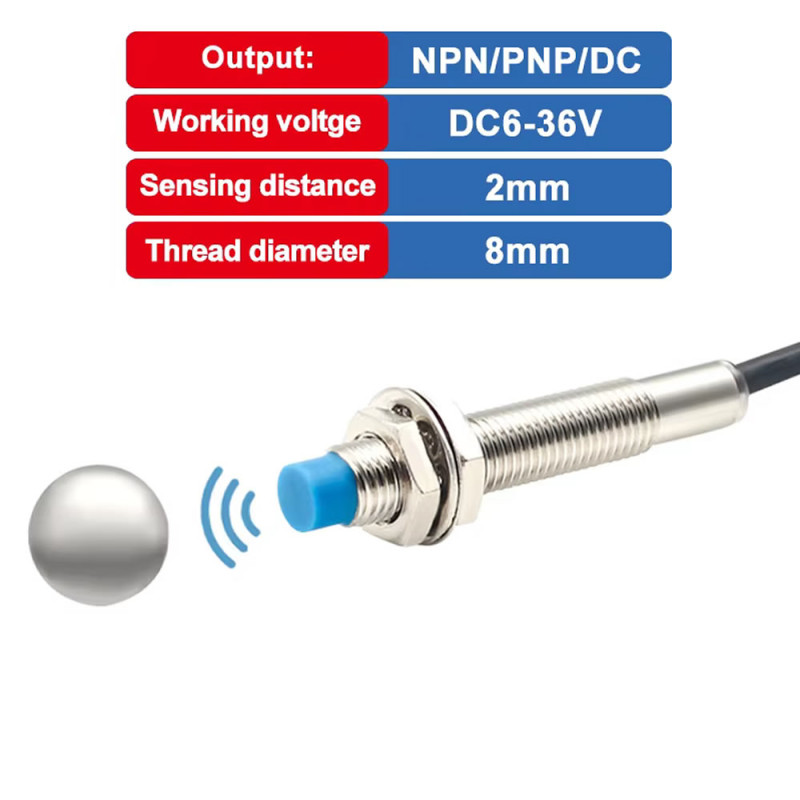

     It is an industrial type sensor that can be used to detect metal objects contactlessly from a distance of 2mm. It operates with DC 6-36V voltage. When it comes near a metal surface, the change can be followed from the output signal terminal. As shown in some of the listing images, the output signal is brought down to a suitable level by using a voltage divider for various voltages. And this signal can be monitored digitally.

Features:

• LJ8A3-2-Z/BX
• Type:  Inductive
• Output: NPN NO (Normally Open)
• Sensor diameter: 8mm
• Detection distance:  1mm / 2mm  ±10%
• Operating voltage:  DC 6 / 36V
• Operating current:  20mA
• Output current:   200mA
• Response frequency: 150Hz
• Material:  Plastic, Metal
• Cylinder type sensor head
• Cable: DC 3 Wire ( Black, Brown, Blue )
• Operating temperature:  -25C  /  +60C
• Cable length:   100cm

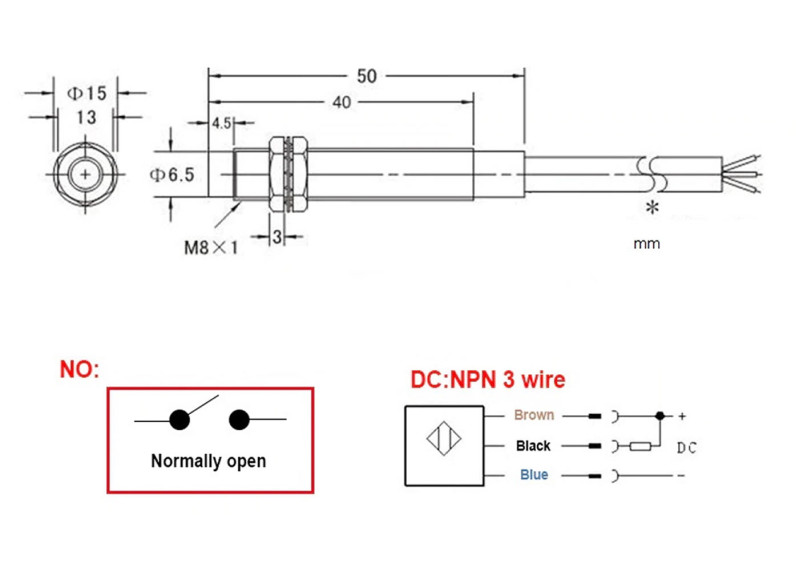

• Dimensions:  8mm x 30mm
• Weight:  32gr

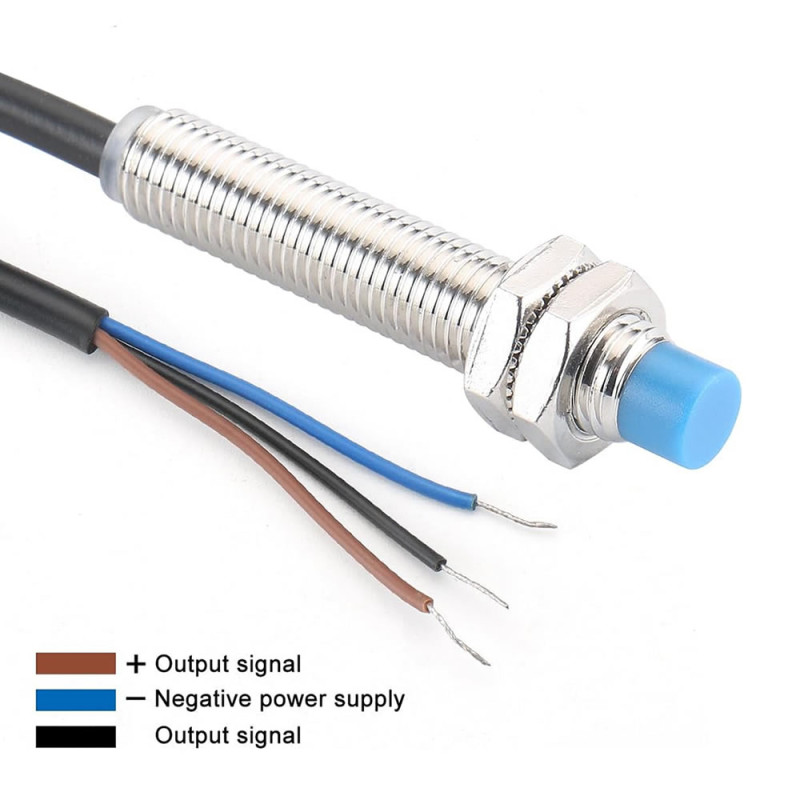

Cable connections:

•         Brown: Supply +   DC 6V-36V
•         Blue: GND
•         Black: Data output

Difference between NPN and PNP sensors: NPN sensors give negative output from their signal terminals, PNP sensors give positive output.

Difference between NO and NC contacts: In NO (normally open) inductive sensors, no data normally comes from the signal terminal. However, when a metal object approaches, you get data output. In NC (normally closed) inductive sensors, data output is continuous. When a metal object approaches, the data is cut off.

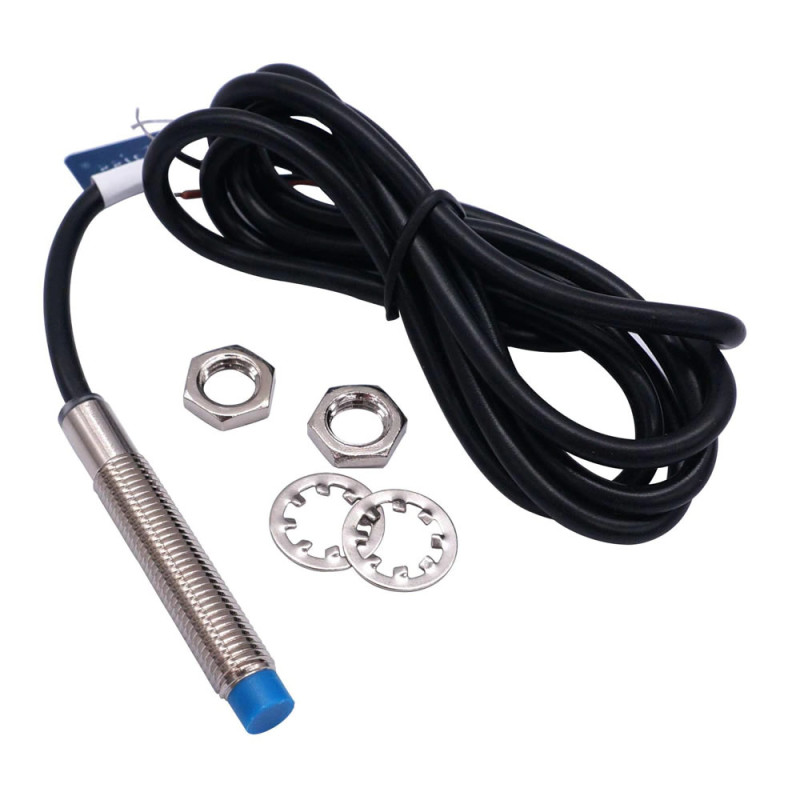

Package contents:

•  1 Piece LJ8A3-2-Z/BX Inductive Distance Sensor
