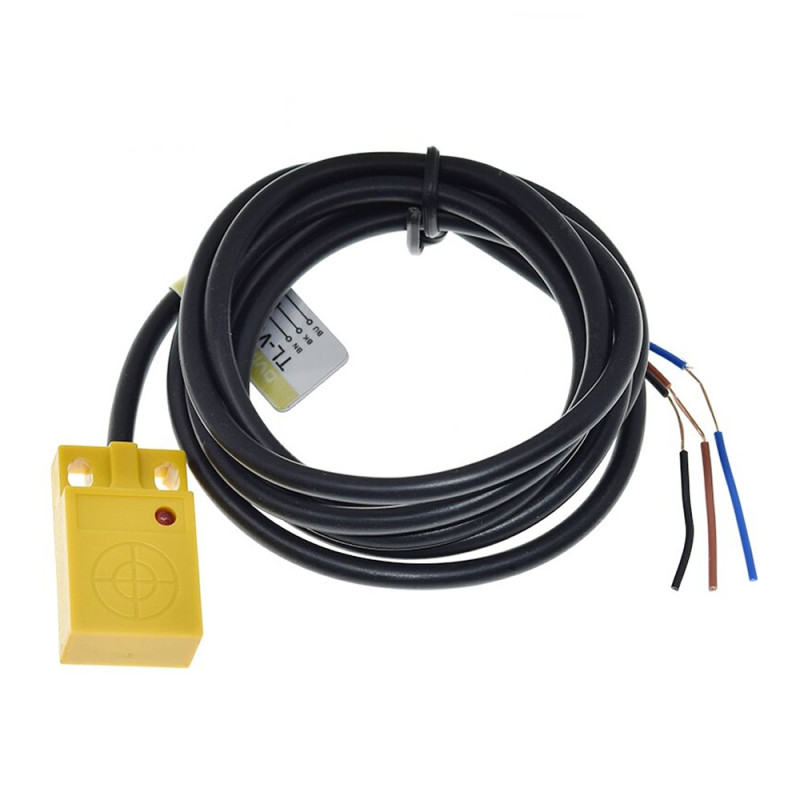

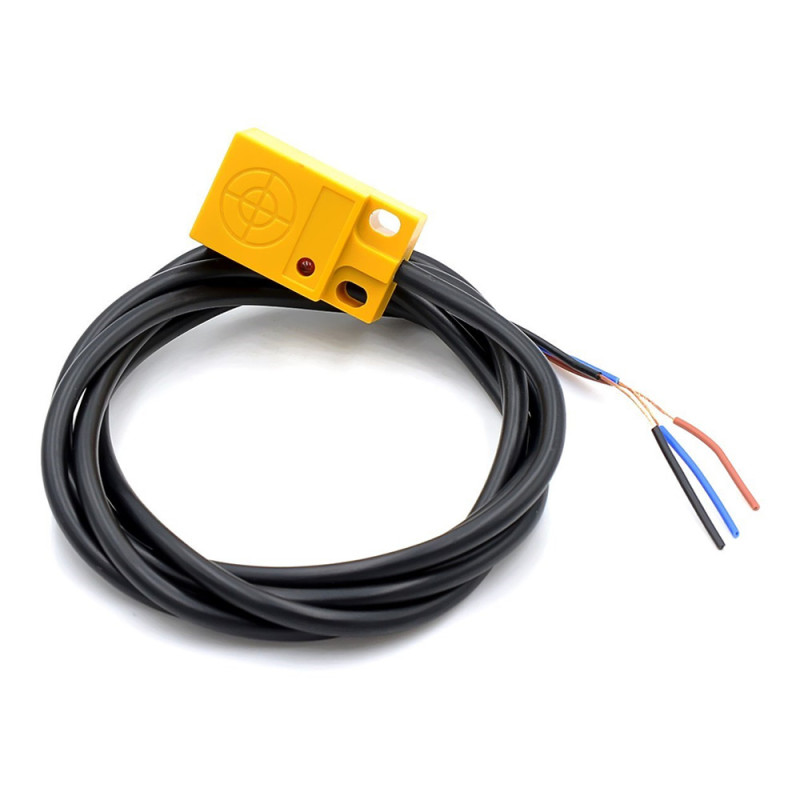

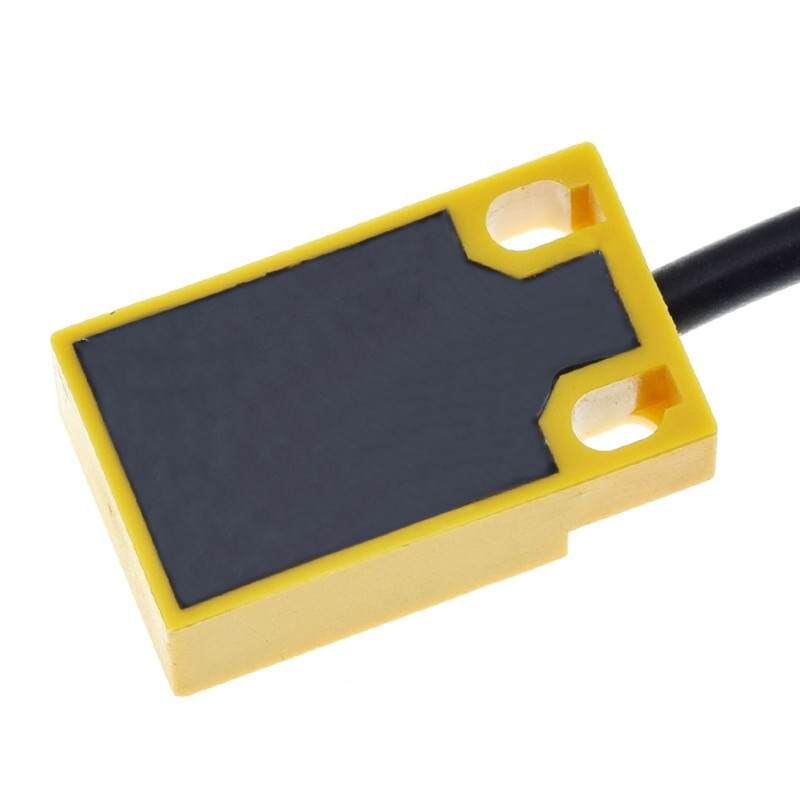

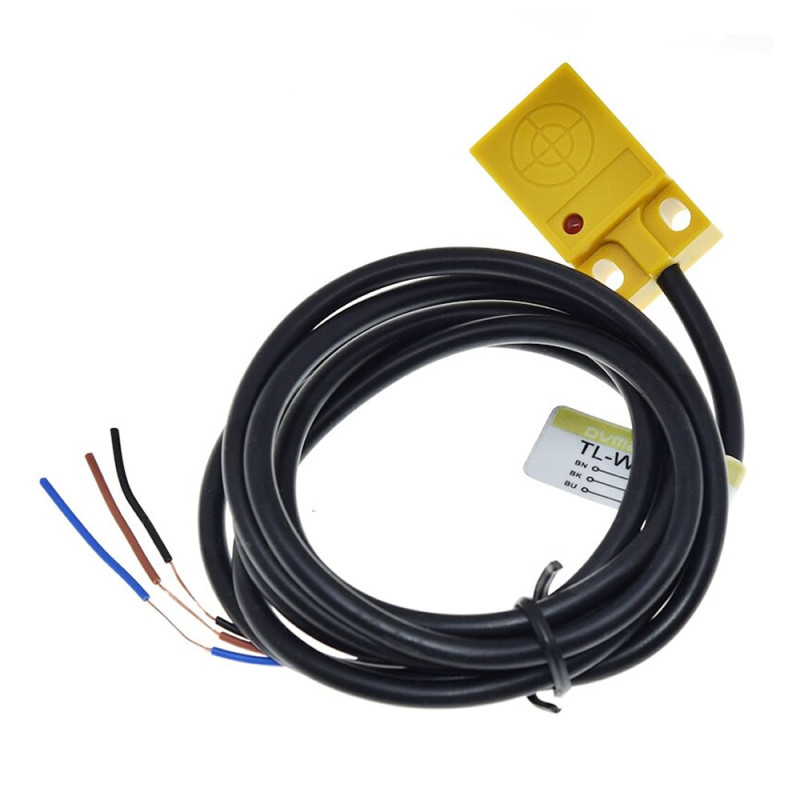

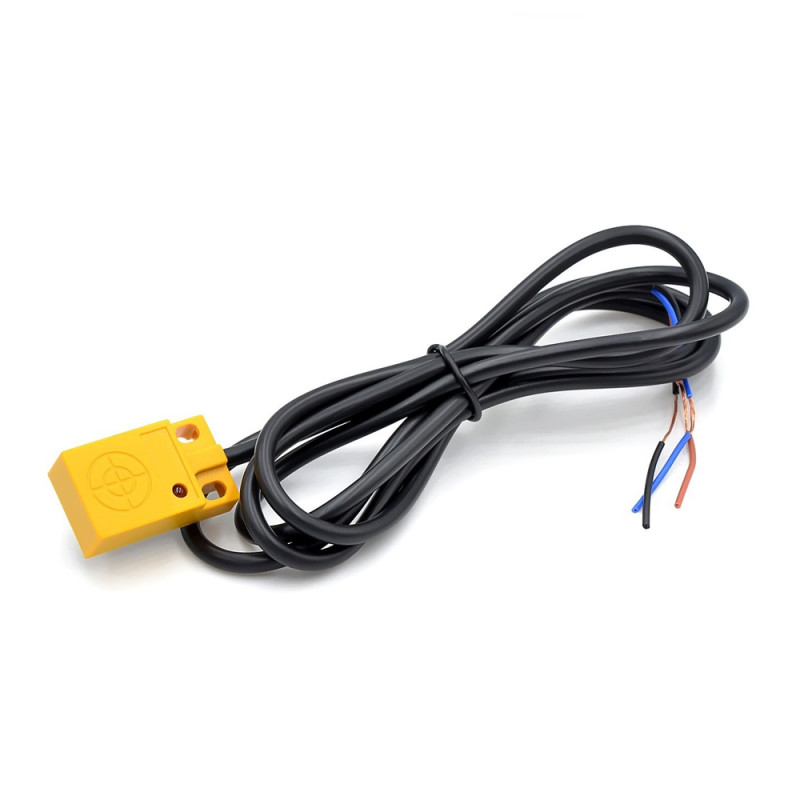

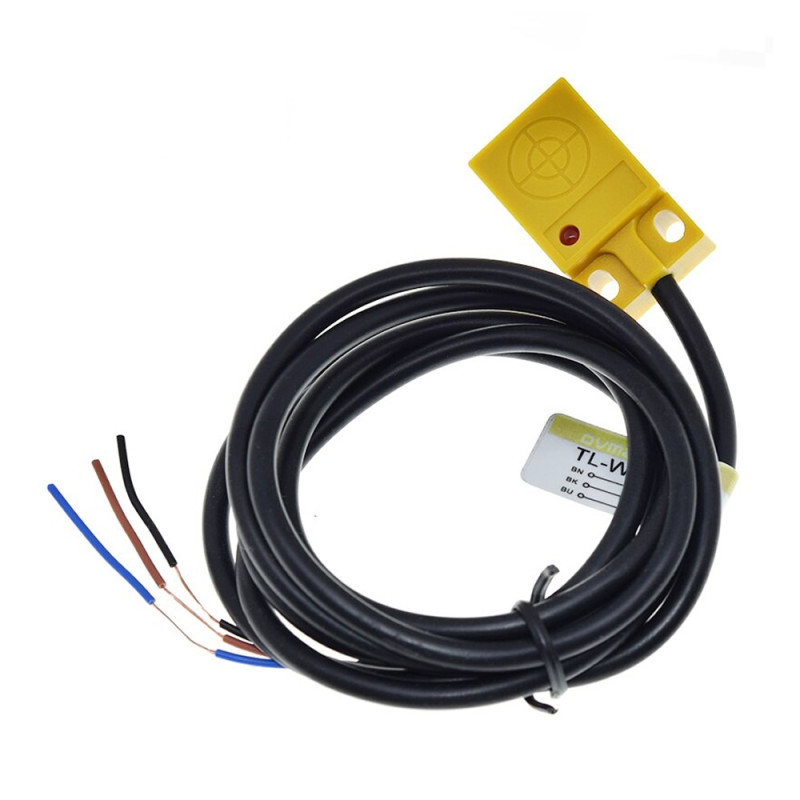

TL-W5MC1 Inductive Sensor Npn

TL-W5MC1 Inductive 5mm Metal Detection Sensor Npn NO

Contactless Proximity Switch 3 Wire DC 6V-36V Automation Industrial Control Part Counter Frequency Counter

     It is an industrial type sensor that can be used to detect metal objects contactlessly from a distance of 5mm. It operates with 6-36VDC voltage. The detection indicator led easily shows the sensor operation. It is used as an automatic control detection switch in industry. When the metal part comes to a distance of 5mm, the control signal changes state. It can be used in applications such as part counting, frequency counter, liquid level control.

Features:

• TL-W5MC1
• Operating voltage: DC 6-36V
• Output current:   10mA
• Type:  Inductive sensor
• Output: Npn NO (Normally Open)
• Load current: Maximum 100mA
• Detected object: Metal Iron  18x18x1mm
• Detection distance:  5mm +-10%
• Detection indicator led
• Short circuit protection
• Overcurrent protection
• Outer material:  Plastic
• Cable: DC 3 Wire ( Black, Brown, Blue)

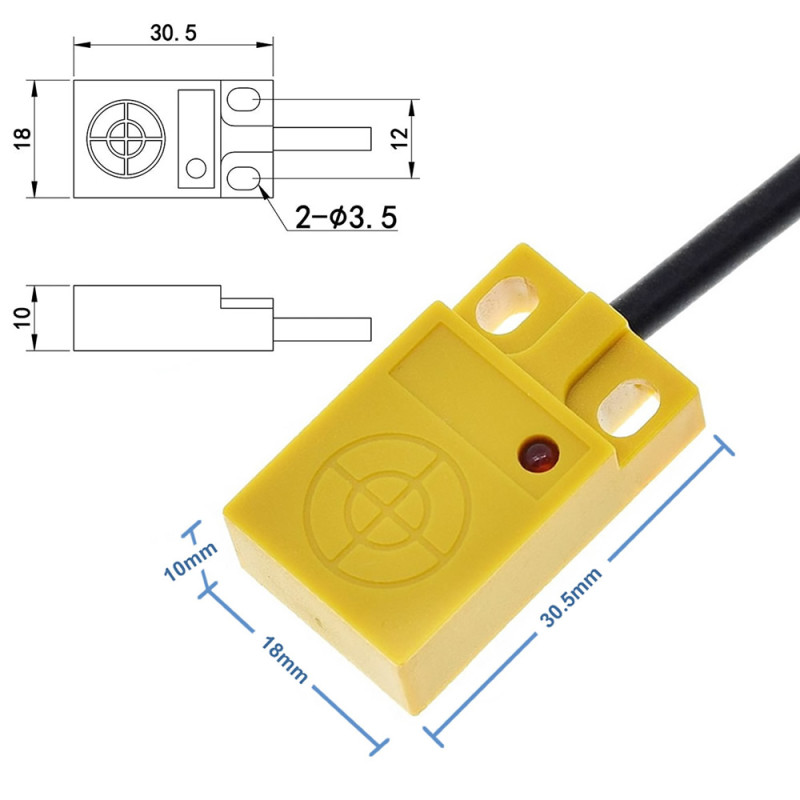

• Dimensions:   10mm x 18mm x 30mm
• Cable length:   110cm
• Weight:  35gr

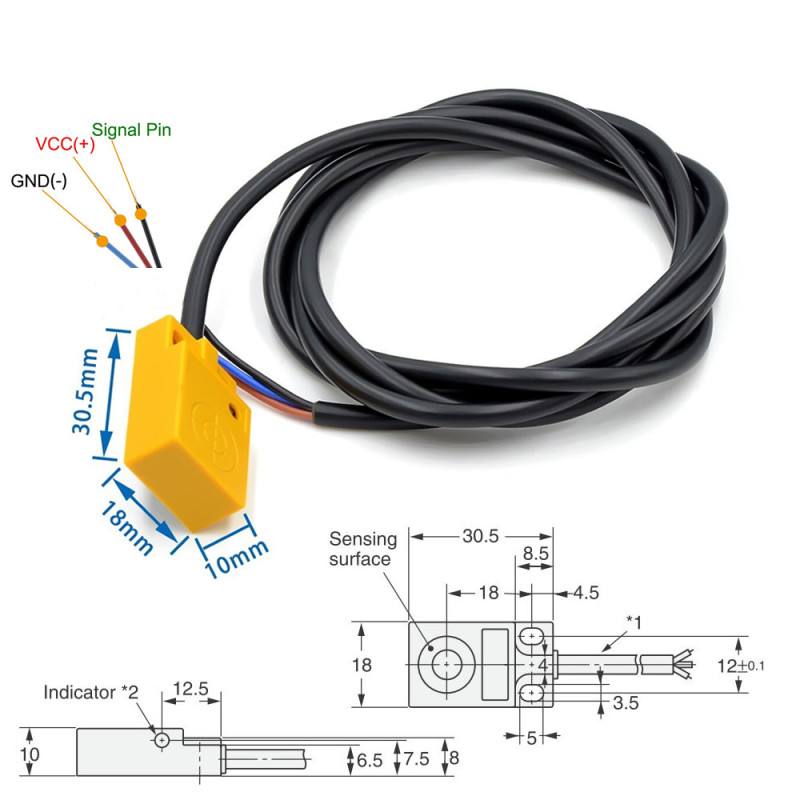

Cable Connections:

•  Brown: Supply +
•  Blue: GND
•  Black: Data Output

Package contents:

•  1 x TL-W5MC1 Inductive Distance Sensor Npn
