TOF200C 2m Laser Distance Sensor

TOF200C VL53L0X 2 Meter Laser Distance Sensor Module
Optical Filter Cover 200cm TOF Distance Proximity Obstacle Detection 940nm IIC I2C Robot Phone Camera

     It is a distance measurement module using the VL53L0X laser sensor. It has a 940nm wavelength. It detects the return of the light emitted from the light emitting transmitter laser from the target. The sensor performs the distance calculation according to the outgoing and incoming light duration. It cannot measure in a dead zone between 0-3 cm. It can be used at distances between 3-200cm. It has a detection angle of 25 degrees. The module can also detect one dimensional movements.

     It communicates via I2C with the VL53L0X sensor. It can be used in applications for detecting the presence of obstacles and objects. It is easy to use and extremely sensitive.

     There is a filter with a cover on the product. The filter has two functions. It prevents the sensor from being affected by dust. In addition, thanks to the optical light filter, it enables the filtering of daylight and other problematic lights, increasing the distance measurement accuracy.

Features:

• Sensor: VL53L0X
• Protective cover filter
• Operating voltage: DC 3V / 5V
• Operating current: 40mA
• Measurement distance: 3cm / 200cm Maximum
• Dead zone:   0-3cm
• Field of view: 25 Degrees
• Wavelength:  940nm

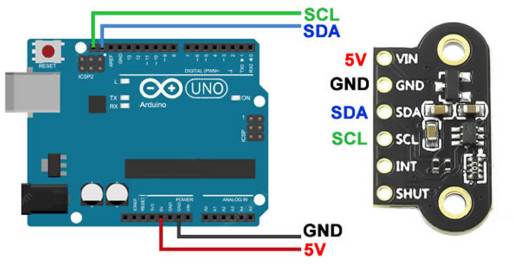

• Communication: I2C
• I2C address: 0x29
• It can detect movements in one dimension
• Color: Black
• Operating temperature:  -20C  /  70C
• Two  m2 mounting holes

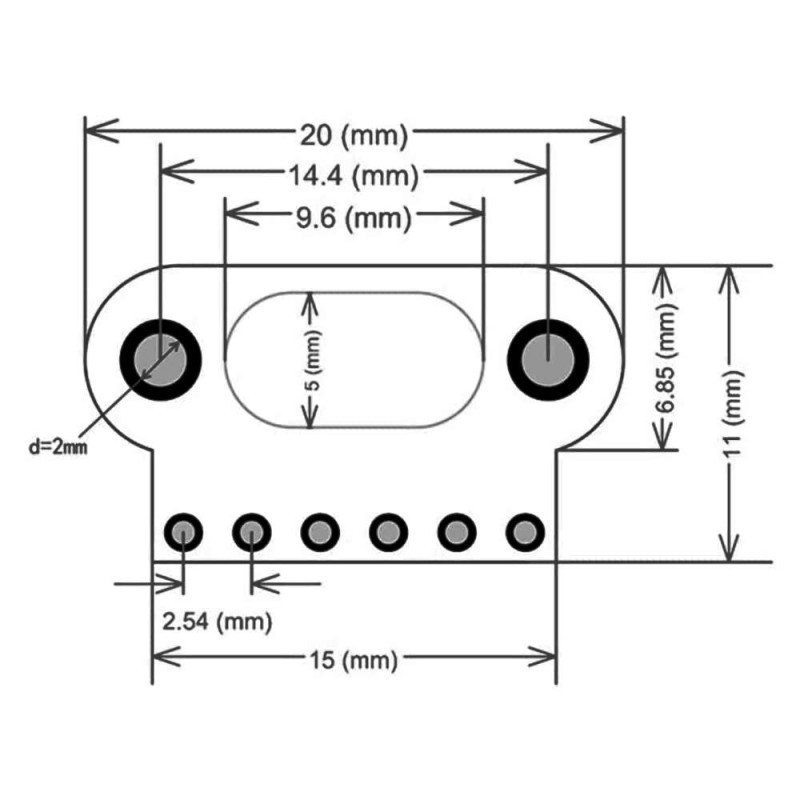

• Dimensions: 11mm x 20mm
• Weight: 1.5gr.

Package Contents:

•  1 Piece TOF200C 2m Laser Distance Sensor
•  1 Piece 6 pin male header

.
