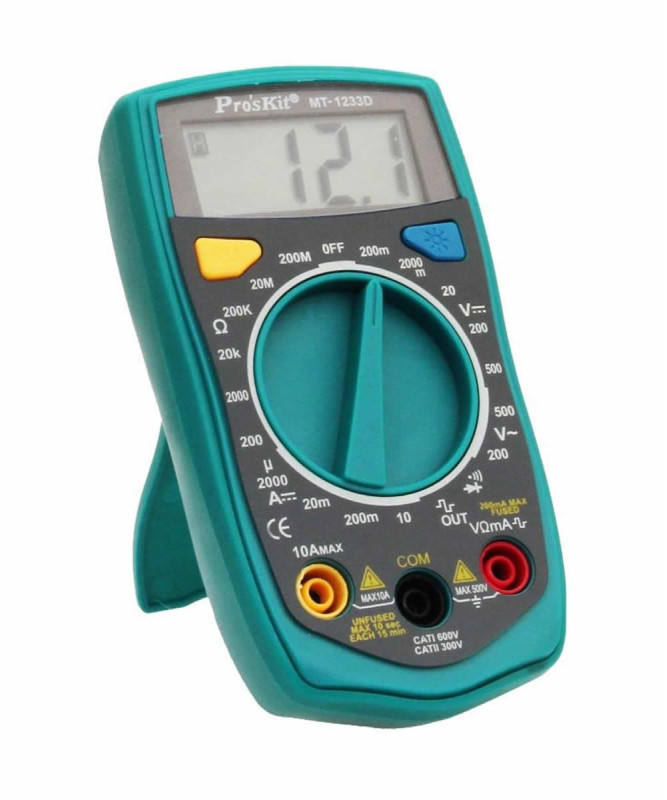

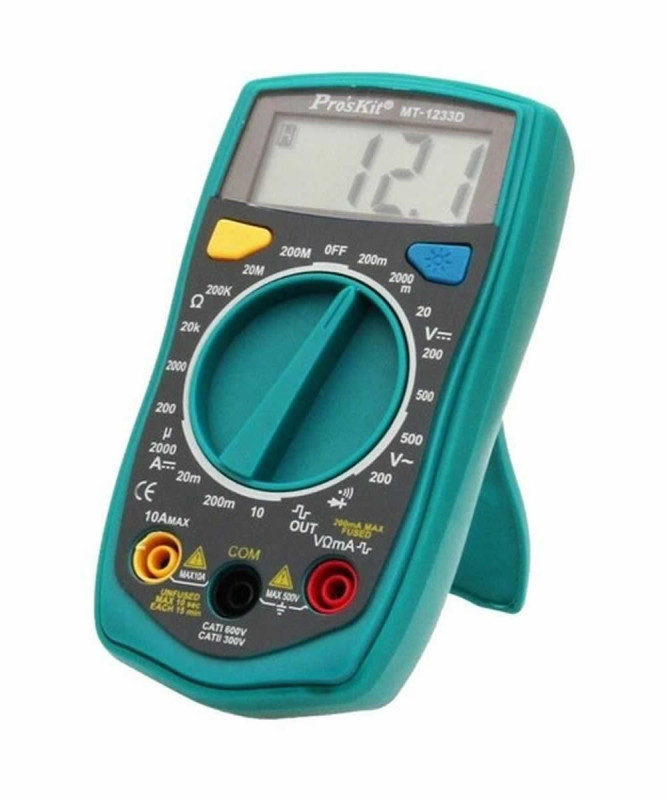

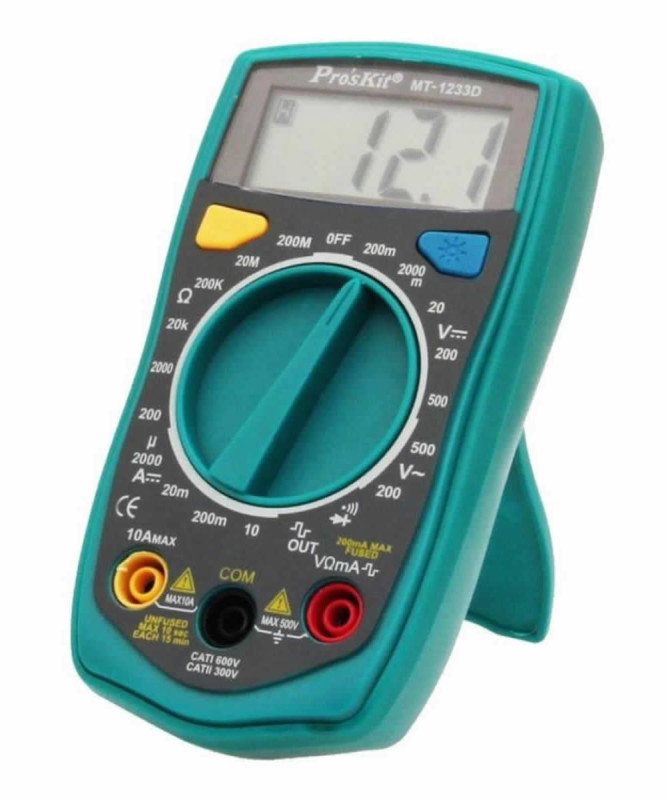

Proskit MT-1233D Multimeter

Mini Pocket Handheld Voltmeter Ammeter AC DC Voltage Current Resistance Diode Buzzer Square Wave Signal

The product is in plastic packaging. It will be opened, the batteries will be installed and a voltage measurement test will be performed. The product is not second hand.

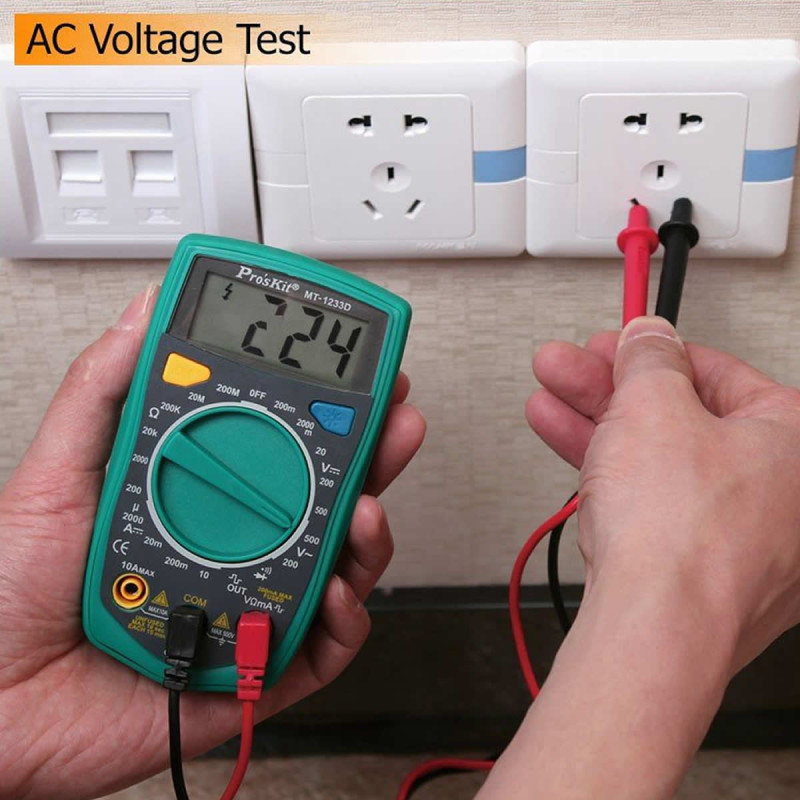

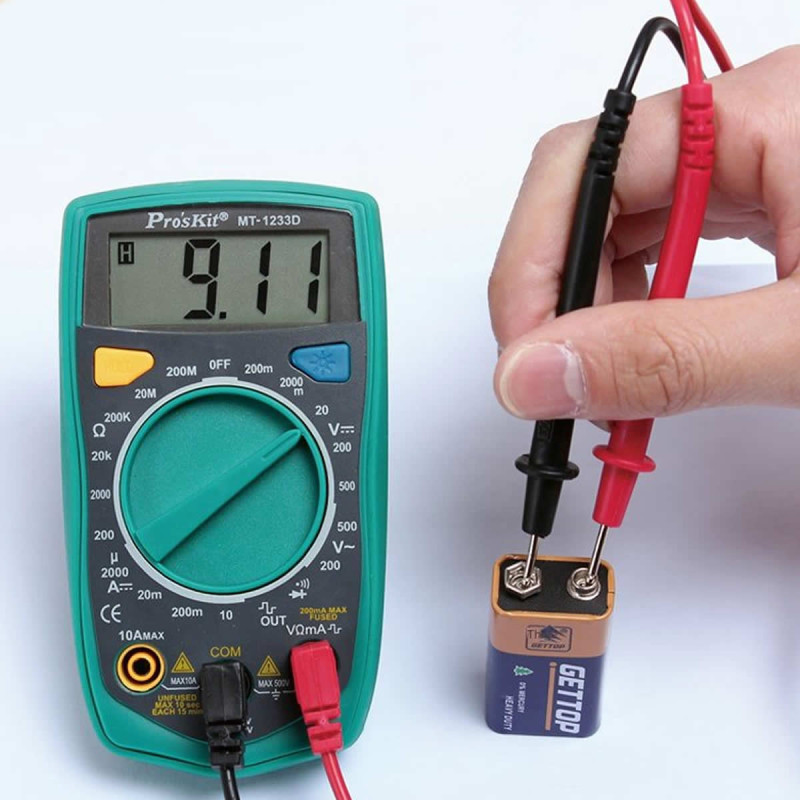

Proskit MT-1233D is a practical digital multimeter with an easy to read LCD display, continuous performance and high reliability. It has DC and AC Voltage, AC current, resistance, square wave signal output, Diode and continuity measurement functions.

With its basic features such as high measurement precision and comfortable readability thanks to its backlit LCD display, it is an ideal device for students, home use, basic maintenance and repair work.

Features:

Proskit MT-1233D Multimeter
DCV: 200m/2000m/20/200V ±(0.8%+3d), 500V ±(1.0%+3d)
DCA: 2000u/20m/200mA ±(1.2%+5d), 10A ±(2.5%+5d)
ACV: 200/500V ±(1.2%+5d)
Resistance: 200ohm ±(1.5%+5d), 2000/20k/200kohm ±(1.0%+3d), 20Mohm ±(1.0%+5d), 200Mohm ±(1.0%(rdg-l0)+10d)
Manual range selection
3 1/2 easy to read display
1999 count
Accuracy: 0.5%
Audible alert output
Square wave output: 50Hz (5 Vp-p, 50Kohm)
Backlight
Automatic Shutdown
Data hold
Low battery warning
Safety level: CAT II 600V

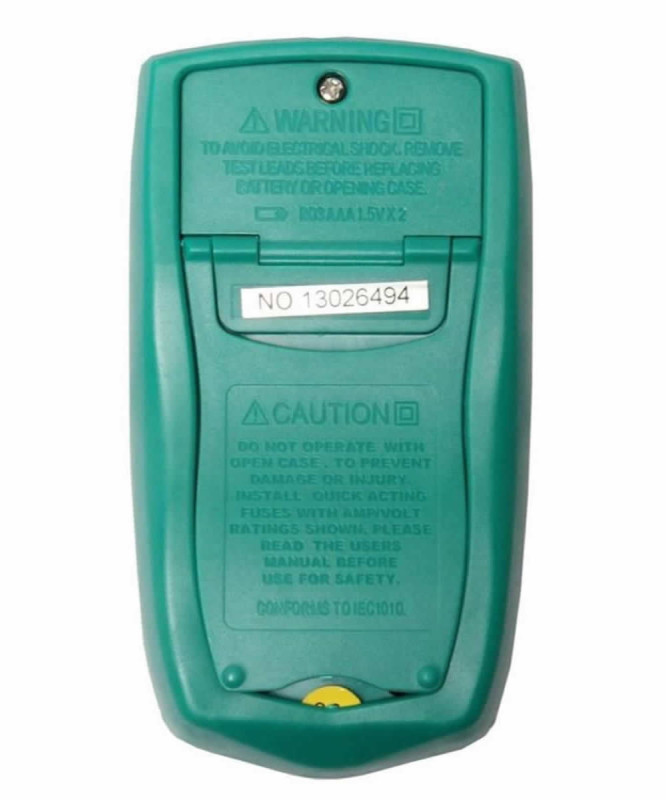

Works with 2 Pieces 1.5V AAA batteries

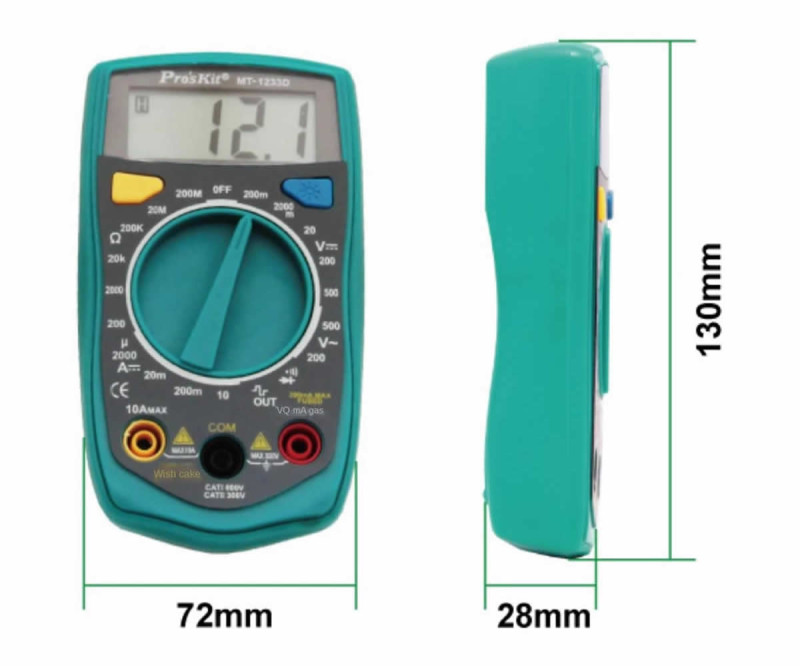

Dimensions: 72mm x 130mm x 28 mm
Weight: gr

Package contents:

1 Piece Proskit MT-1233D Multimeter
2 Pieces Probe
2 Pieces battery
1 Piece English manual

Model No.	MT-1233D
Digits	3 1/2 digits 1999 counts
Accuracy	0.5% best accuracy
DCV	200m/2000m/20/200V ±(0.8%+3d), 500V ±(1.0%+3d)
ACV	200/500V ±(1.2%+5d)
DCA	2000u/20m/200mA ±(1.2%+5d), 10A ±(2.5%+5d)
Resistance	200ohm ±(1.5%+5d), 2000/20k/200kohm ±(1.0%+3d), 20Mohm ±(1.0%+5d), 200Mohm ±(1.0%+10d)
Square signal output	50Hz (3 Vp-p, 50Kohm)
Temperature	-
Power source	1.5V AAA x 2 (not included)
Size (HXWXD)mm	130 x 72 x 28mm

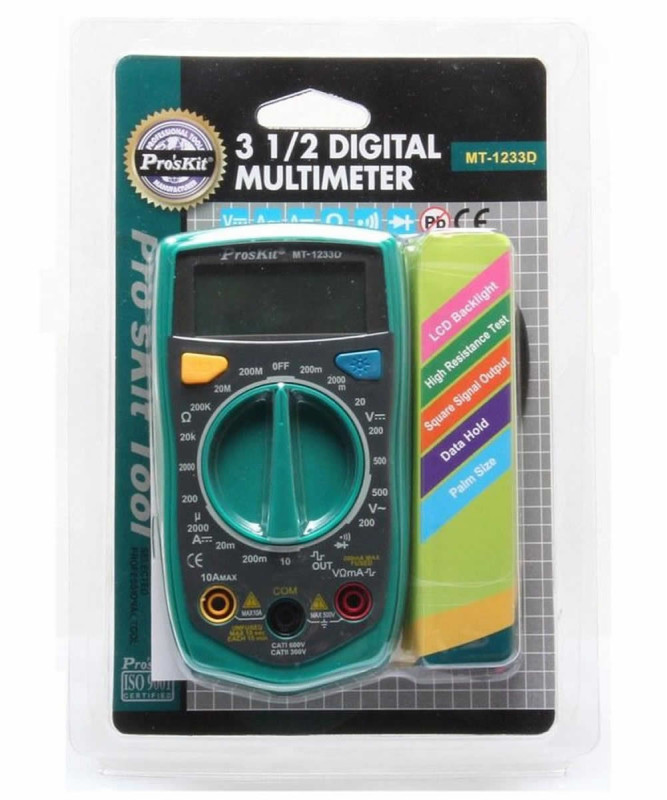

Individual packing	Double blister
Accessories	Test leads
