12V 16mm Button Push Type Wired Red

16mm Red Power Symbol Led Wired Push Type Metal Button

Panel Mount Flat Head COM NO NC DC 6A 12V IP67 Waterproof Stainless Steel Button Start Control Automation

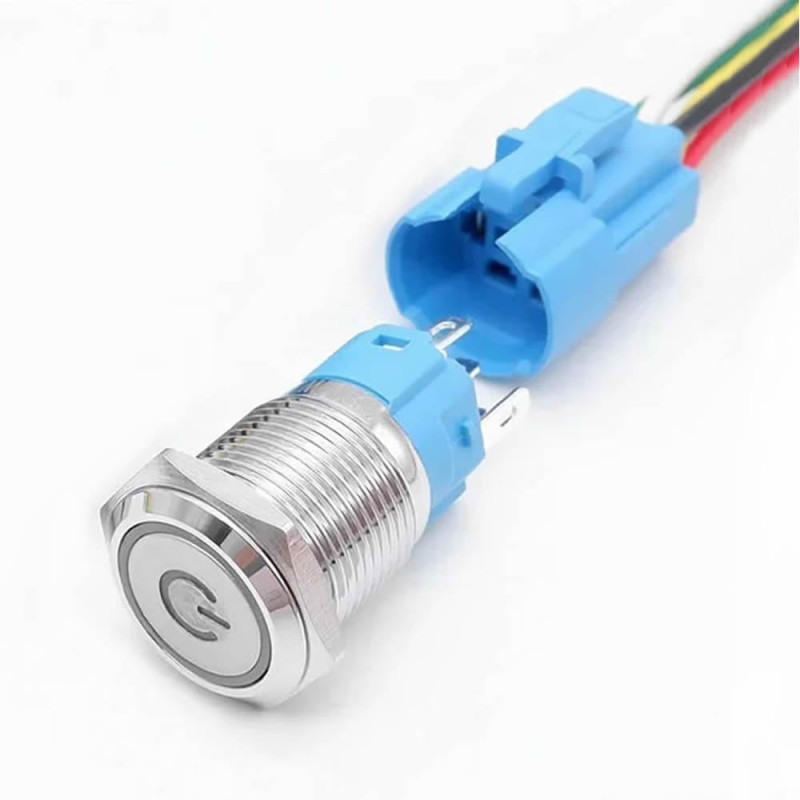

     16mm diameter 5 pin metal push type button switch. It has IP67 waterproof protection. It can be used in wet or dusty environments. It has a maximum Dc 6A 12V switching capacity. It has COM, NO and NC output pins. It has a led indicator with power symbol. The operation of the led and the switch is shown in the table below. The product comes with ready 14cm cables. It can be connected to your system very easily with these cables.

     The switch is push type. It does not stay fixed when pressed. When the button is pressed, the target circuit operates. When the button is released, the operation of the target circuit stops. Initially the Com and Nc pins are short circuited. When the button is pressed, the switch joins the Com and No pins. It is used by mounting on surfaces with a 16mm hole.

Features:

• 12V 16mm Button Push Type Wired Red
• Head type: Flat
• Operating current voltage capacity: 6A 12V DC    /  AC  3A 250V

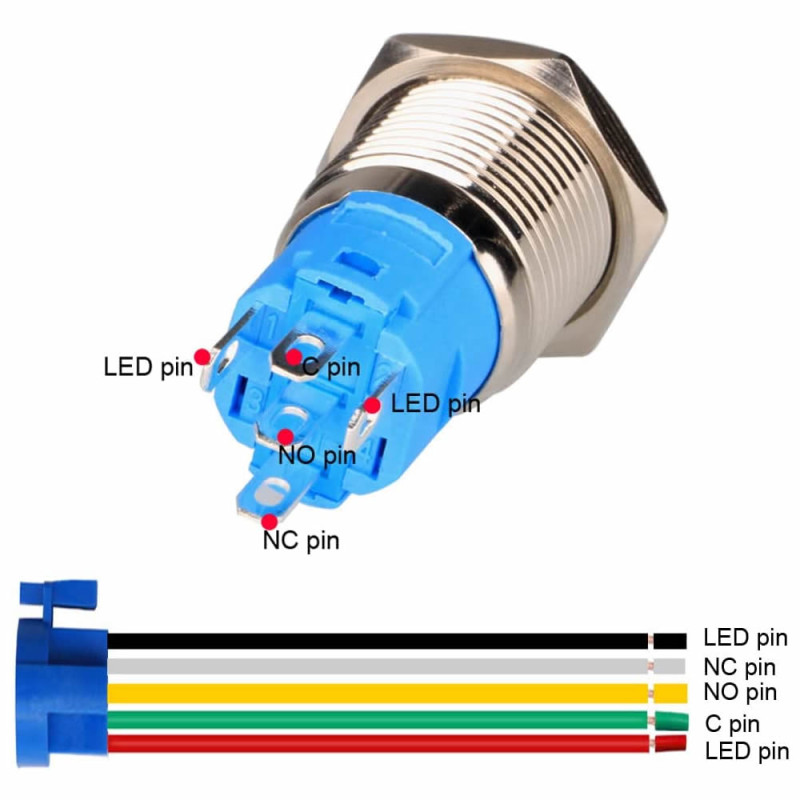

• Contact form: NO, NC, COM
• Number of pins: 5
• Contact resistance: less than 50mohm
• Insulation resistance: 1000Mohm
• Led voltage: AC/DC 12V / 24V
• Led current: 15mA

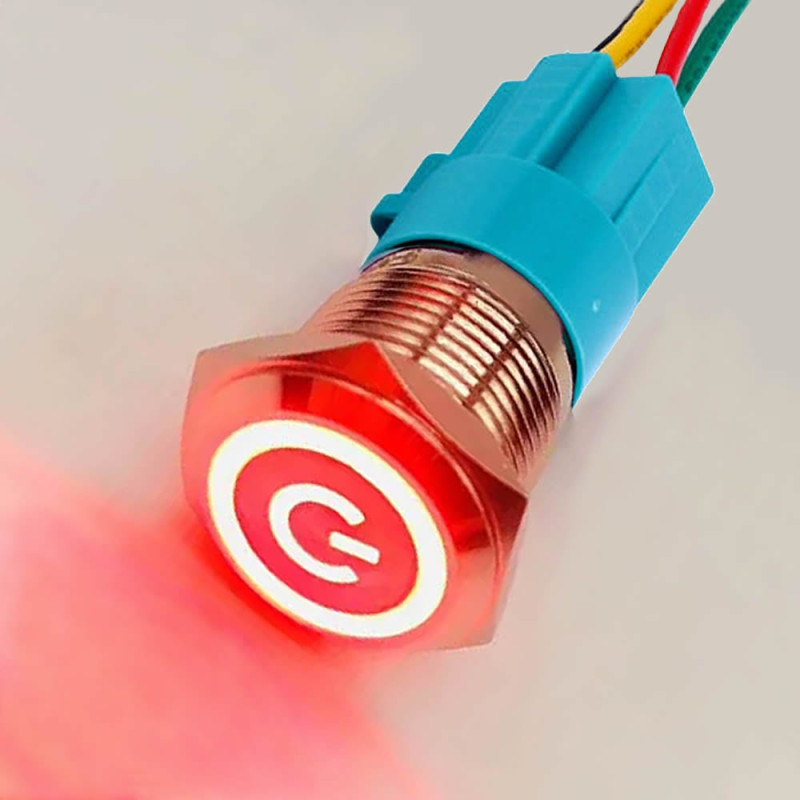

• Led indicator with power symbol
• Led color: Red
• Contact material: Silver alloy
• Button material: Stainless steel
• Protection type: IP67 / IK08
• Service life: 100.000 hours
• Mechanical life: more than 50.000 on off cycles
• Maximum pressing force: 3N / 5N
• Material: Metal / Plastic
• Operating temperature: -20C  /  +85C
• Color: Metallic Gray

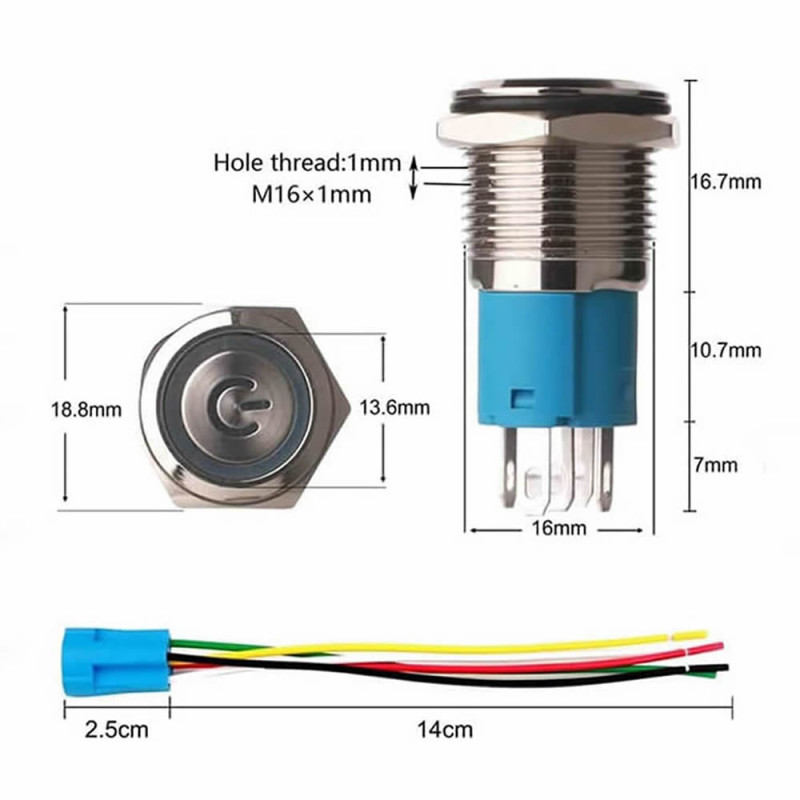

• Mounting hole: 16mm

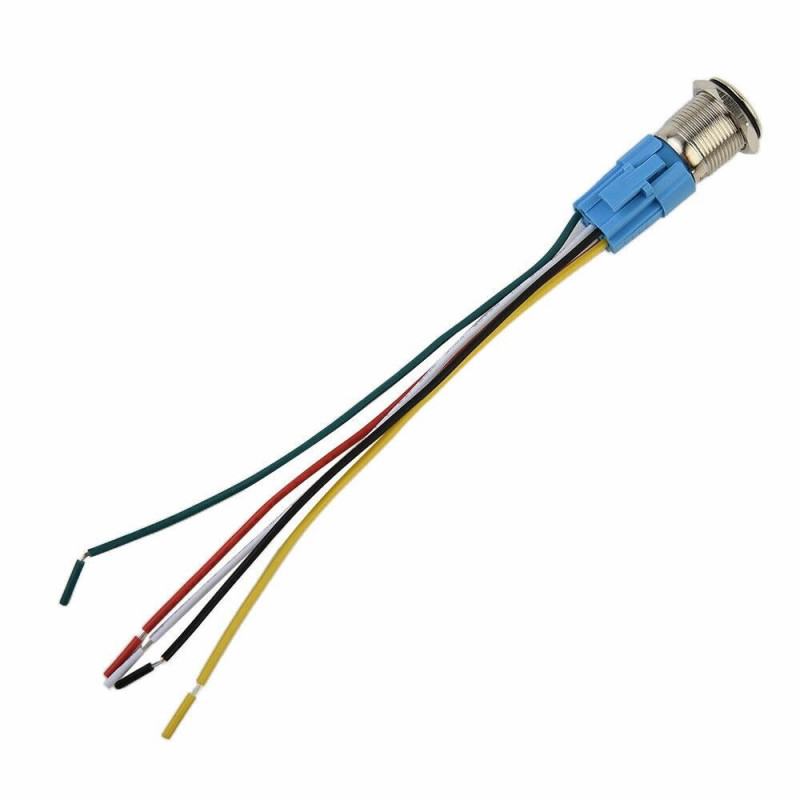

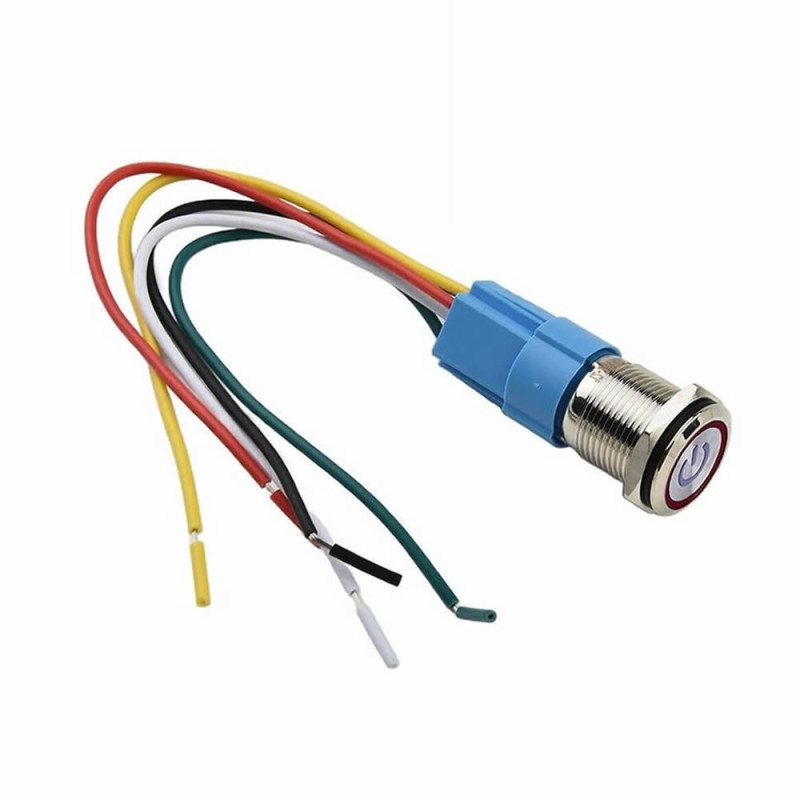

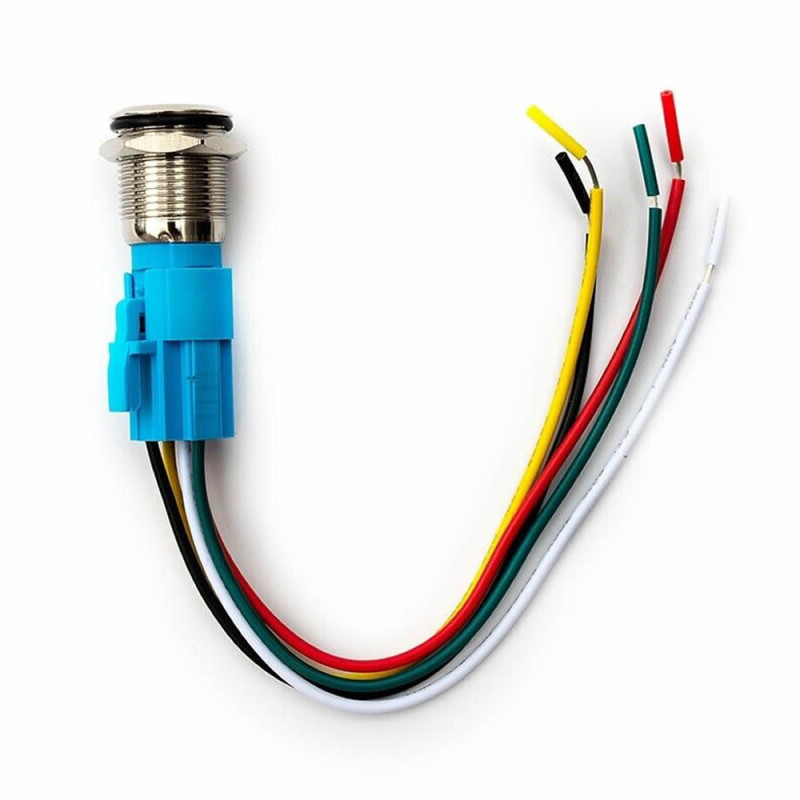

• Cable length: 140mm

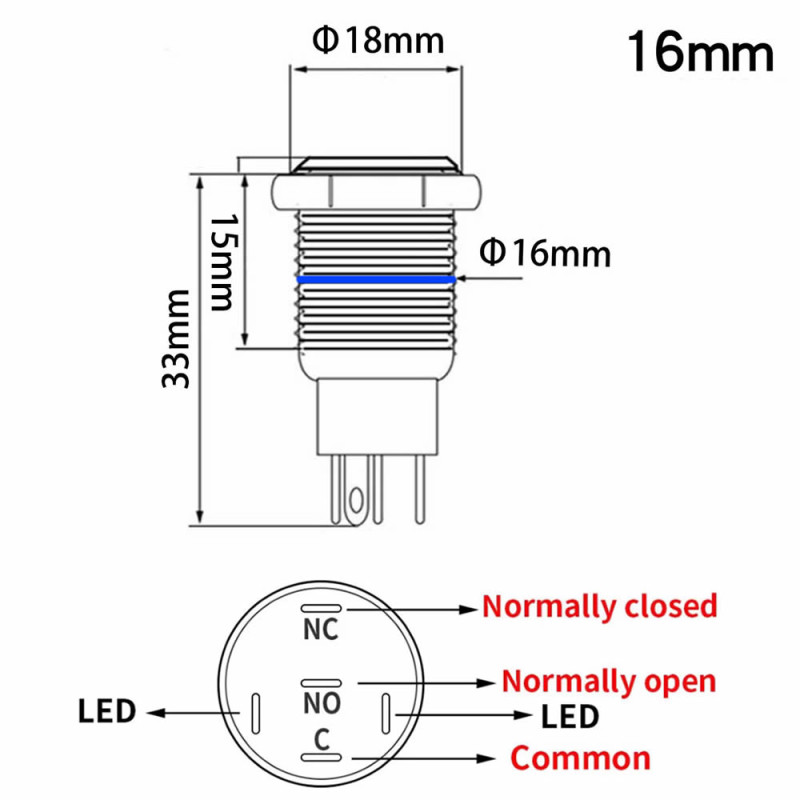

• Dimensions: 16mm (18mm) x 35mm
• Weight: 20gr

Package contents:

• 1 Pcs 12V 16mm Button Push Type Wired Red
