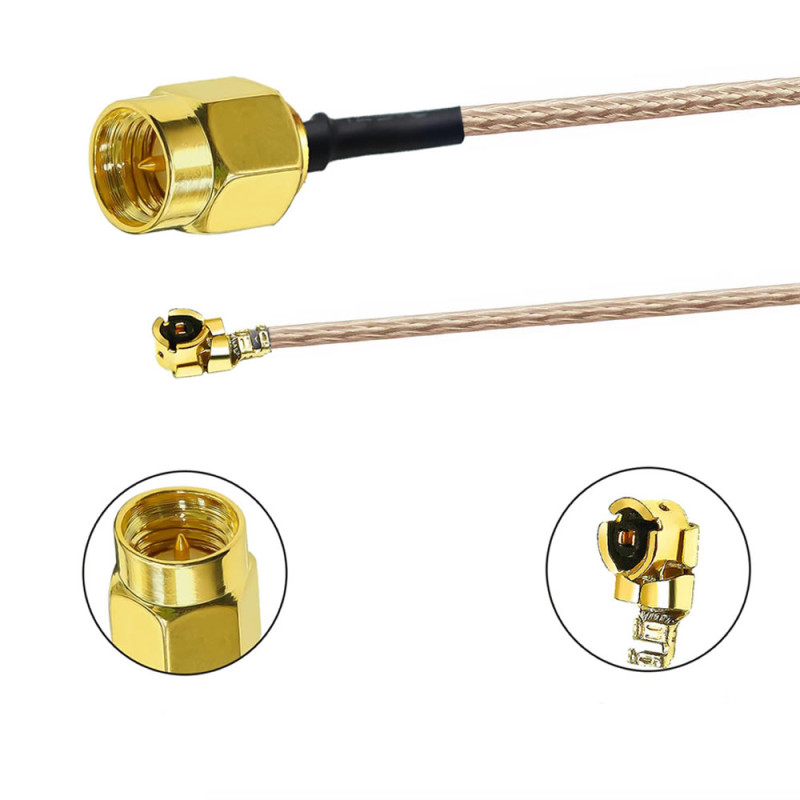

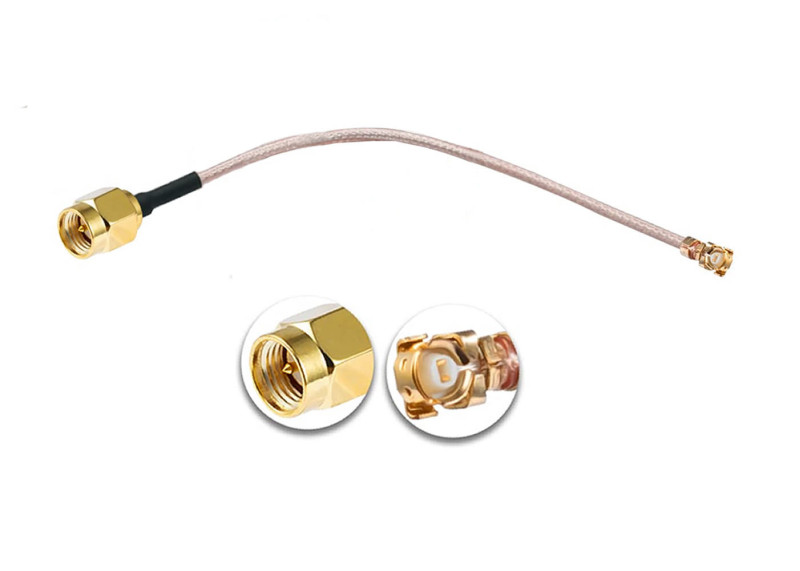

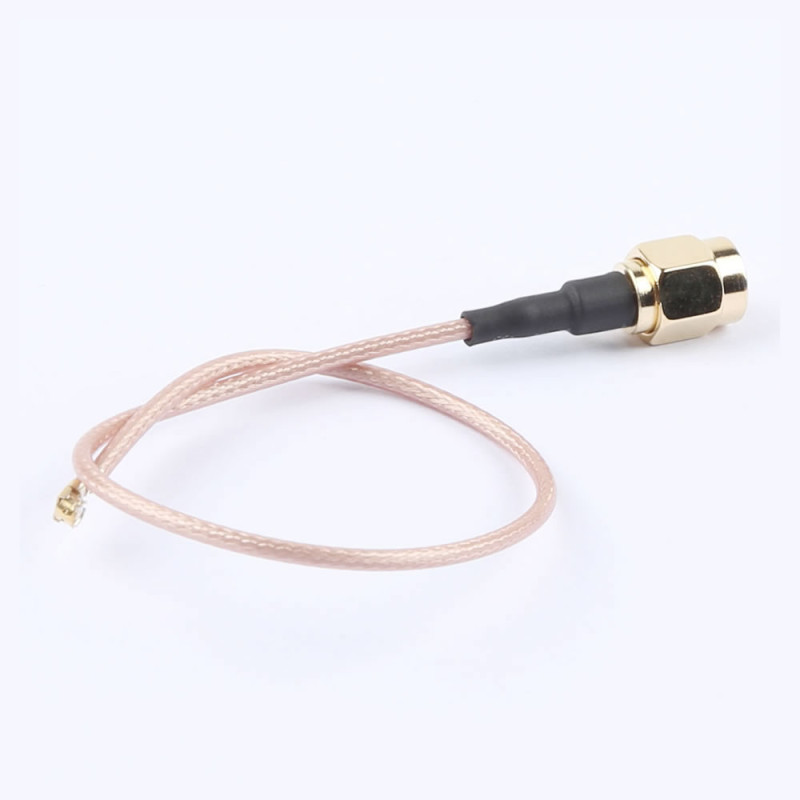

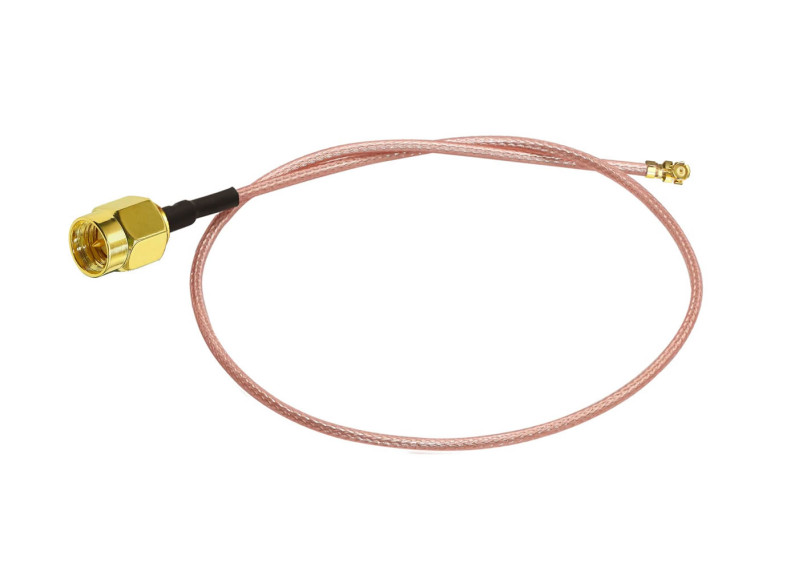

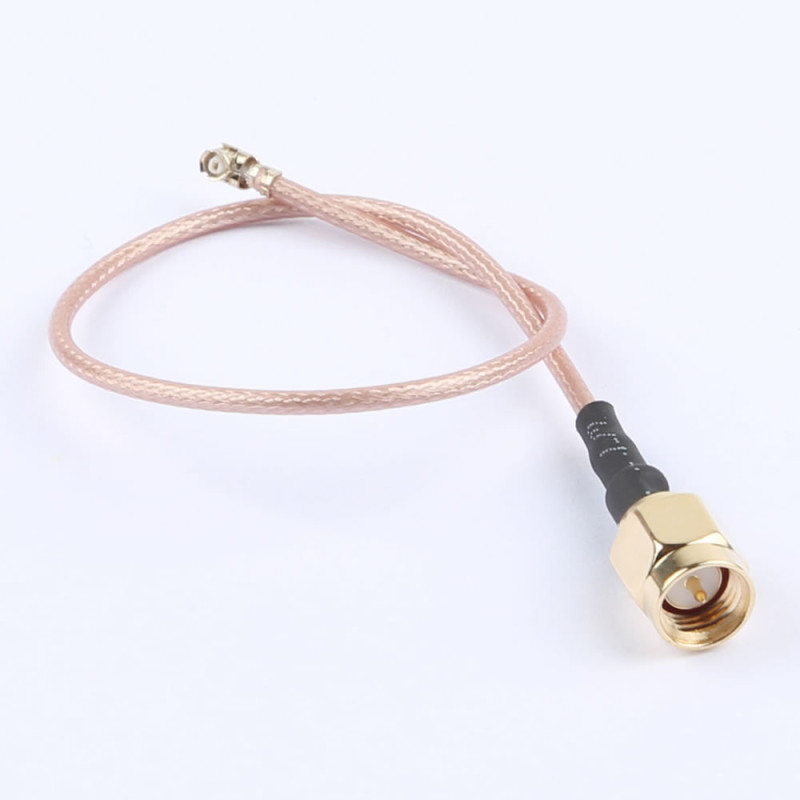

15cm Sma Male Ipex1 RF Cable
63.36TL
Ex Tax: 52.80TL
- Stok Durumu: Stok Var
- Marka: OEM
- Model: 15cm Sma Erkek Ipex1 RF Kablo
- SKU: RBZ.101.439
15cm Sma Male Ipex1 Mhf1 Female RF Connection Cable
Gold Plated Socket Connector Coaxial Cable UFL U.FL IPX IPEX Mini PCIe 1.13 Wifi Gsm Gps

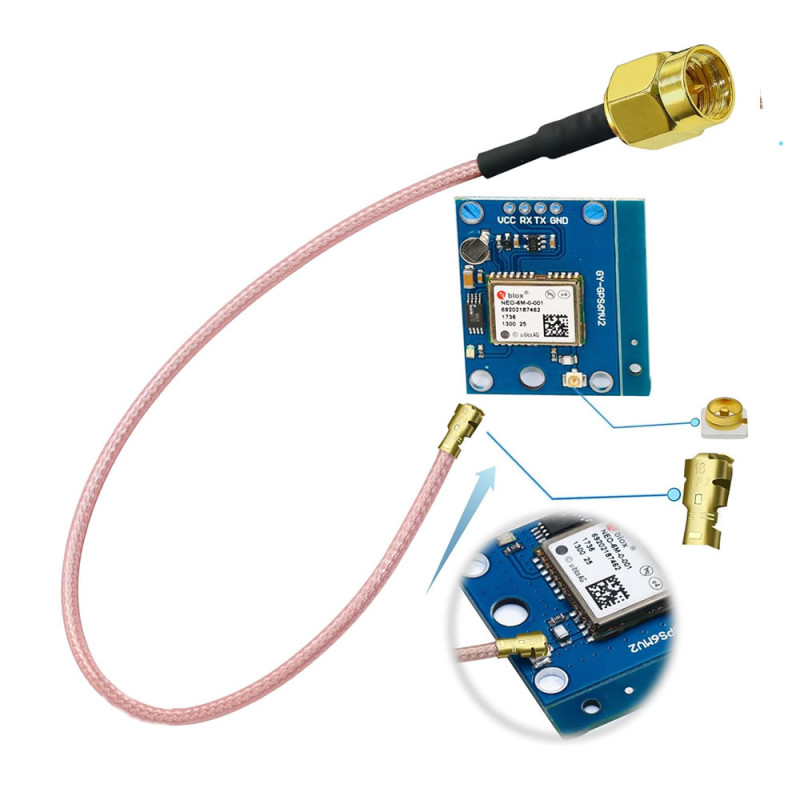

Suitable for UFL socket. These types of sockets are used on mini pcie cards. Mhf4 sockets are generally used on M2 Ngff products.
High performance low loss flexible rf connection cable. One side is a sma male socket. The other end is an ipex1 ( Ufl ) socket. It can be used in a wide frequency range. It has a cable length of 15cm.
Features:
- Sma male socket
- Ipex Socket Female ( Mhf1 ) ( Suitable for Ufl male socket )
- Cable type:1.13
- Impedance: 50 ohm
- Contact resistance: 3mohm and below
- Frequency range: 0Hz / 12 GHz
- Voltage withstand：1000V maximum
- Flashover voltage：3000Vrms
- Vswr: 1.1 and below
- Operating temperature：-45C / 85C
- Life: less than 500 insertions and removals
- High performance
- Low loss
- Flexible structure

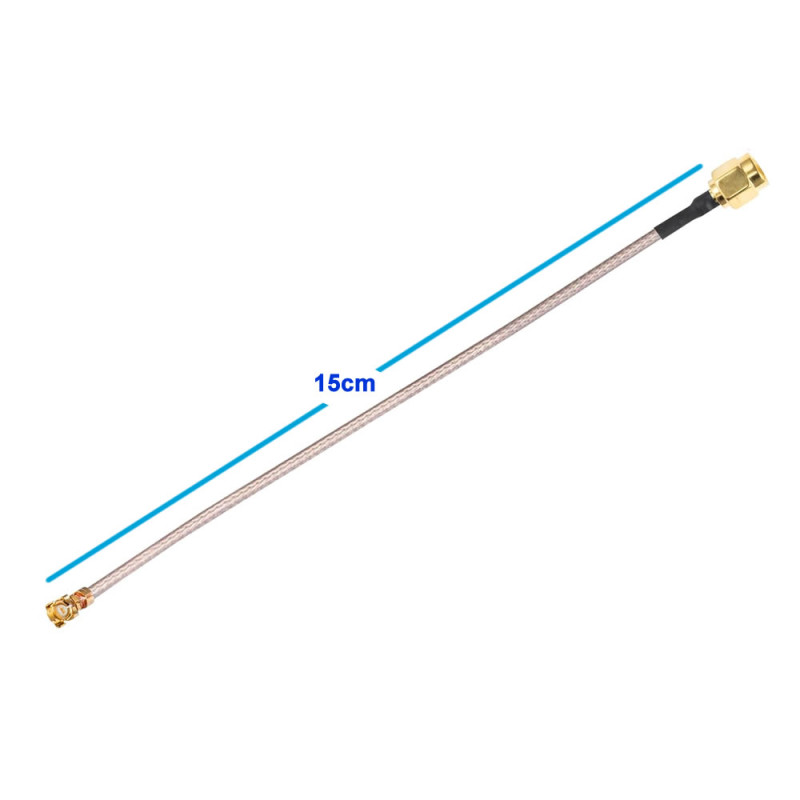

- Cable length: 15cm
- Weight: 4gr
Package contents:
- 1 Piece 15cm Sma Male Ipex1 RF Cable
