PD/QC Decoy Module PAK02

PD/QC Fast Charge Adapter Voltage Trigger Module Decoy

9V 12V 15V 20V High Voltage Source Type-C Modem Router Fan Laptop PD3.0 QC3.0/2.0

     The PD decoy module allows access to the fixed high voltages in fast charge adapters. The module tricks your adapter and enables the high voltage outputs in your adapter to be delivered externally. You can get high voltage up to 20V from your adapter (if it supports it). This allows you to run products that operate with high voltage. For example, it allows you to use devices such as a laptop, modem, camera with commonly used adapters.

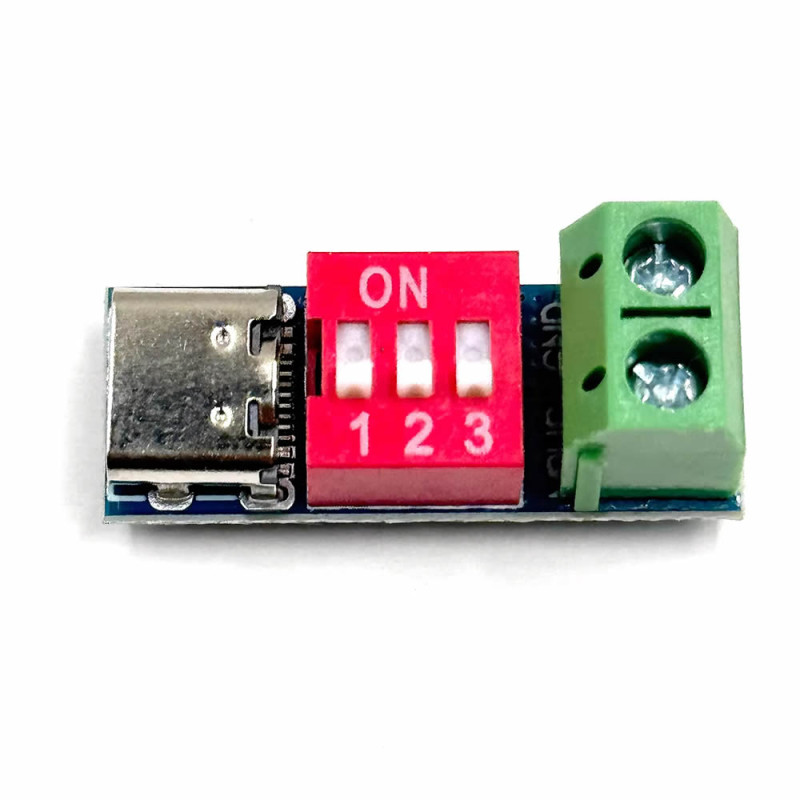

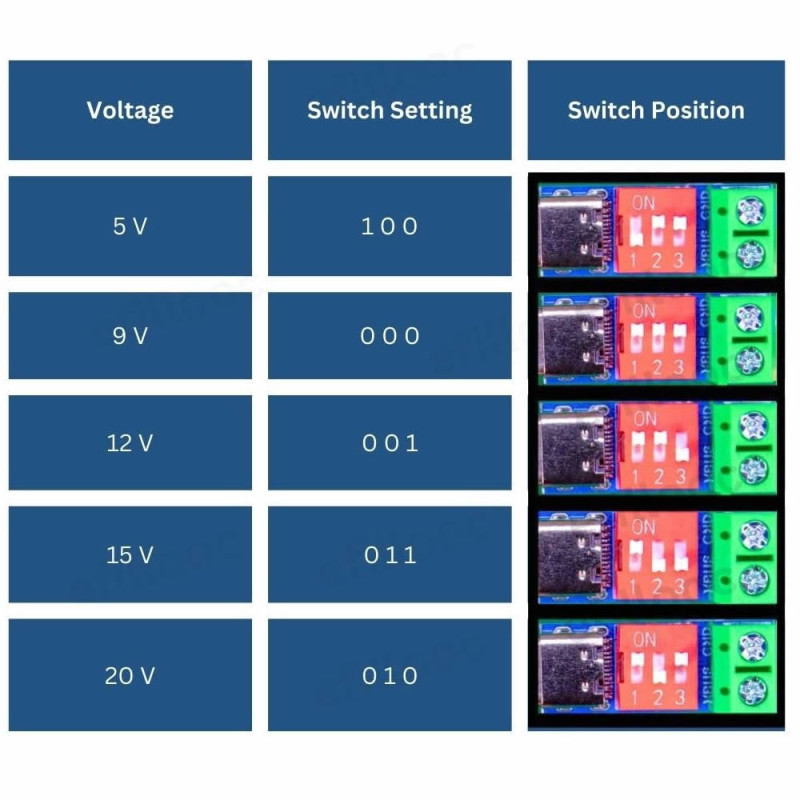

     It has a usb type c socket input. The output voltage is set with the 3 pin switches on the board. If your adapter does not support it or if your adapter is not compatible with the module, you may see a different voltage at the output. Connect it to the fast charge adapter with a quality usb cable. The voltage output is taken through the 2 pin terminal socket soldered to the board. There is an indicator led on the board.

Warnings:

• When the product reaches you, the cable outputs can be connected to the target device after the voltage they deliver is determined with a voltmeter. If you connect it to the target device with an incorrect setting without checking, your product may be damaged.
• You must definitely know the type of your charger before purchasing. If you use an adapter that does not support the specified protocols, you will only see 5V at the module output.
• It is important that you use a quality usb cable. Poor quality cables will heat up and may prevent you from transferring the required power values. Some cables may also lack the data lines required for type-c. This also prevents the use of the product.
• Some adapters deliver output at certain voltage levels. For this reason you may not be able to obtain some voltages. Since there is no 12V output on iPhone and xiaomi adapters, you will not be able to obtain 12V even if you set a 12V output.

Features:

•  PD/QC Decoy Module PAK02
•  Usb Type-C socket input
•  Can work with adapters that have PD3.0 QC3.0/2.0 support
•  Can work with adapters that have AFC support
•  Output voltage: DC  9V / 12V / 15V / 20V
•  Current:  Maximum 5A (The current varies according to the adapter capacity and the load)
•  Power: Depends on the adapter you use. (It should not be used above 80W/100W for a long time)
•  3 pin voltage selection switch on the board
•  Output indicator led
•  Simple installation, stable performance, wide application area
•  Operating temperature:  -10C  /  65C
•  2 way terminal voltage output socket

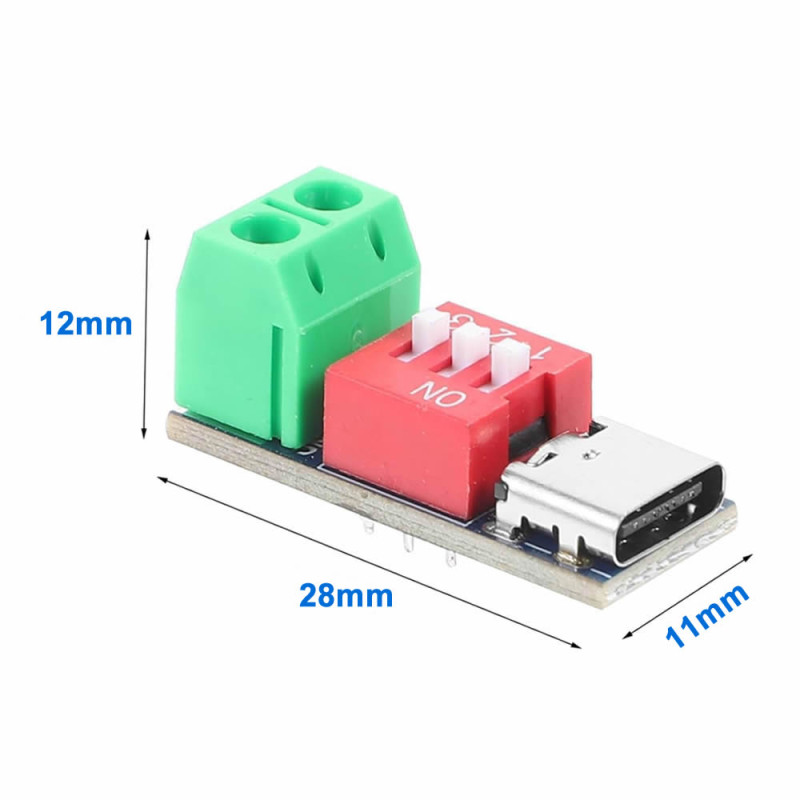

•  Dimensions: 11mm x 28mm x 12mm
•  Weight:  4gr

Package contents

•    1 Piece PD/QC Decoy Module PAK02
