Dimmer AC 220V 10000W

AC 220V 10000W Dimmer

SCR AC Motor Speed Control Electric Oven Heating Element Water Heater Lamp Light Brightness Fan Voltage Regulator

     It is a control circuit that you can use for power control of your devices operating with AC voltage. Using this circuit you can control the brightness of your normal incandescent and halogen bulbs, adjust the power of your heaters and control the speed of your single phase AC motors (it may not work trouble-free with all motors). It can be used with a maximum 10000W resistive load.

Note: You will not see a value when you measure with a multimeter, you need to measure under load.

Features:

• Input voltage: AC 180 / 220V
• Power: 10000W ( Should not exceed 6000w in long term use )
• Current: 25A  ( Peak 40A )
• Voltage adjustment range: AC 50V / 220V
• Voltage adjustment pot
• Efficiency: 90%
• Quality material
• Color: Silver
• Operating temperature: -10C  /  80C
• Easy connection terminals
• Metal protection box

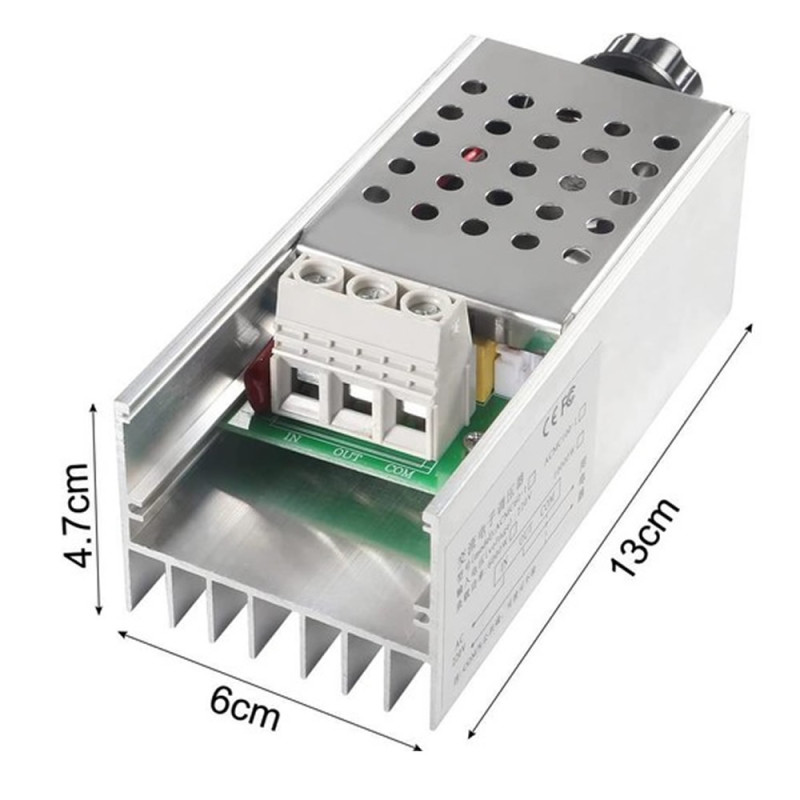

• Dimensions: 47mm x 60mm x 150mm
• Weight: 220gr

Note:

•     The main use of dimmers is resistive loads. ( Electric heaters, Lamps, Fans...)
•     Be sure to use it on electronic devices that require 220V.
•     It cannot be used on battery chargers, TVs etc, smps units, refrigerators, air conditioners, computers.

Package Contents:

• 1 pcs 10000W Dimmer
