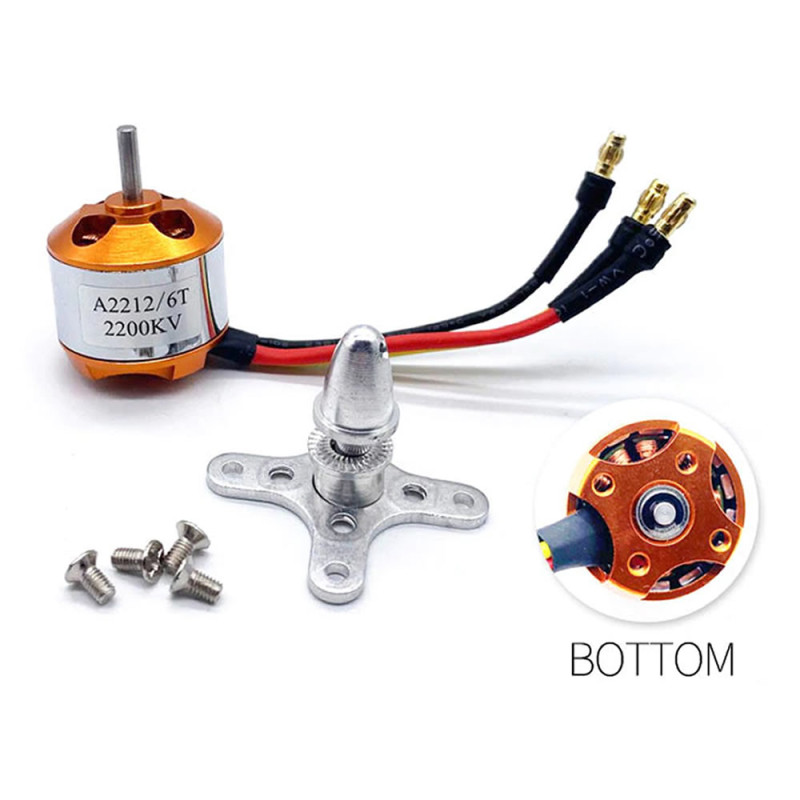

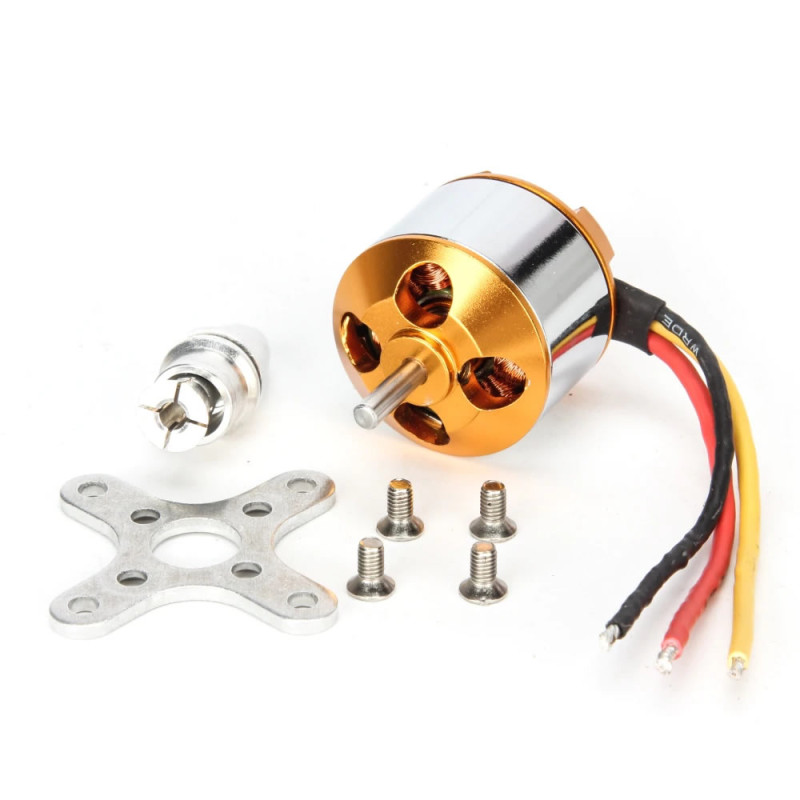

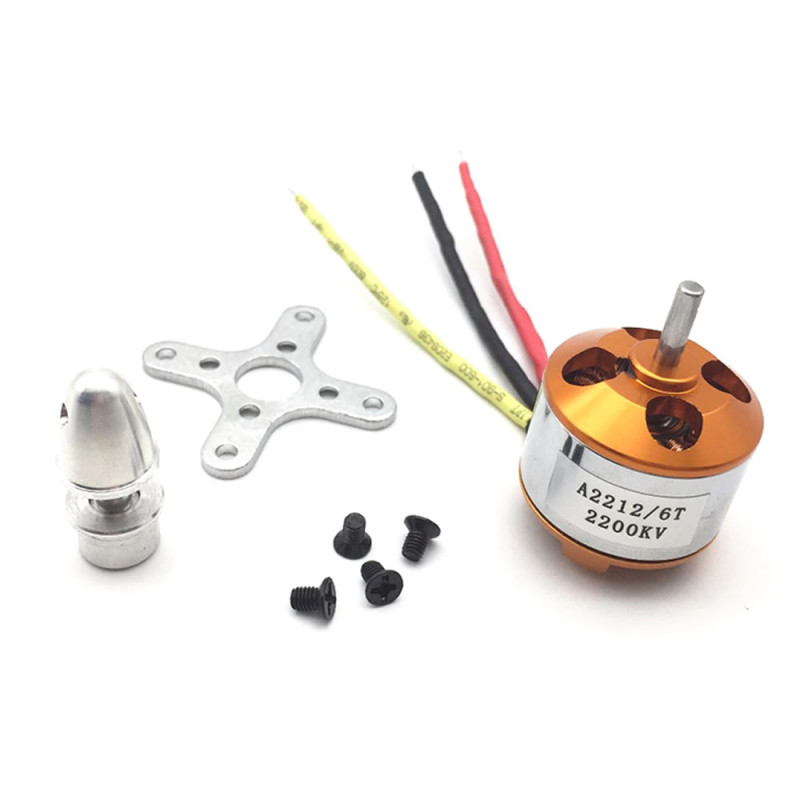

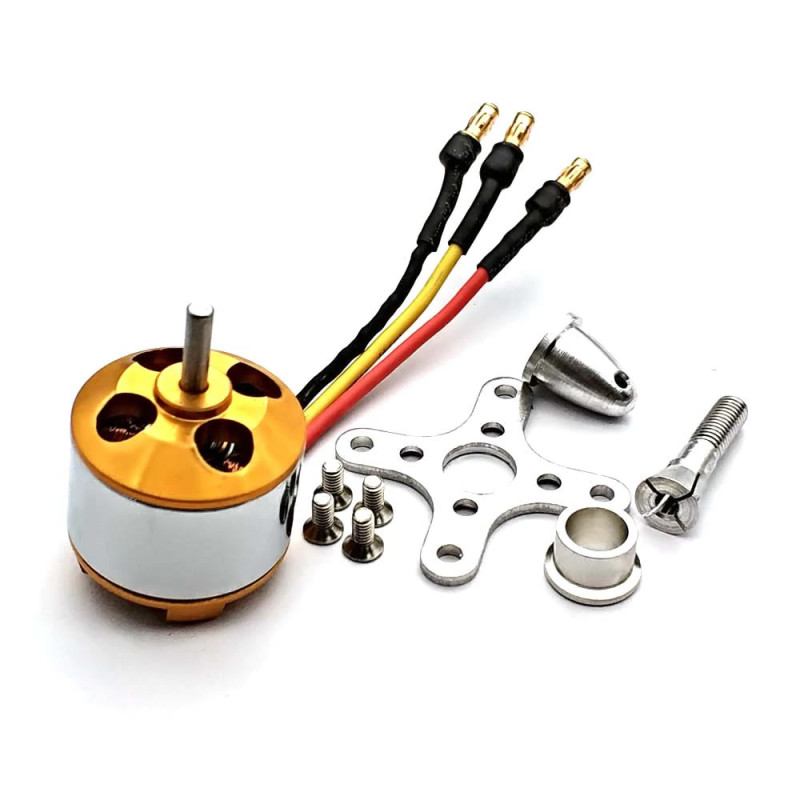

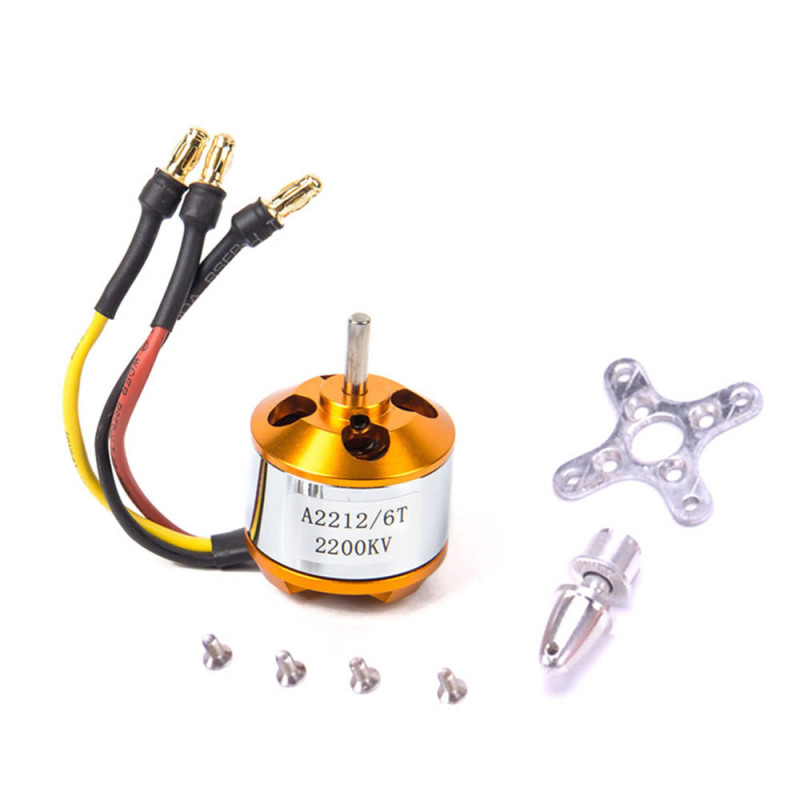

A2212 2200KV Brushless Motor

A2212 2200KV Brushless Motor
2S/ 3S Lipo RC Model Airplane Helicopter Multicopter Drone Quadcopter Fpv Racing High Power Bldc Lipo

     The A2212 2200KV brushless motor is a powerful motor offering high speed and efficiency. It is designed to be used in hobby projects such as drones, RC airplanes and helicopters. Thanks to its brushless structure, it produces less heat and provides long-lasting performance. With its light and compact structure, it is ideal for small-sized model vehicles. The 2200KV motor is an excellent choice for applications requiring medium speed and high torque. Thanks to its balanced rotor design, it reduces vibration to a minimum level, thus offering a trouble-free usage experience. When operated together with a suitable esc driver, it provides superior control.

Features:

• A2212 2200KV Brushless Motor
• Speed (KV): 2200KV
• Maximum power: 239W
• Operating voltage:   7.4V  /  11.1V
• Battery cell count: 2S / 3S Li-Po
• Current: 21A  (Requires a heatsink in long-term use)
• No-load current:  10V 0.5A
• Maximum thrust:  800/1000gr  (3S)
• Efficiency:   %80
• Connection type: 3 phase cable ( banana connector compatible )
• Application area: RC drone, airplane and helicopter projects
• Material: aluminum alloy body
• Operating temperature: -10C /  50C
• Color:  Metallic gray / Gold

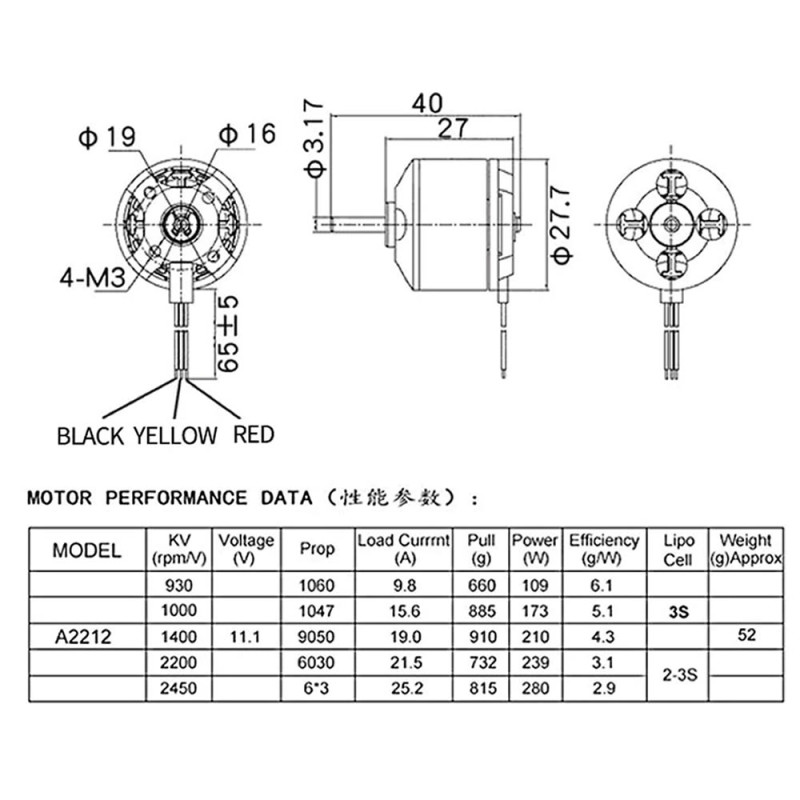

• Mounting holes: Standard cross mounting (25mm x 25mm)
• Dimensions: 27.5mm x 30mm
• Shaft diameter: 3.17mm
• Color:Yellow
• Weight: 54gr  ( 67gr including accessories )

Package contents:

•    1 pcs A2212 2200KV Brushless Motor
•    4 pcs Screw

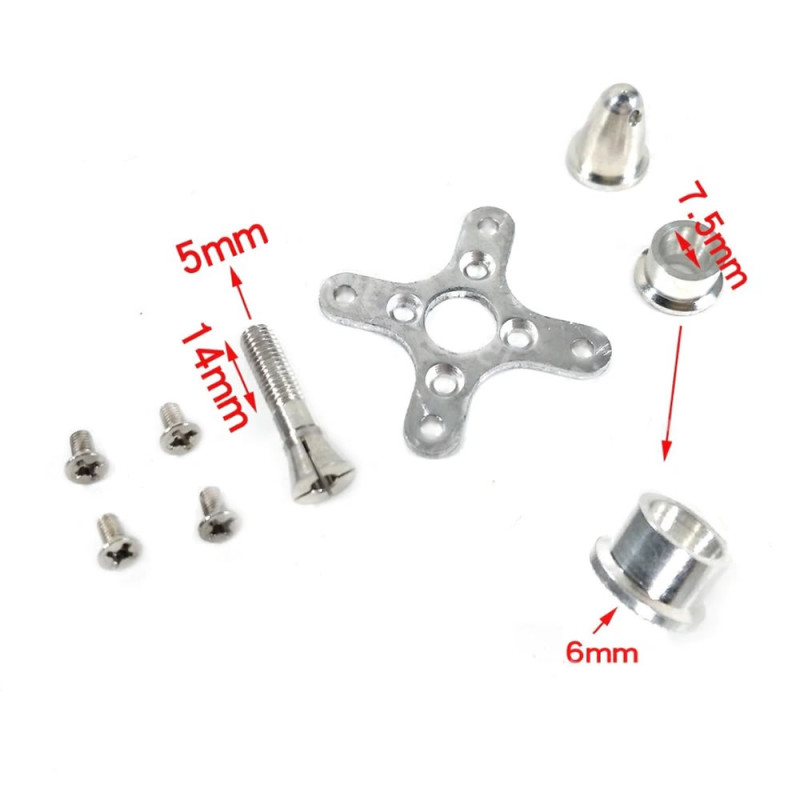

•    Various motor parts ( Image 4 )
