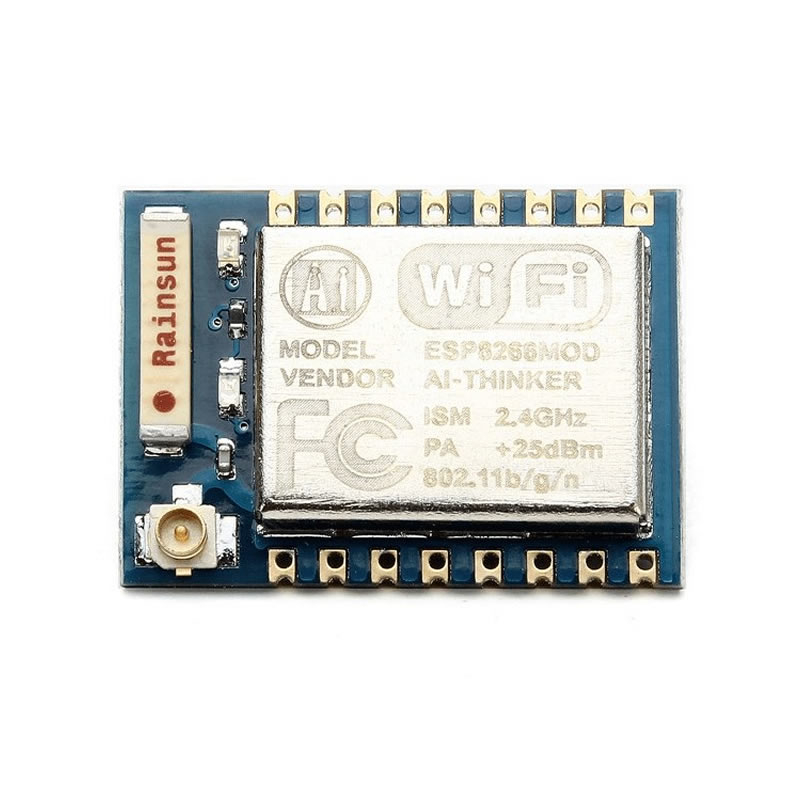

ESP-07 ESP8266 WIFI Module

ESP-07 ESP8266  WIFI Module

     ESP-07 is a wifi communication module developed with the ESP-8266 chip. It can be used in all applications where internet communication needs to be done. It is ideal for starting IOT applications.  It has dimensions of 2x1.5 cm and a structure usable as smd. Its standard serialport uart communication allows it to be used easily with all kinds of microcontrollers and arduino. The module works with 3.3V.

Warnings:

1- This module works with a 3.3V supply. The voltage level of the communication pins is also 3.3V. It is not 5V tolerant. If you make a direct connection from the rx and tx pins to the module with an Arduino or another mcu working at 5V, the module will be damaged. A logic level converter must definitely be used. Or the board to be used must be operated at the 3.3V level.
2- It draws a high current such as 300mA. Circuit design must be done paying attention to this. A separate supply line may be suitable.

Features:

• ISM 2.4GHz
• PA +25dBm
• 802.11b/g/n
• WIFI Direct (P2P),SOFT-AP
• Strong function: support LWIP protocol.
• Built-in TCP/IP
• Support 3 modes: AP, STA, AP+STA.
• The AT command is perfect,efficient,concise
• Supported three modes: AP, STA and AP+STA coexistence mode
• The module is set to 9600 baud.

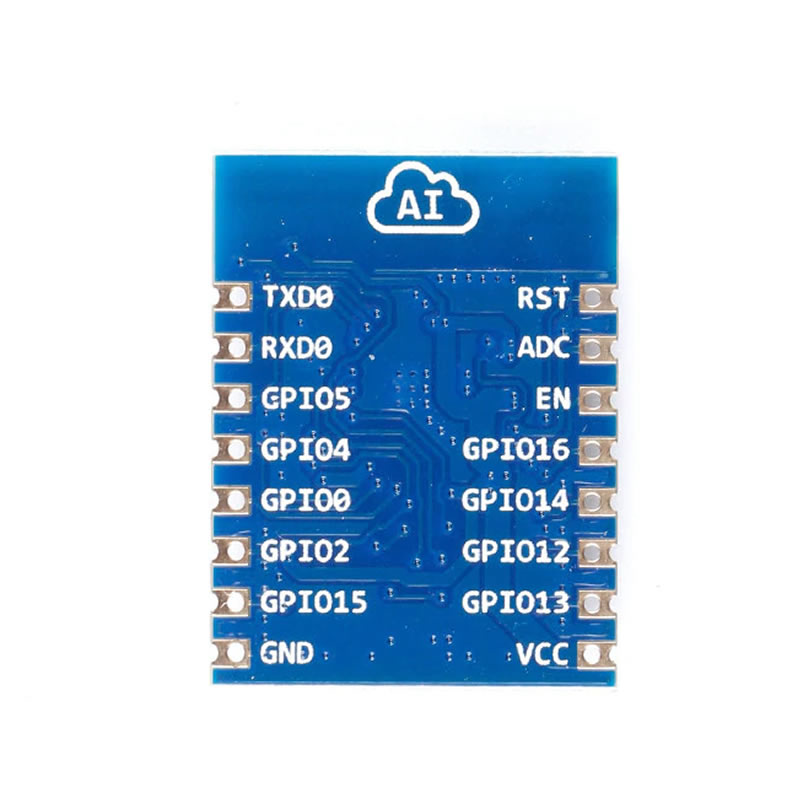

• CH_PD must be connected to 3.3V and GPIO15 to GND.
• The commands must be sent with CR + LF
• Mini and lightweight, but practical for use.
• Item Size: 20 * 15mm / 0.8 * 0.6in
• Package Weight: 3g / 0.1oz

Package Contents :

•     1 pcs ESP-07 WIFI Module
