NUCLEO-U083RC

ST NUCLEO-U083RC Nucleo Kit

STM32U083RC Arm Cortex-M0+ 56MHz Mcu STM32 Development Board ST-LINK V2 Arduino 256Kb Flash

     The STM32 Nucleo-64 board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features provided by the STM32 microcontroller. For the compatible boards, the internal or external SMPS significantly reduces power consumption in Run mode.

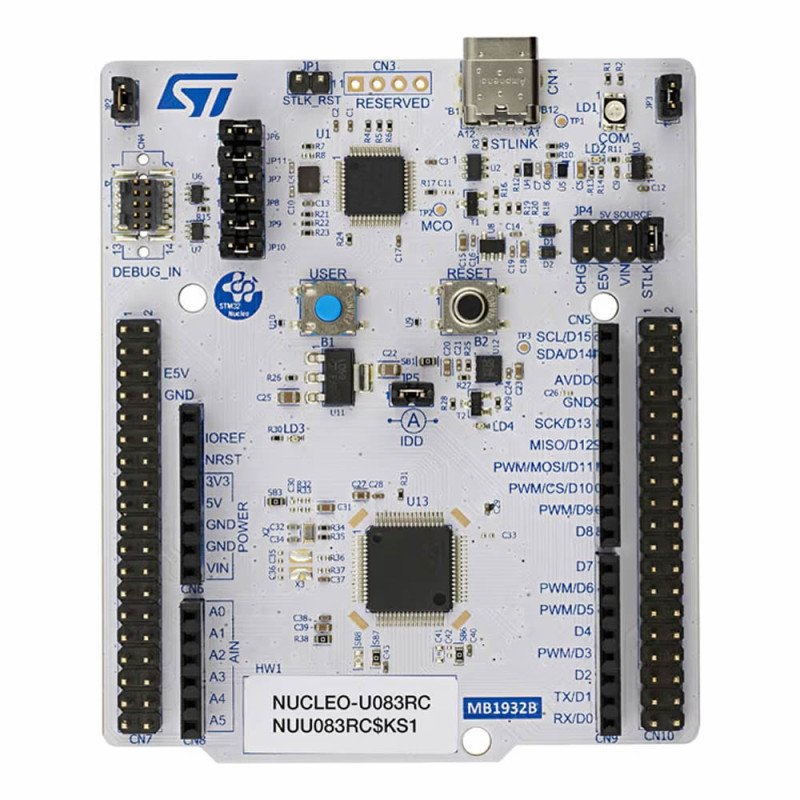

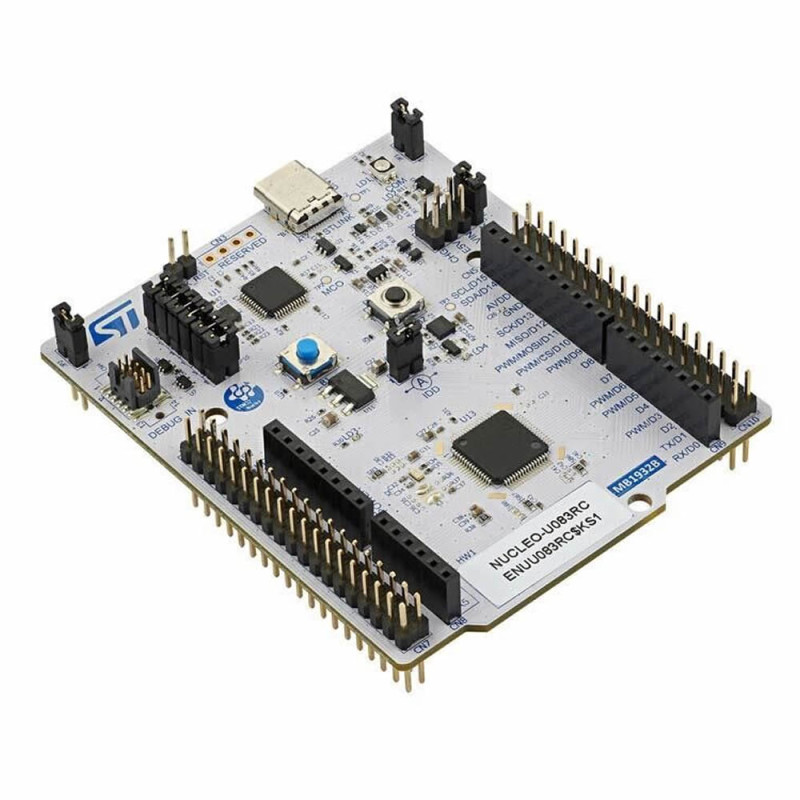

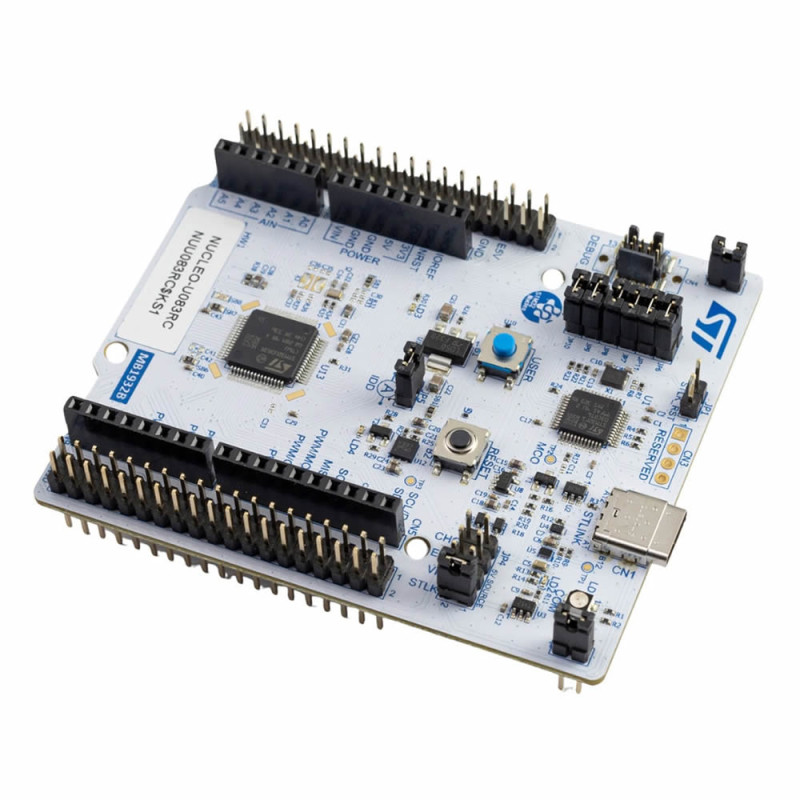

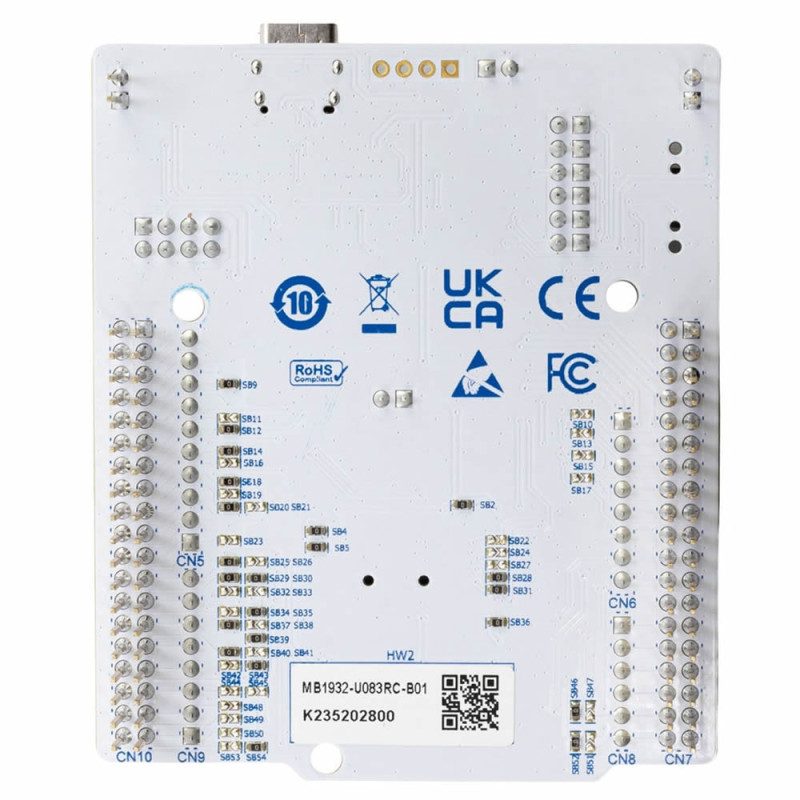

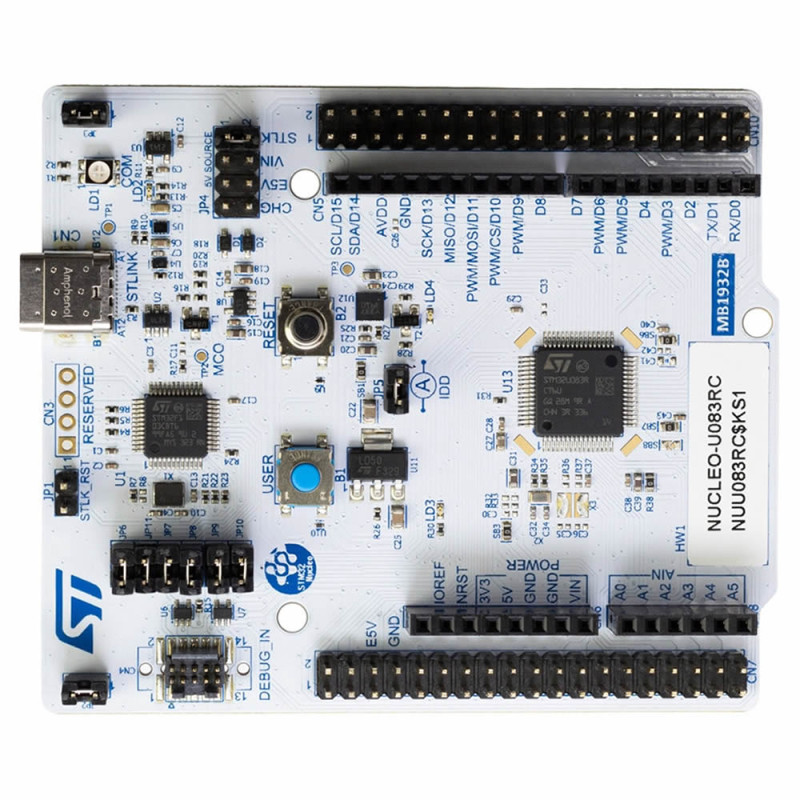

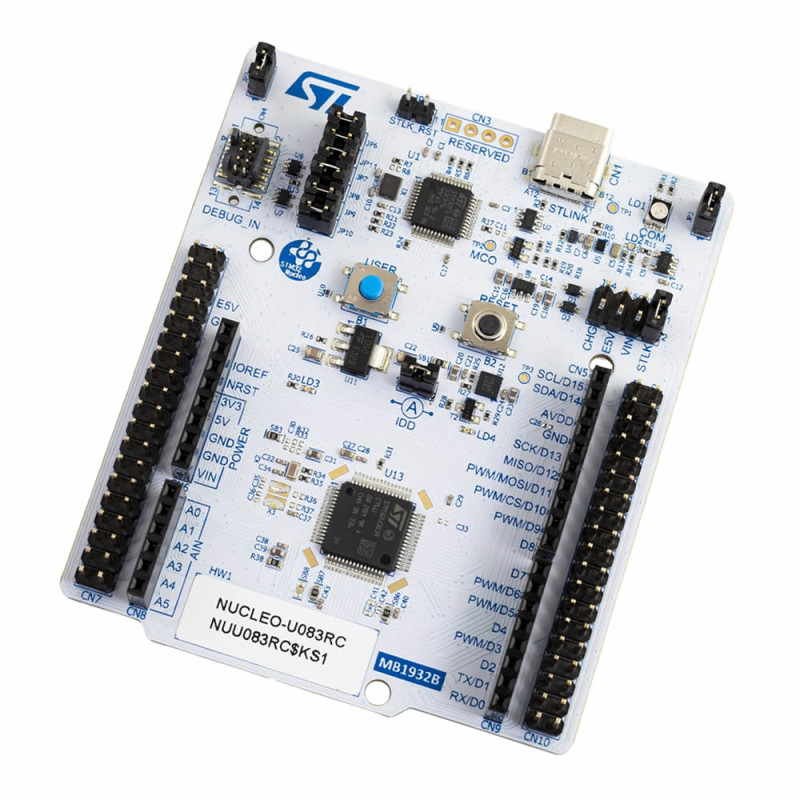

[NUCLEO-U083RC board photo]

     The ARDUINO Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

     The STM32 Nucleo-64 board does not require any separate probe as it integrates the ST-LINK debugger/programmer.

     The STM32 Nucleo-64 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.

    Common features

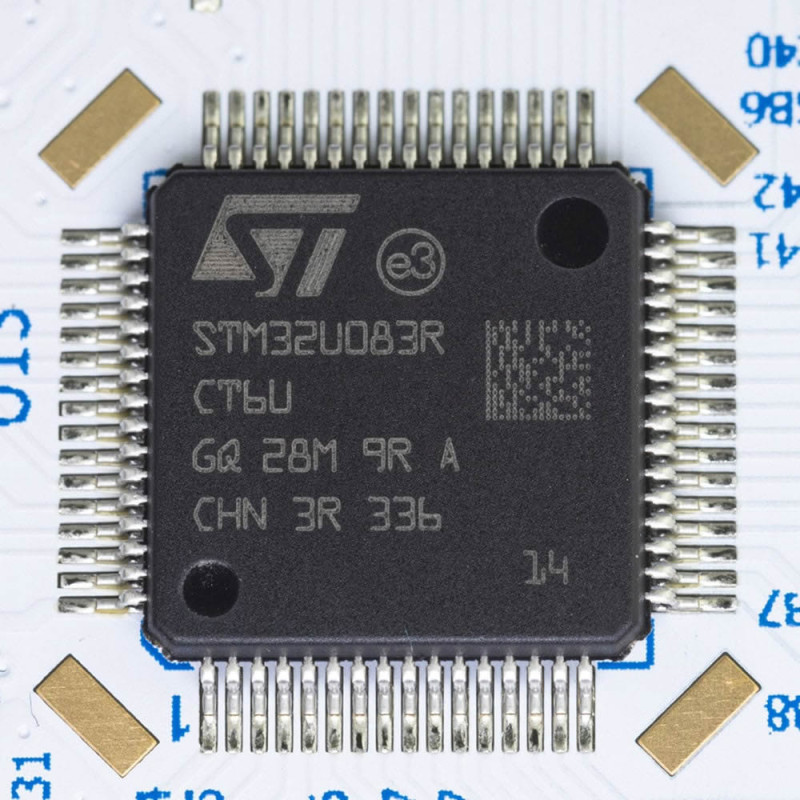

•         STM32 microcontroller in an LQFP64 or LQFP48 package
•         1 user LED shared with ARDUINO
•         1 user and 1 reset push-buttons
•         32.768 kHz crystal oscillator
•         Board connectors:
•             ARDUINO Uno V3 expansion connector
•             ST morpho extension pin headers for full access to all STM32 I/Os
•         Flexible power-supply options: ST-LINK USB VBUS or external sources
•         Comprehensive free software libraries and examples available with the STM32Cube MCU Package
•         Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench, MDK-ARM, and STM32CubeIDE
•     Features specific to some of the boards
•         User USB Device full speed, or USB SNK/UFP full speed
•         Cryptography
•         Board connectors:

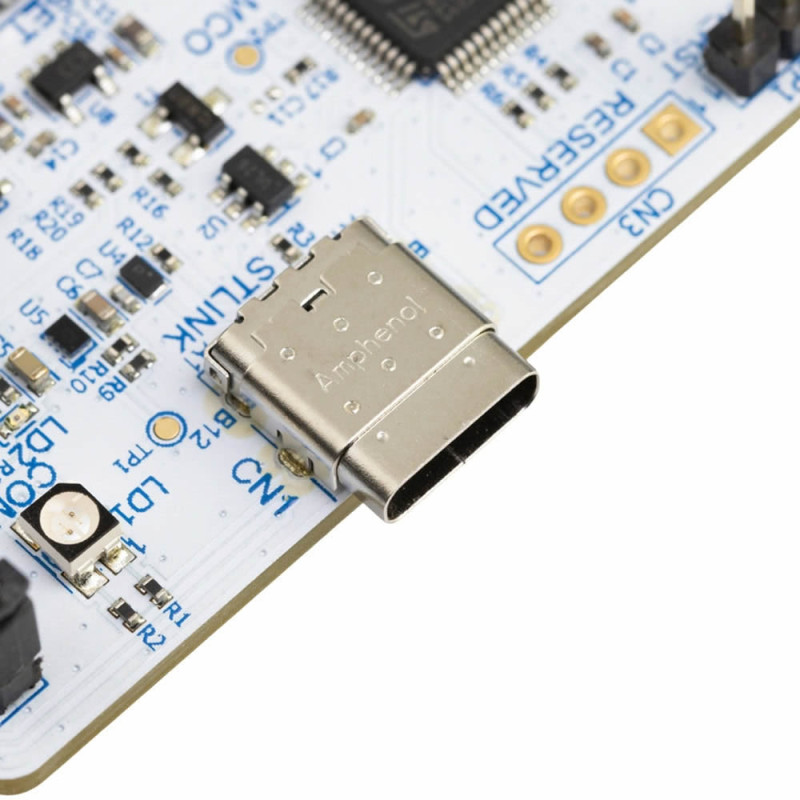

•             USB Type-C connector for the ST-LINK
•             USB Type-C user connector
•             MIPI debug connector
•         On-board ST-LINK (STLINK/V2-1, STLINK-V3E, STLINK-V2EC, or STLINK-V3EC) debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port

Package contents:

• 1 pcs NUCLEO-U083RC Kit

Attention = A usb cable is not included in the package.
