STM32F407VET6 Development Board

STM32F407VET6 Devebox Development Board

Nrf24l01 MicroSd Miniusb 168 MHz Cpu Arm Cortex-M4 DSP FPU, 512 Kb Flash

Board version V2.3

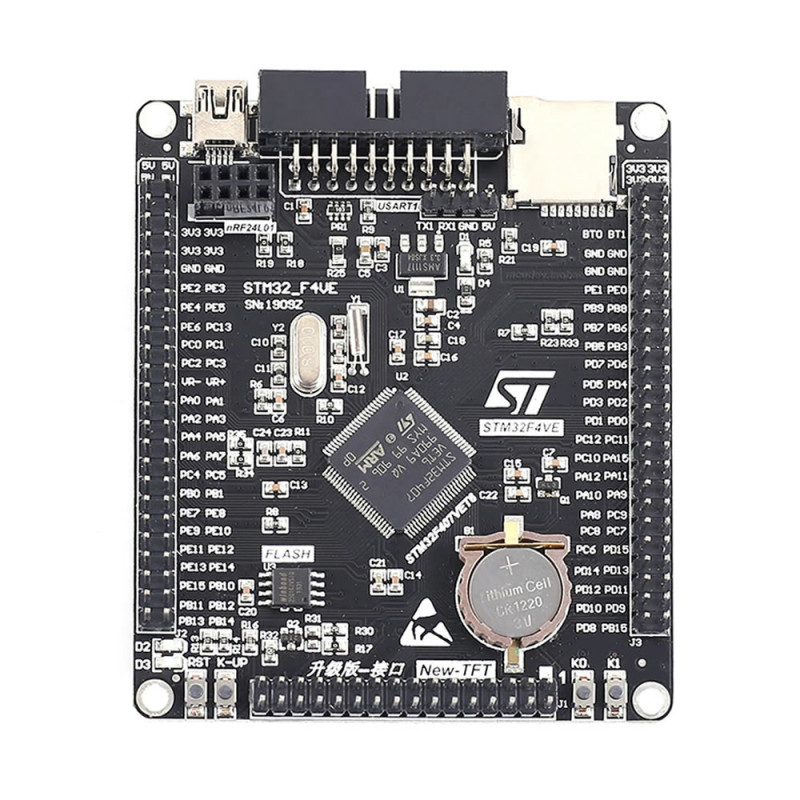

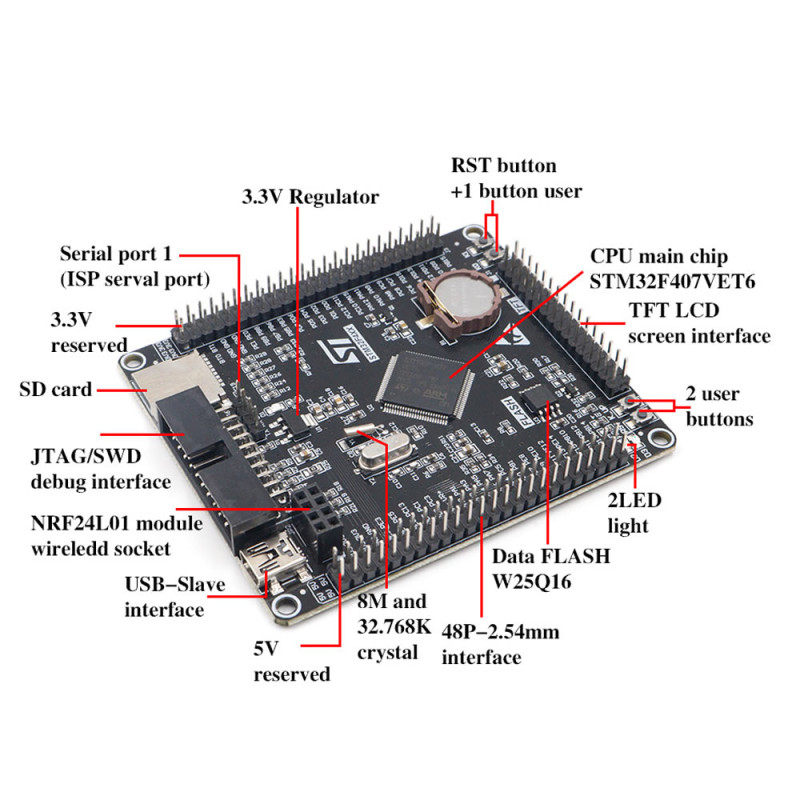

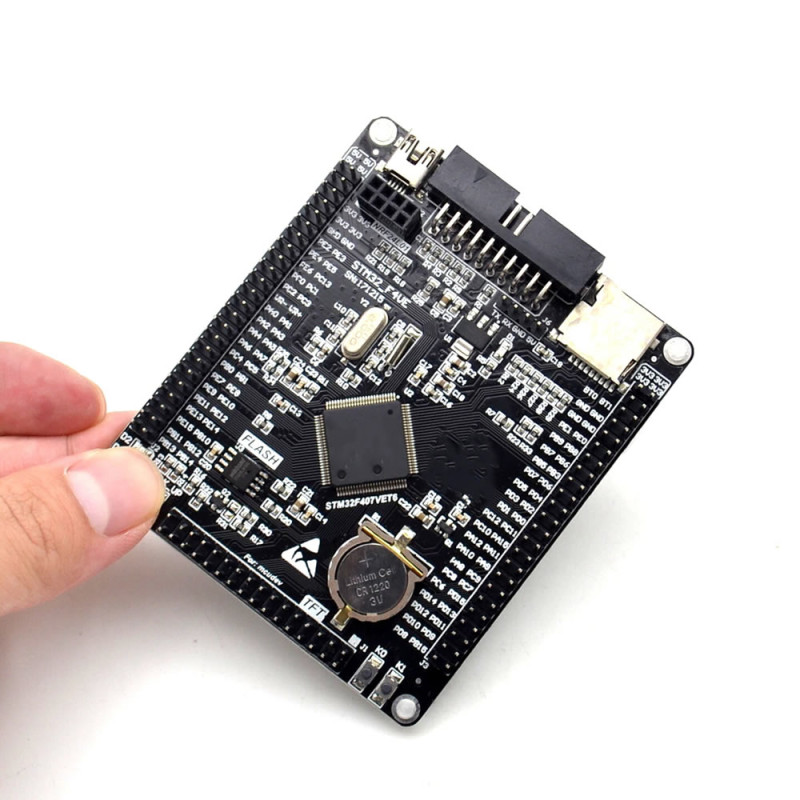

     It is a development board using the STM32F407VET6 cortex m4 st mcu. It has the hardware to meet basic needs such as crystal, button and pin connection headers. Communication and power supply operations are performed via the Miniusb usb connection socket. It has Nrf24l01 and microsd sockets. There is a standard 20 pin jtag programming socket. The mcu pins are accessible from the male headers on the 2 edges of the board. The socket for TFT connection is available on the board. With this processor, which has powerful and rich hardware, you can easily realize your projects.

Features:

•     STM32F407VET6 Arm Cortex M4 cpu 168MHz, 210 DMIPS/1.25 DMIPS/MHz
•     SD card socket
•     Miniusb communication and power supply socket.
•     RTC battery: CR1220
•     NRF2401 connection socket
•     W25Q16 memory ic
•     TFT connection socket
•     Reset button and 3 user buttons

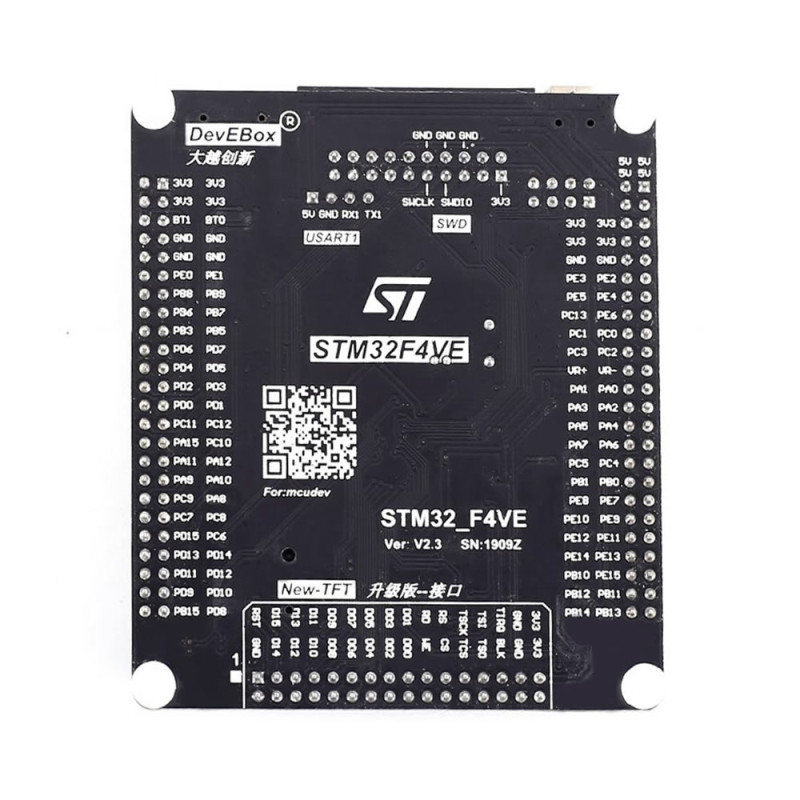

•     Mcu io connection sockets 2.54mm
•     3 x SPI, 3 x USART
•     2 x UART
•     2 x I2S, 3 x I2C
•     1 x FSMC, 1 x SDIO, 2 x CAN
•     1 x USB 2.0 FS / HS controller (with dedicated DMA)
•     1 x USB HS ULPI (for external USB HS PHY)
•     1 x 10/100 Ethernet for MAC
•     1 x 8 to 12-bit parallel camera interface
•     3 x AD (12 Wei, 1us, sharing 24), 2 x DA (12-bit)

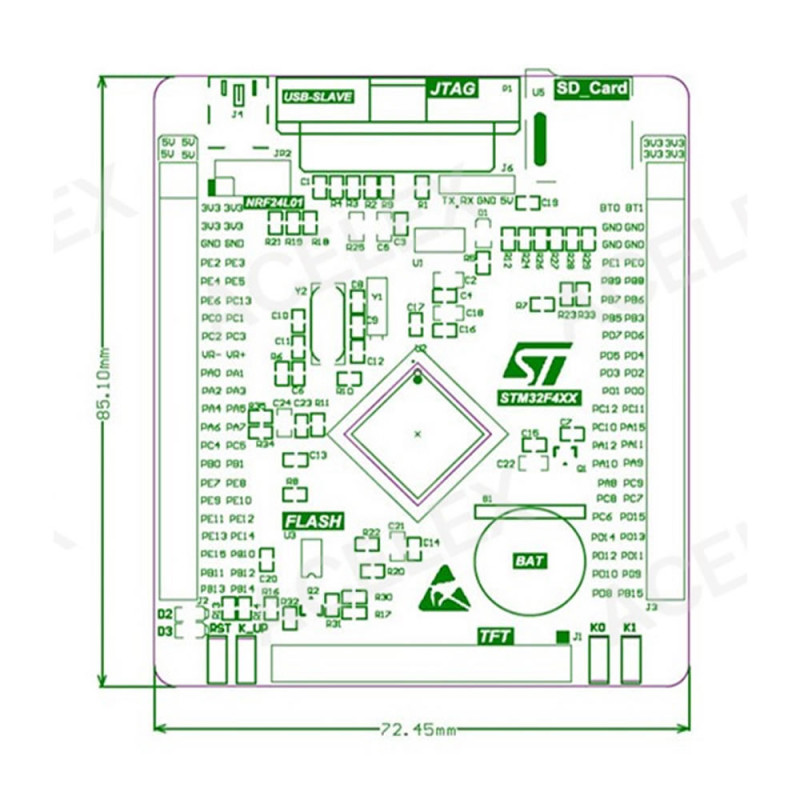

•     Dimensions: 53mm x 21mm
•     Weight: 40gr  ( 65gr )

STM32F407VET6: STM32F407xx family is based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all Arm single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. The STM32F405xx and STM32F407xx family incorporates high-speed embedded memories (Flash memory up to 1 Mbyte, up to 192 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses and a 32-bit multi-AHB bus matrix. All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers. a true random number generator (RNG). They also feature standard and advanced communication interfaces.

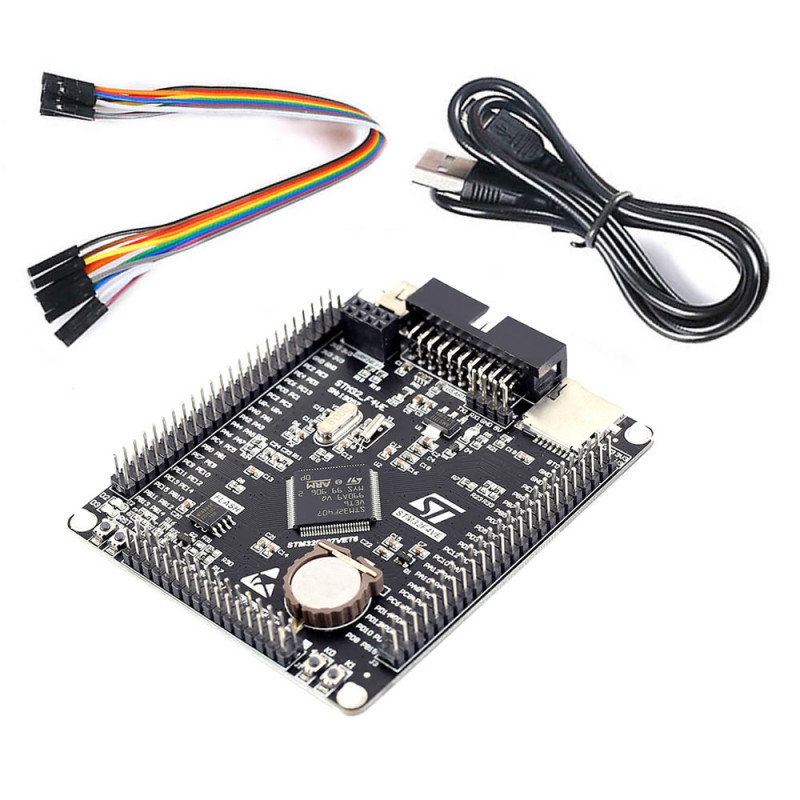

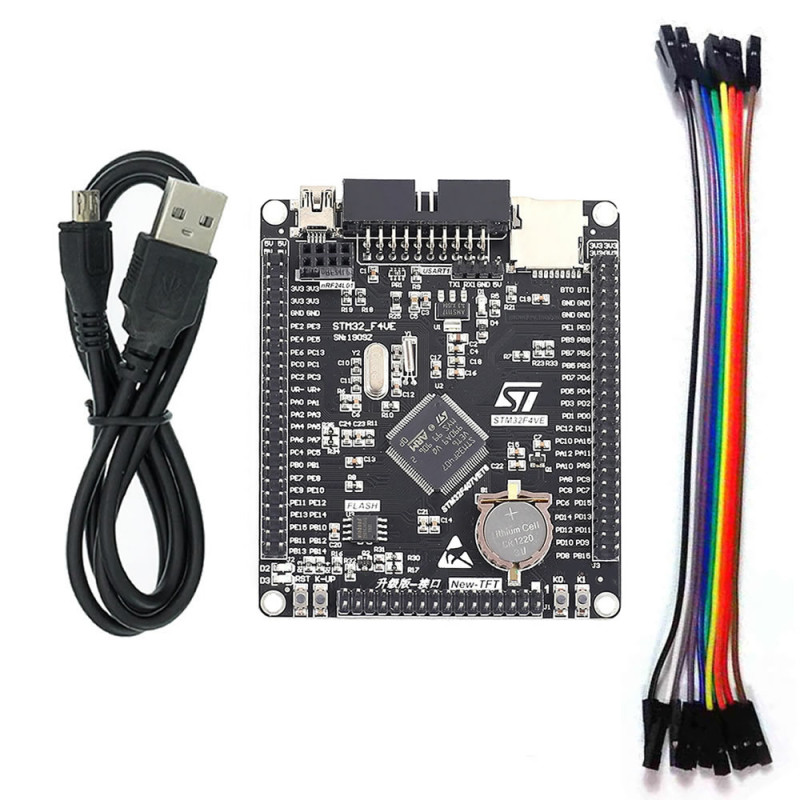

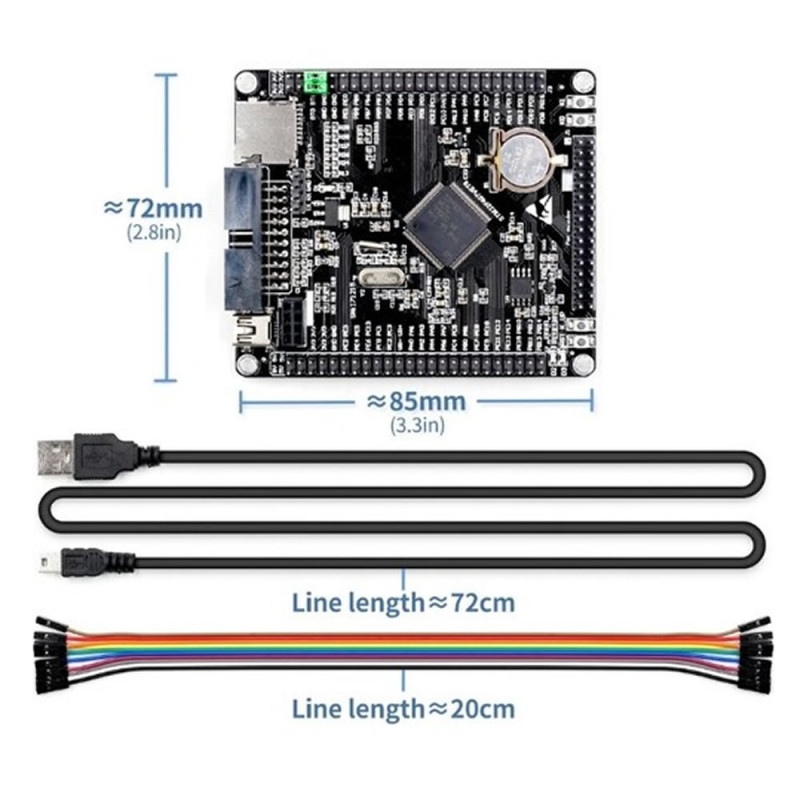

Package contents :

•     1 pcs STM32F407VET6 Development Board
•     1 pcs Mini usb cable
•     1 pcs 10 Pin female female dupont cable
