Teensy 2.0 ATmega32u4 Kit

Teensy 2.0 ATmega32u4 Kit
Teensy 2.0 ATmega32u4 Kit
Teensy 2.0 ATmega32u4 Kit
Teensy 2.0 ATmega32u4 Kit
Teensy 2.0 ATmega32u4 Kit
Teensy 2.0 ATmega32u4 Kit
Teensy 2.0 ATmega32u4 Kit
Teensy 2.0 ATmega32u4 Kit
Teensy 2.0 ATmega32u4 Kit
Teensy 2.0 ATmega32u4 Kit
Teensy 2.0 ATmega32u4 Kit
Teensy 2.0 ATmega32u4 Kit
Teensy 2.0 ATmega32u4 Kit
Teensy 2.0 ATmega32u4 Kit
Teensy 2.0 ATmega32u4 Kit
Teensy 2.0 ATmega32u4 Kit
Teensy 2.0 ATmega32u4 Kit
772.20TL
643.50TL + KDV
10 or more 656.37TL
Buy 10 or more of this item and the unit price drops by 15%; pay by bank transfer for a total 20% discount.
  • Stok Durumu: Stok Var
  • Marka: OEM
  • SKU: RBZ.100.307

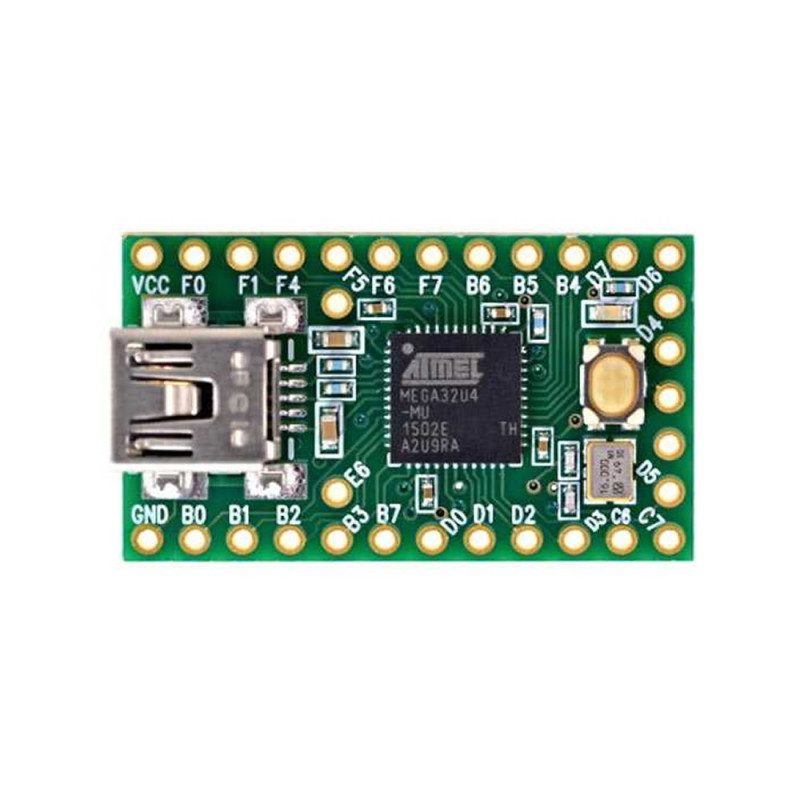

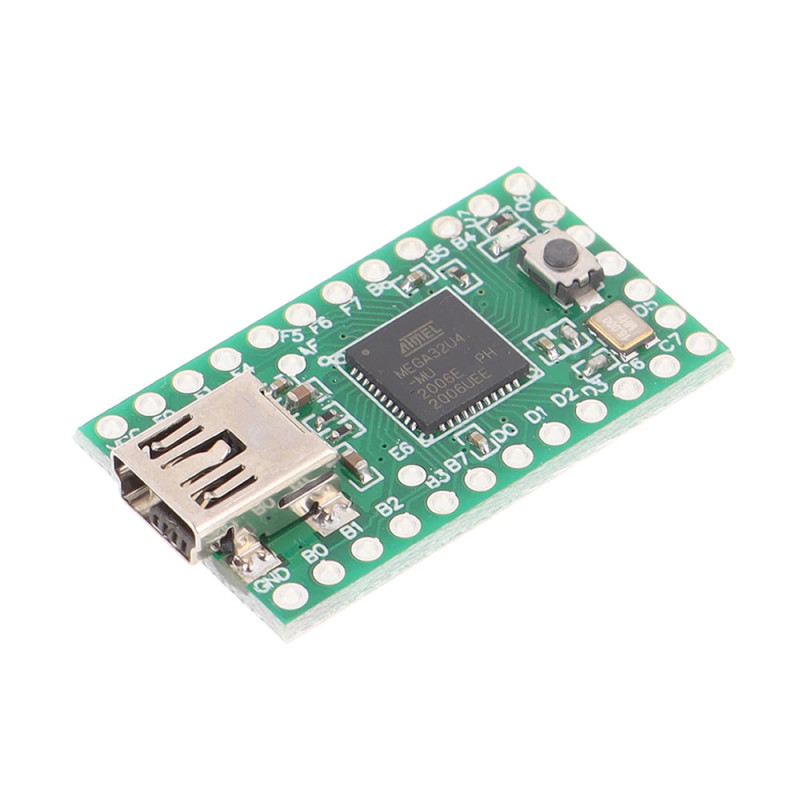

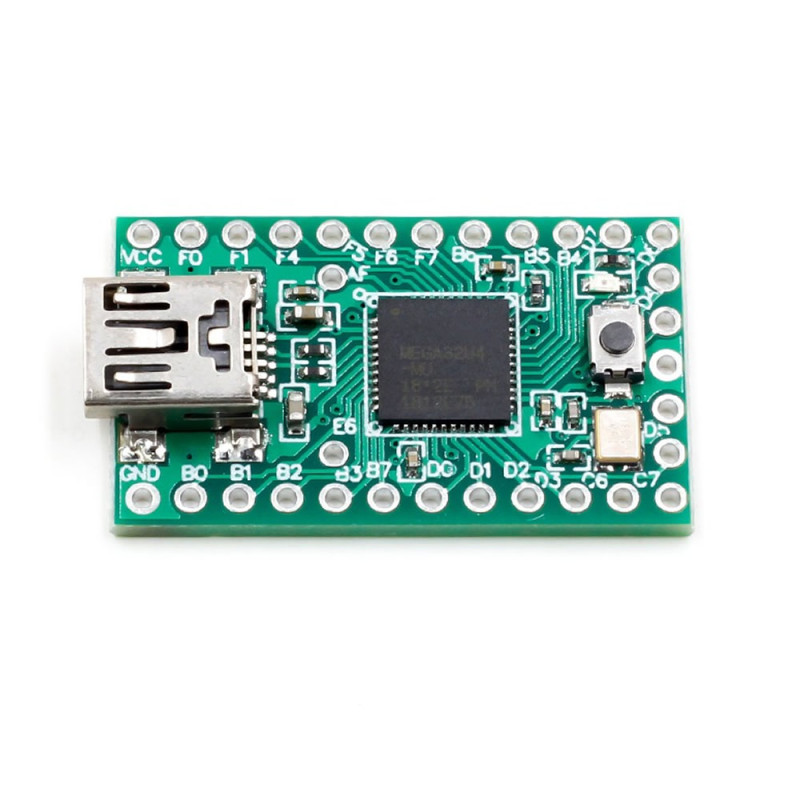

Teensy 2.0 ATmega32u4 Development Board



     The Teensy 2.0 development board was developed by PJRC. By allowing programming through an adapted version of the Arduino IDE (Teensyduino) or directly in the C language, Teensy 2.0 makes the low-cost 8 bit AVR platform available to hobbyists, students and engineers. This development board, which uses an Atmega32U4, works very similarly to Arduino.

    The Teensy 2.0 Development Board is a USB based ATmega32u4 microcontroller development system. It can be connected to a computer over the miniusb port to upload programs. The pins of the mcu are connected to the empty pin header sockets on the edges. Teensyduino can be used for programming.



Features:

  •     Atmel ATMEGA32U4 Mcu
  •     31.5K Flash Memory, 2.5K RAM, 1K EEPROM
  •     USB can be any type of device
  •     Single button programming
  •     12 Analog Inputs
  •     25 Digital I/O Pins
  •     7 PWM outputs
  •     SPI, I2C
  •     AVR processor, 16 MHz
  •     Single button programming
  •     Easy to use Teensy Loader application
  •     Free software development tools
  •     Works with Mac OS X, Linux and Windows
  •     Small size, perfect for many projects

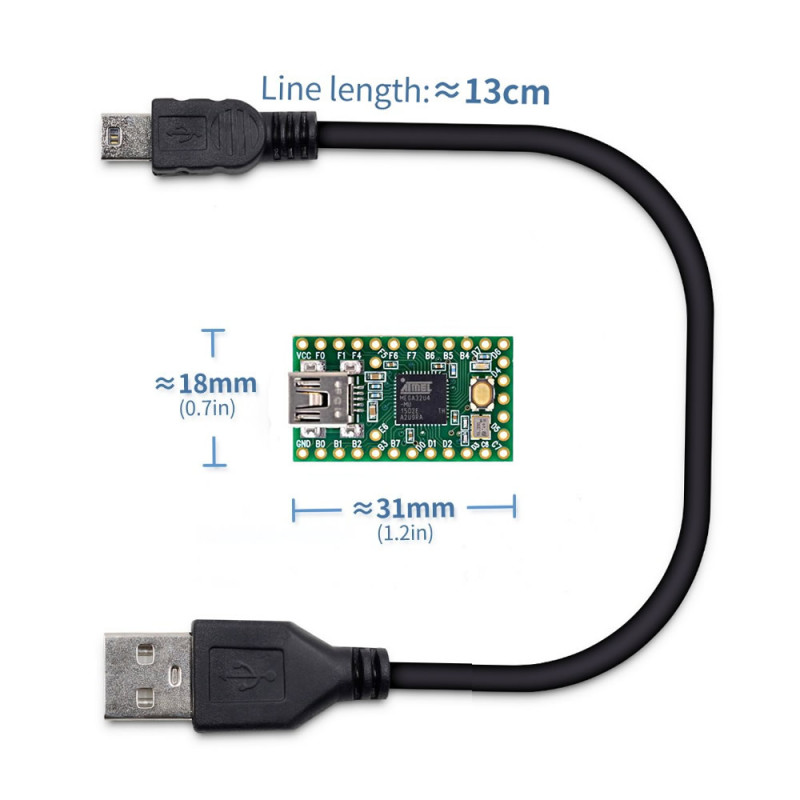

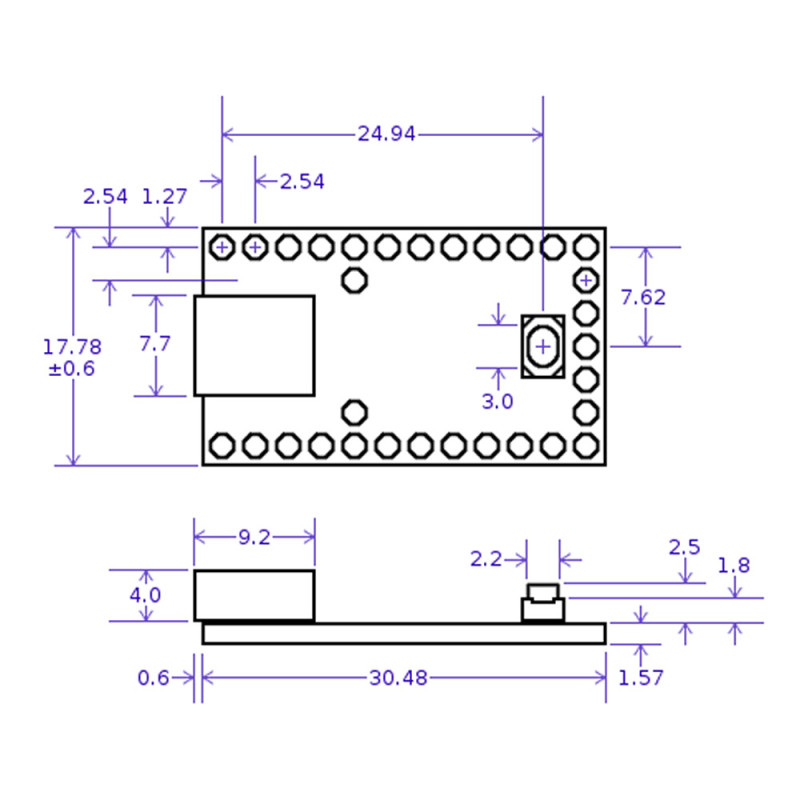

  •     Dimensions: 32mm x 18mm

ATMEGA32U4

     The low-power Microchip 8-bit AVR® RISC-based microcontroller featuring 32 KB self-programming Flash program memory, 2.5 KB SRAM, 1 KB EEPROM, USB 2.0 full-speed/low-speed device, 12-channel 10-bit A/D-converter, and JTAG interface for on-chip-debug. The device achieves up to 16 MIPS throughput at 16 MHz. 2.7-5.5 volt operation.
     By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching one MIPS per MHz, allowing you to optimize power consumption versus processing speed



Features:

  •     Complies fully with Universal Serial Bus Specification Rev. 2.0
  •     Supports data transfer rates up to 12 Mbit/s and 1.5 Mbit/s
  •     Endpoint 0 for Control Transfers: Up to 64 bytes
  •     Six Programmable Endpoints with In or Out Directions and with Bulk, Interrupt or Isochronous Transfers
  •     Configurable Endpoints size up to 256 bytes in double bank mode
  •     Fully independent 832 bytes USB DPRAM for endpoint memory allocation
  •     Suspend/Resume Interrupts
  •     CPU Reset possible on USB Bus Reset detection
  •     48 MHz from PLL for Full-Speed Bus Operation
  •     USB Bus Connection/Disconnection on Microcontroller Request
  •     Crystal-less operation for Low-Speed mode

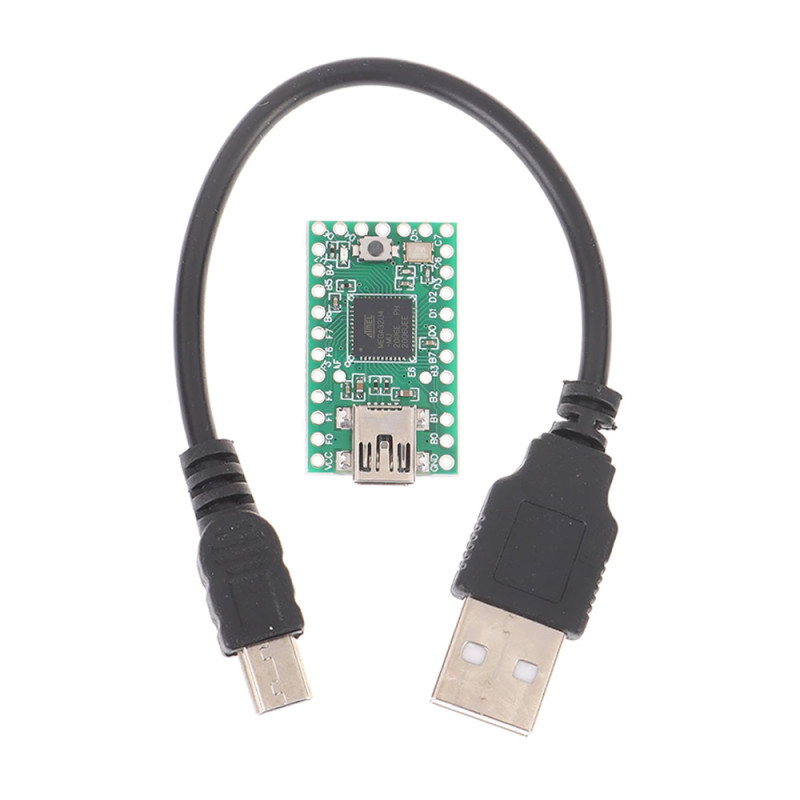

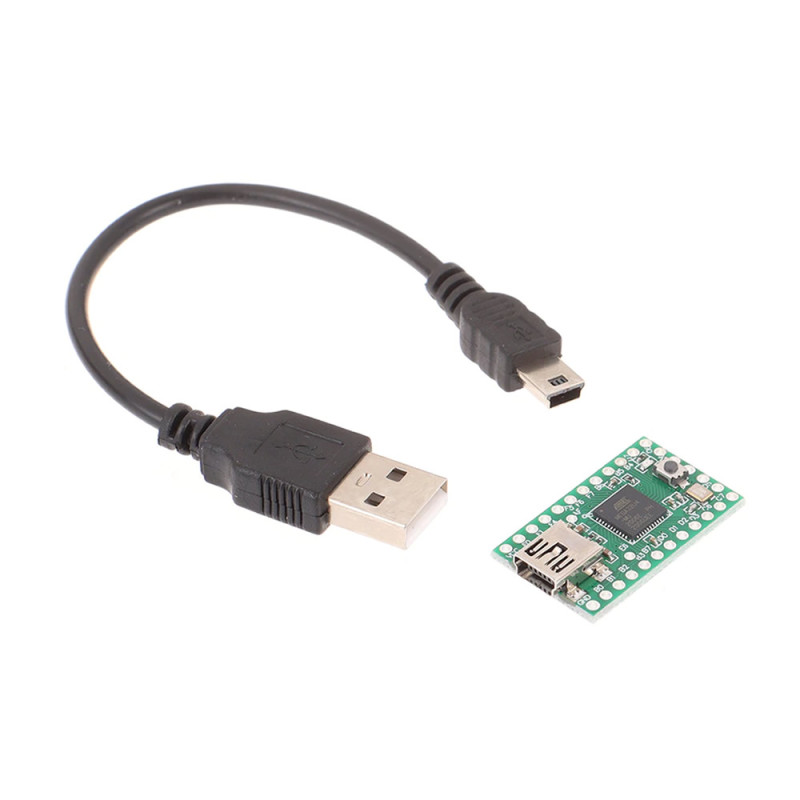

Package contents :

  •     1 pcs Teensy 2.0
