AK-W-67 100x67x22mm Plastic Enclosure Black

AK-W-67 100x67x22mm Plastic Enclosure Black Color

Wall Mount Type Electronic Circuit Device Home Automation Personnel Tracking Door Entry Automation Industrial Control

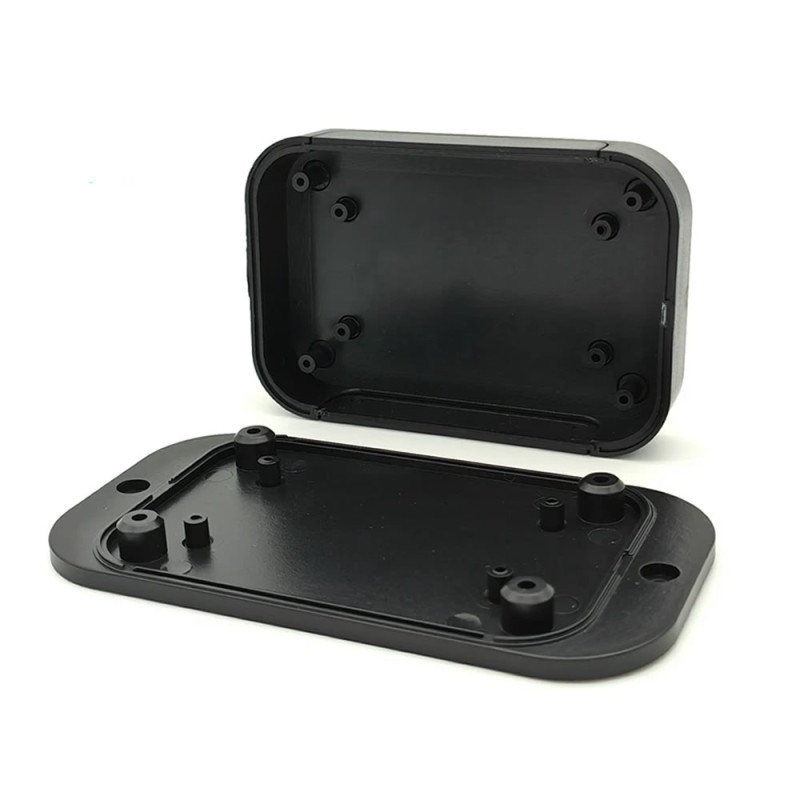

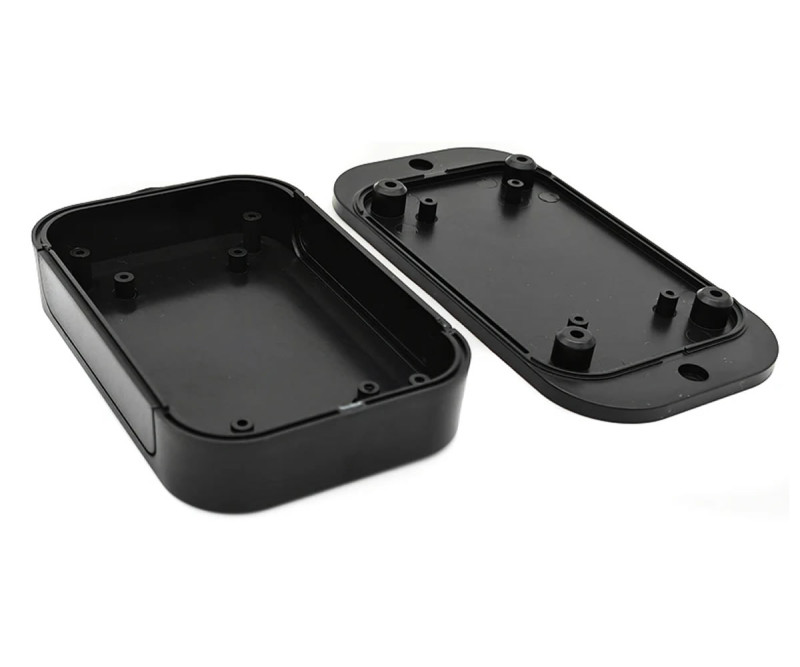

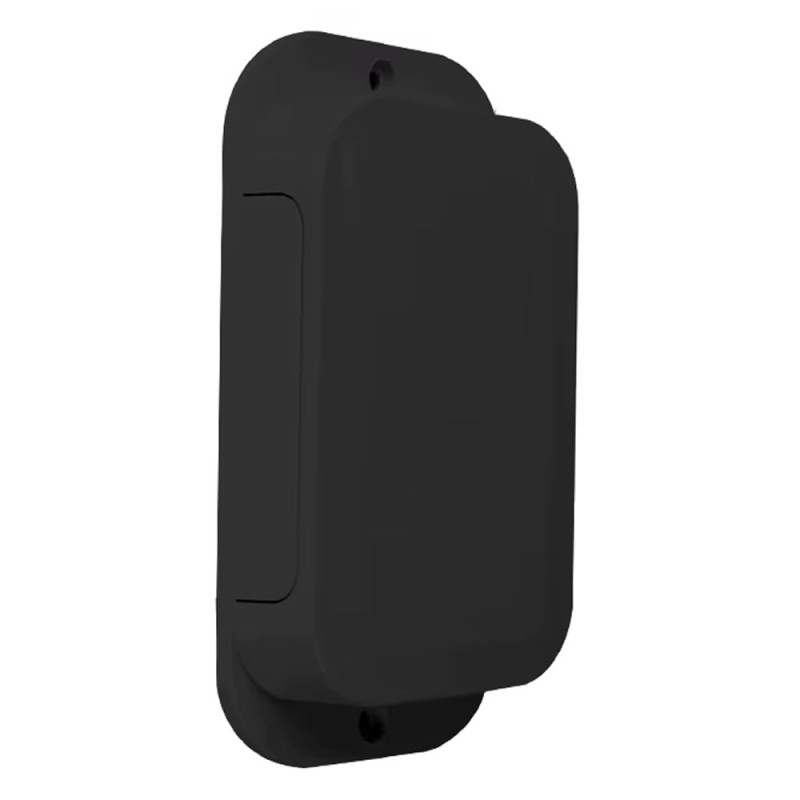

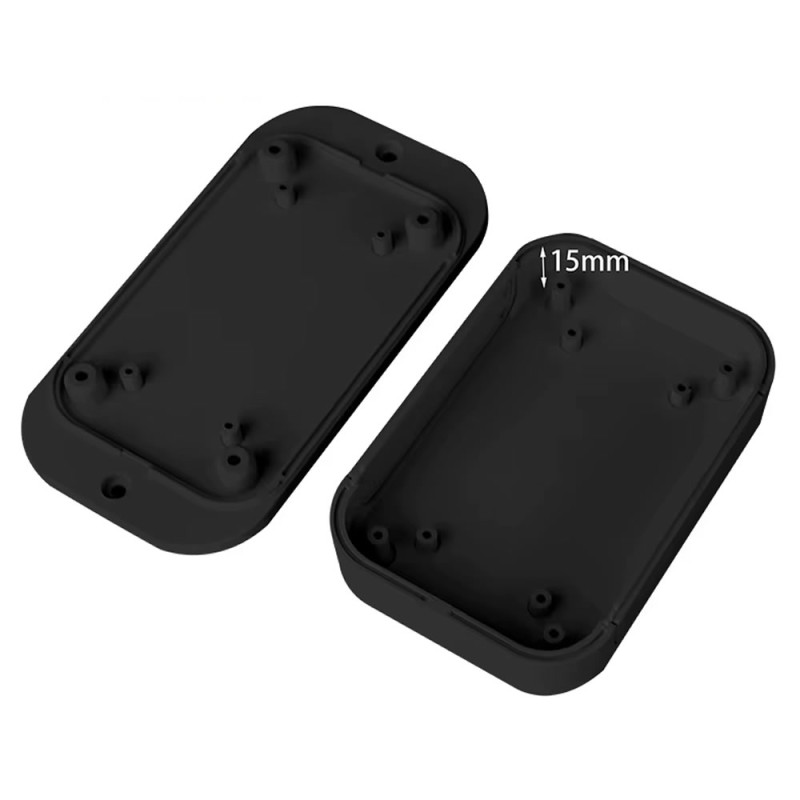

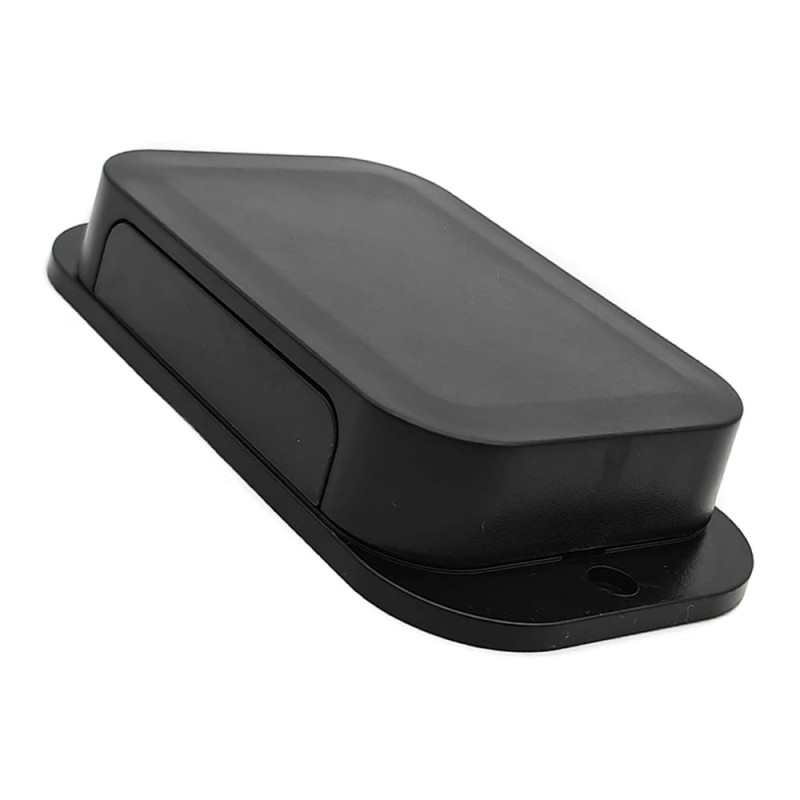

     Wall type plastic enclosure that can be used in various electronic projects. It has dimensions of 124(100)mm x 67mm x 22mm. There are 2 wall mounting holes. It consists of a bottom, a top and 2 window pieces on the sides. The terminal windows on the edges are easily detachable. No extra cutting is required. There are screw holes where the pcb will be attached. The bottom and top covers are attached to each other with screws.

Features:

• AK-W-67 100x67x22mm Plastic Enclosure
• Wall mount type
• It consists of 4 plastic pieces.
• It has 2 windows where terminal connections can be made.
• Material: ABS Plastic Enclosure
• Color: Black
• Operating temperature:  -30C  /  65C

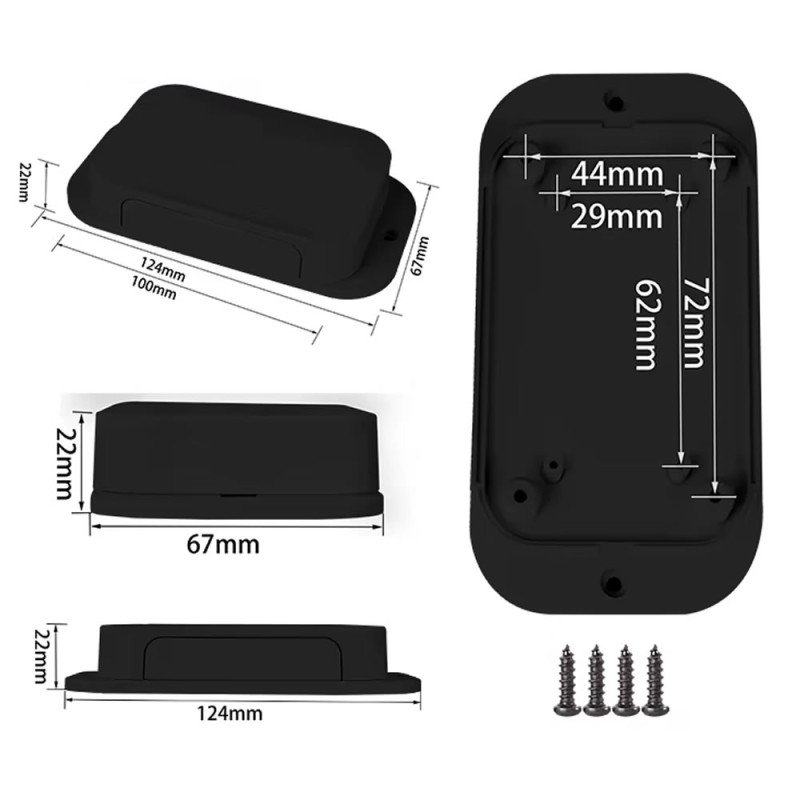

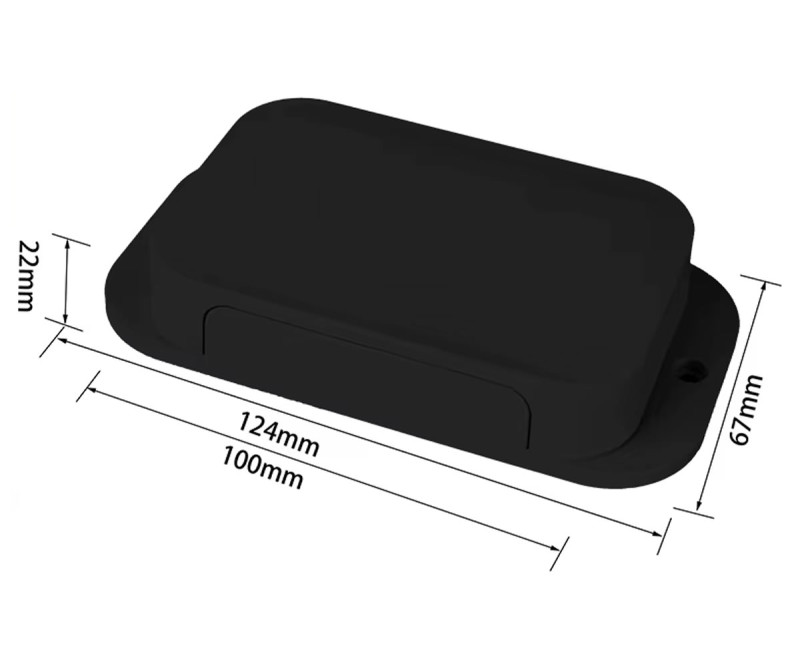

• Dimensions: 100mm x 67mm x 22mm

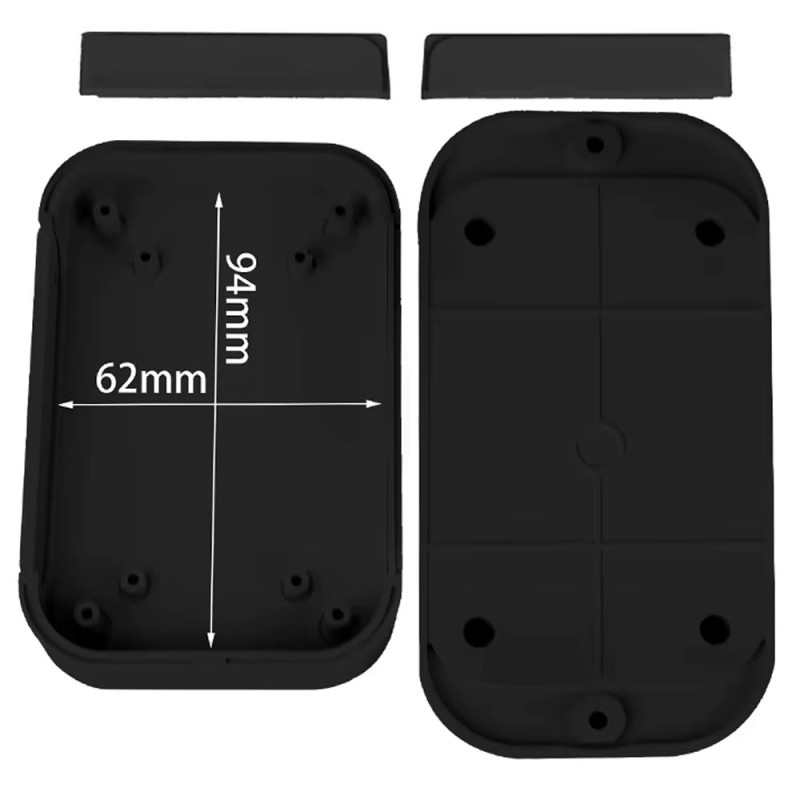

• Recommended pcb dimensions:  94mm x 62mm x 28 mm
• Weight: 56gr

Package contents

• 1 Piece AK-W-67 100x67x22mm Plastic Enclosure Black
