Type C Led Dimmer

Type C Usb Desk Lamp Touch Led Dimmer

Night Light 3.7V Lion Lithium Battery Charge 8W Brightness Control Switch Driver Decorative Wooden Lighting Toy

Soldering creates a physical change in the product. Do your tests with jumper cables without soldering. After you are sure that it works, proceed to the assembly stage of the product.

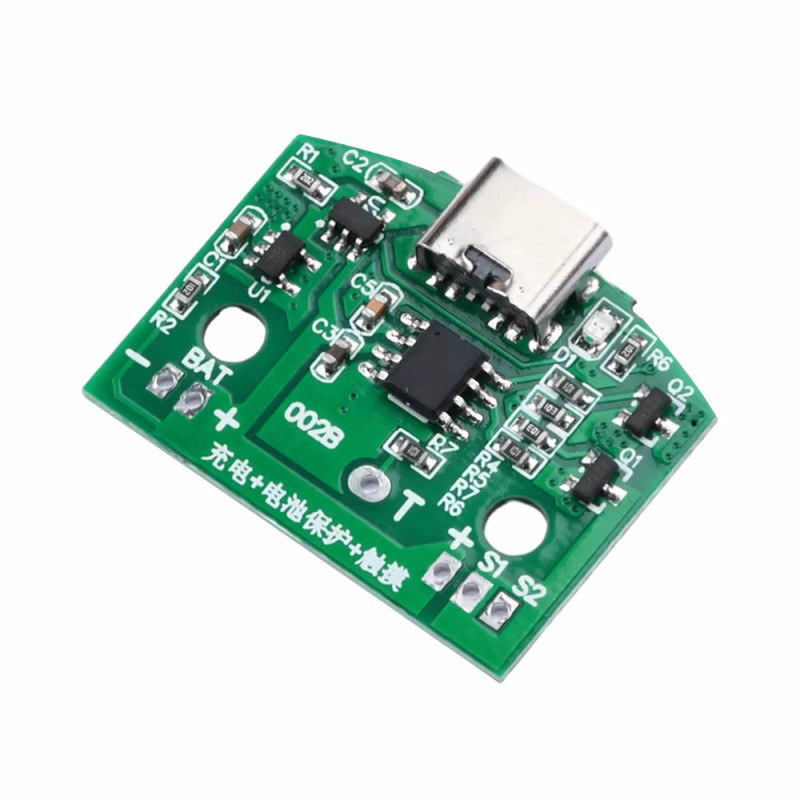

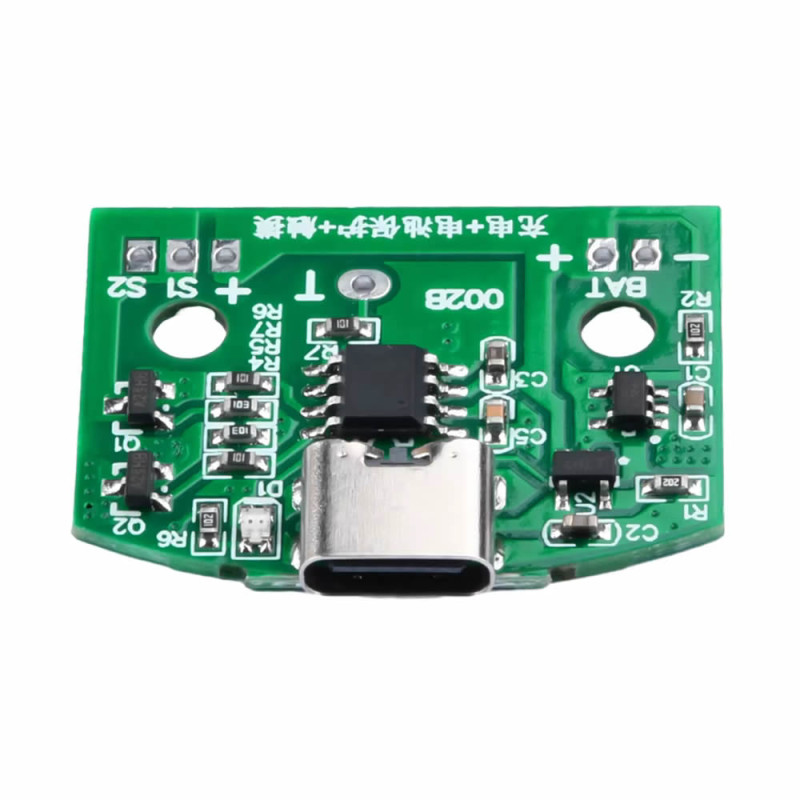

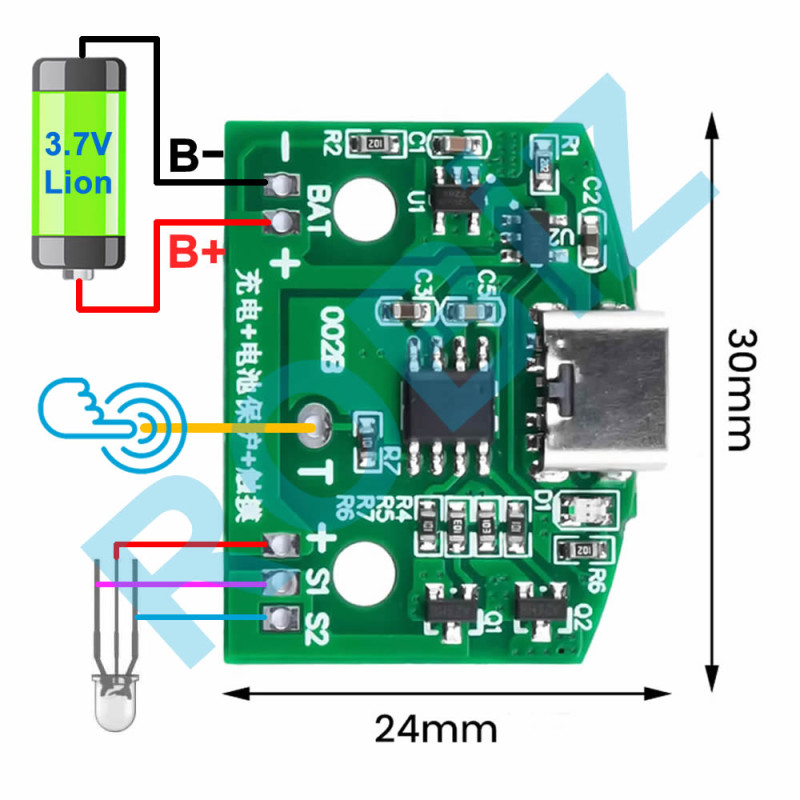

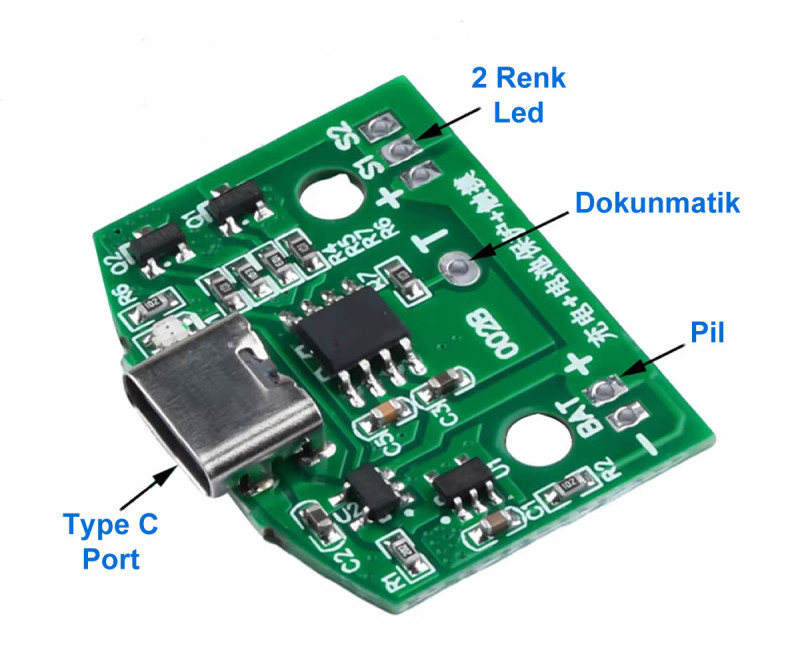

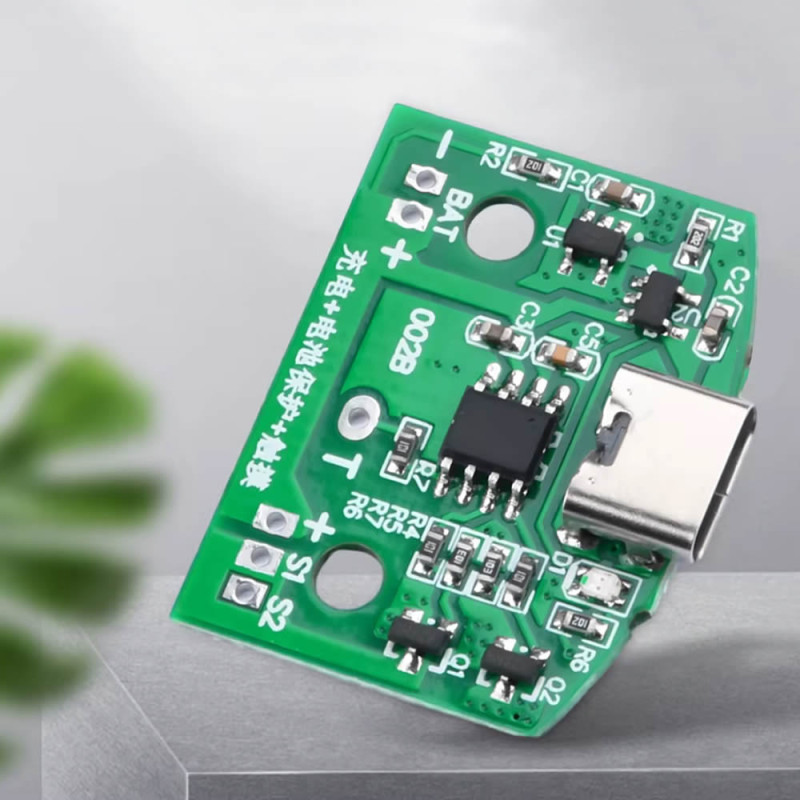

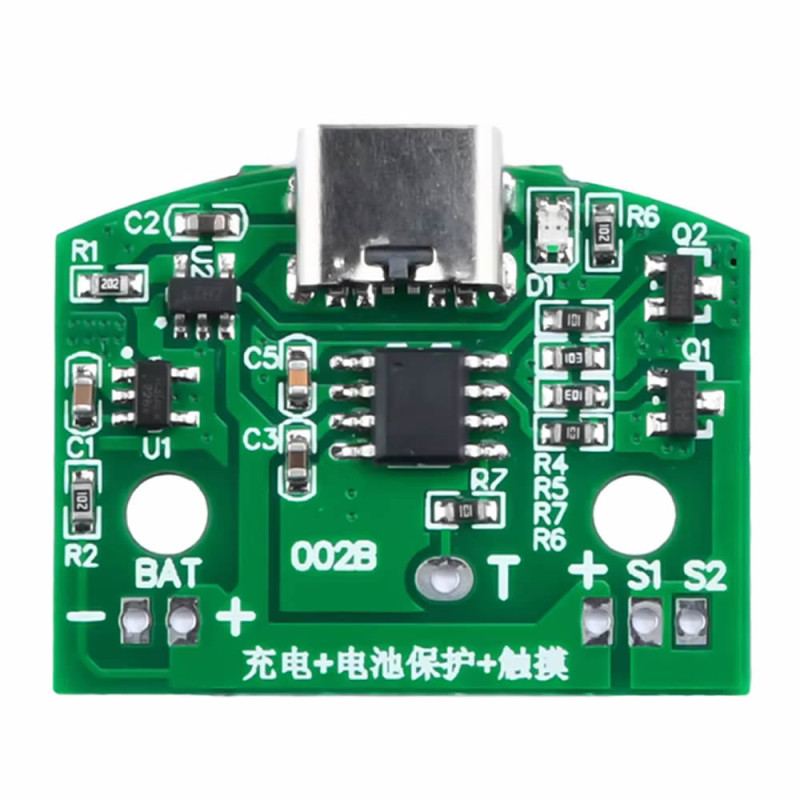

     It is a led dimmer board with touch sensing function and Type C usb power input. It can work with a 3.7V lithium battery. It charges the battery with 0.5A current. It can drive 8W led loads. There is a touch pad connection. With a cable it can perform touch sensing over copper/metal at a more distant point.

     When there is no battery the led color is green. On battery connection red means battery charging continues. Green led means the battery is charged. When it is powered from the battery the output voltage is 3.7V. There is no voltage boost function on the board.


Features:

• Input voltage: Type C DC 5V
• Output current: 0.6A
• Power: 8W
• Sensing: Copper / metal surface extended with a cable to be soldered to the pad ( prefer it not to be longer than 15cm)
• 2 Color led indicator
• 3.7V Lithium battery connection (it is appropriate to select below 3000mA. High capacity will increase the charge and discharge time. )
• 0.5A lithium battery charge function
• Battery overcharge protection
• Battery discharge protection

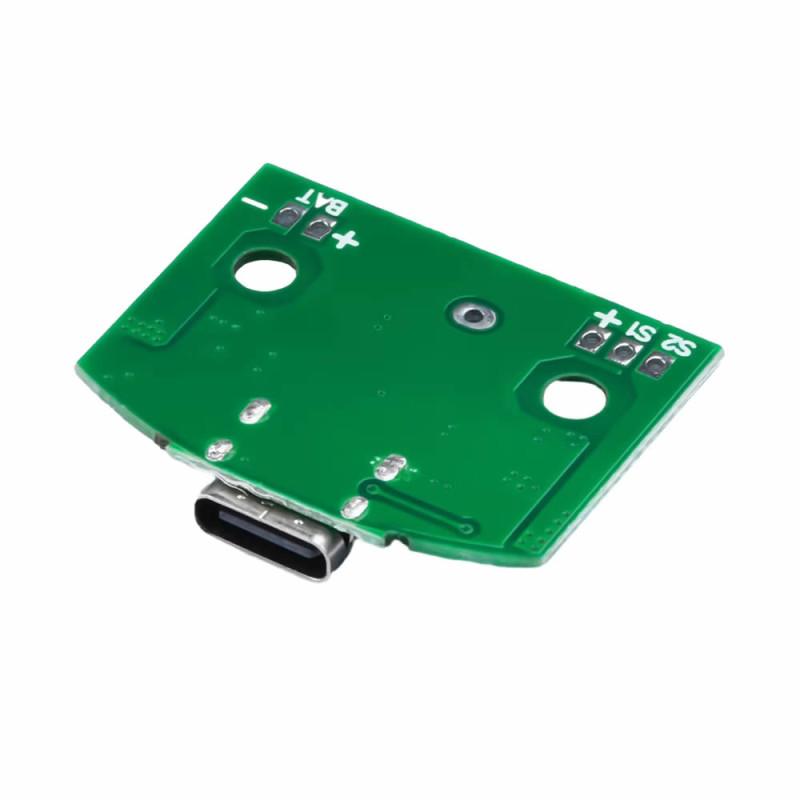

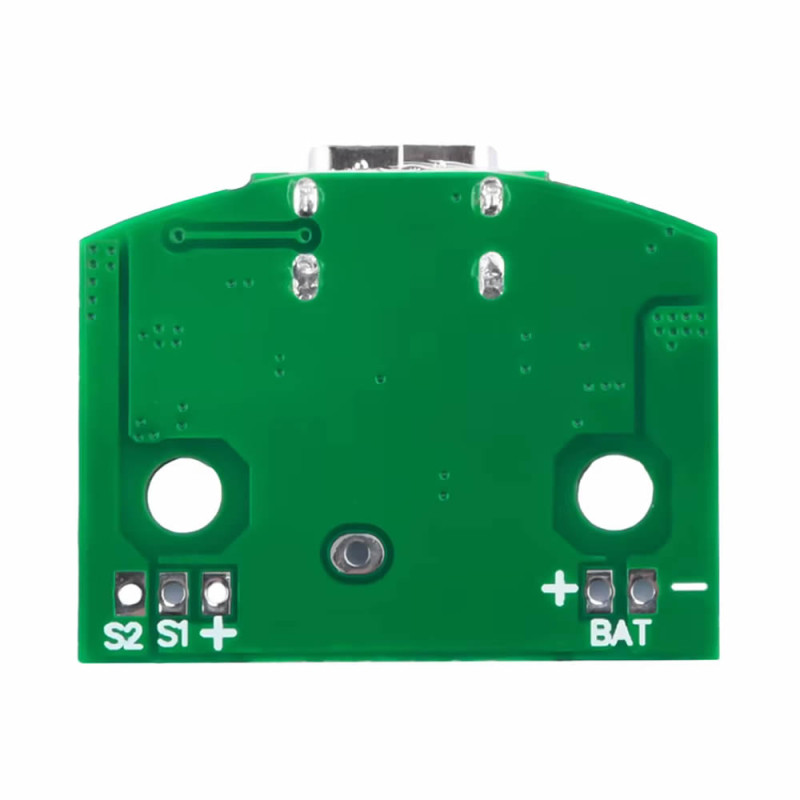

• Led connection pads
• It adjusts brightness
• Long life
• Operating temperature:   -10C  /  80C
• Color: Green
• 2 Pcs mounting holes
• Size:  24mm x 30mm
• Weight: 2gr.

Package contents:

• 1 Pcs Type C Dimmer

.
