Pogo Pin P100-E2 100 Pieces

Pogo Pin P100-E2 100 Pieces Set

Gold Plated Spring Test Probe Pin 1.3mm Conical Head Programmer Probe Arm Pic Atmel Eprom Flash Bios

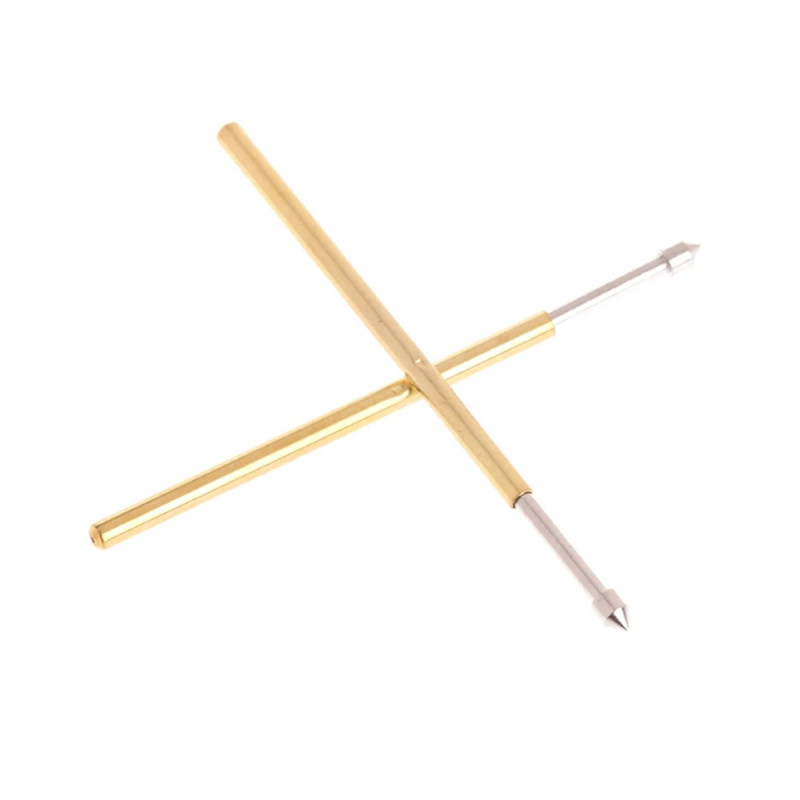

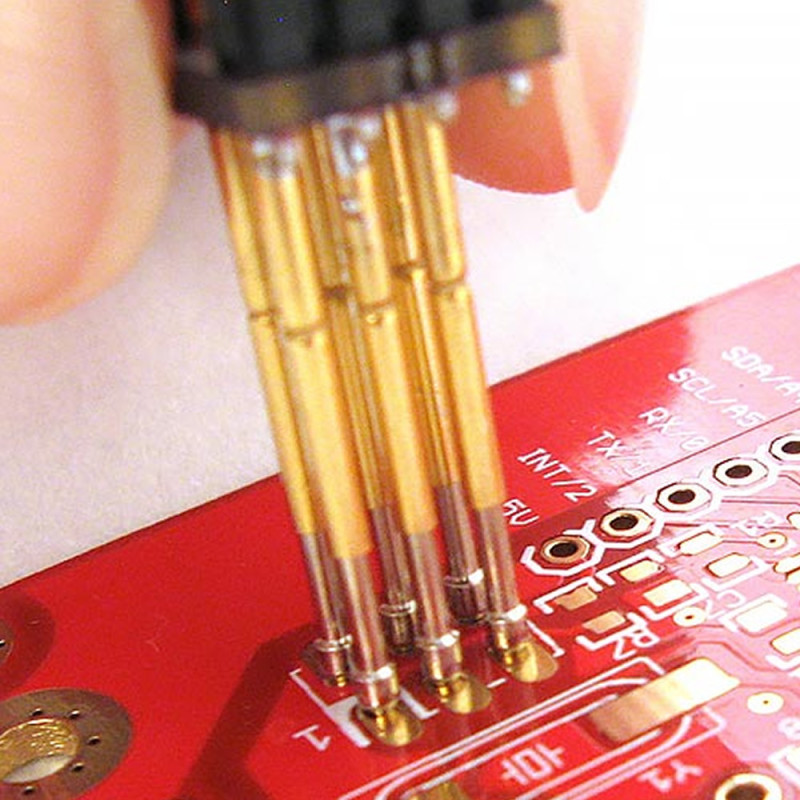

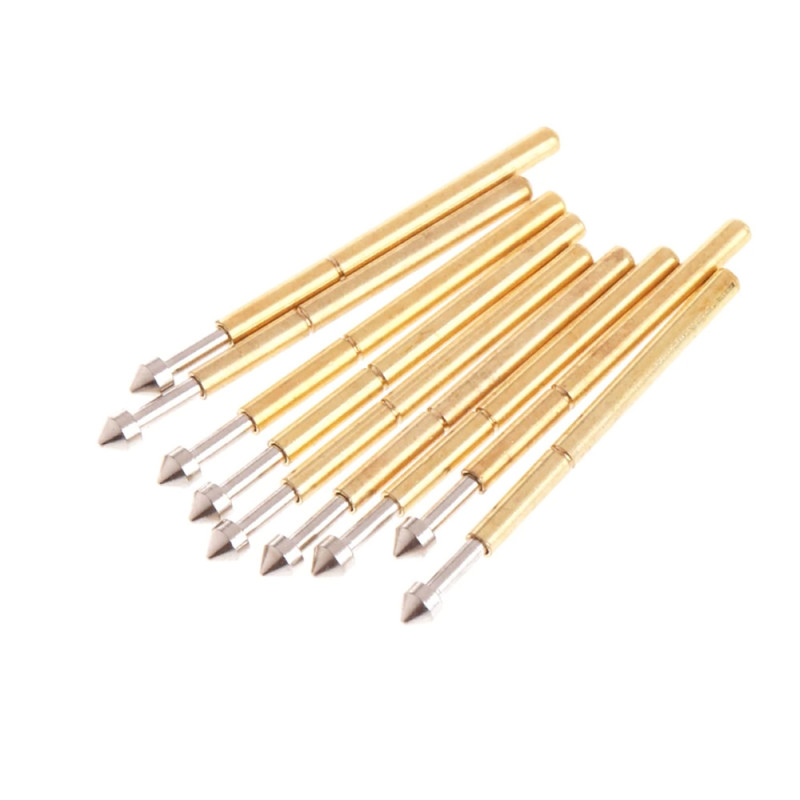

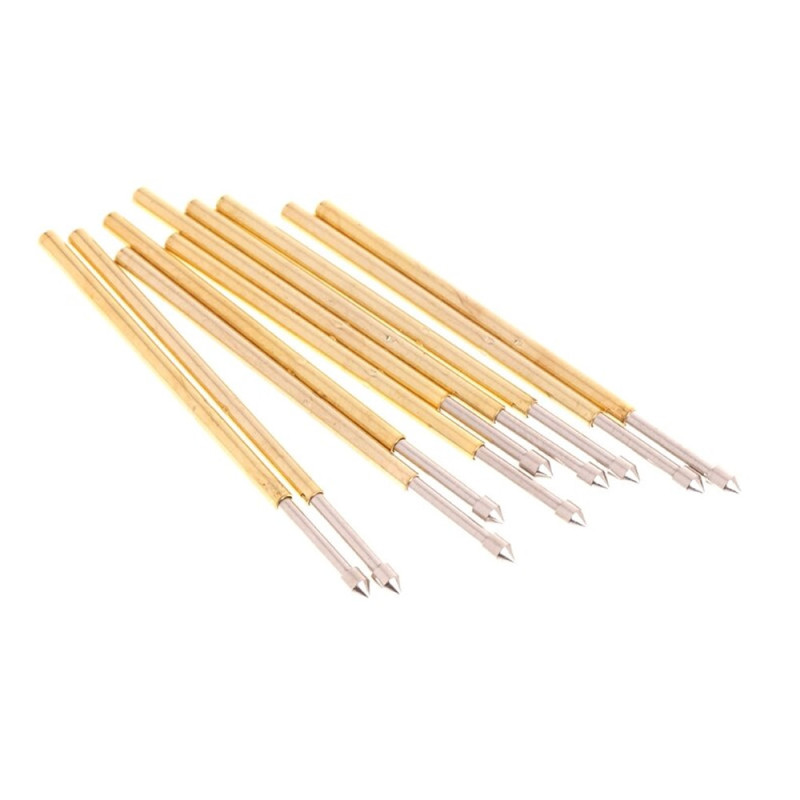

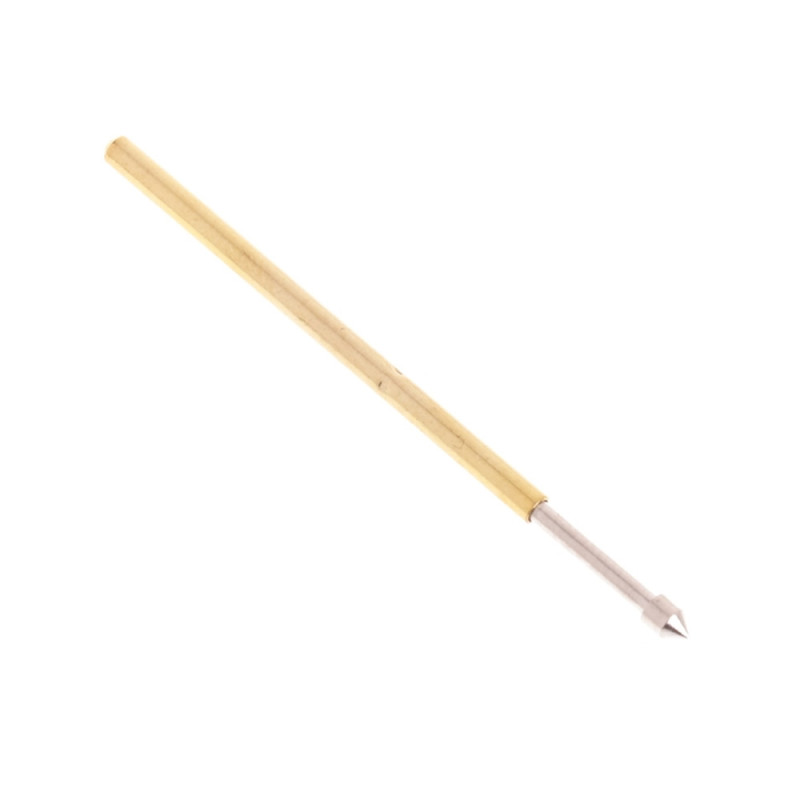

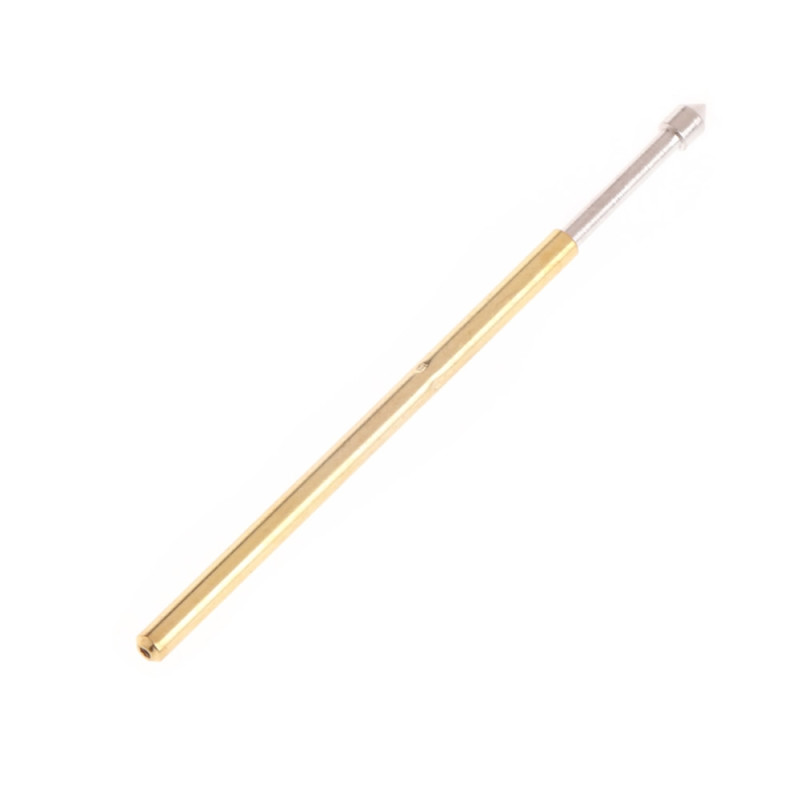

     It is a pogo pin set used in test programming setups. It is used in solderless programming, test etc. applications. It consists of 2 movable spring loaded parts. The pointed tip part contacts the target surface. This movable thin metal part moves back and forth in the outer cylindrical tube. The movement occurs thanks to the spring inside the outer tube.

     Unlike headers, Pogo P100-E2 pins are spring loaded and increase the contact capability. Unlike these, you can use Pogo pins in pressure sensitive projects. It comes as a set of 100 pieces. It gives the opportunity to easily replace the pins in your setups in cases of aging and wear over time. It has a low resistance conductive structure. It has a current carrying capacity of up to 3A.

Features:

• Model: P100-E2
• Current: Maximum 3A
• Resistance: 0,5ohm
• Spring pressure: 180g
• Material: Metal
• Color: Gold / Silver

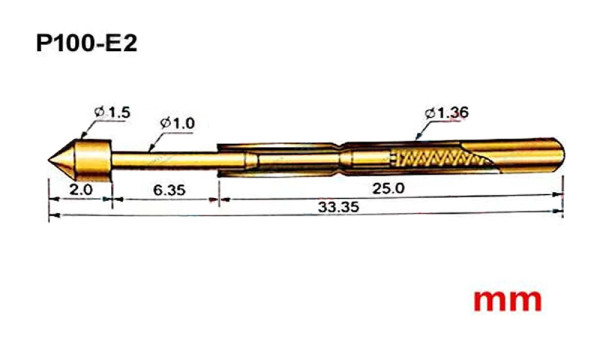

• Needle diameter:  1.36mm
• Needle travel distance:  7mm
• Dimensions:  1.3mm x 34mm
• Weight:  23gr

Package Contents:

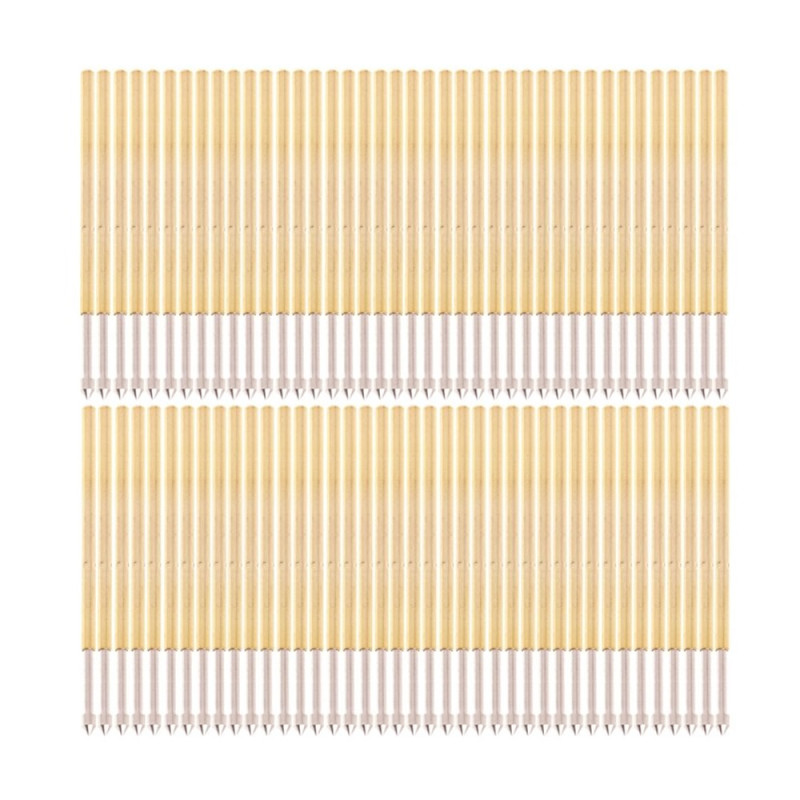

•    100 Pieces P100-E2 Pogo Pin Set

.
