Pogo Pin P75-E2 100 Pcs

Pogo Pin P75-E2 100 Pcs Set

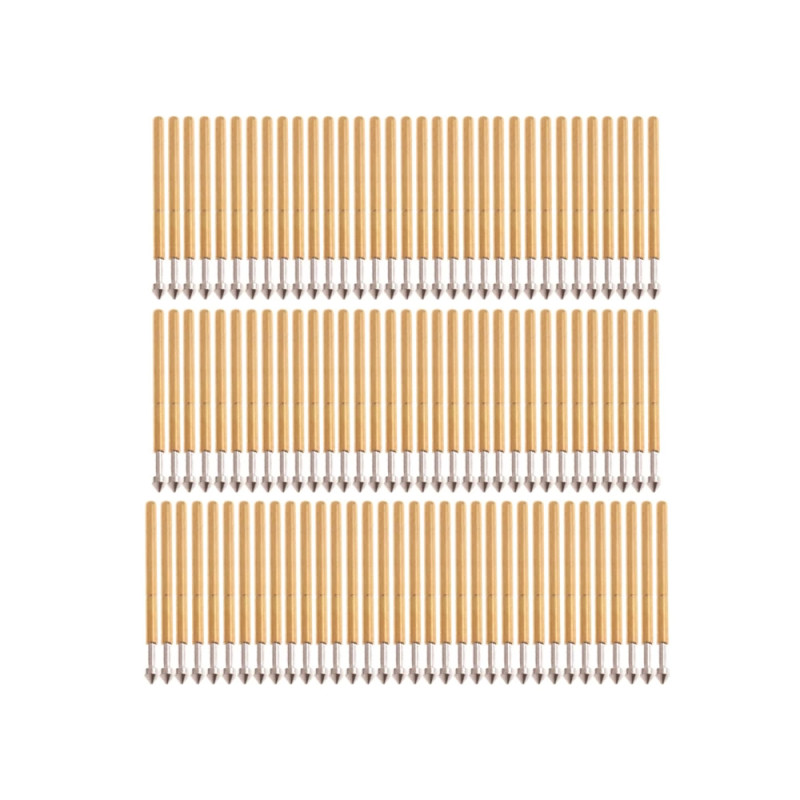

Gold Plated Spring Test Probe Pin 1.3mm Conical Head Programmer Probe Arm Pic Atmel Eprom Flash Bios

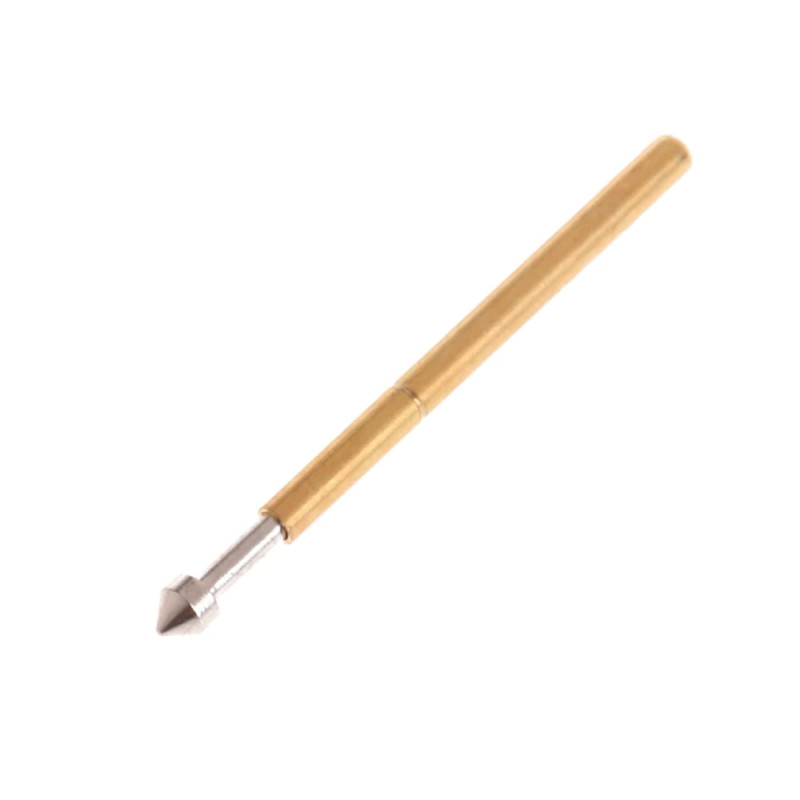

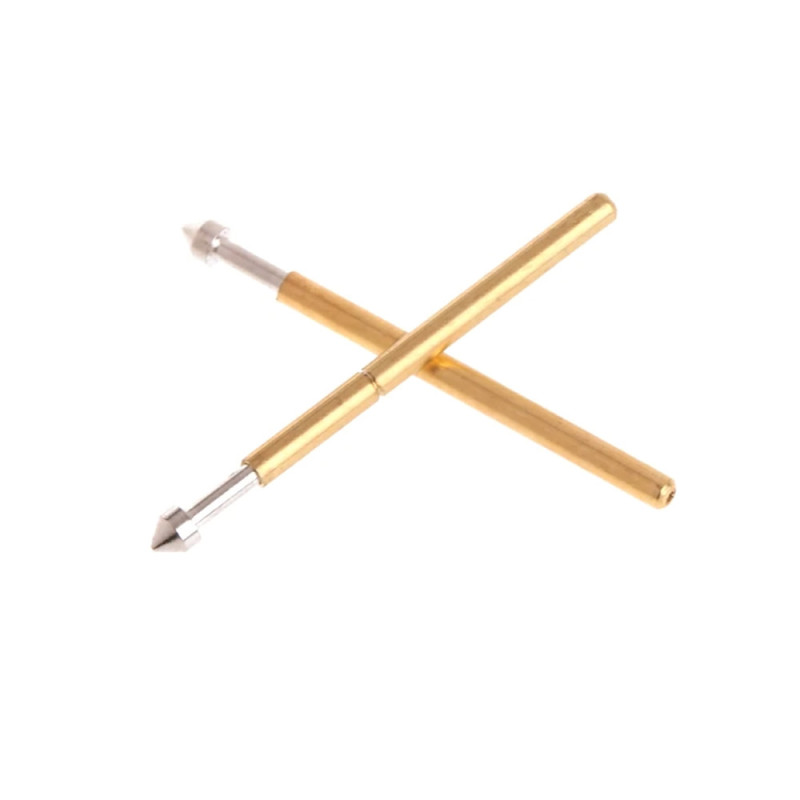

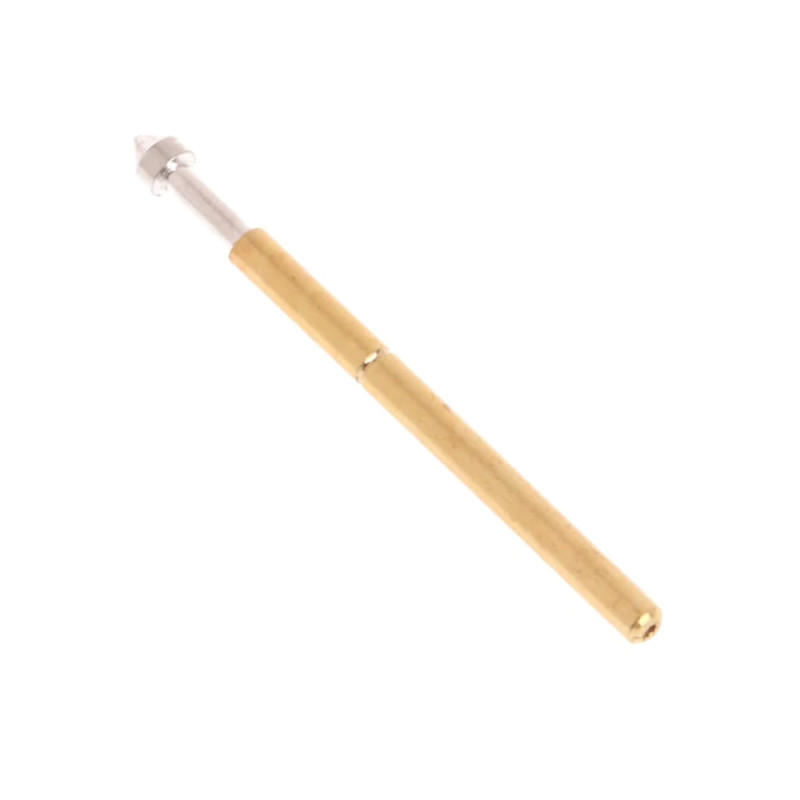

     The P75-E2 is a short spring loaded test probe (pogo pin) with a total length of 16.5mm, a 1.02mm barrel diameter and a 1.3mm pointed conical tip. The package contains 100 probes. The probe consists of 2 movable spring loaded parts: the thin plunger with the pointed tip moves back and forth inside the outer cylindrical barrel, which contains the spring, and the tip contacts the target surface with spring pressure. The plunger travels about 2.5mm, presses on the pad with about 100gr spring force and carries up to 3A.

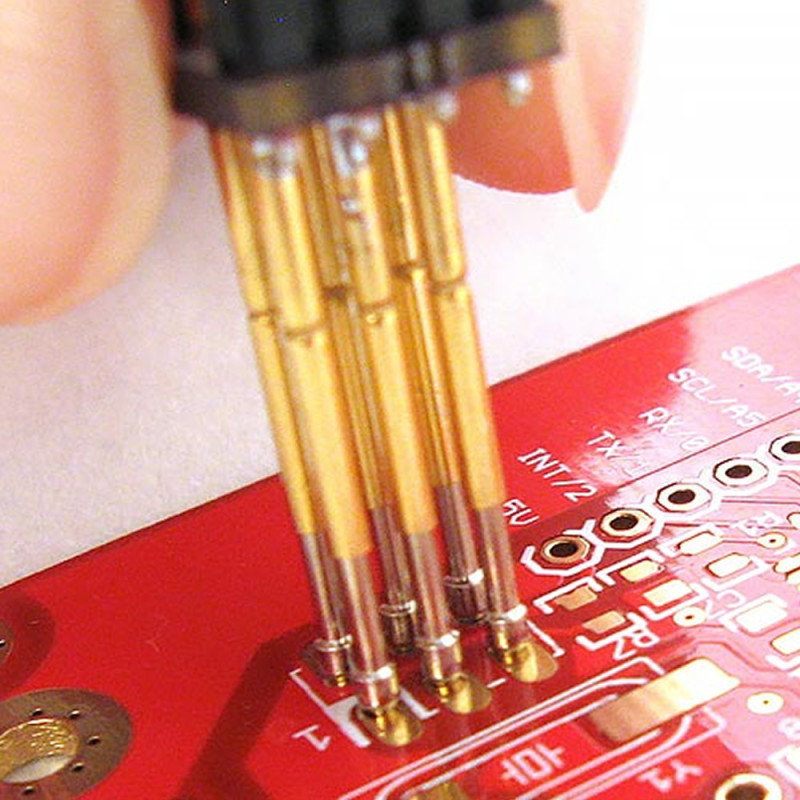

     Unlike pin headers, the P75-E2 probes are spring loaded; they make contact without soldering, only by pressing on the board, and improve contact reliability. They are used in solderless programming, firmware upload and test jigs; this probe is also used in the Robiz 5 Pin Programming Jig. Probes that wear out over time are easily replaced with this pack.

     With its 16.5mm length it is about half as long as the long P100 series probes (33.35mm); it fits thin and low jigs, hand probes and clamp type programming clips. The probe can be inserted into an R75 series receptacle or soldered by its barrel directly to the jig PCB.

Key features:

     Short and thin barrel: With a 16.5mm total length and 1.02mm barrel diameter it fits low programming jigs and clamp type clips; it can be lined up easily on 2.54mm pitch pads.

     Conical (E2) tip: The 1.3mm pointed tip makes point contact with pads, test points and via openings.

     Spring contact: The plunger travels about 2.5mm and presses on the pad with about 100gr spring force; the spring absorbs small differences in board height.

     3A current capacity: Besides signal lines, the supply line can also be fed through the probe; it is also used as the VCC and GND probe in programming jigs.

     100 piece spare pack: Enough probes come in one pack to build several jigs or to replace worn probes.

Features:

• Product type: Short spring test probe (pogo pin)
• Model: P75-E2 (P75 series)
• Tip type: E2, pointed conical tip
• Current: Up to 3A
• Spring force: About 100gr
• Full stroke (travel): About 2.5mm
• Contact resistance: About 50mΩ
• Compatible receptacle: R75 series (receptacle not included)
• Suitable pad pitch: About 1.91mm (75mil) and above
• Mounting: Inserted into an R75 receptacle or soldered by the barrel to the jig PCB
• Quantity: 100
• Tip diameter: 1.3mm
• Plunger diameter: 0.74mm
• Barrel diameter: 1.02mm

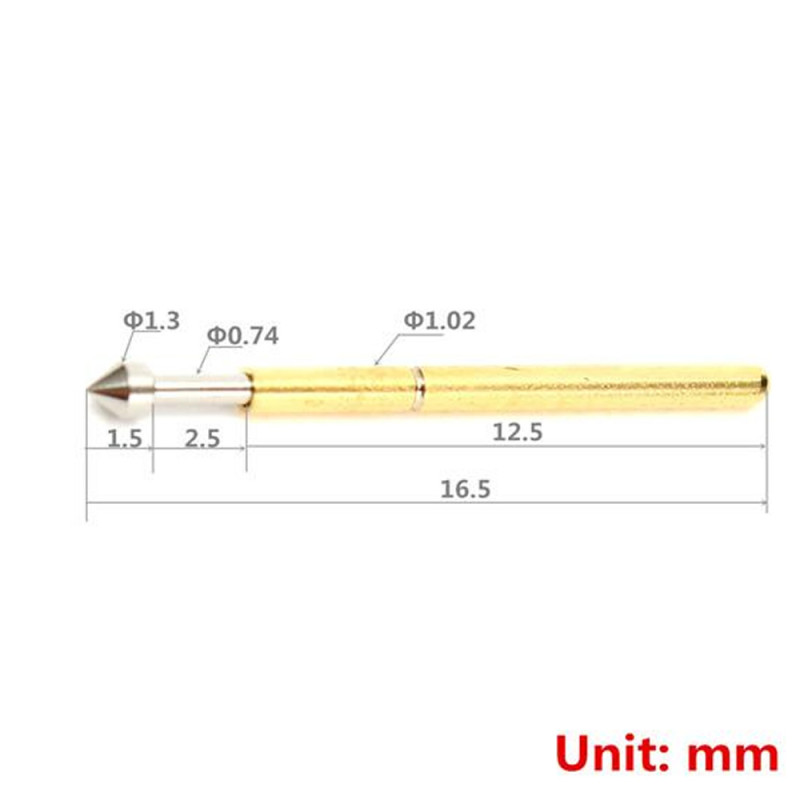

• Total length: 16.5mm (tip 1.5mm + plunger 2.5mm + barrel 12.5mm)
• Material: Metal; outer barrel with spring and movable plunger inside
• Color: Gold colored barrel, silver colored plunger and tip
• Dimensions: 1.3mm x 16.5mm (single probe)
• Weight: 7.5gr (100 pieces)

Usage information:

• Insert the probe into an R75 series receptacle, or place it into a hole of suitable diameter on the jig PCB and solder it by the barrel. Keep the soldering heat short and do not let solder flow into the front opening where the plunger enters; the spring and plunger may jam.
• Set the jig so that, when the probes press on the pads, the plunger does not bottom out at the end of its about 2.5mm stroke; part of the spring travel should remain free. This keeps the contact pressure and does not strain the probe.
• Measure the centers of the pads and place the probes at the same pitch; on a programming jig, compare the order of the VCC, GND and signal lines with the pads on the board.

Application areas:

•  Programming and firmware upload jigs
•  Spare probe for the Robiz 5 Pin Programming Jig
•  Clamp type programming clips
•  PCB test fixtures (bed of nails)
•  Board function testing in mass production
•  In-circuit test (ICT) setups
•  Repair and troubleshooting probes
•  Test point and pad contact probe
•  Temporary spring contact setups

Precautions:

•  The P75-E2 is the short series (16.5mm, 1.3mm tip). Do not confuse it with the long P100-E2 probe (33.35mm, 1.5mm tip); they cannot replace each other.
•  The pointed tip may leave a mark on the pad and can bend under side load; press the probe straight onto the pad and do not slide the board under the probe.
•  The conical tip is meant for pads and test points; for component leads and connector pins a concave tip probe is more suitable.
•  Do not exceed the 3A limit; the probe is only a contact element, a short circuit or high current surge damages the spring and plating.

Package contents:

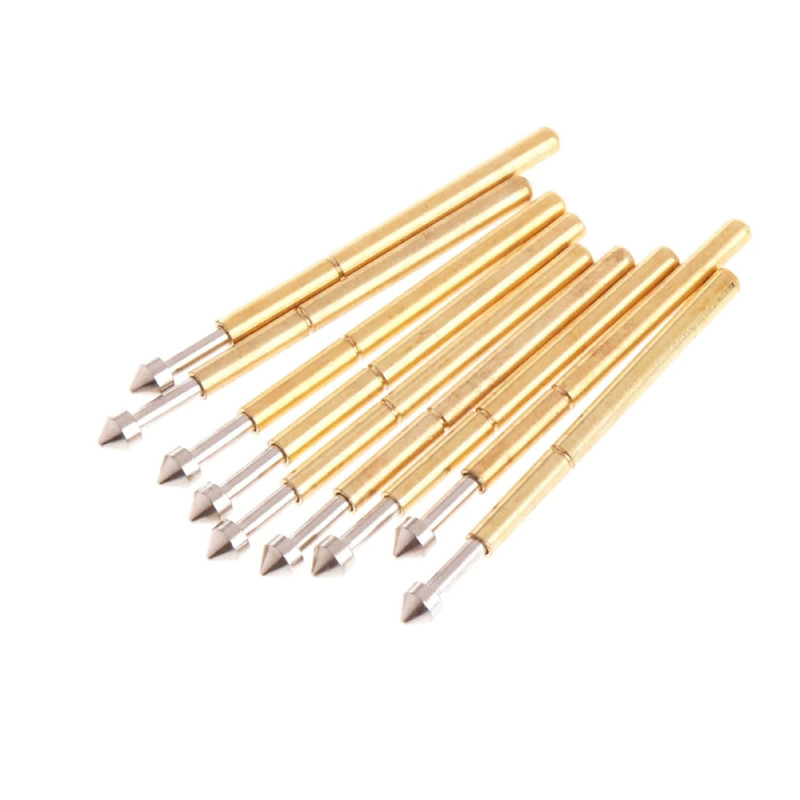

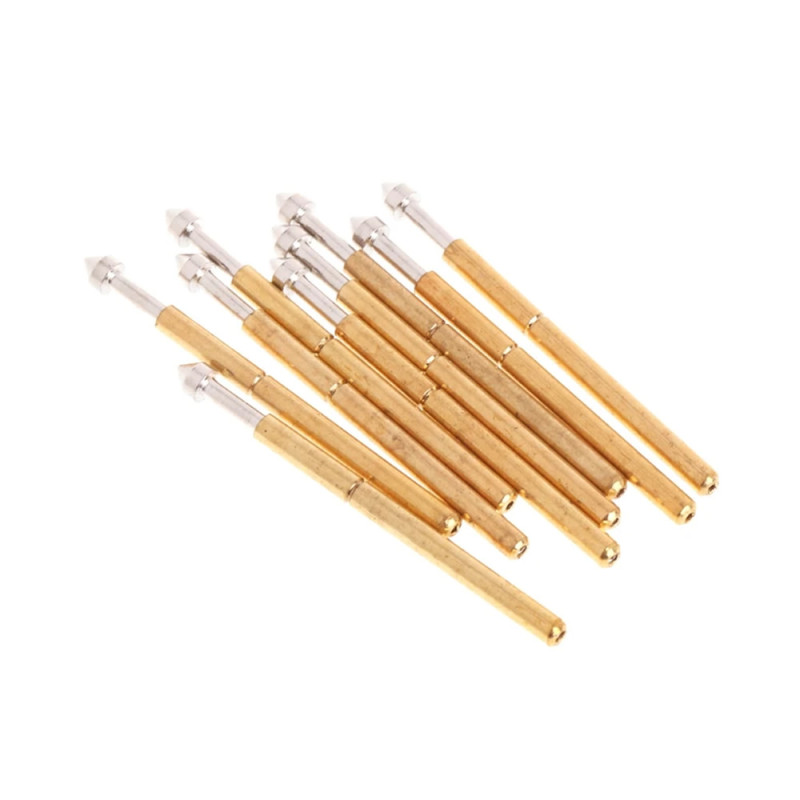

•  100 Pieces Pogo Pin P75-E2
•  Note: R75 receptacle, jig PCB and cable are not included in the package.
