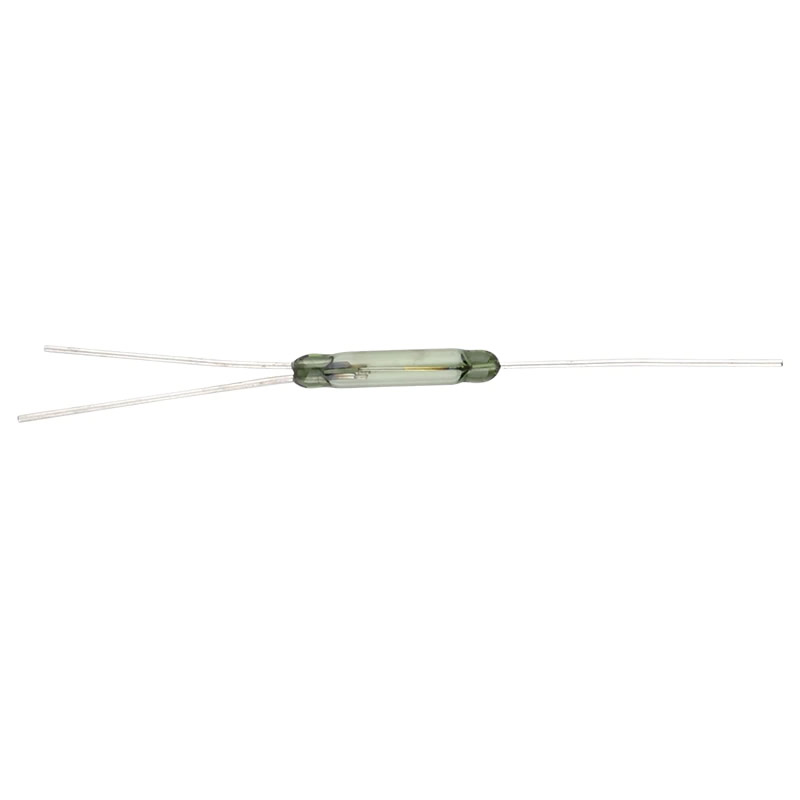

Reed Relay 3 Pin

Reed Switch 3 Pin DC 60V 4W

Magnetic Field Detecting Switch Relay NO NC Contact Output Door Window Machine Meter Contactor

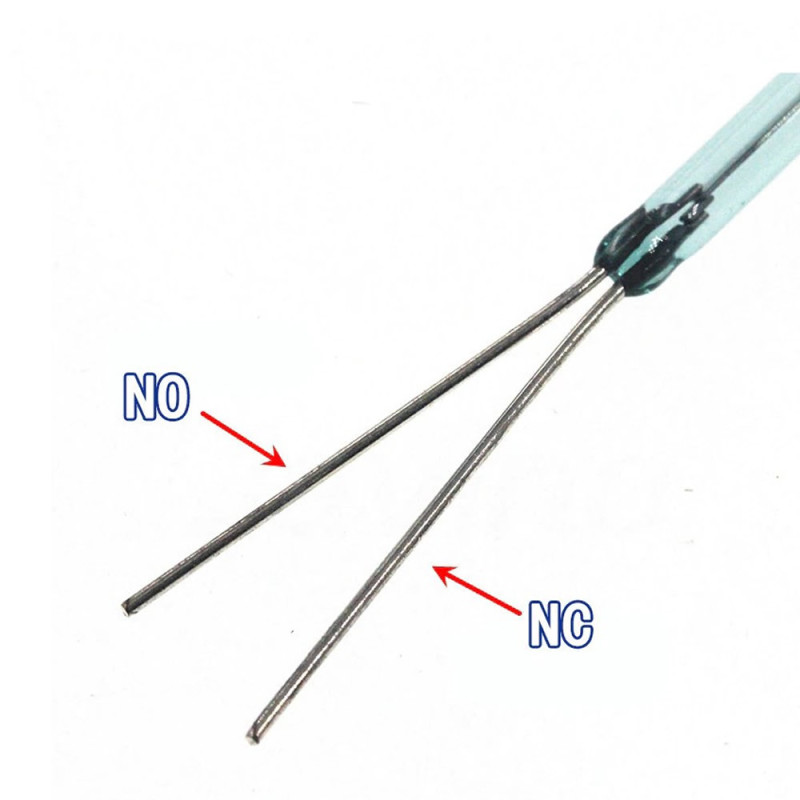

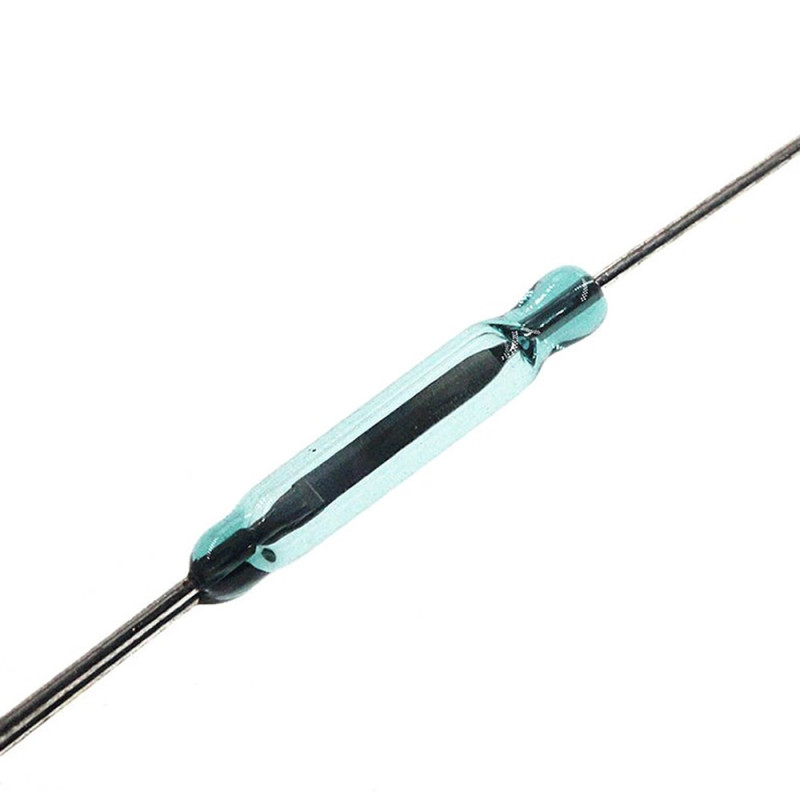

      Reed relays are switches that can be controlled by elements creating a magnetic field, such as magnets. Basically it detects the change of the magnetic field. The glass tube is 14mm long. The relay is used over the NO and NC pins according to the magnetic field. It can be used in various hobby and industrial applications. It has legs that can be used both as normally closed (conducting) and open (cut off) in the normal state.

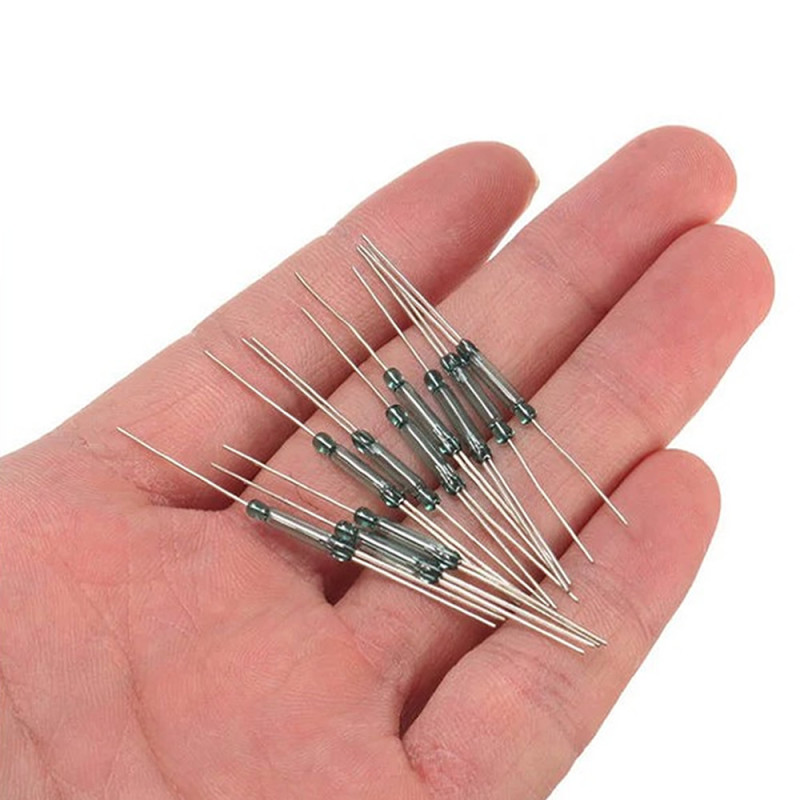

      They are manufactured in a fairly small structure. It is the ideal material to be used in applications with narrow and small space. It helps you a lot in making your applications smaller.

      The gas inside the glass is completely insulated from the external environment. This insulation ensures that the life of the product is very long. There are no moving materials inside the product. It ensures that there are no wear problems that would occur due to movement. Also, metal fatigue occurring over time does not occur.

      It has quite common and wide areas of use such as various door window sensors, in copying devices, dishwashers, refrigerators, cameras, gas water meters.

Features:

• Maximum power:4 W
• Maximum switching voltage:60VDC/VAC
• High voltage:60VDC/VAC
• Maximum switching current:0.25A
• Maximum load current: 0.5A
• Contact resistance: 115 M
• Response time:    0.25 ms
• Bounce time:0.05 ms
• Response frequency:3000Hz
• Sensitivity value:  10 to 20AT
• Maximum contact capacitance:2pf

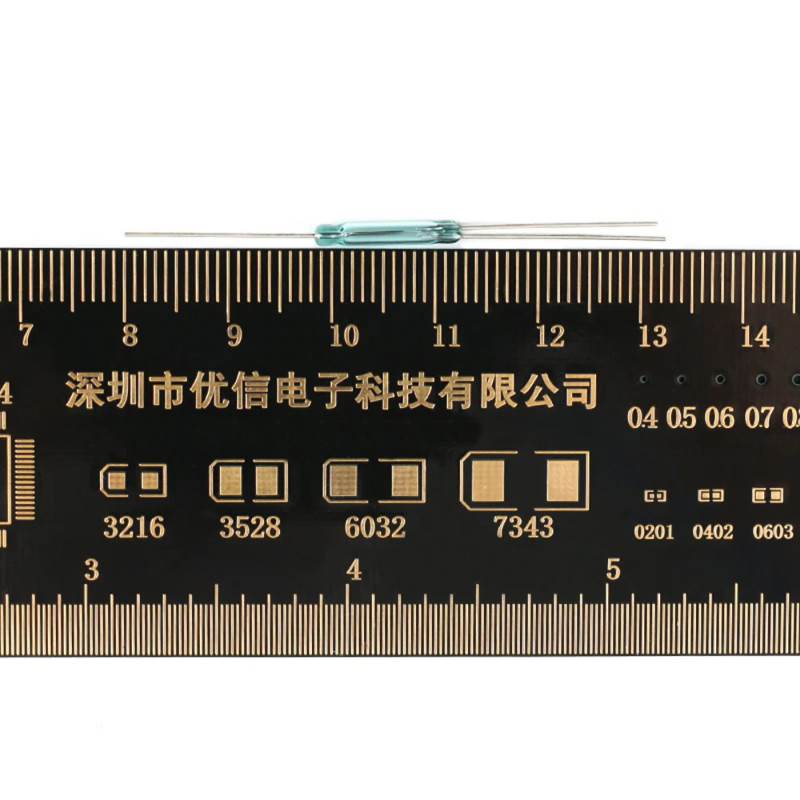

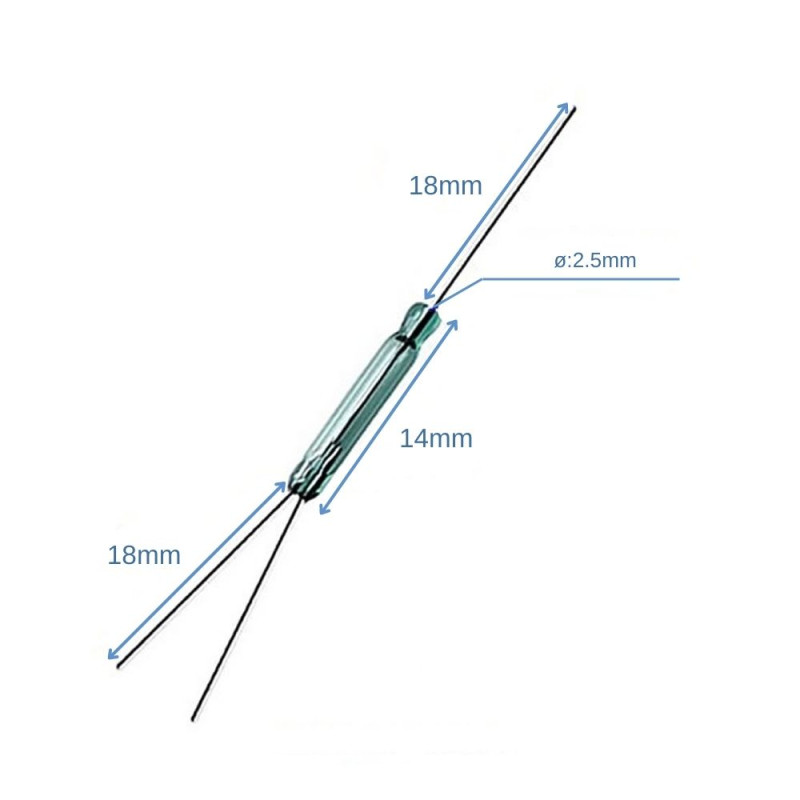

• Dimensions:  2.5mm x 14mm


Package Contents:

•     1pc Reed Switch 3 Pin
