10-15 Days
100cm Cable 100K NTC
56.43TL
47.03TL + KDV
10 or more 47.97TL
Buy 10 or more of this item and the unit price drops by 15%; pay by bank transfer for a total 20% discount.
- Stok Durumu: 10-15 Days
- Marka: OEM
- SKU: RBZ.100.647

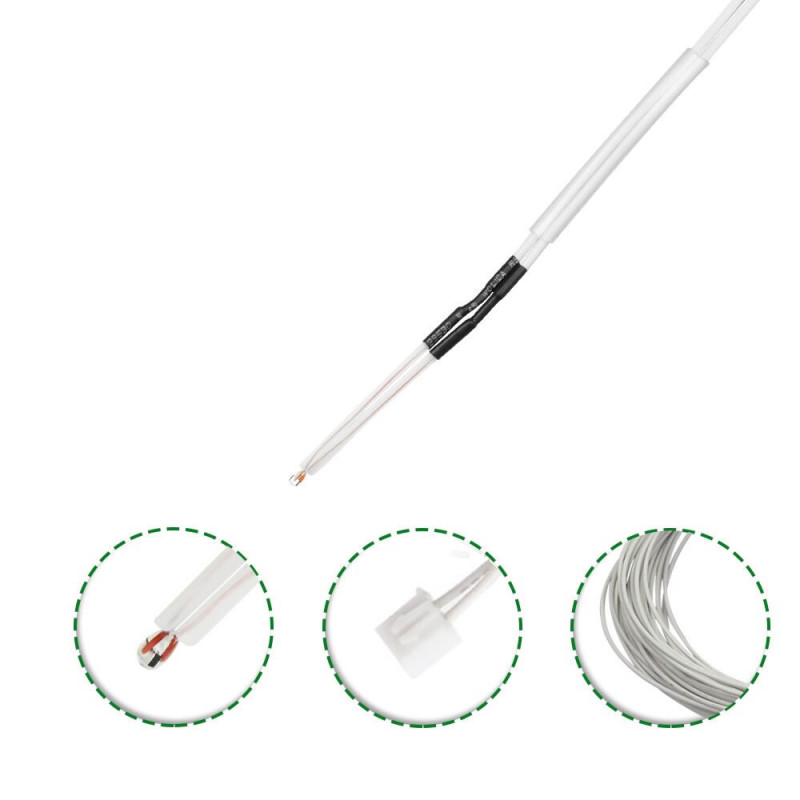

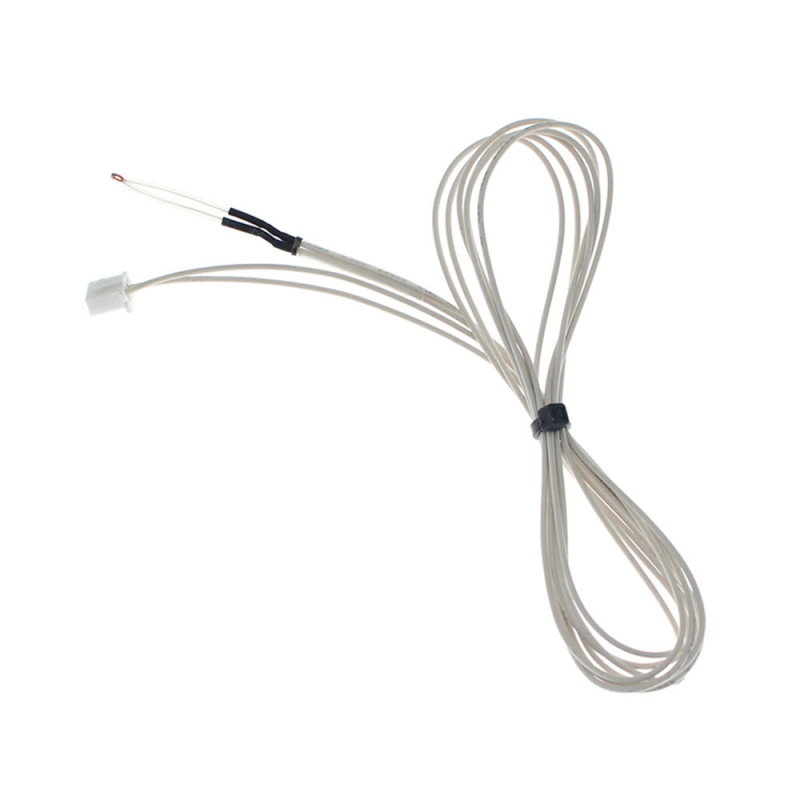

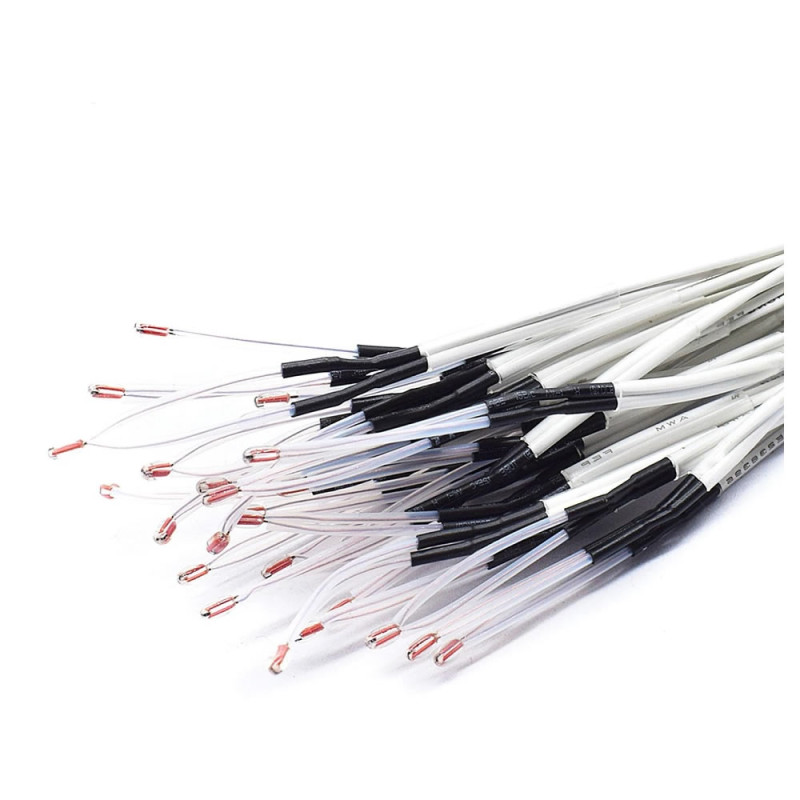

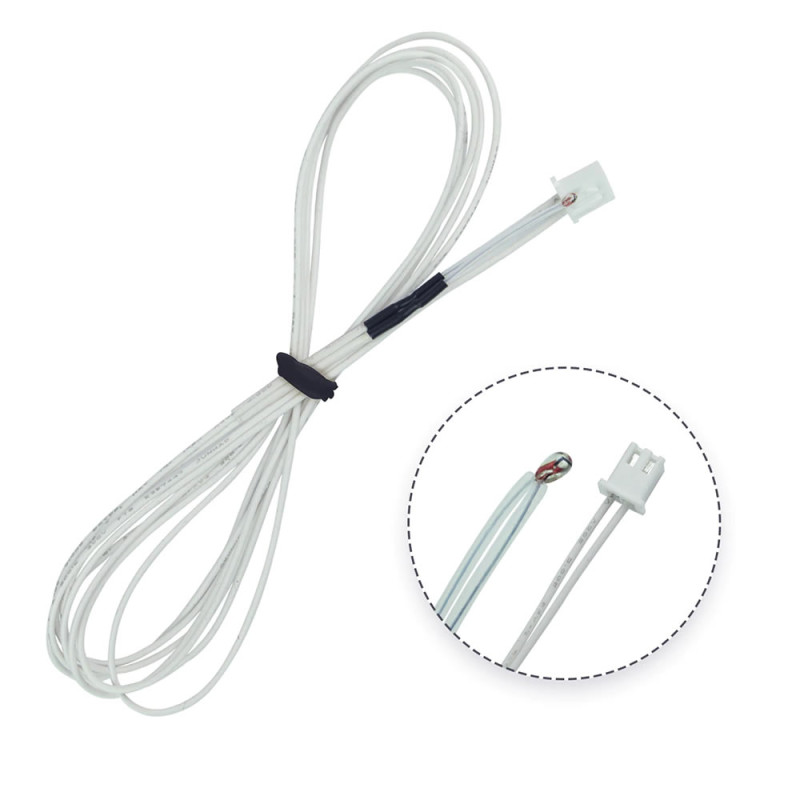

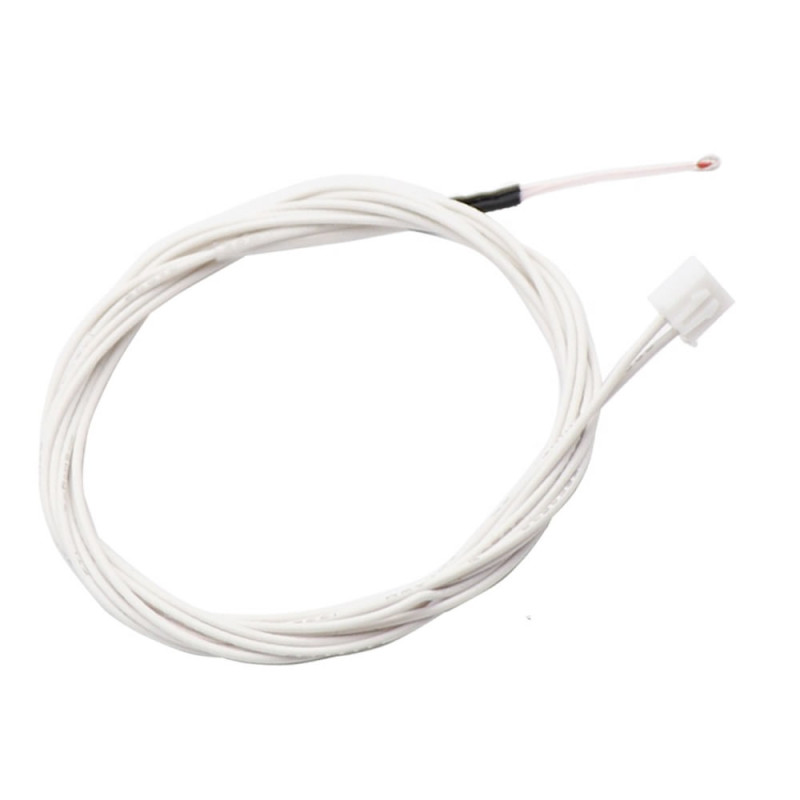

100cm Cable 100K NTC Glass Thermistor Temperature Sensor 3D Printer
3950 1% Heat Sensor 1 Meter Teflon Ender 3V2 Ender3 CR10 CR10S Reprap Prusa i3 Hotend 12V 24V

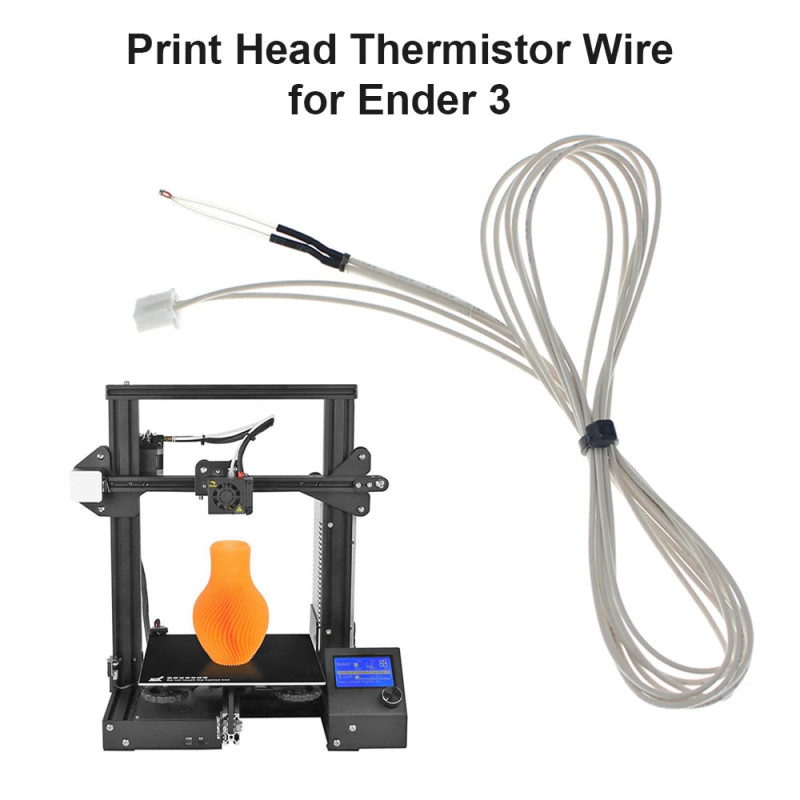

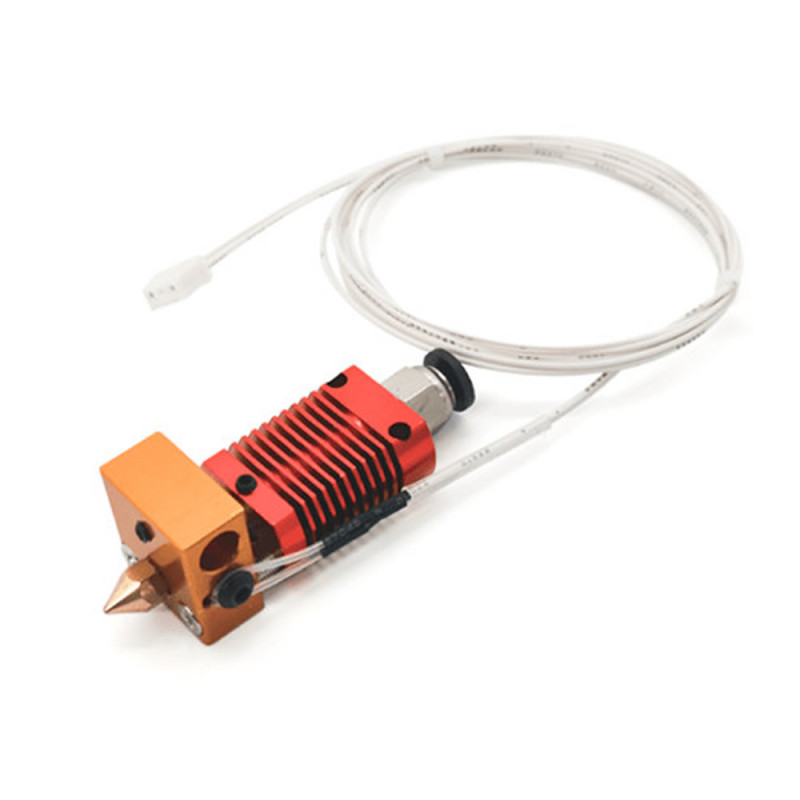

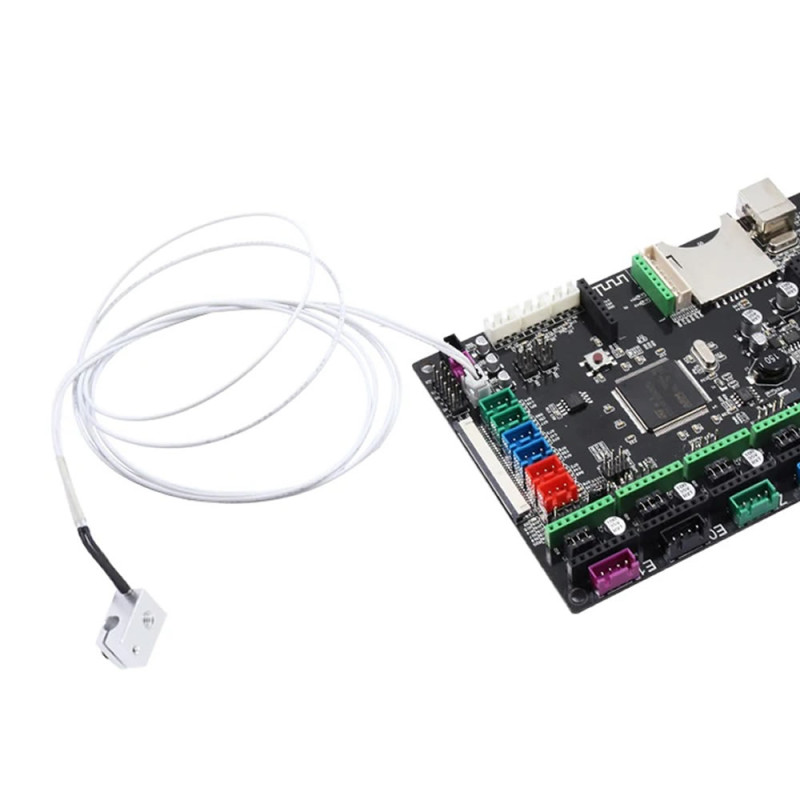

A thermistor is a circuit element whose resistance changes with temperature variation. This product is used for temperature sensing in 3D ( three dimensional ) printers. In most 3D printers, the temperature of the head that heats and melts the filament is measured using this sensor. In addition, in printers using a heated bed, the heated bed <7 heatbed temperature is sensed with a thermistor.
It is an NTC temperature sensor with a value of 100K ohm. It has a cable length of 1m. The NTC is preferred for its small size and fast response time.
Features:
- Resistance value: 100K Ohm / 25C
- Resistance accuracy: ± 1%
- B value R25 / 50: 3950k
- B value accuracy: ± 1%
- Operating temperature range: -40C / +300C
- High temperature resistant teflon cable coating
- Dissipation power factor: 5 mW / C and above (static air)
- Thermal time constant: 7S and below (static air)
- Maximum rated power: 50mW
- Fast response and sensitivity
- Color: White
- Thermistor head diameter: 2mm
- Cable thickness: 1.25mm

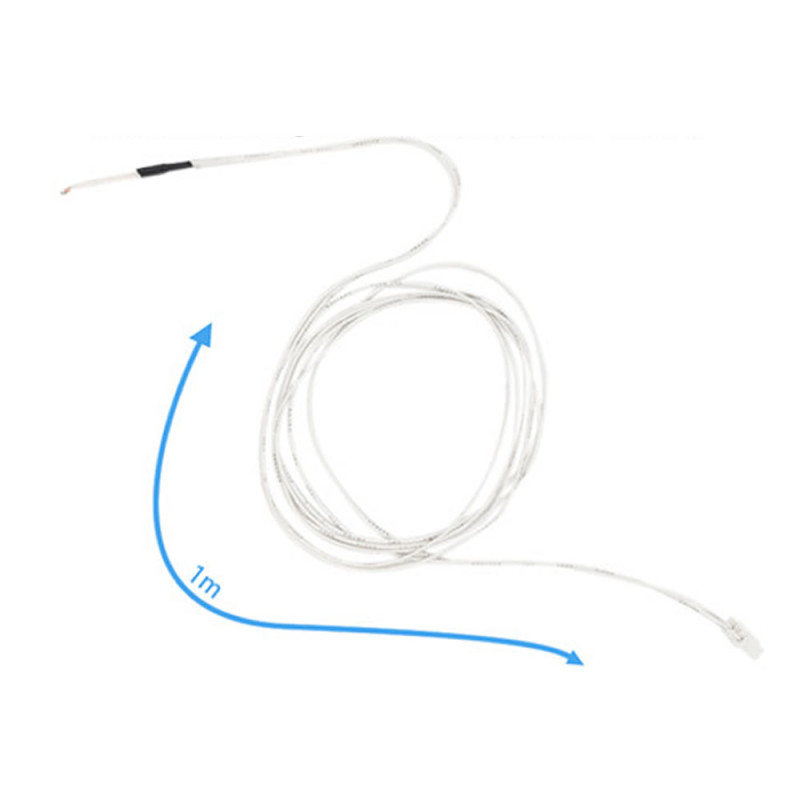

- Cable length: 1 meter
- Weight: 6gr
Package Contents:
- 1 Piece 1 Meter 100K NTC Sensor Thermistor
