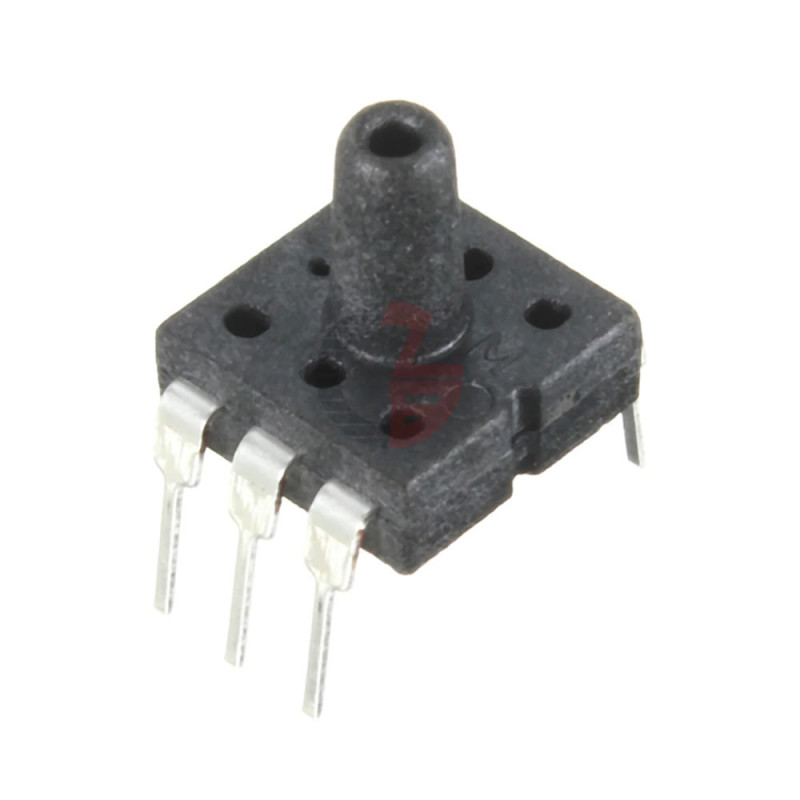

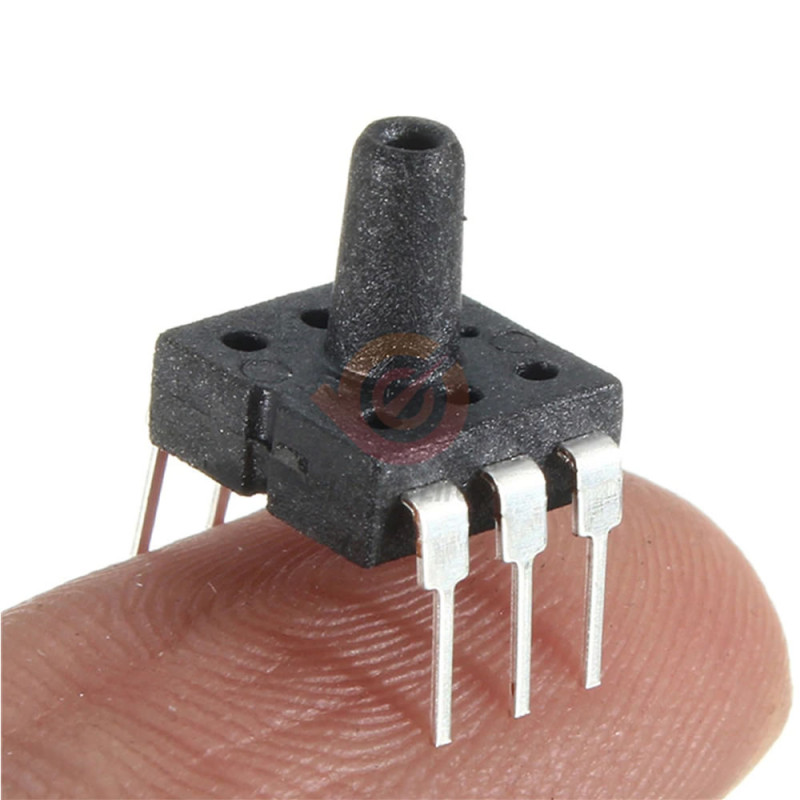

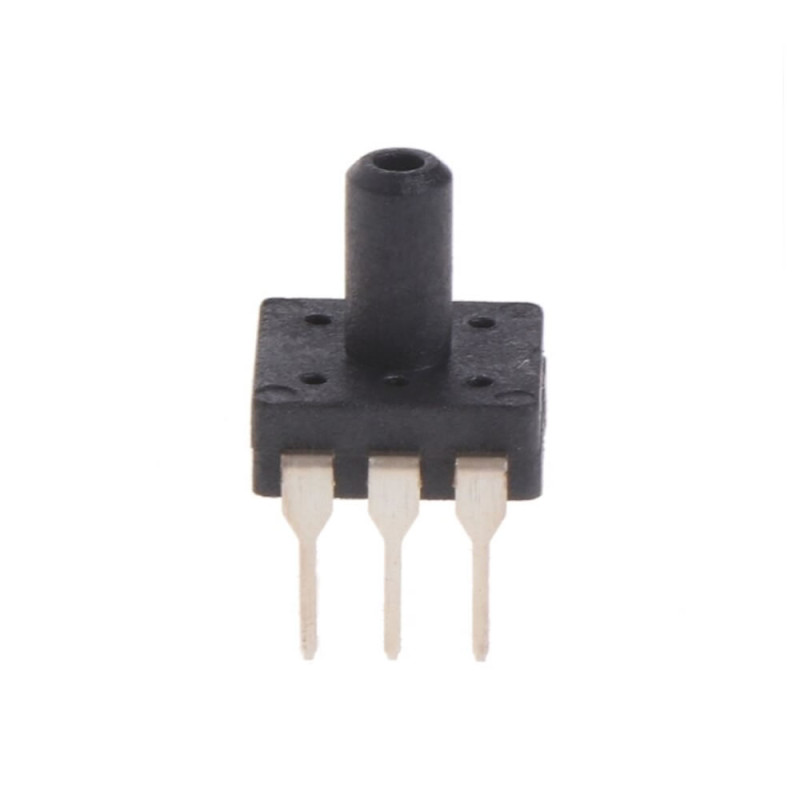

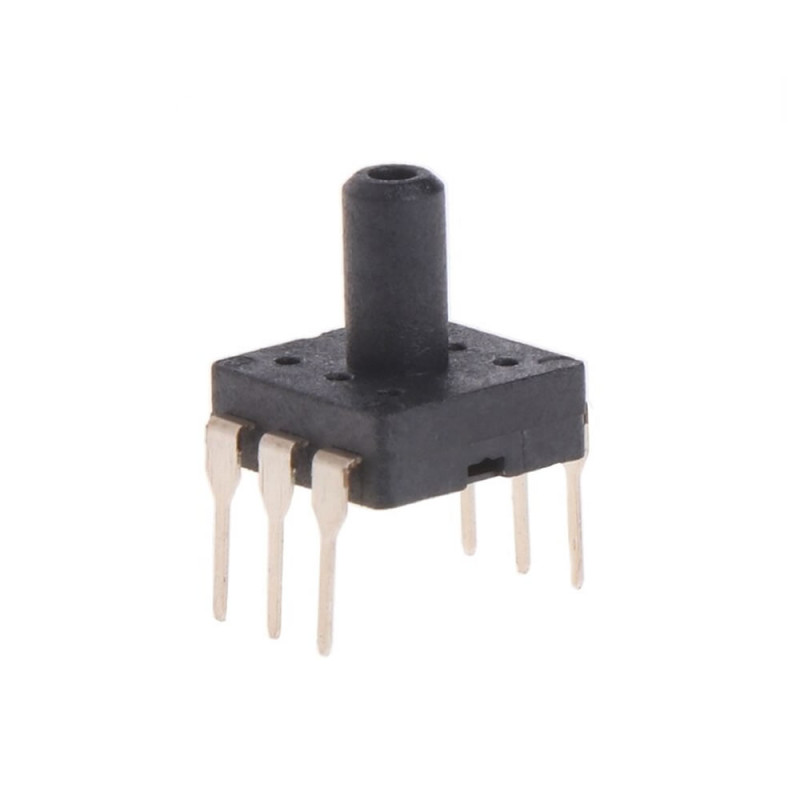

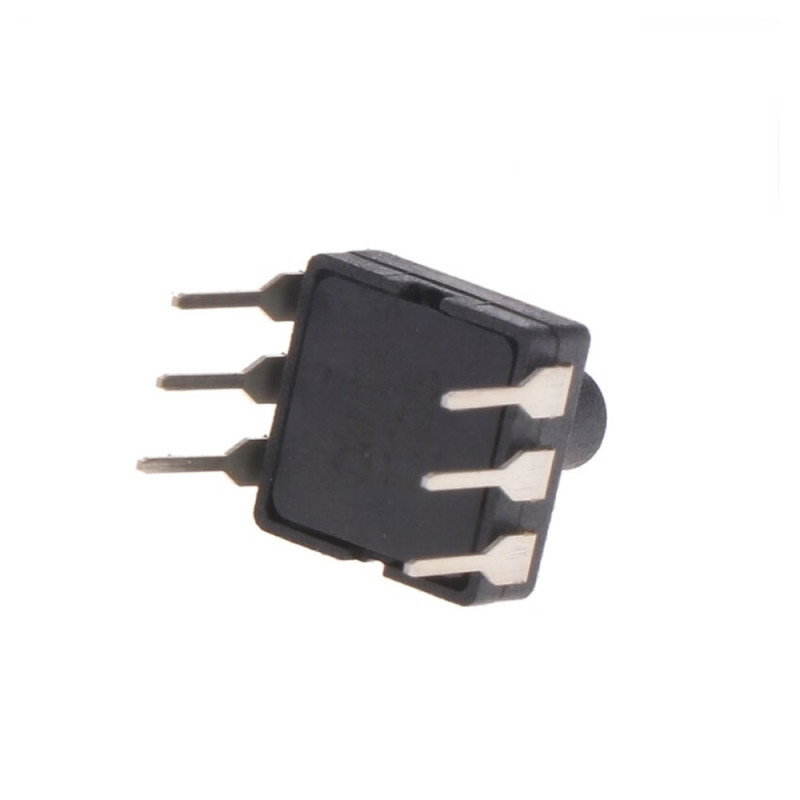

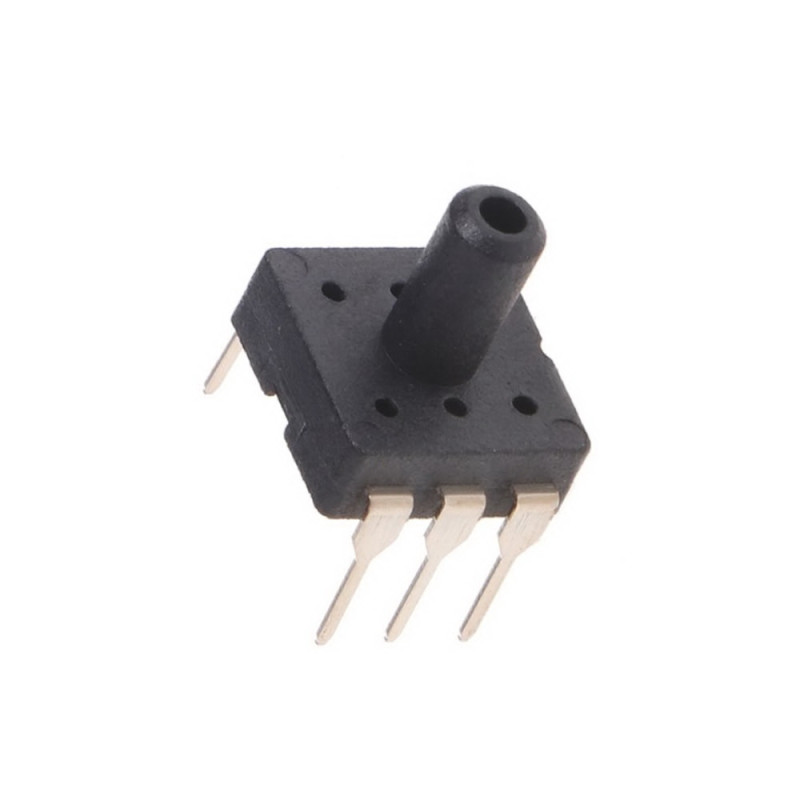

MPS20N0040D Pressure Sensor

MPS20N0040D Pressure Sensor 0-40kPa DIP-6

5.8Psi Tire Air Atmosphere Barometer Pump Blood Pulse Blood Pressure Device Biomedical Meteorology Automotive

     0/40kPa Air pressure sensor. It is in a DIP6 package.  It is suitable for measuring air pressure in biomedical, meteorology and other fields. The product has a pressure sensor chip developed with MEMS technology. It has a wide operating temperature range. It is easy to use and install. The areas of use in various sectors are listed below.

     Automobile: Tire pressure gauge, car air pump, map sensor, diagnostic equipment, car sensor.
     Industry: Air brake switch, portable pressure gauge, digital pressure gauge, environment monitor.
     Medical equipment: Patient monitoring and diagnostic equipment such as blood pressure monitors, medical devices and monitors.

Features:

•     Operating voltage: DC 5V
•     Output type:  Analog mV
•     Measurement medium: Air
•     Measurement range: 0/40kPa   ( 0/5.8Psi )
•     Operating temperature:   -40C  /  125
•     Input / Output impedance: 4kohm /  6kohm
•     Zero output:   -15mV  / 15mV
•     Hysteresis:  +-0.7 FS ( Full scale )
•     Accuracy:  0.25%Fs
•     Power supply: 10VDC and below or 2. 0 mADC and below
•     Insulation resistance: 100Mohm, 100VDC
•     Color:  Black

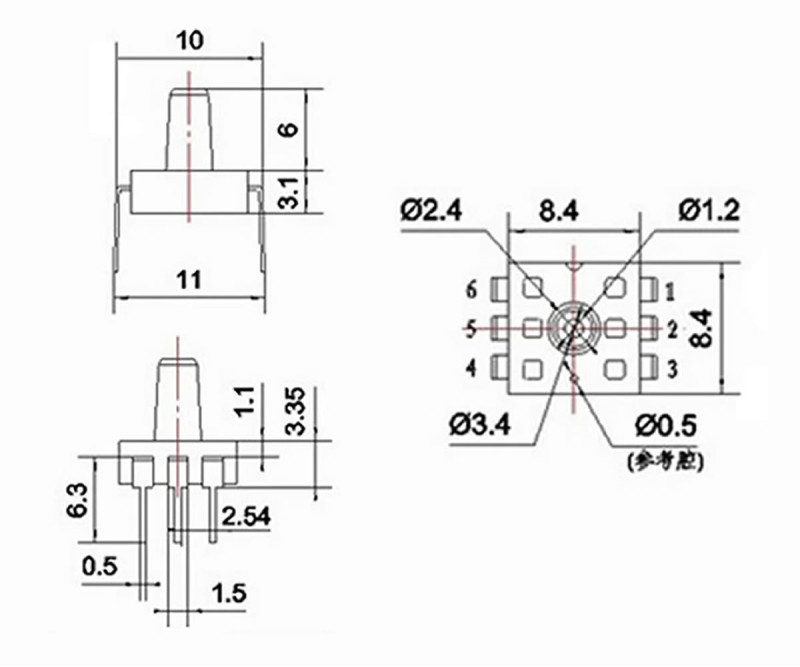

•     Dimensions:  8mm x 10mm x 14mm

Package contents:

•     1 Piece MPS20N0040D Pressure Sensor
