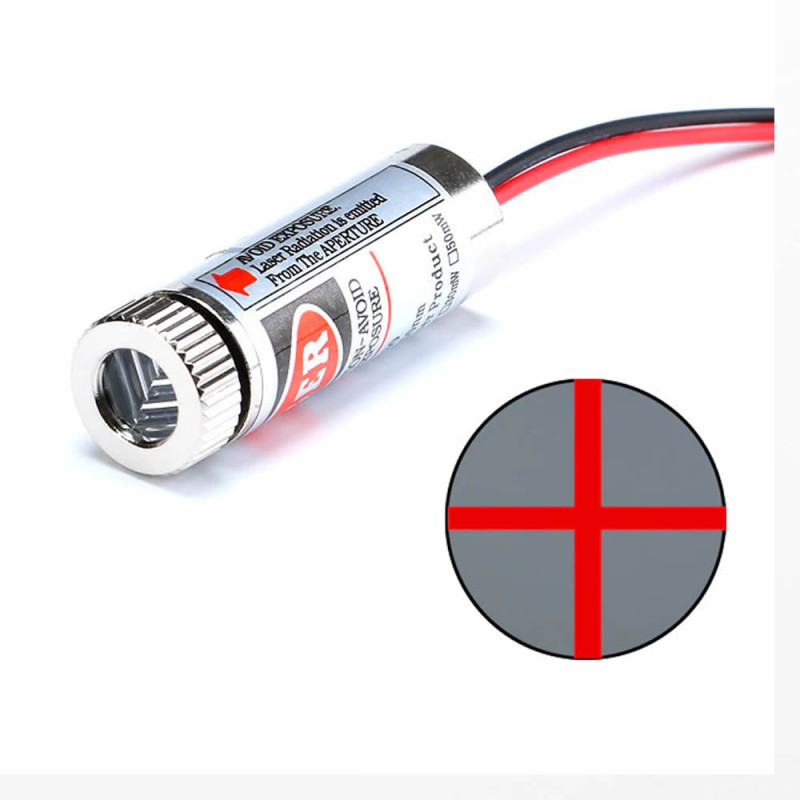

Plus Laser Module Red 5mW 650nm

5mW 650nm Red Plus Laser Module

Focus Adjustable with Lens 12mm Diameter

   Lasers are led diode material with directed high light power. It has high brightness. It is a product with 5mw power that can be used for various indication operations. It is easy to use and stable.


Features:

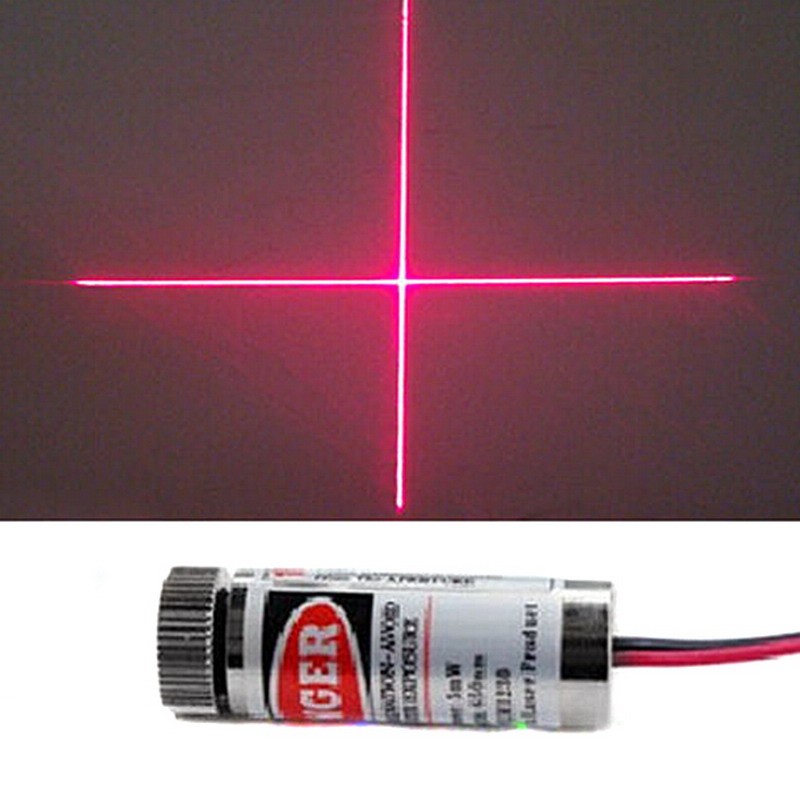

• Laser Shape: Plus
• Operating Voltage: DC 3~5V
• Operating Current: 40mA  Maximum
• Output Power: 5mw   It must be cooled at high powers
• Wavelength: 650nm
• Operating Temperature: 10C ~ 40C
• Lens:  Yes ( Plastic )

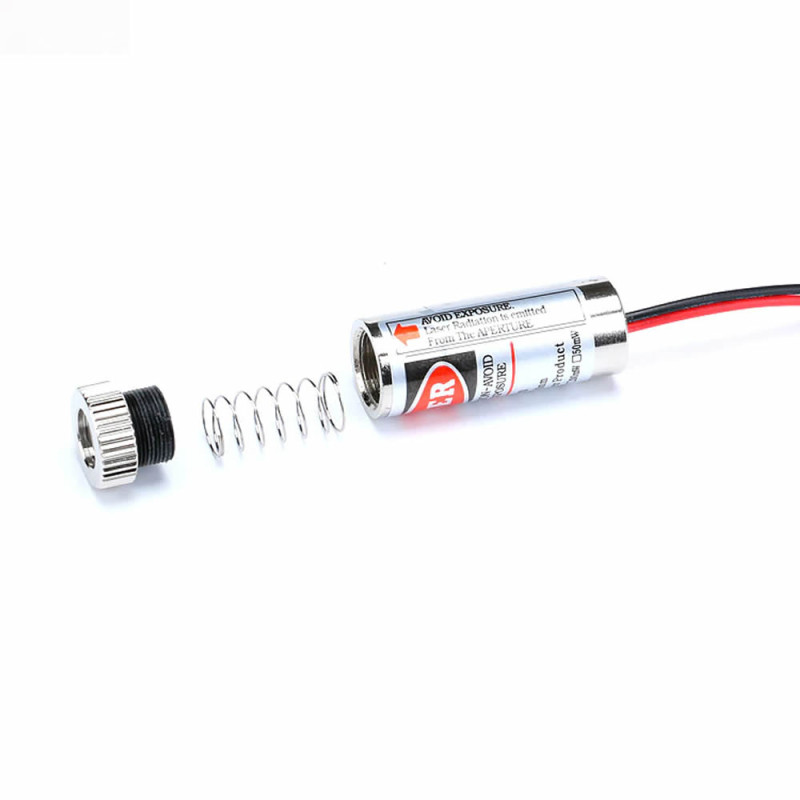

• Focusing: Yes
• Material: Metal
• Lifetime 10000 Hours
• Weight: 13.5gr

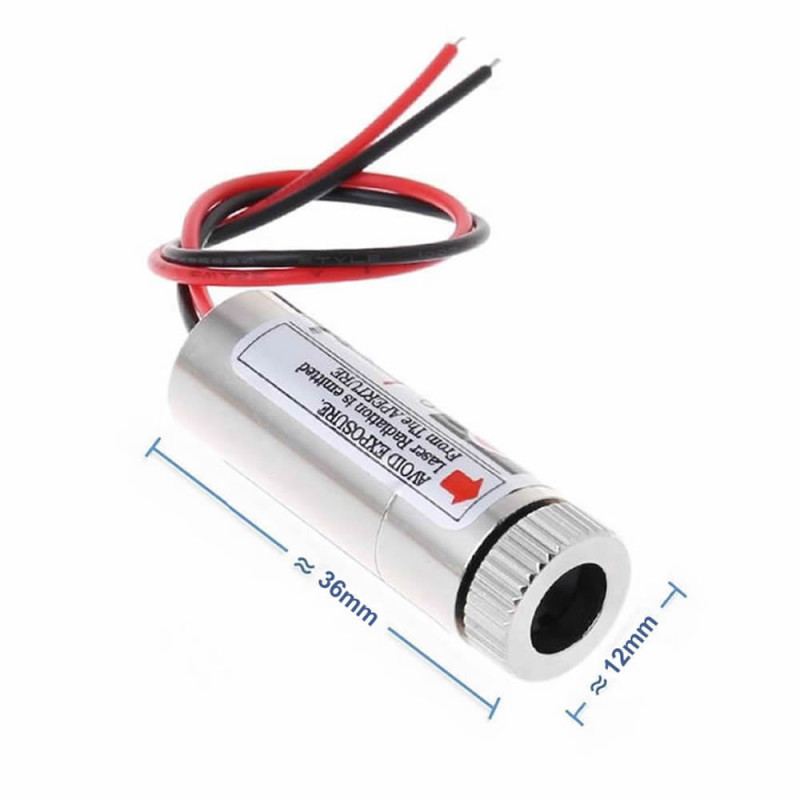

• Diameter:12mm
• Length: 36mm
• Cable Length: 10cm

Usage:

     The product operates with a supply between DC 3-5V. If you apply high voltage the product will be damaged. By connecting three of the 1.2V pen batteries in series you can connect the + battery terminal to the red cable.  Keeping the lens tip clean will increase the light brightness and clarity. The light must not be applied to the human eye.

Package Contents:

• 1 Piece 650nm Red Plus Laser Module
