EC11 Rotary Encoder Knob
57.60TL
Ex Tax: 48.00TL
- Stok Durumu: Stok Var
- Marka: OEM
- Model: EC11 Encoder Pot Başlığı
- SKU: RBZ.100.237
EC11 Rotary Encoder With Button 20 Step With Knob
Pwm 360 Degree Encoder With Button Digital Potentiometer Menu Motor Speed Adjustment Control Power Supply Electronic Circuit Automation Medical
It is a sensor with which we can measure the rotation speed with a pwm signal. It produces 20 pulses in 1 full turn. The rotation angle is calculated by counting the pulses. It is widely used in applications such as various motor speed control menu adjustment. It has a button function. It works with DC 5V.
Features:
- Operating voltage: DC 5V
- Rotation angle: 360 Degrees
- Number of steps 20 Pulses
- Push button featured

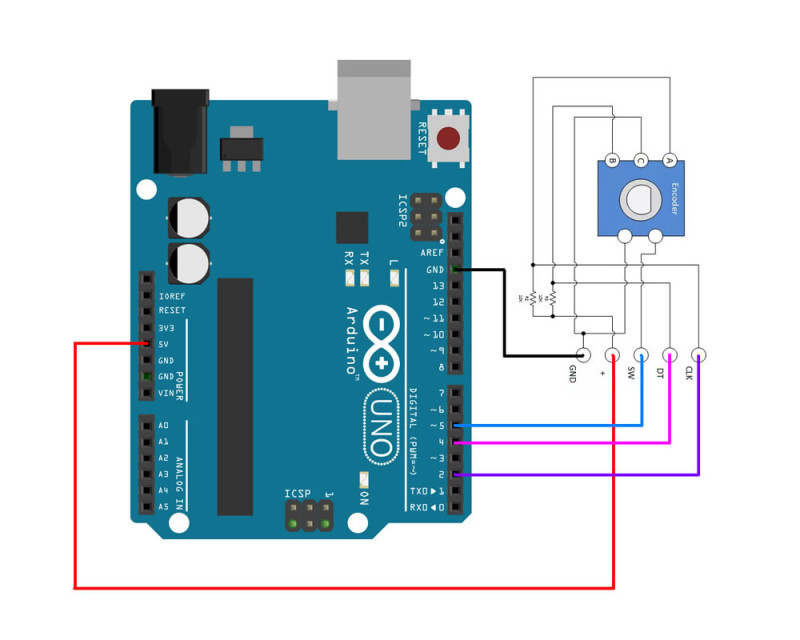

- Arduino compatible
- Different output in clockwise and counterclockwise rotations
- Number of pins: 7
- Operating temperature: -20C / 80C
- Rotation life: 30000 turns
- Switch life: 20000
- Color: Gray / Black

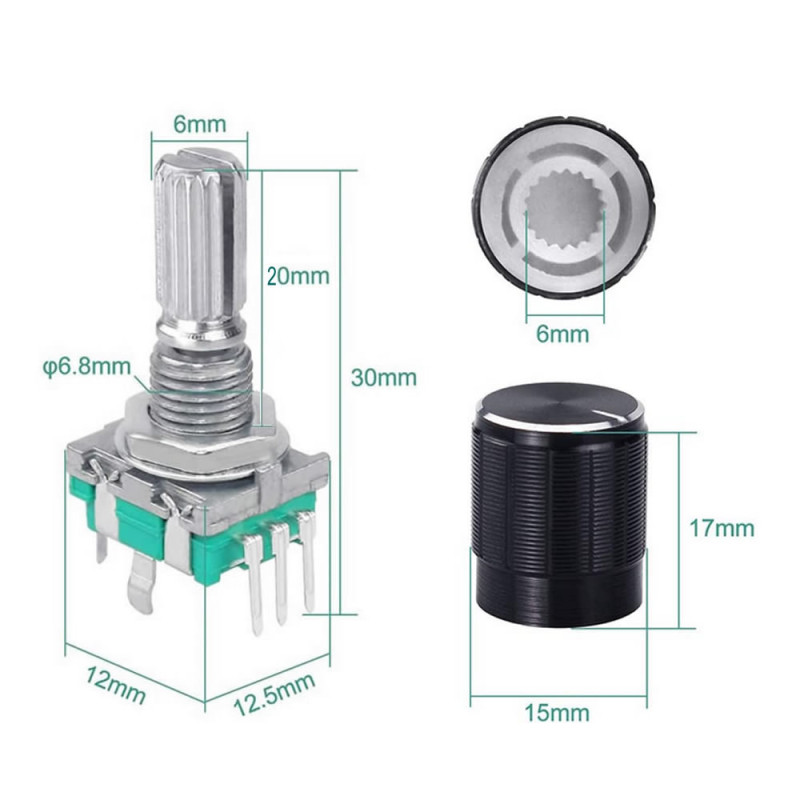

- Mounting hole: 7mm
- Shaft length 20mm
- Shaft diameter: 6mm
- Ec11 dimensions: 12mm x 12mm x 30mm
- Knob dimensions: 15mm x 17mm
- Weight: 4gr + 3gr

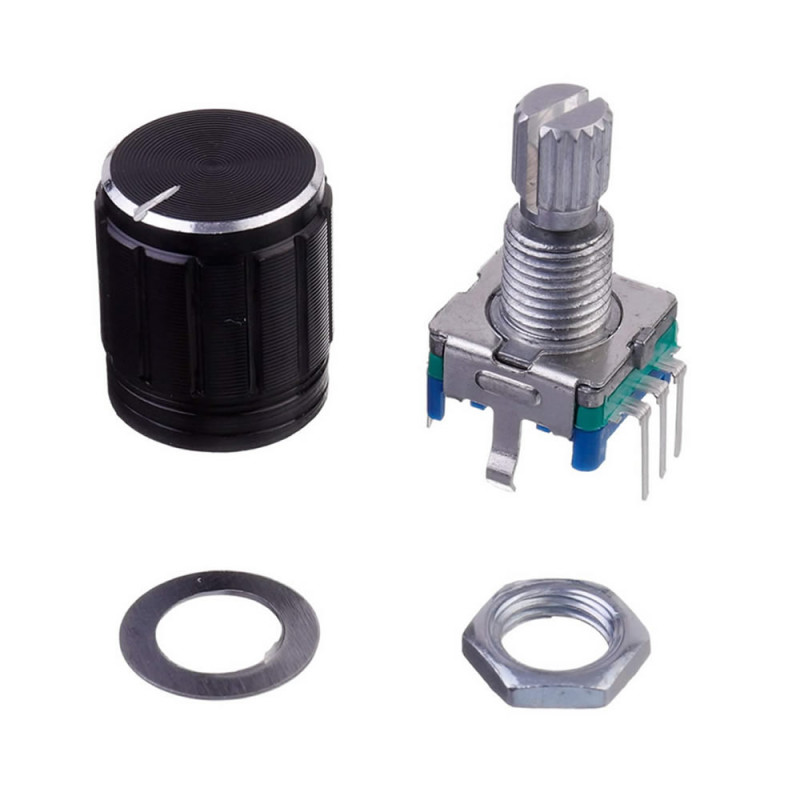

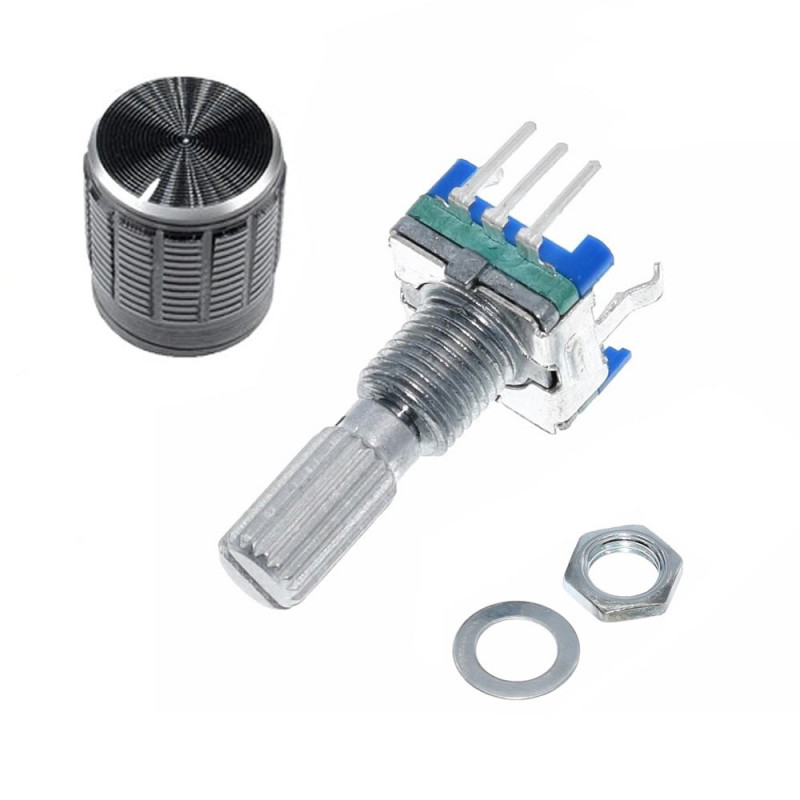

Package contents:
- 1 Piece EC11 Rotary Encoder
- 1 Piece Knob
- 1 Piece Nut and washer
