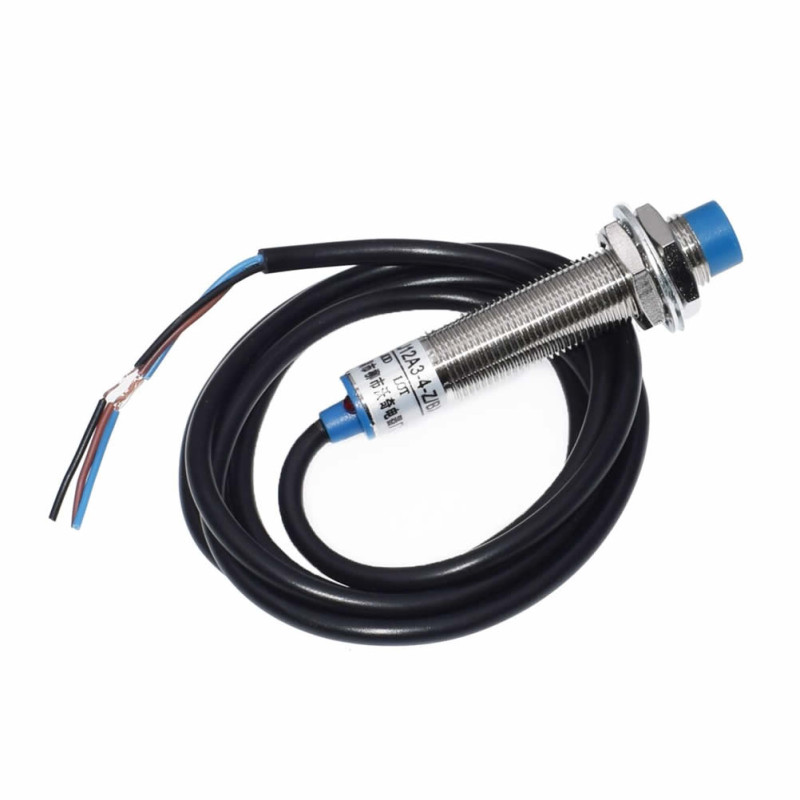

LJ12A3-4-Z/BX NPN NO 4mm Metal Detector

LJ12A3-4-Z/BX Inductive 4mm Metal Detecting Sensor NPN NO

Contactless Proximity 3 Wire DC 6V-36V Automation Industrial Control

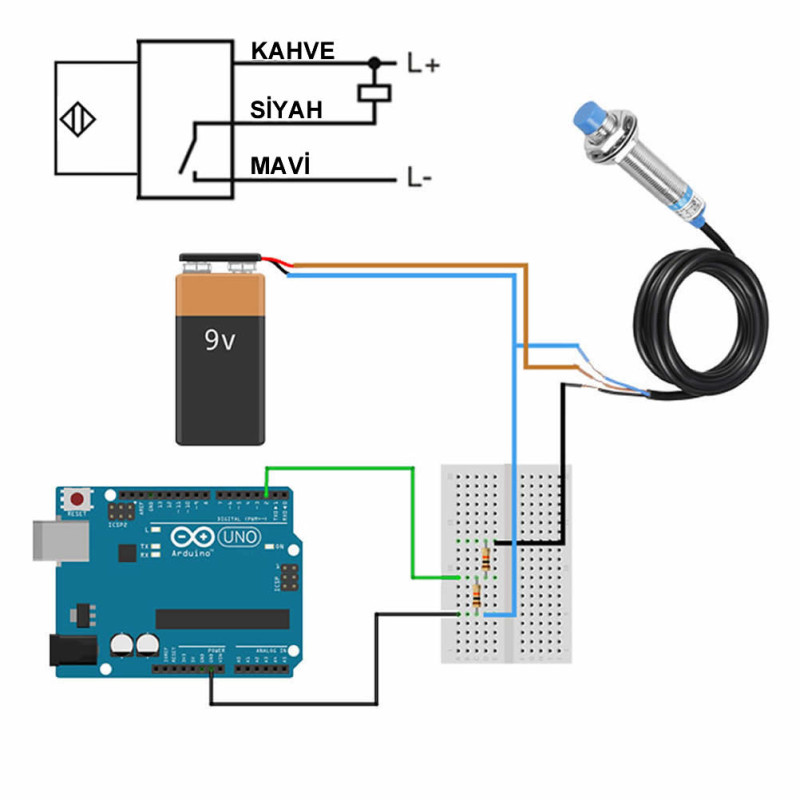

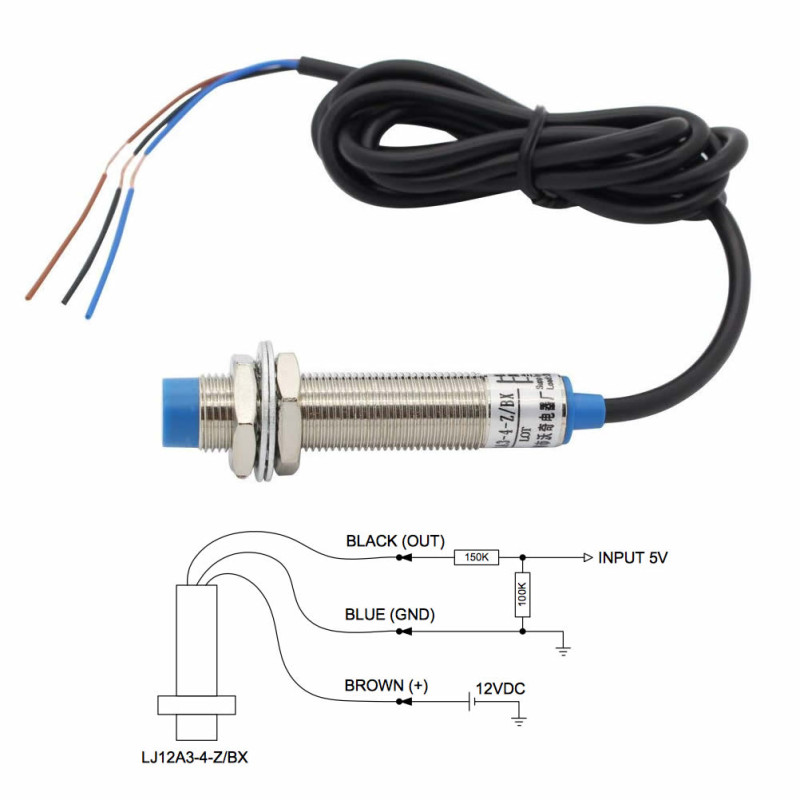

     It is an industrial type sensor that can be used to detect metal objects contactlessly from a distance of 4mm. It operates with DC 6-36V voltage. When it comes near a metal surface, the change can be tracked from the output signal terminal. As shown in some of the listing images, the output signal is lowered to a suitable level by using a voltage divider for various voltages. And this signal can be monitored digitally.

Features:

• LJ12A3-4-Z/BX
• Type:  Inductive
• Output: NPN NO (Normally Open)
• Sensor diameter: 12mm
• Detection distance:  4mm  ±10%
• Operating voltage:  DC 6-36V
• Operating current:  300mA
• Response frequency: 150Hz
• Material:  Plastic, Metal
• Cylinder type sensor head
• Cable: DC 3 Wire ( Black, Brown, Blue),
• Operating temperature:  -25C  /  +60C
• Cable length:   100cm
• Dimensions:  57mm x 12mm
• Weight:  45gr

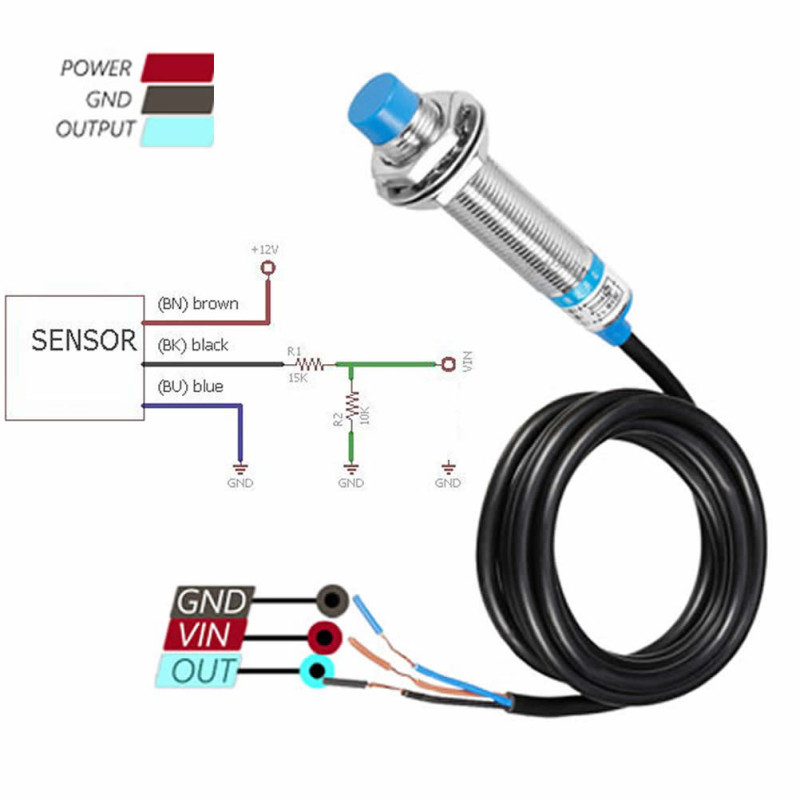

Cable connections:

•         Brown: Supply +   DC 6V-36V
•         Blue: GND
•         Black: Data Output

Package contents:

•  1 Piece  LJ12A3-4-Z/BX Inductive Distance Sensor
